Summary of Contents for OMD 5000w Tungsten

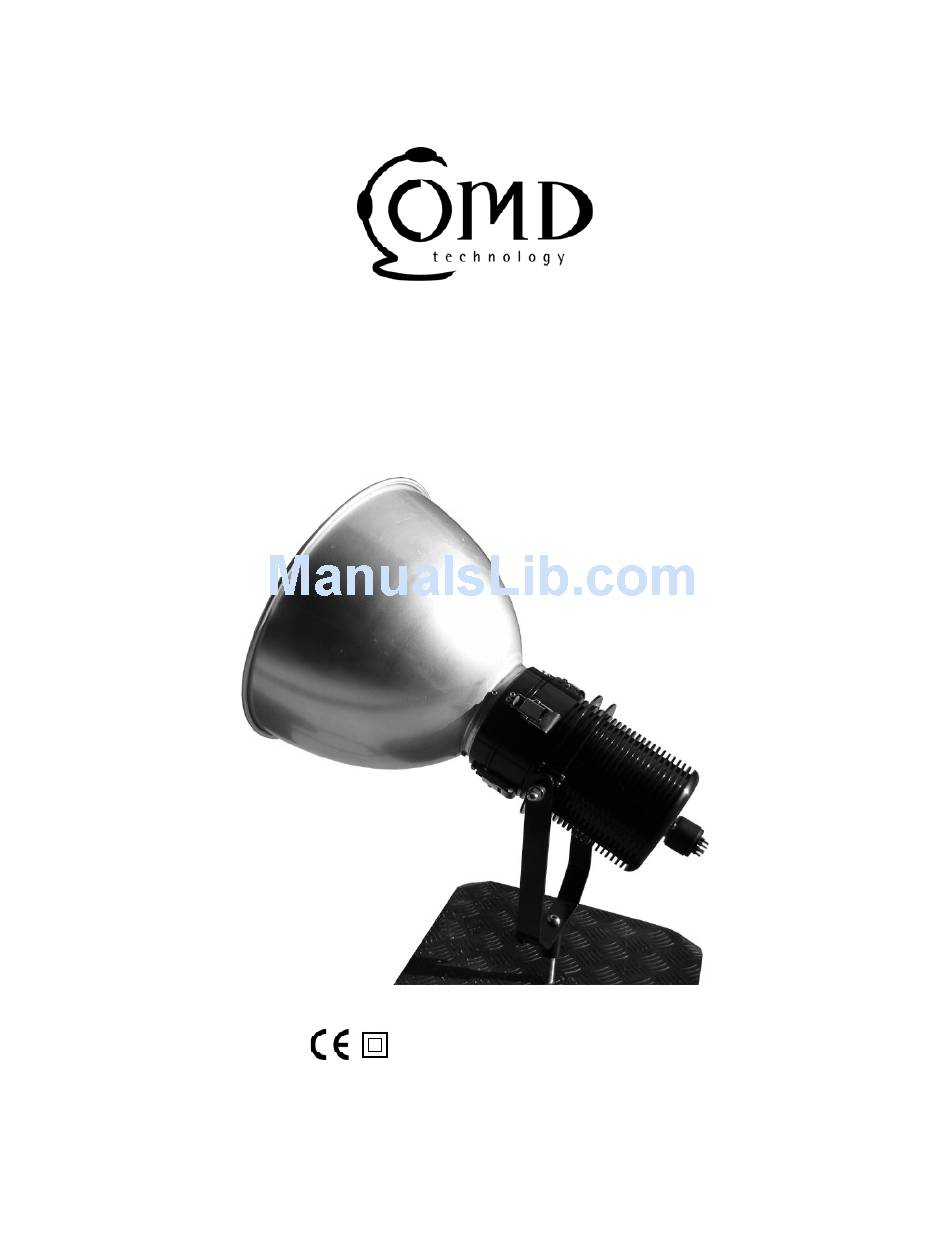

- Page 1 Instructions for use OMD Technology 5000w Tungsten Underwater Light COMPLIES WITH IEC60598.2.17 APPROVAL NO. Q031496 MADE IN AUSTRALIA www.omdtechnology.com.au...
-
Page 2: Table Of Contents
This lamp is designed for underwater use. 4. GUARANTEE Provided the following instructions for the use, care and maintenance of the OMD 5000w Tungsten light are adhered to, OMD Technology will guarantee all mechanical parts made from steel, aluminium, glass and plastic. Tungsten, Fluorescent, HMI bulbs and o-rings are consumable items and are not covered by the guarantee. -
Page 3: Article Description
Stainless steel clips should all be in the lock-down position. Simply lock back down if pulled up by fouling or transit. BAIL ARM MOUNTING CLAMP BAIL ARM LOCK OFF HANDLE Turn anti-clockwise to unlock bail arm. Do not unwind handle completely off. RECEIVER Designed for use with industry-standard 5/8 spigots. OMD Technology Instructions for Use of 5000w Tungsten... -
Page 4: Technical Specifications
Colour Temp: 3200 degrees K Depth: 100ft (30 metres) Duty: Underwater only Earth leakage: Clipsal / OMD Technology, 230-240 V 32A 2400W max, 10mA residual trip WEIGHT Weight out of Water: 6kgs (13lbs) Weight In Water: 450gms (1lb) FREIGHTING SPECIFICATIONS... -
Page 5: Preparation For Use
3. Check that globe is central to the protective glass. If not contact your supplier 4. Plug together the lamp and header cable and secure locking collar. Ensure locking collars are secure. DO NOT USE THESE TO PULL PLUG TOGETHER. OMD Technology Instructions for Use of 5000w Tungsten... - Page 6 5. Plug together the header cable and RCD box and secure locking collar 6. Test RCD box by pressing the test button OMD Technology Instructions for Use of 5000w Tungsten...
- Page 7 7. To fit supplied par reflector – if required 7a. Remove PAR reflector from road case 7b. Utilise 5mm holes to secure PAR reflector OMD Technology Instructions for Use of 5000w Tungsten...
- Page 8 7e. Ensure that the glass and the black aluminium ring don’t touch all around. If so loosen screws and re-fit PAR reflector. This is important as the glass may crack when in operation. OMD Technology Instructions for Use of 5000w Tungsten...
- Page 9 8. The light is now ready for operation. Refer to applications on page 2. OMD Technology Instructions for Use of 5000w Tungsten...
-
Page 10: Quick Guide To 8 Pin Connector
Silicone grease or spray (ONLY) can aid the process. When using OMD lighting equipment, always ensure that the supplied earth leakage device is connected. Always test the earth leakage before use by pressing the test button located next to the main switch in the earth leakage device labelled ‘TEST’. -
Page 11: Using The Light Underwater
If there is water inside the housing, cease operation immediately by turning off the light and returning to the surface. Please allow the light to cool for not less than 5 minutes before removing it from the water. OMD Technology Instructions for Use of 5000w Tungsten... -
Page 12: After Each Use
12. TRANSPORT 1. Ensure that light head is placed back into the supplied road case as it arrived. . 2. Ensure that all locking clips are in the lock-down (secured) position. OMD Technology Instructions for Use of 5000w Tungsten... -
Page 13: Troubleshooting
Please allow the light to cool for not less than 5minutes before removing it from the water. OMD Technology Instructions for Use of 5000w Tungsten... -
Page 14: Omd Technology Agents & Contacts
110 Lancefield Street, Glasgow G3 8JD, United Kingdom Tel (+44) 0141 221 5175 Fax: (+44) 0141 248 2751 PANALUX - MANCHESTER Manchester Road, Kearsley, Bolton BL4 8RL, United Kingdom Tel (+44) 01204 794000 Fax: (+44) 01204 571877 OMD Technology Instructions for Use of 5000w Tungsten... - Page 15 Tel: (+420) 2 6707 2888 Fax: (+420) 2 6707 3561 OMD TECHNOLOGY PTY LTD P.O Box 1377 Burleigh Heads QLD 4220 AUSTRALIA Tel (+61) 0755 225952 Fax (+61) 0755 225953 Cell (+61) 0 416 182 797 info@omdtechnology.com.au OMD Technology Instructions for Use of 5000w Tungsten...
