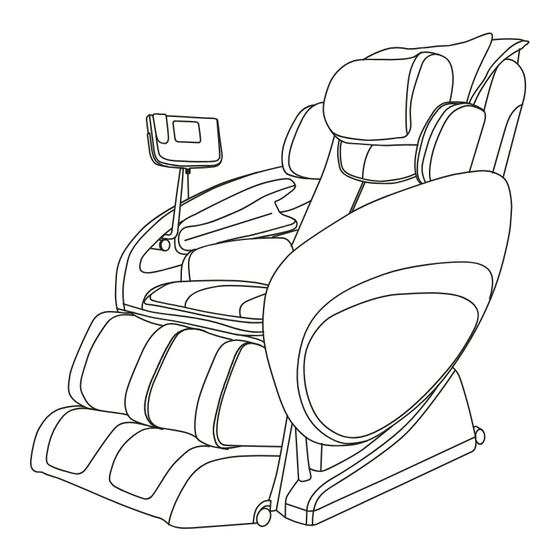

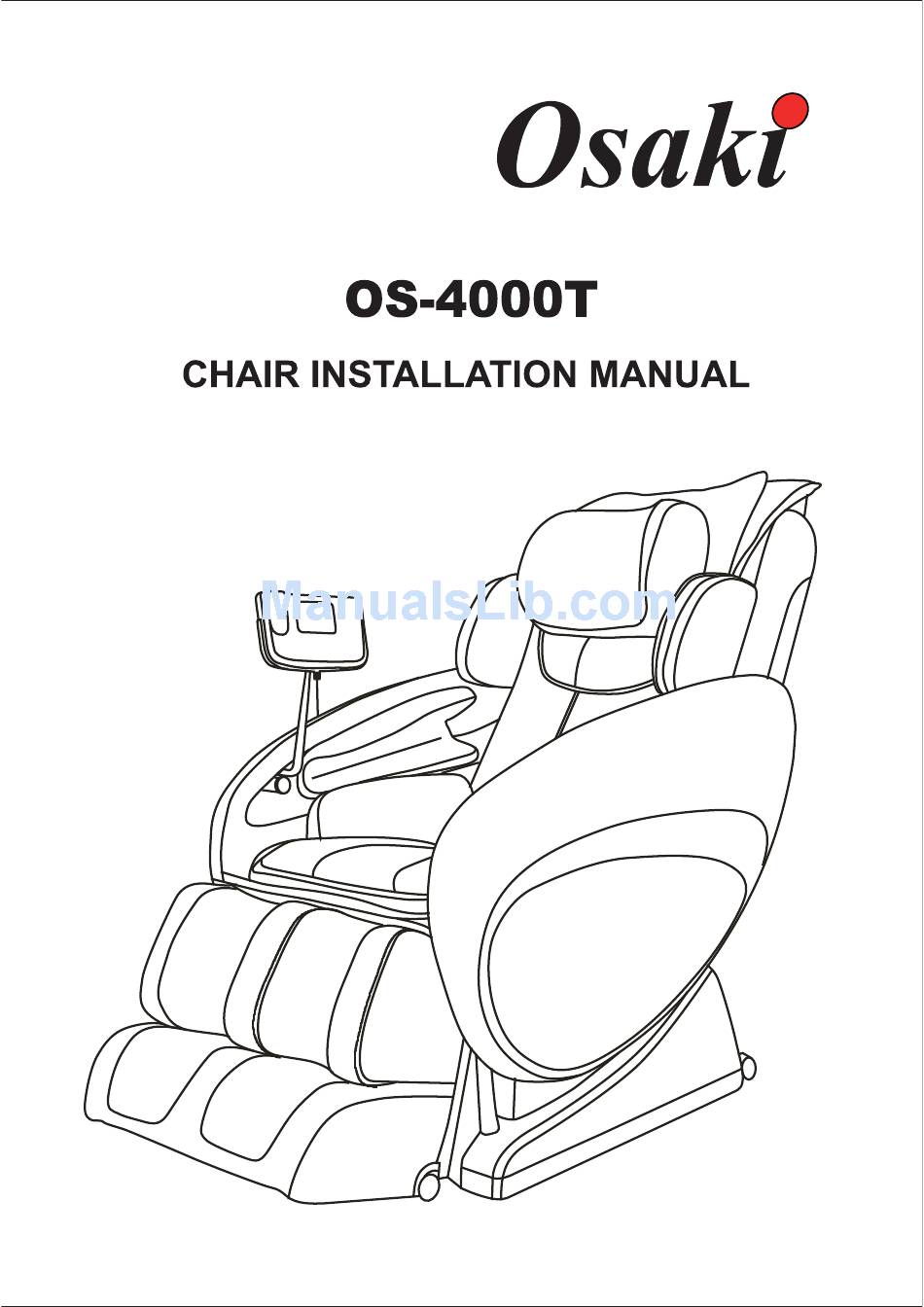

Osaki OS-4000T Installation Manual
Hide thumbs Also See for OS-4000T:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OS-4000T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Osaki OS-4000T

  • Page 2 Rear clearance Accesscories 31.5 2* M6*40mm 2* M6 washer 2* M6 spring washer 13.8 Notes Allow for at least 31.5” rear clearance behind and the chair and 13.8” in font of the chair when installing. Caution 1.Place a carpet under the chair to protect the floor and install on a flat even surface only.
  • Page 3 Step 2: Use the diagonal pliers to cut off the cable tie which binds the stopper of the backrest and take down the packing material of the backrest actuator, where both of them are located underneath the seat pad. Connect and lock backrest to bottom seat then secure position. Step 3: Connect the air hose connectors on the backrest.
  • Page 4 Step 4: Take down the packing material of the plug, then insert the wire plugs into the corresponding place in the seat according to the marks given, and make sure the wire plugs are fully connected until you hear a “click” sound. Insert black to black and gray to gray.
  • Page 5 Installation of the side panel unit Step 1: Connect side panel air hose of the side panel unit Step 2: Insert the side panel to the chair at 30 degrees.Securely lock the flat head bolts into the side holder on the seat. 30°...
  • Page 6 Inserting the fixing lugs in to the cross bar completely Step 3: Use the cable tie to unfasten the seat pad from the chair by the zipper, then lift up the seat pad. Fasten the socket screw onto the corresponding holder.
  • Page 7 Installation of remote comtroller Fix the remote controller to the holder by securing the screws. Note: The back massage strength-control pad has been inserted into the backseat cove If strong massage is desired, remove the back massage strength-control pad from the cover; this strengthens the massage. If strong massae is desired, remover the back massage strength-control pad from the cover;...
