Microwave

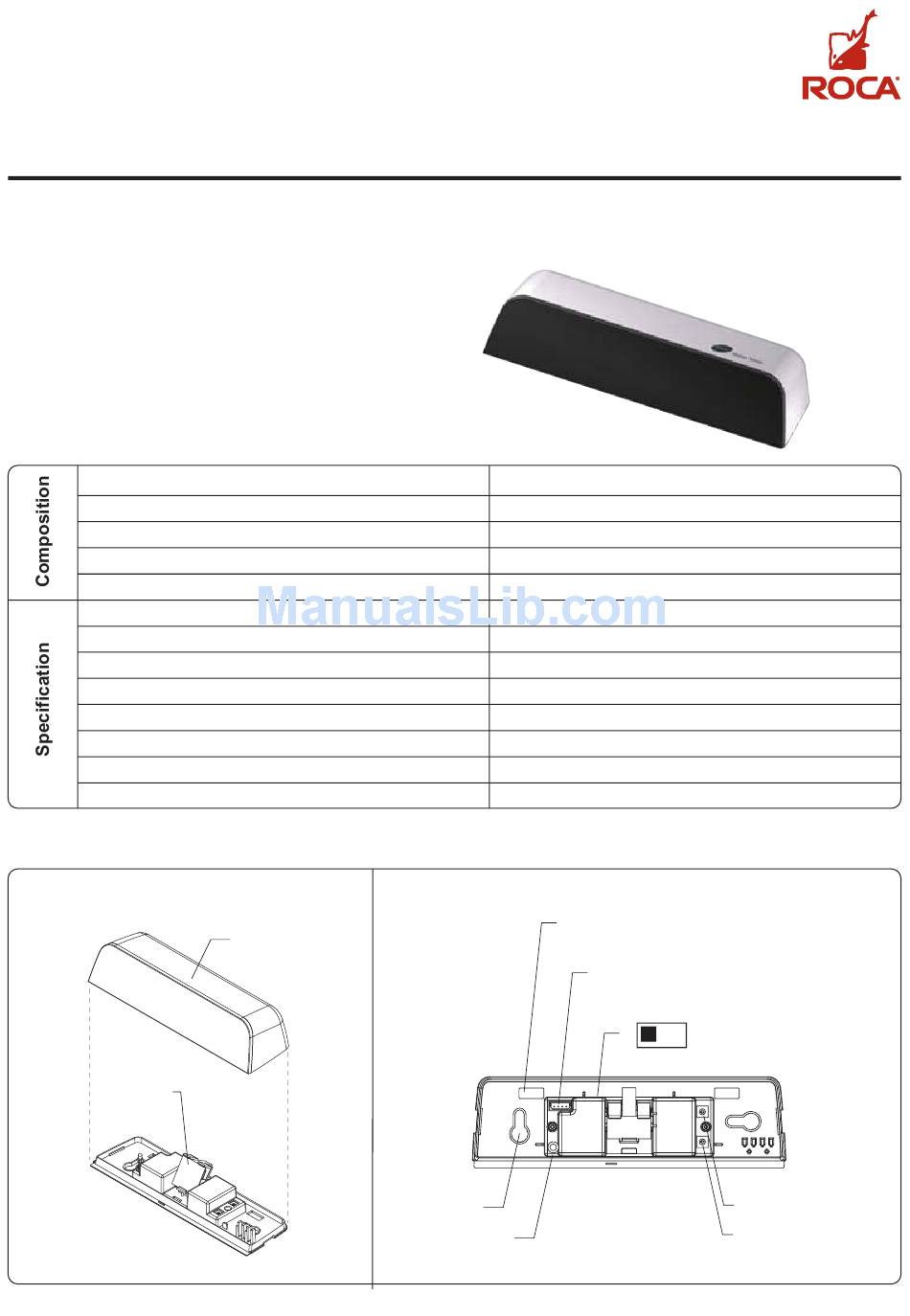

Motion Sensor(RIN-MS701)
User Manual
The product is a highly sensitive, high performance product that serves to control similar devices for the
opening and closing of automatic doors by detecting the movement of humans or objects. For the safe and
accurate use of the product, please read this instruction manual carefully.
1
Technical specifications
Microwave Motion Sensor
Screw
Mounting Template
Cable
Instructions
Power supply
Current consumption
Microwave module
Contact capacity
Hold time
Max Install height
Detecting feild
Operating Tem/Humi
2
General Information
Sensing
Module
Case
Screw Hole
1EA
2EA
1EA
1EA
1Copy
DC12~30V, AC12~24V
150mA(DC12V , +25℃)
24.125GHz
0.5A/125VAC, 1A/24VDCVDC
1.2 ~ 20 Sec. (Standard:1.2Sec.)
3.0M
4 * 3 (W * D) (2.2M Height 2.2M)
-20℃~+50℃/0~90% (Non condensing)
Cable Hole
Connector
NO NC
LED
< Default value : NO >
Sensitivity volume
Hold time volume
3
1
4
4
6
8
1
