Operating Instructions
This product is an accessory or part of a system. Always read and follow the
manufacturer's instructions for the equipment you are connecting this product to. Comply with
all applicable codes and safety regulations. Failure to do so may result in damage, injury or
death!
Advertisement
Table of Contents
Summary of Contents for EMX Industries, Inc. LR652
-
Page 1: Operating Instructions
Operating Instructions This product is an accessory or part of a system. Always read and follow the manufacturer’s instructions for the equipment you are connecting this product to. Comply with all applicable codes and safety regulations. Failure to do so may result in damage, injury or death! -
Page 2: Product Overview

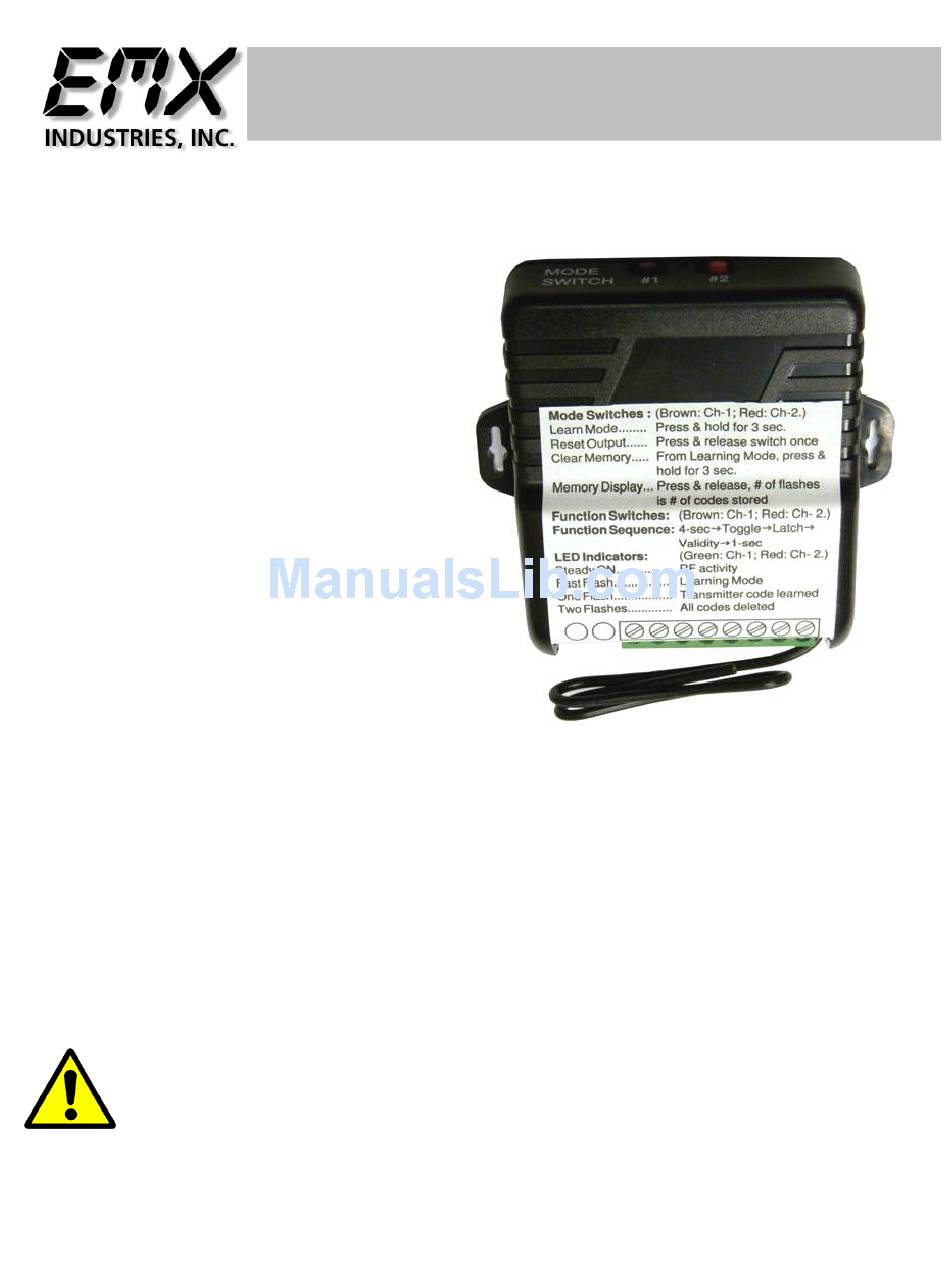

Product Overview The LR652 wireless receiver meets the growing demand for receivers with multiple and independently controlled output functions. These RF receivers are compatible with both code hopping and fixed code transmitters (see page 6 of this manual for a list of compatible transmitters). The receivers can be used to control a variety of home automation devices such as garage door openers, lights, motorized gates, lifts, or other devices remotely. - Page 3 Programming Remotes Each receiver channel can learn the codes of up to 15 different transmitters on a first-in, first-out basis. Below is the procedure for teaching a new transmitter button. 1. Press the channel mode switch for 3 seconds or more. The channel LED will start to flash quickly to indicate that it is in programming mode.
- Page 4 Programming Relay Functions (continued) Selecting the relay output mode Remove the top cover by depressing the tabs in the bottom cover at the mounting tabs. Hold down the function switch (see location in picture bottom right of page 3) for 3 seconds, the LED will blink indicating the current output mode.
- Page 5 Sample Wiring Connections 1. Using the Toggle Mode to turn on a light or other AC powered device up to 10 Amp current draw. 2. To open a gate or door using channel 1 and close with channel 2. CHANNEL 1 outputs CHANNEL 2 outputs LR 652 Operating Instructions Document no.
-
Page 6: Trouble Shooting Guide
Trouble Shooting Guide Problem Possible cause Solution Does not detect transmitter Low battery power in transmitter New battery in transmitter Antenna wire is still folded Straighten antenna wire Signal is blocked by obstruction Make sure unit is not mounted on or inside metal or near magnetic source i.e. - Page 7 Installer Notes Please record transmitter codes to help us in the event you need replacements Transmitter Codes Channel 1 Transmitter Codes Channel 2 LR 652 Operating Instructions Document no. REV 1.2 Date 09/04/2013...
- Page 8 4564 Johnston Parkway Cleveland, Ohio 44128 United States of America http://www.emxinc.com Technical Support Telephone (216) 834-0761 E-mail: technical@emxinc.com Sales Telephone (216) 518-9888 Fax (216) 518-9884 E-mail salessupport@emxinc.com...
