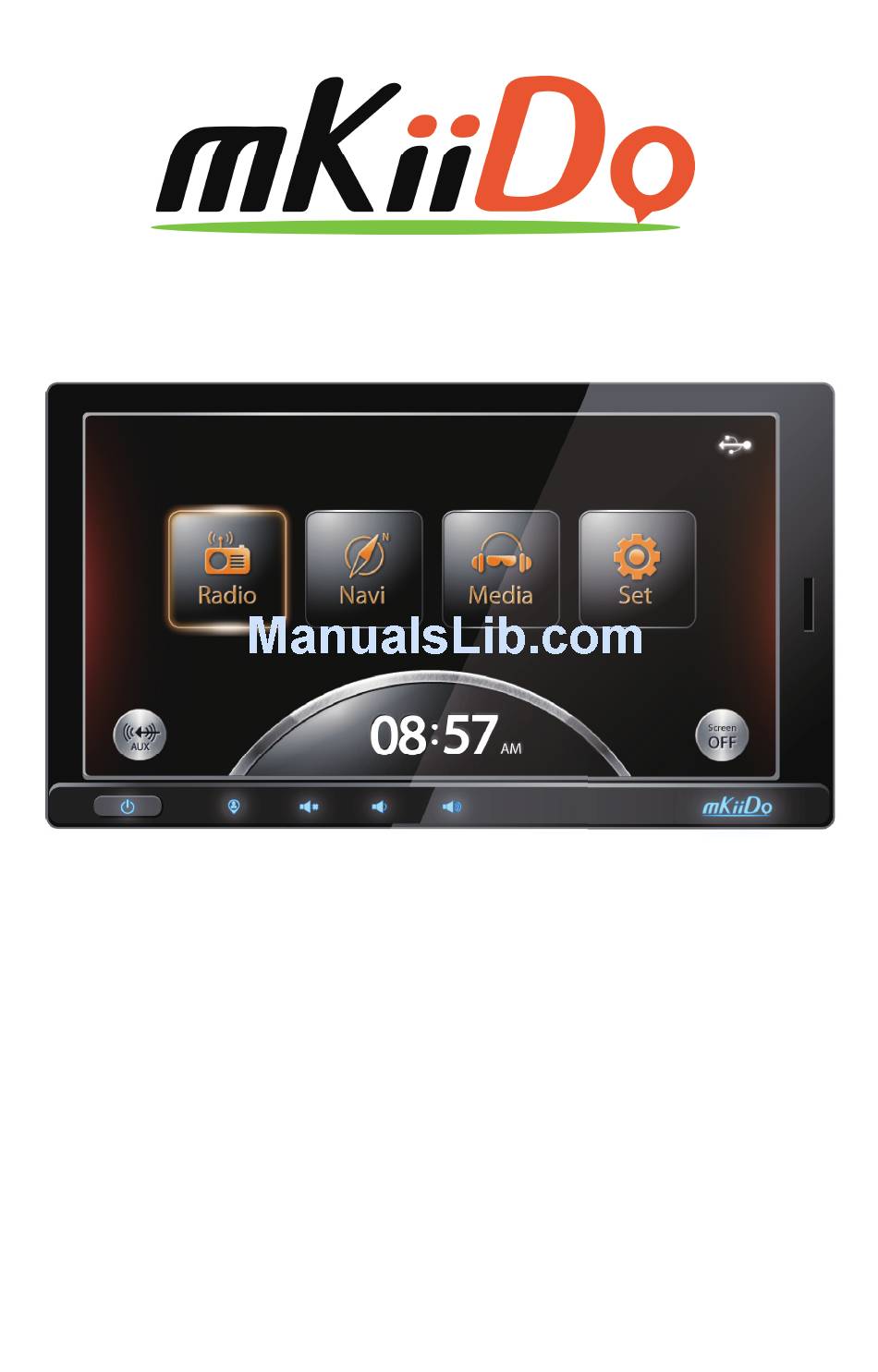

Page 1 7-inch Multimedia Navigation System Product Operation Manual...
Page 2 Welcome to use mKiiDo product -Multimedia Navigation System...
Page 3 Warning! ◆ Before uploading or unloading the machine, please shut down the car power. ◆ I n m a i n te n a n c e , p l e a s e p ro c e e d i n a situation without power to prevent from unnecessary loss.
Page 4: Table Of Contents
Contents Notes............Product Introduction......Front Panel Synopsis and Operation Description......Main Menu..........Radio............Multimedia Play........Settings............. Multimedia Digital Box....... Troubleshooting........Contents...
Page 5: Notes
3. The driver shall NOT operate or watch any video when driving to avoid jeopardizing traffic safety. 4. Please visit the After-Sales Service page in the official website www.mkiido.com to download machine operation and navigation operation manuals. Notes...
Page 6: Product Introduction
7 - i n c h T F T LC D w i t h 8 0 0 x 4 8 0 h i g h resolution (16:9) Power supply input DC 12V Output power 50W 4Ωx4 mKiiDo operation system Product Introduction...
Page 7: Front Panel Synopsis And Operation Description
Front Panel Synopsis and Operation Description 1. Power supply switch/Main menu screen Operations: a. Stand-by state, gently press machine switch b. Power-on state, gently press to switch to the main menu interface, long press 2 seconds to turn off machine 2.
Page 8 3. Mute control key Operation: mute activation / mute release 4. Volume decrease key Operation: volume decrease (range 0~40) 5. Volume increase key Operation: volume increase (range 0~40) 6. Navigation SD card slot Operation: isert navigation SD card here Front Panel Synopsis and Operation Description...
Page 9 ★ Exception clause: (clients please read carefully) 1-1. The downloaded file formats supported by this player are only: Video Audio AUDIO/ Support Versions support formats VIDEO ratio formats MPEG MPEG A / V 8Mbps / SYSTEM/ 10Mbps/ PROGRAM/ 8Mbps TRANSPORT A / V 3Mbps Advanced...
Page 10 GPS machine manufacturer. 6. The rights of interpretation for clause 4 in the clauses stated above belong to PAPAGO Inc. and mKiiDo MKD Technology Inc. according to navigation map information selection, respectively. Front Panel Synopsis and Operation Description...
Page 11: Main Menu
Main Men The main menu is shown when power-on with 4 selection icons, inclusive of Radio, Navi, Media, and Set. The concrete operations are as below: 1. Click the Radio button in the main interface to enter radio tuning mode (AM/FM). 2.
Page 12 : Turn off the screen. Click any place in the screen to turn on the screen : Capable of playing/blocking audio source input devices. Main Menu...
Page 13: Radio
Radio Touch “Radio” button in the main interface to enter “Radio” interface: ”Radio” has two bands, FM and AM, with total 36 stations pre-stored. FM and AM may each pre- store 18 stations. Each page shows 4 channels for turning pages to select channels. Radio...
Page 14 : Downwards automatic search : Upwards automatic search : Scan : Return to the first page : Turn page upwards : Turn page downwards : Direct tuning After pressing, numeric setting appears on the right side, select the frequency and press execution to finish.
Page 15: Multimedia Play
Multimedia Play Touch “Media” button in the main interface to enter “Media” interface. Media Play...
Page 16 ：X2、X4、X8、X16、X32Media Play ：Play/Pause ：X2、X4、X8、X16、X32Fast forward switch ：Hide lists/Show lists : Turn pages upwards : Turn pages downwards : Return to the upper layer content : Repeat all/Repeat directory/ Repeat one : Random play/Sequential play : Filter (all/music/video/ picture) Media Play...
Page 17 When playing a multimedia video such as MP4, half screen or full screen display mode may be selected by clicking button, as the picture shown in the next page. Media Play...
Page 18 Click any place on the screen when in the full screen mode to return what shown in the above picture. Media Play...
Page 19: Settings
Touch “Set” button in the main interface to enter “Settings” interface: There are messages of six setting options, Voice Equalizer Setting, Voice Balance Setting, Display Setting, Volume Setting, Display Language Setting and Clock Setting, and Version Message and About mKiiDo in the “Settings” interface. Settings...
Page 20 Click the “Voice Equalizer setting” button on the “Settings” interface to enter the interface below: Touch the Low Pitch button to tune low pitches ranged from -7 to 7 for the change of low pitch. Touch the High Pitch button to tune high pitches ranged from -7 to 7 for the change of high pitch.
Page 21 Click “Voice Balance Setting” button on “Settings” interface to show the interface below: Said function is about voice balance control t o change the output balance of fully right (fully left) or fully front (fully back) channel. Front range: 0~7 Back range:0~7 Left range:0~7 Right range:0~7...
Page 22 Click the “Display Setting” button in the “Settings” interface to show the interface below: The appropriate screen brightness may be selected through touching Daytime, Nighttime, or Automatic. Click Touch Screen Correction, a "+" cursor appears on the center of the screen, clock the "+" cursor, move sequentially to the upper left corner, the lower left corner, the lower right corner and the upper right corner, and finally move to the...
Page 23 C l i c k “ Vo l u m e S e t t i n g ” b u t t o n o n t h e “Settings” interface to show the interface below: Power-on volume: : Press this button to decrease the power- on volume : Press this button to increase the power- on volume (range: 0~40)
Page 24 C l i c k “ Vo l u m e S e t t i n g ” b u t t o n o n t h e “Settings” interface to show the interface below: Select language type – Traditional Chinese or English: 1.
Page 25 C l i c k “ C l o c k S e t t i n g ” b u t t o n o n t h e “Settings” interface to show the interface below: The clock setting is divided into 12-hour and 24- hour systems.
Page 26: Multimedia Digital Box
Multimedia Digital Box 1. AUX-IN audio source hole： Support audio inputs such as iPod、iPad、 iPhone….etc. 2. USB interface slot： Support USB2.0 inteface. 3. USB switch function ： Switch to left, to read stored data. Switch to right, to support Smart Phone charging functions such as iPod、...
Page 27: Troubleshooting
Troubleshooting 1. Poor read for Micro SD card: Check if the navigation map information Micro SD card is inserted into GPS SD slot correctly, or Micro SD card has not yet been formatted or the file is damaged. 2. Incapable of reading USB: Please make sure if the FLASH drive is inserted correctly or the storage device malfunctions.
