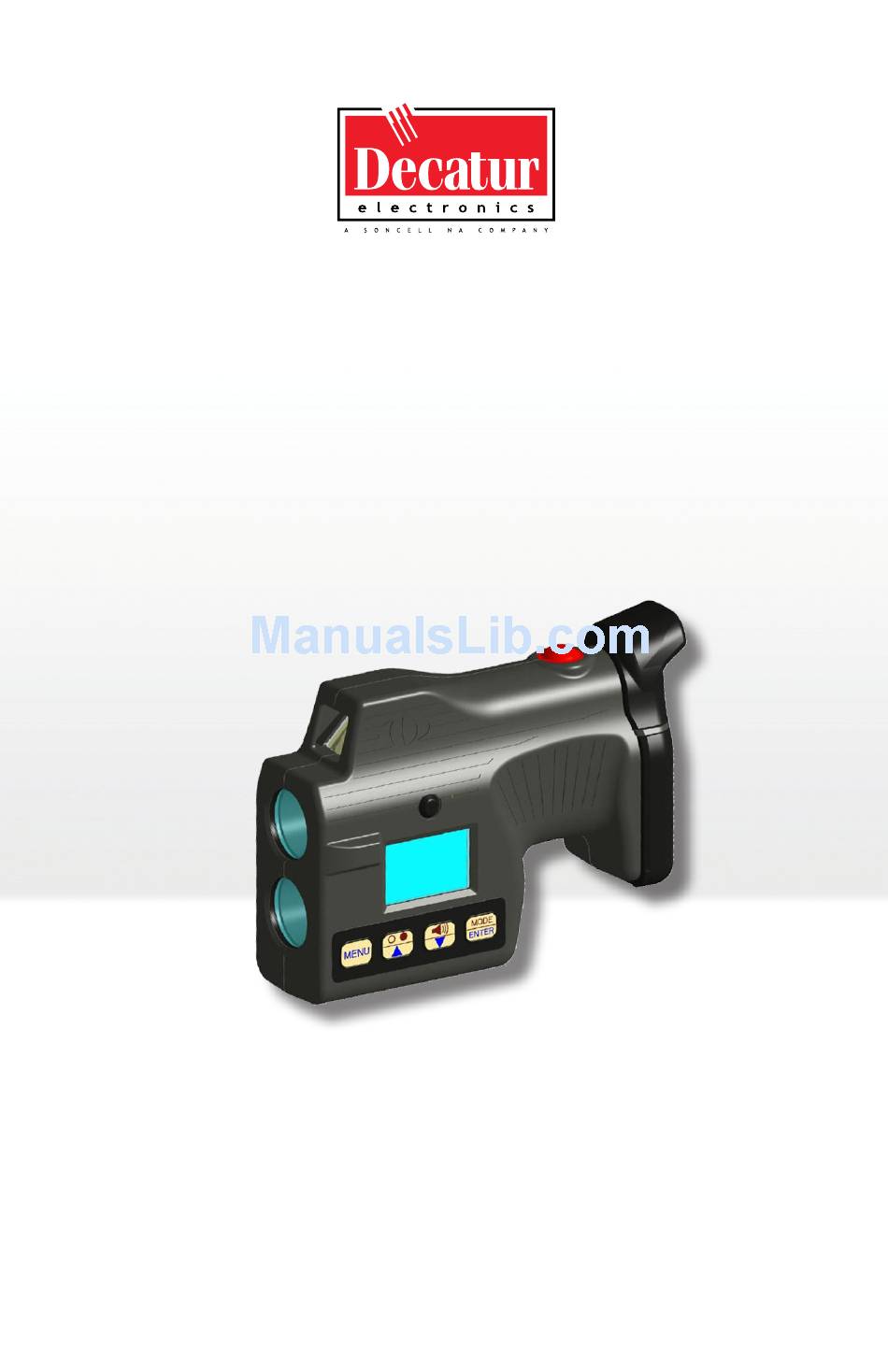

- Page 1 DragonEye Compact Speed LIDAR User’s Manual Rev 10/25/2012...
- Page 3 DragonEye Compact Speed LIDAR User’s Manual...
-
Page 4: Table Of Contents
Welcome to Decatur Electronics . . . . . . . . . . . . . . . . . . . . - Page 5 6 .2 Weather Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 6 .2 .1 Normal Weather Mode .
-
Page 6: Welcome To Decatur Electronics
Welcome to Decatur Electronics, Inc. Thank you for choosing the DragonEye Compact— A highly advanced speed LIDAR that will reward your department with years of dependable service . We urge you to study this manual before using the DragonEye Compact so you can maximize the benefits of this sophisticated LIDAR device . We believe you will be pleasantly surprised by the features and advantages . If you are as pleased with its performance as we think you will be, ask your Decatur sales representative about other products including the Decatur Genesis™ line of radars, the Onsite™ line of speed trailers, dollies, and pole signs and the Responder™ line of in-car video systems . —The Management and Staff at Decatur Electronics, The Nation’s Oldest Radar Company... -
Page 7: About This Manual
About This Manual This manual contains valuable information to help you set up, use and maintain your LIDAR, so you can optimize its life and keep it at peak performance . Please take a moment to read through it, and keep it handy for future reference . Note the following symbols in this manual: Indicates a warning message about safety precautions . Please read it carefully . Indicates a helpful tip, notice or precaution to note . 1. Safety Information All service needs should be referred back to the manufacturer . GENERAL WARNINGS • When replacing batteries in the DragonEye Compact you should replace both batteries with new ones even if you suspect that only one cell is defective . • Use rechargeable Nickel-Metal-Hydride or high quality Alkaline AA-cell batteries only . • Opening the DragonEye Compact (other than battery replacement) automatically voids any warranty still in effect . There are no user serviceable parts inside . - Page 8 NOTICES AND PRECAUTIONS The DragonEye Compact Speed LIDAR is a Class 1 Laser product in accordance with U .S . 21CFR parts 1040 .10 and 1040 .11, which is safe for use in all intended operation modes . However, standard precautions should always be taken with laser products: • Avoid staring into the output aperture of the device . • Avoid directing the LIDAR at other individuals for prolonged periods . • Do not direct the output of the LIDAR at anyone using optical instruments such as binoculars as this will increase the risk of eye hazard . • Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure . • Do not point the device at the sun! Do not aim the LIDAR directly at the sun as this could damage the internal components .
-
Page 9: Receiving Inspection
2. Receiving Inspection • When you receive your unit, inspect all components for freight damage that might have happened during shipping or unloading . • Notify the freight company immediately of any damage, preferably while the driver is present . Record the damage on the bill of lading and keep a record of the problems or damage . Take pictures to document any damage . • The package should include the following pictured items along with this User’s Manual . Two "AA" Cell batteries DragonEye Compact speed LIDAR Soft Pack Carry Pouch (Pouch style may vary) If your DragonEye Compact LIDAR was ordered with any special accessories, please check for those items and for any packing lists or special instructions that might be included with those additional items . -
Page 10: Getting Started
3. Getting Started 3.1 Introduction The DragonEye Compact is a high performance electro-optical LIDAR providing accurate speed and distance measurements custom designed for the law enforcement community . The LIDAR provides pinpoint target identification via its clear heads-up display targeting system and fast target acquisition using sophisticated, robust data processing algorithms . The DragonEye Compact was designed for compact, light-weight operation and long battery life . It provides numerous useful settings and features including advanced ECCM (Electronic Counter Counter Measures), inclement weather modes and a USB interface for easy data interface and upgrades . 3.2 Diagrams, Controls and Displays Use the diagrams and descriptions in this section to quickly familiarize yourself with the DragonEye Compact LIDAR controls and features . The following diagram shows the location of the key external features of the device . Figure 3.2 DragonEye Compact Layout... -
Page 11: Display Descriptions
3.3 Display Descriptions The following figures show typical displays for both the side panel and the HUD (Head-Up Display) . Special menu displays and HUD indicators will be covered in their respective selections of this manual . 3.3.1 Side Panel Display (LIDAR in Speed Mode) Figure 3.3.1 Side panel 3.3.2 Head-Up Display (LIDAR in Speed Mode) Figure 3.3.2 Head-Up Display... -
Page 12: Controls And Indicators
4. Controls and Indicators The DragonEye Compact LIDAR has an ergonomically styled grip with a top mounted laser fire trigger and an easy to use side panel keypad and display to select modes of operation and tailor settings for particular conditions . The most frequently used functions have been assigned a dedicated button to allow for extremely fast setup and operation . Following is a description of the available controls for your LIDAR system . Additional details are provided in the "Advanced Controls and Modes" section . 4.1 Laser Fire Trigger The Laser Fire Trigger is used to turn-on the DragonEye Compact LIDAR when the unit is off and to initiate laser firing when the unit is awake and ready . Simply press and release the trigger and the LIDAR will wake up and be ready to fire in a fraction of a second . • If the unit has been off for an extended period or new batteries have just been inserted, the device will automatically run the Self Test routine . 4.2 Keypad Controls All remaining controls are on the keypad located on the side of the LIDAR, under the display . The following diagram shows the location of the various buttons . Further descriptions of the button functions are detailed in the following sections . • Some control buttons are dual use and their secondary function is indicated by the blue symbol located below the primary symbol on the button . These secondary... -
Page 13: Mode Control
Figure 4.2 Keypad 4.2.1 Mode Control Pressing toggles between Distance and Speed Measurement Modes . In Speed Mode the side display will show "MPH" and "FT" for Miles-Per-Hour and Feet; or "KPH" and "M" for Kilometers-Per- Hour and Meters for devices programmed with SI units . In Range Mode the display will simply show "FT" or "M" for range measured in Feet or Meters . • The LIDAR is factory set for English (mph) or SI (metric) units and cannot be changed by the operator . 4.2.2 HUD Brightness Control Use the button to toggle through the six HUD brightness levels . (Note: Level 1 and Level 2 are typically used for night operation only and will most likely not be visible in normal daylight conditions!) 4.2.3 Side Panel Display Backlight The backlight for the side panel display is fully automated and does not have an on/off control . The backlight will be illuminated... -
Page 14: Volume Control
4.2.4 Volume Control The button toggles through the three volume levels for the audible target tracking indicator . Use Level 1 to set audio OFF . 4.2.5 Menu/Exit Menu The button is used to enter and exit the LIDAR's Menu system . The Menu system allows the operator to adjust certain parameters and features as well as enter the Time/Distance mode . (See "Advanced Controls and Modes") . After the Menu button is pressed, the blue functions on the dual use buttons become active . To exit the Menu system without making changes, press the again . The general description of blue function buttons are as follows: 4.2.6 Up and Down Arrows While in the Menu system, the buttons are used to navigate through the menu options, to highlight a desired item, or to scroll through various values . 4.2.7 Enter Button The button is used to select or activate a particular menu item or value . 4.3 Battery Voltage Indications When the LIDAR unit's batteries begin to run low on power, the battery indicator will illuminate on both the side panel display and HUD . (The side panel low battery symbol will be partially filled... -
Page 15: Jam / Ecm Attempt Indication
When the batteries reach the end of their capacity, the side panel will display: Battery Voltage Critical Shutdown in 5 Seconds Figure 4.3 Side Panel showing batteries need replaced The Unit will then automatically countdown to turn off . • Significant gains in battery life can be realized by setting the audio and HUD brightness settings at the lowest levels required for your environment . 4.4 Jam / ECM Attempt Indication The DragonEye Compact LIDAR contains sophisticated counter measures to defeat LIDAR "Jamming" devices available in the consumer market place, while continuing to display accurate speed readings . The system also indicates when a jammer or other Electronic Counter Measure (ECM) is detected on the target vehicle by displaying the phrase "Jam ECM" on the rear display and flashing the " " symbol in the HUD . Note that extremely bright surfaces on the target vehicle, such as high beam headlights or sun reflections can cause the jam indicators to turn on . If you experience any difficulty locking in a speed reading when "Jam" is indicated, try moving the HUD aiming point to another location on the vehicle . -
Page 16: Basic Operation
. Replace the rubber batter cover and press the snap in place . Figure 5.1 The DragonEye Compact LIDAR is Battery Installation designed to use quality alkaline "AA" cells from brand name manufacturers. The device also functions with rechargeable NiMH "AA" cells commonly available at consumer stores. -
Page 17: Selecting Speed Mode
• If the LIDAR is inactive for approximately 30 seconds, it will automatically transition into sleep mode to conserve battery life . If this happens, simply click the fire trigger again to wake up the unit . 5.3 Selecting Speed Mode The LIDAR will normally power up in "Speed" mode, unless it was recently used in a different mode . If "Speed" mode is not displayed on power up, simply press until the side panel displays: Figure 5.3 Side Panel indicating Speed Mode is active 5.4 Using the HUD Sighting System The Head-Up display provides a precision aiming reticle, speed reading, and other status information . To find the sighting reticle, press and release the trigger to wake up the LIDAR and look directly through the HUD letting your eyes focus on a target well in front of the LIDAR unit . If you haven't used a HUD device before, it might take a minute or two for your eyes to adjust the first time . Figure 5.4 HUD aiming... -
Page 18: Roadside Setup
• Make sure the LIDAR's brightness setting is on medium or high if working in daylight .) . The LIDAR's laser beam is invisible, but will be contained within the aiming reticle . This is your aim point for target vehicles . 5.5 Roadside Setup When first learning to use the DragonEye Compact LIDAR, it is best to select a straight stretch of roadway with a line of sight of 500 ft (150 m) or more . Approaching or receding vehicles should be targeted such that your line of sight through the HUD is as parallel as possible to the path of the target vehicle . This will minimize the "cosine effect" as described in Chapter 10 of this manual . • The cosine effect applies to both RADAR and LIDAR systems and always results in a slightly lower than actual reading . . A good rule of thumb for approximately straight roadways is to target a vehicle at a range which is at least ten times the operator's perpendicular distance to the vehicle's lane of travel . For example, if the operator is 30 feet (9 m) from the vehicle's lane of travel, the vehicle should be targeted at 300 feet (90 m), or greater . This would result in a measured speed reading which was approximately 0 .5% less than actual . 5.6 Measuring Vehicle Speeds For approaching targets, aim the LIDAR's reticle at the front grill or front license plate of the vehicle . Good targets for receding vehicles are the license plate or tail lights . Use the boundaries of the reticle... -
Page 19: Speed Display Lock
You may hear an intermittent audible tone as the LIDAR searches for a valid target signal . You will also see "----" displayed in the HUD indicating the laser is firing and a reading is being acquired . Once target vehicle data is identified, the LIDAR will product a continuous lower frequency tone . When the data from the vehicle reaches an acceptable accuracy level, audible tone will switch to a continuous, higher frequency and the vehicle speed reading will be displayed in the HUD and on the side panel . • At typical distances the acquisition sequence can happen very quickly and you may simply hear the high frequency tone and see the speed display immediately . A positive speed reading will be shown for an approaching vehicle, while receding vehicles are indicated with a negative reading . (Both the HUD and the back panel will show a "-" sign for receding vehicles.) The DragonEye Compact LIDAR will continuously update the target's speed reading at an approximate rate of 3 times-per-second as long as the trigger is depressed and the data quality is acceptable . While not required, it is recommended to track the vehicle for at least 1 second to establish robust confidence in the speed reading . 5.7 Speed Display Lock Once a desired speed reading is acquired, the operator can "lock" the speed reading on the side panel display by simply releasing the laser... -
Page 20: Range Mode
speed reading is locked, the unit will go into a sleep mode, turning off the HUD and displaying "Power-Save" on the side panel along with the locked reading . In the Power-Save state, a first laser trigger press and release will "wake" the LIDAR but retain the locked reading . A second trigger press will then clear the reading . This feature is intended to aid in preventing the operator from accidentally clearing the locked reading . 5.9 Range Mode The LIDAR system can be used to measure distances to a variety of targets . To enter Range Mode, press the Mode Button until the side panels displays: Figure 5.9 Side Panel indicating Range Mode active Use the aiming reticle in the HUD to select your desired target . Squeeze and hold the trigger down until a range reading is displayed in the HUD and on the side panel display . The trigger may be continuously held down as the unit is moved from target to target for quickly checking multiple ranges . The last range reading in the display is locked when the trigger is released . Range readings are displayed in tenths of a foot on the side panel and in the HUD up to 999 .9 feet (or 999 .9 m) . Above this, range readings are displayed to the nearest integer foot or meter . The maximum target distance is 3000 feet (914 m) which can be obtained from highly reflective surfaces such as retro-reflective road signs or vehicle tail lights/license plates . The range to non-retro- reflective targets will vary depending upon their infrared reflectivity . -
Page 21: Advanced Controls And Modes
6. Advanced Controls and Modes 6.1 Self Test Initiation Press to enter the system menu options . "Self Test" is displayed as the first menu option . Press to initiate the Self Test sequence . All critical internal timing electronics and software components are checked . Also, all display components are illuminated to allow the user to verify proper operation . A pass or fail indication is given at the end of the self-test . A "pass" indication then returns the operator to the current mode of operation, while a "fail" indication will halt operation indicating the need for service . 6.2 Weather Modes Press the button, and then use the up/down arrows to select "Weather" . Press Enter to select "Weather" then use the up/down arrows to select "Normal" or "Poor" . Press the Enter button to confirm your choice and exit back to your current mode of operation . The weather modes function as described below: 6.2.1 Normal Weather Mode In Normal Mode, the LIDAR has no additional restrictions placed upon the minimum distance at which a target can be acquired (besides the normal minimum range specification) . If rain, snow, fog or other obstacles are present in the line of sight to the target, it is possible the LIDAR will receive signals from these objects... -
Page 22: Minimum And Maximum Ranges (Range Window)
6.3 Minimum and Maximum Ranges (Range Window) While in Speed mode, the Minimum and Maximum Range settings are used to set limits (or a range window) outside of which, speed readings will not be displayed . To adjust either of these settings, press the Menu button and then use the up/down arrows to display "Minimum Range" or "Maximum Range" . Press the Enter button to select . The display will give you the option to use the up/down arrows to set the range or 'shoot object' to use the LIDAR's range function to set the range limit . To manually set the range, simply use the up/down arrow buttons to set the desired limiting distance . If the arrow buttons are held down, the units will change in larger increments after about 10 seconds . When the desired range value is in the display, press the Enter button to accept . Note, once the operator begins to use the up/down arrow buttons to set the range limit, the "shoot" option will no longer be available . Alternatively, the Minimum and/ or Maximum range values may be set by "shooting" a target that represents the particular range limit (such as a school zone or work zone sign) . To shoot the Minimum or Maximum range, enter the desired menu and instead of using the up/down arrows, pull and hold in the LIDAR trigger and aim at the target that represents the Minimum or Maximum range . You may range to the target multiple times until you are positive the correct target has been selected . Press the Enter button to confirm the value . Once the Minimum and/or Maximum range values are set, the LIDAR will display only speeds between these values . If a vehicle is acquired outside of this... -
Page 23: Direction Filter
• The adjustable Maximum Range Menu may not be available on some units where jurisdictions may fix the maximum range allowed for the LIDAR devices . 6.4 Direction Filter The DragonEye Compact LIDAR allows the user to set the system to display speeds on: 1) Only approaching vehicles 2) Only receding vehicles 3 . Both approaching and receding vehicles The default value is set for both approaching and receding vehicles . To set the Direction Filter, press the Menu button then use the up/down arrows until "Direction Filter" is displayed on the side panel . Press the Enter button and then use the up/down arrows to display the desired filter setting: APPROACH, RECEDE, or BOTH . Press Enter to accept the setting . The LIDAR will return to the current operating mode (range or speed) . • If a vehicle is targeted in a direction opposite that of the Filter selection, the LIDAR will still output the solid audible tone, however the HUD and side panel will show "- - - -" in the speed display area . The side panel will also display the indication "Approach" or "Recede" to indicate that a vehicle has been targeted traveling in a direction opposite to that of the Filter . -
Page 24: Differential Distance: Lidar In English Units (Mph)
6.5.1 Differential Distance: LIDAR in English Units (MPH) The (MPH) Differential Distances Test uses two fixed targets separated by a precisely known distance . Using the LIDAR's range function to determine the separation between the targets, coupled with the internal acquisition period of the LIDAR's speed mode, the test provides a simulated speed reading (in MPH) which should be double the target separation measured in feet . Use two flat targets, approximately 2 ft x 2 ft square, painted flat white . Place the targets at precise distances from a "zero" point where the LIDAR will be positioned . The targets should be set at integer feet values from the LIDAR zero point and should be approximately 25 ft apart . Recommended target distances are 50 .0 ft and 75 .0 ft from the LIDAR unit . Ensure the front end of the LIDAR unit is positioned exactly at the zero point, using a tripod if necessary . On the LIDAR unit, press the Menu button then use the up/ down arrows until "Diff Distance" is displayed . Press Enter Carefully obtain a range reading from the first target and then press Enter . Carefully obtain a range reading from the second target and then press Enter . The LIDAR will then display the simulated speed on the rear display . The speed reading should be within +/-1 MPH or twice the range separation as measured in feet . For example, using the target distances of 50 .0 and 75 .0 ft, the simulated speed reading should be 2 x 25 .0 = 50 MPH +/-1 MPH . -
Page 25: Differential Distance: Lidar In Metric Units (Kph)
6.5.2 Differential Distance: LIDAR in Metric Units (KPH) The (KPH) Differential Distance Test uses two fixed targets separated by a precisely known distance . Using the LIDAR's range function to determine the separation between the targets, the KPH Differential Distance test provides a quick check of the LIDAR's ability to measure the distance between two targets . Use two flat targets approximately 0 .5 m x 0 .5 m square, painted flat white . Place the targets at precise distances from a "zero" point where the LIDAR will be positioned . The targets should be set at integer feet values from the LIDAR zero point and should be approximately 10m apart . Recommended target distances are 20 .0 m and 30 .0 m from the LIDAR unit . Ensure the front end of the LIDAR unit is positioned exactly at the zero point, using a tripod if necessary . On the LIDAR unit, press the Menu button then use the up/ down arrows until "Diff Distance" is displayed . Press Enter Carefully obtain a range reading from the first target and then press Enter . Carefully obtain a range reading from the second target and then press Enter . The LIDAR will then display the simulated speed on the rear display . The distance should be within 0 .5 m of the actual distance between the targets . If the LIDAR does not pass the test, carefully recheck the distances and reposition the targets and LIDAR if necessary then repeat the test . If the unit continues to fail the test, please contact customer... - Page 26 Timed Distance Shoot Object Figure 6.6 Side Panel indicating Timed Distance Mode active The operator may now enter the reference distance in feet (meters) between the two reference objects using the up/down arrows . Alternatively, the operator may shoot the two reference points to determine the distance to be traveled . • The reference distance must be at least 200 feet (60 meters) . • If the operator elects to shoot the distance to the reference objects, please ensure both reference points are on one side of the operator and in a straight line with the operator's position . The LIDAR will subtract the two readings to determine the distance . To shoot the distances, simply aim at the longer range reference object first and pull the trigger to obtain a distance reading . Release the trigger to lock in the distance reading . If you are not satisfied with the reading, you may simply aim and shoot the first reference object again . Once you are satisfied with the reading, press Enter . The unit will prompt you to shoot the second reference object . If the second reference object is located where you are standing with the LIDAR, simply press Enter . Otherwise shoot the second reference object and press Enter when satisfied with the distance reading . The unit will show the distance between the reference objects .
-
Page 27: Load Defaults
At this point you have either entered the reference distance or determined it by shooting the reference objects . If the reference distance is acceptable, press Enter . Otherwise press the Menu button to "escape" from the menu system . Once the reference distance is accepted, the side display will show the reference distance and instructions to "Click Trigger to Start" . Click the trigger when a vehicle crosses the first reference object point to start the timer . Click the trigger a second time to stop the timer . The unit will display the average speed of the vehicle on the side panel . To measure the average speed of additional vehicles, simply click the trigger once to clear the old reading and the timer is now re-armed for a new reading . 6.7 Load Defaults The factory default settings for the LIDAR can be restored at any time by pressing then selecting "Load Defaults" using the up/down arrows and pressing Enter . This command restores default brightness and audio levels as well as settings for Minimum and Maximum range values . 6.8 ECCM Control The ECCM menu allows the operator to temporarily disable the LIDAR's Electronic Counter-Counter Measure (anti-jamming) system . To activate or disable the ECCM, press then use the up/down arrows to select "ECCM" and press . Then use the up/down arrows to select "Active" or "Disabled" and press to... -
Page 28: Input / Output Port
6.9 Input / Output Port A mini USB style connector is located on the bottom of the unit . This connector can be used to collect speed and range measurement data during operation using a standard cable and custom software . Contact Decatur Electronics at 800 .428 .4315 for further details regarding use of the I/O port . 7. Recommended System Checks The DragonEye Compact LIDAR system is designed to provide years of service with limited maintenance . The unit uses sophisticated digitally locked electronics to ensure continued accuracy . However we recommend performing the following system checks before each shift to ensure confidence in the instrument: 7.1 Self Test Press to enter the system menu options . "Self Test" is displayed as the first menu option . Press to initiate the Self Test sequence . All critical internal timing electronics and software components are checked . Also, all display components are illuminated to allow the user to verify proper operation . A pass or fail indication is given at the end of the self-test . A "pass" indication then returns the operator to the current mode of operation, while a "fail" indiction will halt operation indicating the need for service . -
Page 29: Fixed Target Distance
7.3 Fixed Target Distance The DragonEye Compact LIDAR uses time of flight laser distance measurement as its core technology in determining vehicle speed . Therefore a quick check of the unit's ranging accuracy is suitable for daily confidence checks . Locate a flat target, at a known range between 50 and 200 feet (15 and 60 meters) . • The target distance should be carefully confirmed with a steel tape measure or professional survey device . Ensure the front of the LIDAR unit is at the zero point, and carefully obtain range readings from the target . Verify the readings are within +/- 1 foot (+/- 0 .3 meters) of the actual range . If the unit does not pass both of the above testes, carefully check your setup and perform the test again . If the unit still does not pass, please contact your specified service representative . 7.4 Certification The manufacturer suggests that your LIDAR unit be returned (or sent to an authorized testing laboratory) periodically for certification . The certification process will provide detailed checks on alignment and mechanical integrity as well as verification testing against controlled speeds from 5 to 200 MPH (8 to 321 KPH) . 8. Care, Cleaning, and Storage Your DragonEye Compact LIDAR is designed to keep performing with very little user maintenance . Besides replacing the batteries there are no user serviceable parts and the unit should NOT be disassembled . -
Page 30: General Handling
vehicle frames can couple excessive vibration into the LIDAR unit resulting in damage to internal components . • Store the unit in a cool dry place when possible . • Avoid temperature extremes beyond -22 F (-30 C) and 140 º º º C) . Avoid leaving the unit in excessively hot or cold areas º such as the dashboard of a car in summer or in the trunk on extremely cold nights . • Periodic cleaning of the front lenses or HUD glass is only necessary if they acquire significant dirt or other debris that limits optical transmission . If cleaning is necessary, use compressed air or a soft brush to remove loose debris fist . • To clean the optics, the glass surfaces should be cleaned with water and a soft cloth or tissue . Isopropyl Alcohol (rubbing alcohol) can be used if needed . Wipe from the center of the lens outward in a spiral motion . • The HUD glass may be cleaned with a cotton swab to facilitate reaching the surfaces . If you encounter a stain or speck that cannot be removed with gentle pressure, do not increase the cleaning pressure as this may damage the lens coatings. -
Page 31: Specifications
9. Specifications 9.1 Distance Parameters Distance Accuracy: +/- 0 .5 ft one sigma (+/- 15 .0 cm) Distance Resolution: 0 .1 ft, (3 .0 cm) 9.2 Electrical Power Source: Two AA-cell batteries (High quality Alkaline or NiMH rechargeable) Battery Life: Up to 16 hours of operation (Alkaline AA-cell) 9.3 Environment Temperature Range: -22ºF to +140ºF (-30ºC to +60ºC) Water Resistant IP57 9.4 Mechanical Weight (with batteries): 1 .0 lbs (455 grams) Dimensions: 7 .52 x 5 .30 x 2 .25 inches (184 x 135 x 57 mm) 9.5 Optics Beam Divergence: 3 .0 milliradian... -
Page 32: Speed Range Parameters
9.6 Speed Range Parameters Acquisition Time 1/3 Second Speed Accuracy +/- 1 MPH (+/- 2 Km/h) Minimum Range: Speed Mode 50 ft (15 m) Range Mode 15 ft (5 m) Weather Mode 250 ft (76 m) Maximum Range 3000 ft (914 m) Speed Max/Min +/- 5 to 200 MPH (+/- 8 to 320 Km/h) Speed Mode: True, Full time, Continuous Tracking History... -
Page 33: Cosine Effect
10. Cosine Effect The term "Cosine Effect" as typically used in law enforcement speed measurement refers to the reduction of a vehicle's measured speed using Radar or Laser systems as compared to the actual vehicle speed, when targeting the vehicle at an angle . The diagram below shows the line "V" as the vehicle's travel direction and the LIDAR operator's line of sight "O" to the target Vehicle . The angle between these two lines is labeled theta "Θ" . Motion of the vehicle along "Line V" is projected onto the LIDAR operator's line of sight "Line O" . Using standard trigonometry, this projected motion can be show to be: ΔΟ = ΔV x COSΘ Figure 10 Cosine Illustration... -
Page 34: Troubleshooting And Service Guide
11. Troubleshooting and Service Guide Symptom Possible Causes Unit will not power up when 1 . Replace batteries . trigger is pulled 2 . Check that batteries are inserted correctly Head-Up Display is not visible 1 . Check HUD brightness setting Audio tone indicates an 1 . Speed is less than 5 MPH acquired speed, but the displays (8 KPH) . show dashes 2 . Speed was acquired outside the set range windows or direction filter . Adjust Min/ Max Ranges or Direction settings in Menu . Unit has difficulty acquiring 1 . Use Weather or Obstruction speed reading Mode if necessary . 2 . Steady LIDAR for better aiming . -
Page 35: Warranty & Service
12. Warranty & Service 12.1 Warranty LIMITED WARRANTY The DragonEye Compact LIDAR System is warranted to be free from defects in workmanship and material for a period of 12 months from the date of purchase by the original purchaser . If any defect is discovered through normal and proper use of the unit during this period, the defect will be repaired or the unit will be replaced at our factory or at one of our authorized service center at no cost to the purchaser . The purchaser must return the defective unit to the factory or to an authorized service center, freight prepaid . We will pay for shipping charges for the return of the unit . This warranty applies only to structural defects in the external housing and defects in a unit's internal electro-optical components and circuitry, and is void as to units that have been opened without prior authorization, have experienced unauthorized repairs, or have had unauthorized modifications . This warranty does not cover the following: • Normal wear and tear on the unit such as batteries, broken connectors, or scratched or broken exterior components including optical components . • Damage caused by operator abuse or neglect . • Damage caused by incorrect use of the unit, carelessness, unauthorized alterations to the unit, improper storage of the unit or unauthorized service, installation or repair made to the unit . • Damage caused by fire, flood, lightning, vandalism, collision, Acts of God, or other events beyond the reasonable control of the manufacturer or the purchaser . - Page 36 COURSE OF DEALING, COURSE OF PERFORMANCE OR USAGE OF TRADE. THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY FOR A WARRANTY CLAIM WILL BE THE REPAIR OR REPLACEMENT OF A UNIT. 12.2 Service Procedure If you have questions, want a quick problem diagnosis, or need to return your LIDAR for service: • Call Decatur Electronics and ask to speak with a Customer Service Representative . • Have the serial number of your LIDAR unit ready . Phone: 800 .428 .4315...
-
Page 37: How To Order Additional Products
13. How to Order Additional Products To additional products or accessories, visit the Decatur Electronics website at www .DecaturElectronics .com or call the sales office at 800 .428 .4315... -
Page 38: User Notes
User Notes... - Page 40 www.DecaturElectronics.com 3433 East Wood Street, Phoenix, Arizona 85040, USA 800.428.4315 | 217.428.4315 | Fax 217.428.5302...
