Summary of Contents for GeneSpeed 1730R

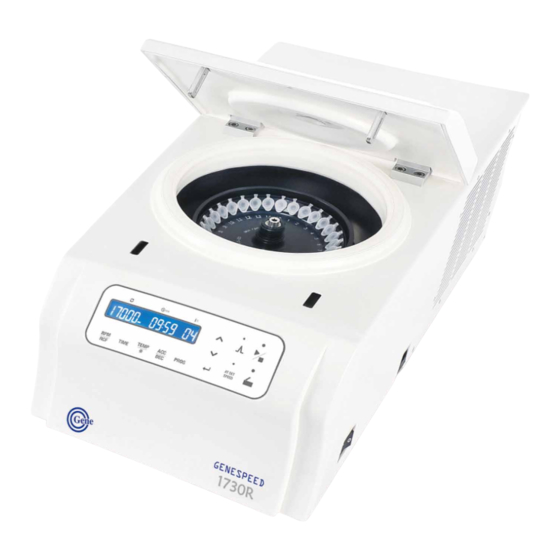

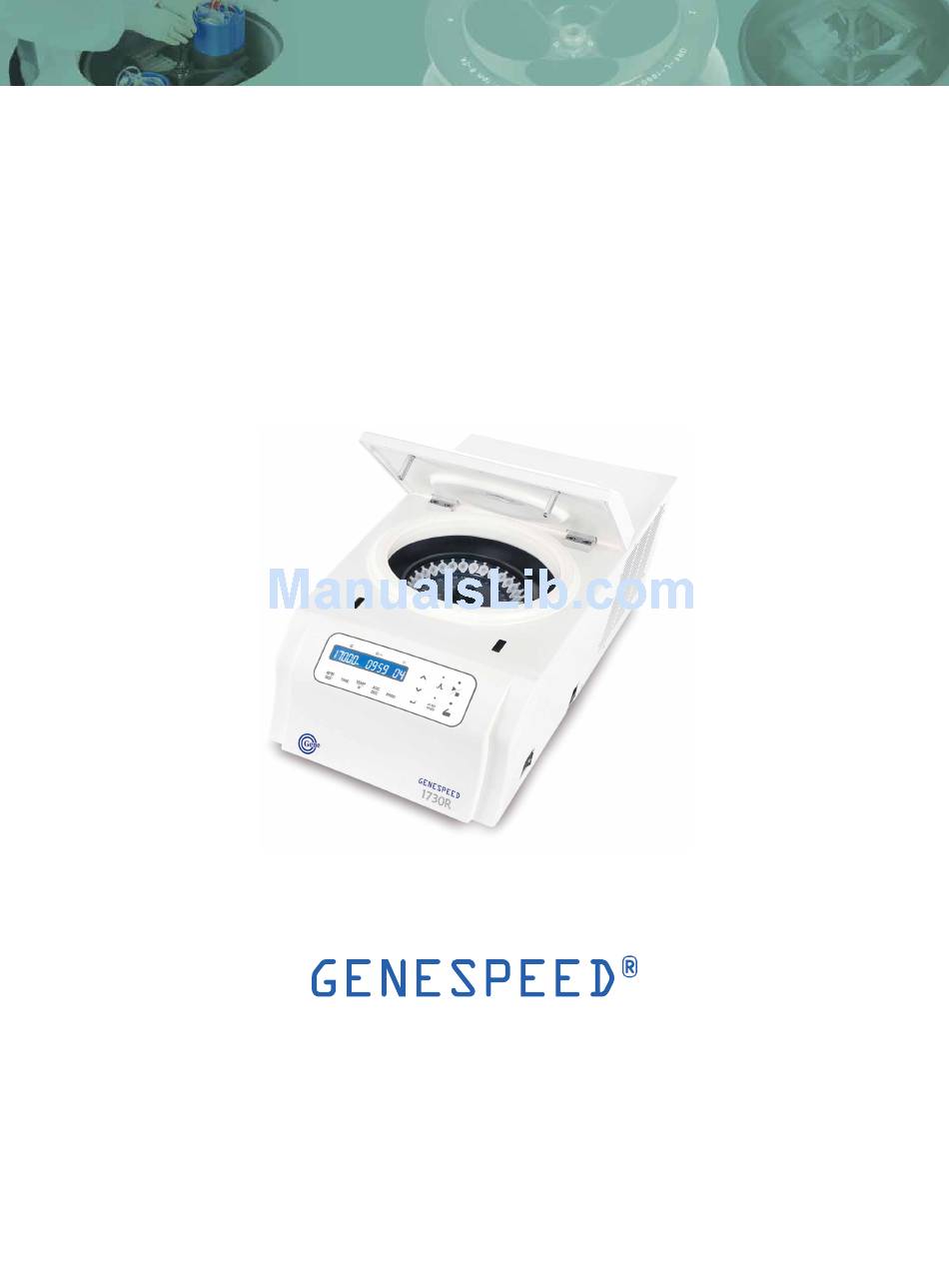

- Page 1 Refrigerated, High-Speed Micro Centrifuge 1730R User’s Manual Gene Company Limited 8/F., Shell Industrial Building, 12 Lee Chung Street, Chai Wan, Hong Kong Tel:(852)-2896-6283 Fax:(852)-2515-9371 info@genehk.com http://www.genecompany.com/...
-
Page 2: Table Of Contents
Emergency Lid Open (Manual Lid Release) ……………………………………………… 19 Maintenance ……………………………………………………………………………… 20 Outer Part of Instrument, Chamber, Shaft and Rotor ……………………………………… 20 Troubleshooting …………………………………………………………………………… 21 Checklist …………………………………………………………………………………… 21 Error Codes ………………………………………………………………………………… 21 GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 3: Meanings Of Symbols & Safety Precautions
6. Before operating the instrument, check if the rotor and the rotor lid are securelyfastened. Should operate the instrument with a rotor properly installed and secured to the motor shaft. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... - Page 4 If the power input is more than +/- 10% of the recommended voltage or fluctuates frequently, it √ may cause malfunction of the instrument and often result serious damage. Install the instrument at the place without any kinds of corrosive gases. √ GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R...
-
Page 5: Product Description & Technical Specifications
Product Description & Technical Specifications Product Description ① ② ③ ④ ⑤ 1 Lid 2 Emergency Lid-Lock Release Hole 3 Power Socket 4 Power Switch 5 Display & Control Panel GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 6: Technical Specifications
Weight without rotor (kg) CE mark Cat. No. GS-1730R-NA Note! • This instrument has following functions for safety • Automatic rotor identification function • Automatic detection and alarms for imbalance, excess speed and heating GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 7: Installation
Display shows the status of the lid(open , closed Action Touch [LID] button when the lid is closed (Lid LED shows off). When the lid is open, the display status changes from and lid LED turns on. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 8: Rotor Coupling And Disassembling
To assemble the rotor, rotate the Rotor LockingToolclockwise until tightly assembled. To disassemble the rotor, rotate the Rotor LockingTool counterclockwise. Grasp the rotor with one hand and assemble or disassemble the rotor using the Rotor Locking Tool. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 9: Positioning Of Sample Tubes
Only use appropriate centrifugal tubes and do not exceed the speed beyond the tube’s max g-strength. Note! • For the safety, the instrument has ‘Imbalance Cut-off’ function to sense the imbalance of the loaded tubes. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 10: Operation
Operation Key Functions of Control Panel 1. RPM/RCF RPM/RCF indicates rotating speed. The maximum RPM/RCF of 1730R is 17,000/27,237. 2. TIME Time can be set at ‘Minute’ and ‘Second’ with the range up to 99 min 59 sec (00:00: continuous). - Page 11 [AT SET SPEED] button is for settingthe number of sound and volume as user mode (touch for more than 2 seconds). 10. START/STOP [START/STOP] button is to start or stop centrifugation. 11. LID [LID] button is to open the closed centrifuge lid. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R...
-
Page 12: Setting Rotation Speed (Rpm/Rcf)
100 rpm, 1000 rpm unit and 10 xg, 100 xg and 1000 xg unit. If you do not touchthe Up/Down button for 15 seconds, the setting mode is cleared. Touch the [ENTER] button to save the setting value. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 13: Setting Time
] button to change the second value. If you do not touch the Up/Down button for 15 seconds, the setting mode is cleared. Touch [ENTER] button to pass the ‘MIN’ value setting. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 14: Setting Temperature And Fast Cool
• If you’d like to load your sample tubes before pressing the [Fast Cool] button, please check if the sample is safe during spinning at 1,000 rpm. • Before starting Fast Cooling, please check the rotor coupling and symmetry of sample tubes. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 15: Setting Acceleration/ Deceleration (Acc/Dec)
Input the desired level of DEC from 0 to 9. (Level 0: Natural deceleration / Level 9: The fastest deceleration). If you do not touch the Up/Down button for 15 seconds, the setting mode is cleared. Touch [ENTER] button to complete the setting. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 16: Start / Stop
Note! Stop at the Maximum Braking Deceleration • Touch [ ] button twice for the fastest deceleration. And the rotation stops at the maximum deceleration rate (DEC9) regardless of the set DEC value. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 17: Pulse (Short Spin)
If you do not touch the Up/Down button for 15 seconds, the setting mode is cleared. Maximum 100 programs can be saved. (Program number: 00 to Call Program • The saved programs from 0 to 99 can be recalled at need. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 18: End Alarm
] button tochange the repeat count and then touch the [ENTER] button. The mode is passed to ‘Sound Level’by touching [ENTER] button. Repeat counts of end alarm: 0~99 (0: silent, 99: 99 times) GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 19: Emergency Lid Open (Manual Lid Release)
Caution! • The manual lid release should be performed only when spinning is completely stopped. If not, it could bring about harmful damage to the operators or the samples. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 20: Maintenance
2. Be careful not to make scratches inside or on the surface of rotors. Any small scratches can cause corrosion of the rotor and big damage to the instrument. 3. While the instrument is not used, remove the rotor from the motor shaft and stand it upside down. GENESPEED GENESPEED ® ® Refrigerated High-Speed Micro Centrifuge, 1730R... -
Page 21: Troubleshooting
· If the speed does not reach 200rpm within 2 seconds after motor starts to operate, this message may appear. Error 1 Motor · Check whether the motor is normally working or not. ® · If the error message does not disappear, please contact GENESPEED Field Service Engineer. GENESPEED GENESPEED ®... - Page 22 Error 2 Lid Open closing status on the display window. ® · If the error message does not disappear, please contact GENESPEED Field Service Engineer. · If the motor is overheated, this message may come up. · Keep off the power supply for an hour, and turn on the power to check up the...
- Page 23 RPM Sensor rotor and turn off and on the instrument to check out the status. ® · If the error message does not disappear, please contact GENESPEED Field Service Engineer. · If the instrument is not reached to setting temperature within an hour, this...
