Swiss Fluid SSV-B Series Product Manual

PRODUCT MANUAL PM
SSV-B: Product Info
82 Inline Sampling Ball Valves

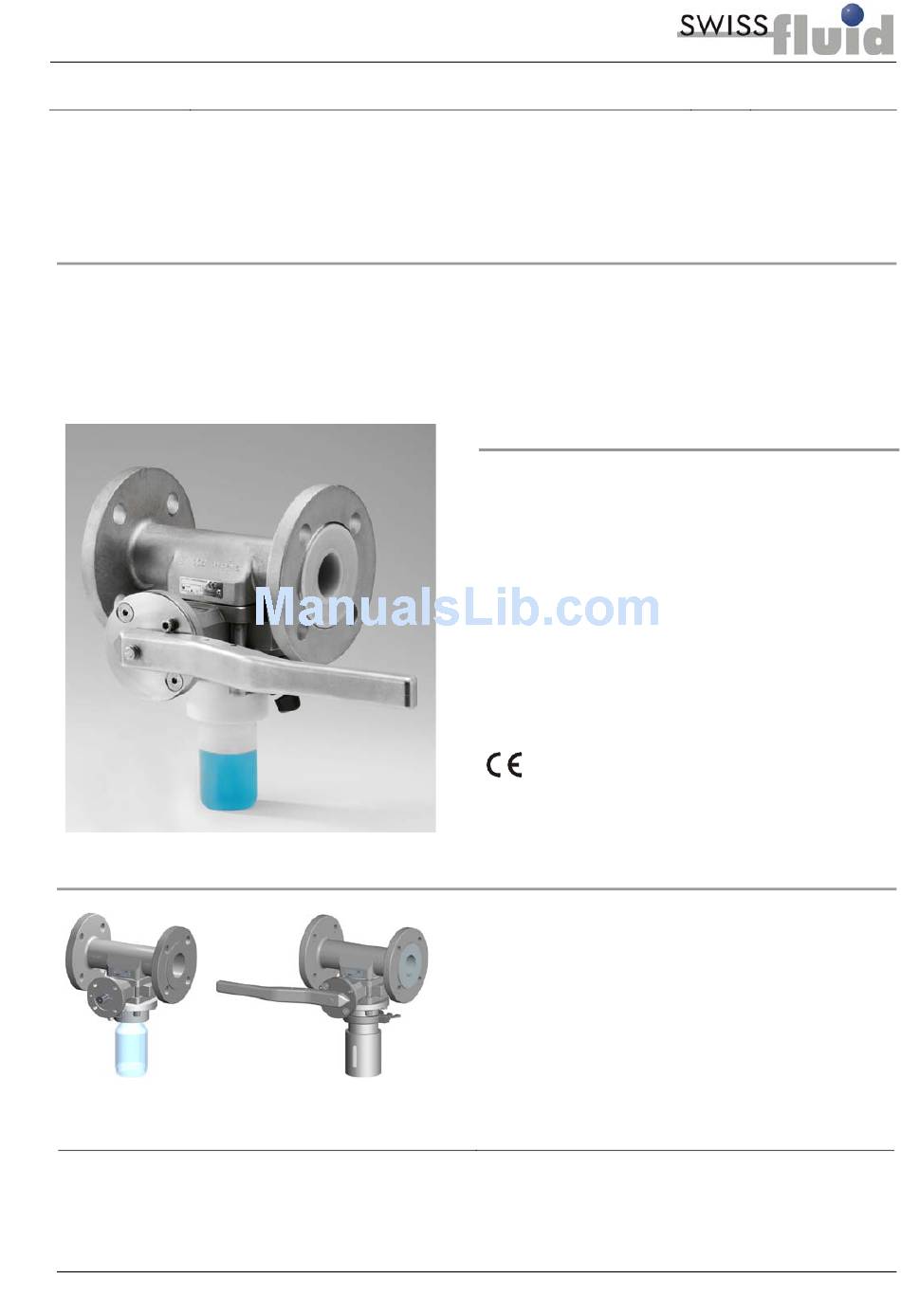

Inline Sampling Ball Valves SSV-B Series
for safe and representative sampling of aggressive or even toxic liquids from pressurized pipelines or vessels,
without any process interruptions.
Modular Design
Inline Sampling Ball Valves SSV-B Series are available as DIN- or ANSI-valves, with standard handlever for
90° operation. The valves are distinguished by its dead-space-free design as well as the extremely short
outlet way for the representative sample.
The sturdy bodies are made of stainless steel casting 1.4408 (CF-8M) or optional with resistant linings such
as PFA or PFA-AS (anti-static).
Standard
Valve with bare shaft
Swissfluid AG, Industriestrasse 40, CH-5600 Lenzburg/Switzerland
info@swissfluid.ch
with handlever 180°and
spring-loaded protection tube
Hauptmerkmale
• Full-port design, no pressure drop
• Only one opening to the atmosphere
• Easy and safe operation handlever, optionally
with pneum. quarter turn actuator
• One-piece ball/shaft, PFA-encapsulated,
for defined sampling volume of approx. 45 ml
• All-purpose valve unit – installation on large size
pipelines, vessels etc.
• Sizes DN15 - 80 PN16, ½" - 3"-150lbs
• Face to face acc. to EN 558-1, range 1
Conformity acc. to European
Pressure Equipment Directive 97/23/EC (PED)
Options / Accessories
• Bodies with heating jacket
• Bottle support, adjustable
• Flange plate for 180° operation
• Safety cabinet with inspection windows
• Flanges with groove, PN40, ANSI 300lbs etc.
• Safety padlock
• Activated carbon filter
• Vertical adapter
• Metal safety basket
PM 82 M.00 e
January 2007
