- Page 1 AC-35CH-FF BIO Nordic AC-35CH-FC BIO Iceberg AC-51CH-FC BIO Iceberg...
-
Page 2: Table Of Contents
CONTENTS Operation and maintenance Safety Precautions Notices for use Names of each part Clean and care Troubleshooting Installation service Notices for installation Install indoor unit Install outdoor unit Check after installation and test operation Note: All the pictures in this manual are just schematic diagrams, the actual is the standard. -
Page 3: Safety Precautions
Safety Precautions Incorrect installation or operation by not following these instructions may cause harm or damage to people, properties, etc. The seriousness is classified by the following indications： ！ ！ WARNING CAUTION This symbol indicates This symbol indicates the the possibility of death possibility of injury or or serious injury. - Page 4 Safety precautions The air conditioner Pull out the plug Before the connector must be grounded. (or cut off the main is plugged in, please Incomplete ground- power switch) when make sure that there ing may result in the unit is not in use is no dust on it and electric shocks.
- Page 5 Safety Precautions Don't install air Don't use liquid or Don't attempt to conditioner in a corrosive cleaning repair the air place where there is agent wipe the air conditioner by flammable gas or conditioner and yourself. liquid. The distance sprinkle water or between them other liquid either.
- Page 6 Safety Precautions This product contains fluorinated greenhouse gases. WEEE Warning Meaning of crossed out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into...
- Page 7 Safety Precautions CAUTION ！ Don’t open the Don’t stand on the Don’t use the air windows and doors top of the outdoor conditioner for other for long time when unit or place heavy purposes, such as the air conditioner things on it. drying clothes, is running.
-
Page 8: Notices For Use
Notices for use The conditions of unit can't normally run * Within the temperature range provided in following table, the air conditioner may stop running and other anomalies may arise. ＞43℃(Apply to T1) Outdoor Cooling ＞52℃(Apply to T3) Indoor ＜18℃ ＞24℃... - Page 9 Notices for use Emergency operation * If the remote controller is lost or broken, use force switch button to operate the air conditioner. * If this button is pushed with the unit OFF, Force switch the air conditioner will operate in Auto mode. * If this button is pushed with the unit ON, the air conditioner will stop running.
-
Page 10: Names Of Each Part

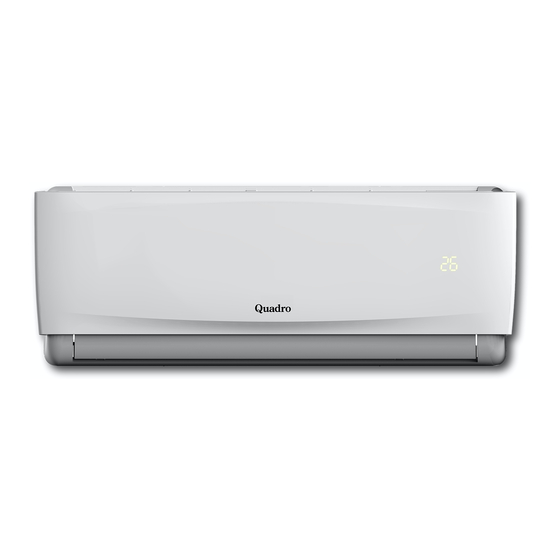

Names of each part Indoor unit Air inlet Force switch Air inlet grille Panel Power cord Air filter Pipe protection ring Air louver Air outlet Air vent Remoter controller Outdoor unit Air inlet grille Air outlet Connecting pipe Drain hose Air outlet Note: All the pictures in this manual are just schematic diagrams, the actual is the standard. -
Page 11: Clean And Care
Clean and care Warning Before the cleaning of the air conditioner, it must be shut down and the ● electricity must be cut off for more than 5 minutes, otherwise there might be the risk of electric shocks. Do not wet the air conditioner, which can cause an electric shock. Make ●... -
Page 12: Troubleshooting
Clean and care Clean the air filter ■ Mount the Filter 1. Reinstall the dried filter in reverse order of removal, then cover and lock the panel. Check before use 1. Check whether all the air inlets and outlets of the units are unblocked. 2. - Page 13 Troubleshooting Phenomenon Troubleshooting ● Has the power been shut down? ● Is the wiring loose? Air conditioner can ● Is voltage too high or too low ?(measured by professionals) not operate at all. ● Does it reach the set time for start up? ●...
-
Page 14: Notices For Installation
Notices for installation Important Notices ■ Before installating, please contact with local authorized maintenance center, if unit is not installed by the authorized maintenance center, the malfunction may not solved,due to discommodious contact. ■ The air conditioner must be installed by professionals according to the national wiring rules and this manual. - Page 15 Notices for installation Requirements of the mounting structure The mounting rack must meet the relevant national or industrial ● standards in terms of strength with welding and connection areas rustproofed. The mounting rack and its load carry surface shall be able to ●...
- Page 16 Notices for installation Others The connection method of the air conditioner and the power cord ● and the interconnection method of each independent element shall be subject to the wiring diagram affixed to the machine. The model and rating value of the fuse shall be subject to the ●...
-
Page 17: Install Indoor Unit
Install indoor unit Dimension drawing of indoor unit installation Space to the ceiling 15cm above Space to the wall Space to the wall 20cm above 20cm above 200cm above Space to the floor Mounting plate 1. The wall for installation of the indoor unit shall be hard and firm, so as to prevent vibration. - Page 18 Install indoor unit Route of Pipeline 1. Depending on the position of the unit, the piping may be routed sideway from the left or the right ( Fig 1 ), or vertically from the back( Fig 2 )(depending on the pipe length of the indoor unit).
- Page 19 Install Indoor Unit Fixing the Indoor Unit 1. Hang the indoor unit on the peg board, and move the unit from left to right to ensure that the hook is properly positioned in the peg board. 2. Push toward the lower left side and the upper right side of the unit toward the peg board, until the hook is embedded in the slot and makes a "click"...
-
Page 20: Install Outdoor Unit
Install outdoor unit Dimension drawing of outdoor unit installation Space to the obstruction Air in side Space to the obstruction 30cm Above 30cm Above Space to the obstruction Air out side Installation outdoor unit bolt Outdoor Unit Size of Shape A (mm) B (mm) W1(W2)*H*D) (mm) - Page 21 Install outdoor unit Wiring Connection 1.Loosen the screws and remove E-parts cover from the unit. 2.Connect the cables respectively to the corresponding terminals E parts cover of the terminal board of the outdoor unit (see the wiring diagram), and if there are signals connected to the plug, just conduct butt joint. 3.Ground wire: Remove the grounding screw out of the electric bracket, cover the grounding wire end onto the grounding screw and screw it into the grounding hole.
- Page 22 Install outdoor unit Expelling the air ★Outdoor unit refrigerant discharging method After the pipe side connection is complete, proceed as follows. Wait for Quickly tighten and Gas part 8 second connect the nut. Loosen the temporarily fastened The installing torque nut by half turn.
-
Page 23: Check After Installation And Test Operation
Check after installation and test operation Check after installation ★ Electrical Safety Check 1. If the supply voltage is as required. 2. If there is any faulty or miss connection in each of the power, signal and grounding wires. 3. If the grounding wire of the air conditioner is securely grounded. ★... - Page 24 AIR-CONDITIONER REMOTE CONTROLLER INSTRUCTIONS SET TEMPERATURE(℃) 自动 自动 自 动 AUTO 制冷 制冷 制 冷 COOL HIGH 除湿 除湿 除 湿 制热 制热 制 热 HEAT ON/OFF MODE CLEAN SPEED SLEEP HEALTH STRONG SWING FEELING DUST FUNGUSPROOF SCREEN TIMER Read this “instructions” carefully so that ●...
- Page 25 CONTENTS Buttons description----------------------------------------- 1 Usage--------------------------------------------------------- Fix batteries ---------------------------------------------- Automatic operation mode------------------------------ Cooling/Heating operation mode---------------------- Fan operation mode-------------------------------------- Drying operation mode---------------------------------- Night Luminous Function of Remote Controller ---- Attention -----------------------------------------------------...
-
Page 26: Buttons Description
Buttons description LCD display instruction SET TEMPERATURE(℃) TRANSMIT DIGITAL ON/OFF 自 动 自 动 自 动 AUTO RUNNING ROOM 制 冷 制 冷 制 冷 MODE COOL HIGH 除 湿 除 湿 除 湿 RUNNING 制 热 制 热 制 热 MODE SPEED HEAT... - Page 27 4.“FEELING” button When it displays “FEELING” button: Press this button can be used to set the feeling function. The LCD shows the actual room temperature when the function set and it shows the setting temperature when the function cancelled. This function is invalid when the appliance at the Fan mode.
- Page 28 △ ”or “ △ ” button 8.“ “+”or “-”button,you can set the temperature Press the range from ℃ to 32 ,Display will change when you touch ℃ the button. 9.“CLEAN” button a. When remote controller is at the off state, press clean “...
- Page 29 button 12.“SWING” Press this button, the horizontal wind direction vanes can swing automatically, when you have the desired vertical wind direction, press it again, the horizontal wind direction vanes will be stopped at the situation of your choice. 13.“DUST” button This button is invalid.
-
Page 30: Usage
Usage Fix batteries 1.Slide open the cover according the direction indicated by arrowhead. 2.Put into two brand new batteries (7#), position the batteries to right electric poles (+＆-). 3.Put back the cover. Automatic operation mode 1.Press the MODE button, select the automatic operation mode. -
Page 31: Fan Operation Mode
Fan operation mode 1.Press the MODE button, select the Cooling or Heating operation mode. 2.Press the SPEED button, you can select fan speed. You can select fan speed from LOW, MID, HIGH. 3.Press the ON/OFF button, the operation indicator is on, the air-conditioner starts to operate the automatic mode. -
Page 32: Attention
Attention 1.Aim the remote controller towards the receiver on the air- conditioner. 2.The remote controller should be within 8 meters away from the receiver. 3.No obstacles between the remote controller and receiver. 4.Do not drop or throw the remote controller. 5.Do not put the remote controller under the forceful sunrays or heating facilities and other heating sources.
