Belair BOP 3 Manual

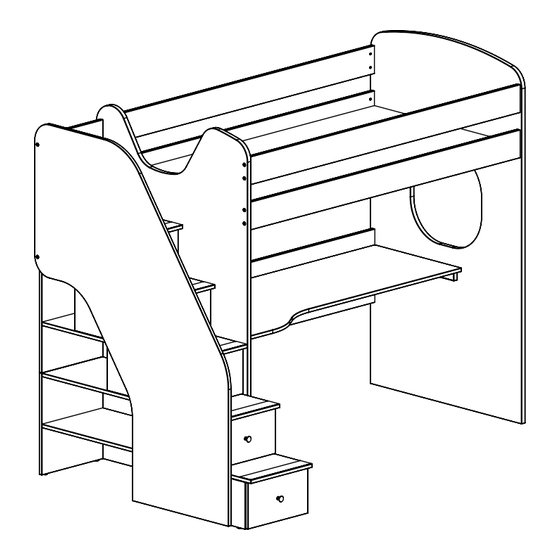

Loft bed with desk top

BOP 3

Loft Bed with Desk Top

SHEETS:

1 - Cover Sheet

3 - Stairs Assembly

4 - Unit Assembly

TWO PEOPLE ARE RECOMMENDED

FOR THE ASSEMBLY OF THIS UNIT.

Always lay components on a

clean soft-cushioned surface

during assembly.

Ensure all hardware are accounted

for before starting assembly.

Table of Contents

Need help?

Do you have a question about the BOP 3 and is the answer not in the manual?

Page 1 BOP 3 Loft Bed with Desk Top SHEETS: 1 - Cover Sheet 2 - Loft Bed Assembly 3 - Stairs Assembly 4 - Unit Assembly TWO PEOPLE ARE RECOMMENDED FOR THE ASSEMBLY OF THIS UNIT. Always lay components on a clean soft-cushioned surface during assembly.
Page 2 BOP 3 Loft Bed Assembly 2 Rail 1 Back Panel 2 Rail with Support 2 Cross Support 2 Desk Support 1 Desk Top 1 Mattress 20+1 20+1 1 Head End 1 Foot End Support Chicago Bolt Metal Dowel 1.5" Screw 5/8"...
Page 3 BOP 3 Stair Assembly 17 Washer 1 Staircase End Staircase Top Staircase Bottom Chicago Bolt Metal Dowel Wood Dowels Cover Cap Head Screw Tools Required: • Remove drawer boxes and assemble stairs as shown below. • For a LEFT hand configuration attach staircase end (1) to the LEFT side. For a RIGHT hand configuration attach staircase end to the •...
Page 4 BOP 3 Assembly Instructions Tools Required: • Electric Drill • #2 Robertson Drill Bit Staircase Loft Bed with Desk Top STEP 1 Line staircase up with bed, ensure the back of the staircase does not sit on the Chicago Bolts. Attach staircase to bed with screws as shown below.
