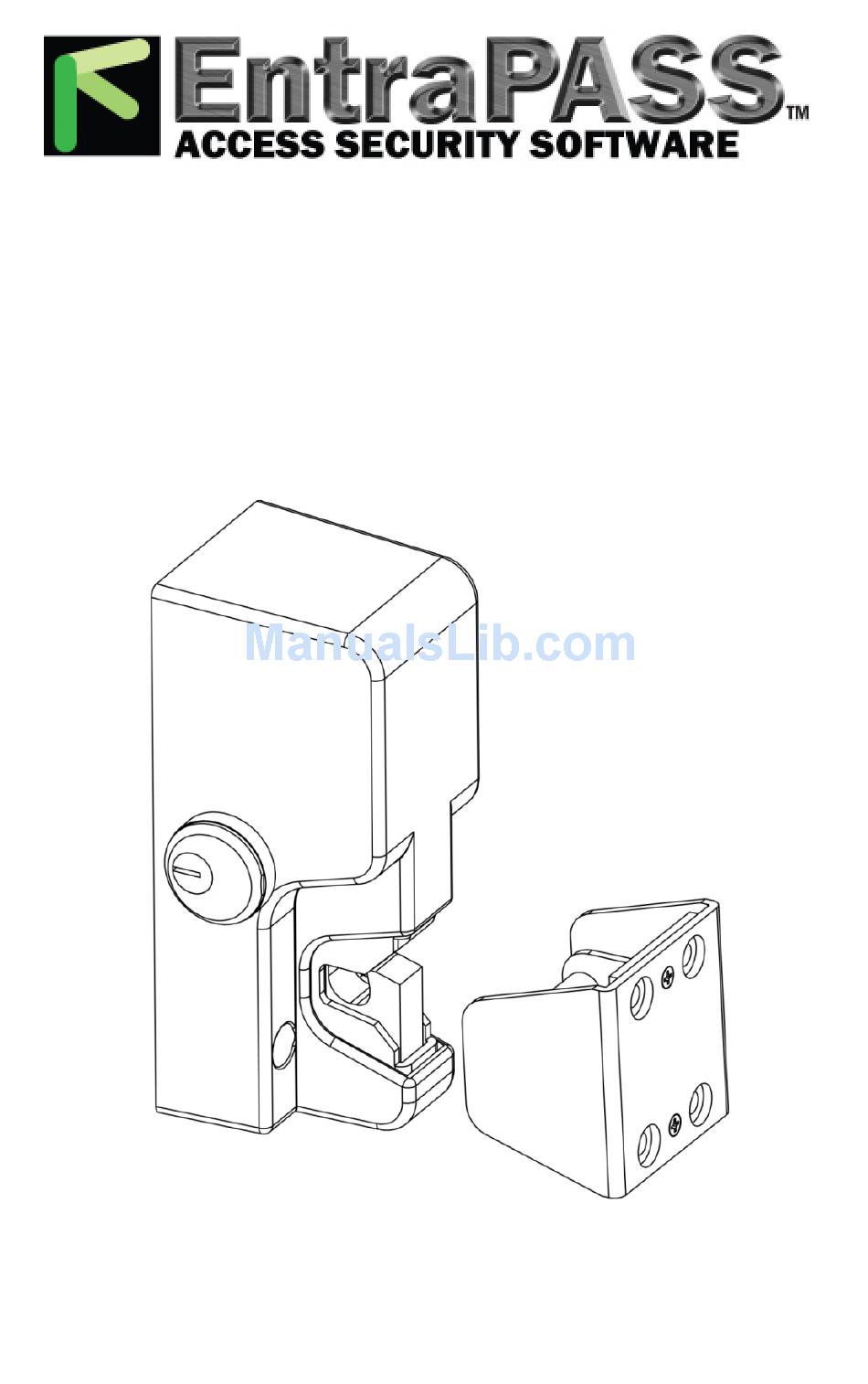

/ 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Specifications Physical Holding Force 2,000 lbs [907 kg] Preload Up to 100 lbs (Fail Locked only) Dimensions 2 ¾” L X 7 ¼” H X 3 ¼” D...
/ 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Installing the GL1 Electromechanical Gate Lock Installation Concerns CAUTION: It is vital that all welding be completed prior to making any electrical connections to the mounted GL1.
Page 6
/ 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com assembly should be installed in a location that will not hinder or create a potential safety hazard to authorized personnel routinely accessing the protected area.
Page 7
/ 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Figure 3. Installation Spacing Dimensions Figure 4. Chassis Welding wwww.EntraPASS.com / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...
/ 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Perform the Cylinder Lock/Cover Hole Plug Installation NOTE 1: The GL1 provides for the additional function of an optional key- operated cylinder lock. The cylinder lock can be installed to...
Page 9
/ 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Figure 5. Cylinder Lock Installation c. SLIP the spacer over the cylinder lock and INSERT the cylinder lock into the applicable side hole on the lock cover.
/ 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Figure 6. Cover Hole Plug and Retaining Nut Mount the GL1 and Connect the Electrical NOTE: The FMK-SL (Sliding Gate) and the FMK-SW (Swing Gate) mounting bracket kits are recommended for installing the GL1.
Page 11
/ 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com 3. ROUTE all electrical wiring through either the provided wire conduit coupling in the bottom of the lock chassis or through the ½” [12.7 mm] hole in the rear of the lock mounting chassis (see Figure 7, “Wire Routing”).
Page 12
/ 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Figure 8. PC Board Terminal Block Figure 9. System Connections 7. PERFORM a functional test of the GL1. wwww.EntraPASS.com / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...
/ 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Complete the GL1 Installation CAUTION: Lock cover must be installed straight on to avoid possible damage to the PC Board. 1. INSTALL the lock cover over the lock mounting chassis by placing the cover straight on and then sliding to engage.
/ 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Troubleshooting PROBLEM: The lock does not latch. ▪ CHECK lock-to-strike engagement distance—strike may be mounted too far away from the lock. ▪ CHECK wire routing to ensure wiring does not impede the function of the lock mechanism manual override/actuator lever, or behind lock catch.
Page 15
/ 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com PROBLEM: Cover does not fit on the lock. ▪ CHECK welding—If the lock chassis was welded to the mounting surface; verify that there are no welds that extend beyond the edge of the chassis back plate.
