Summary of Contents for Techlogix TL-TP70-HDIR-LT
-

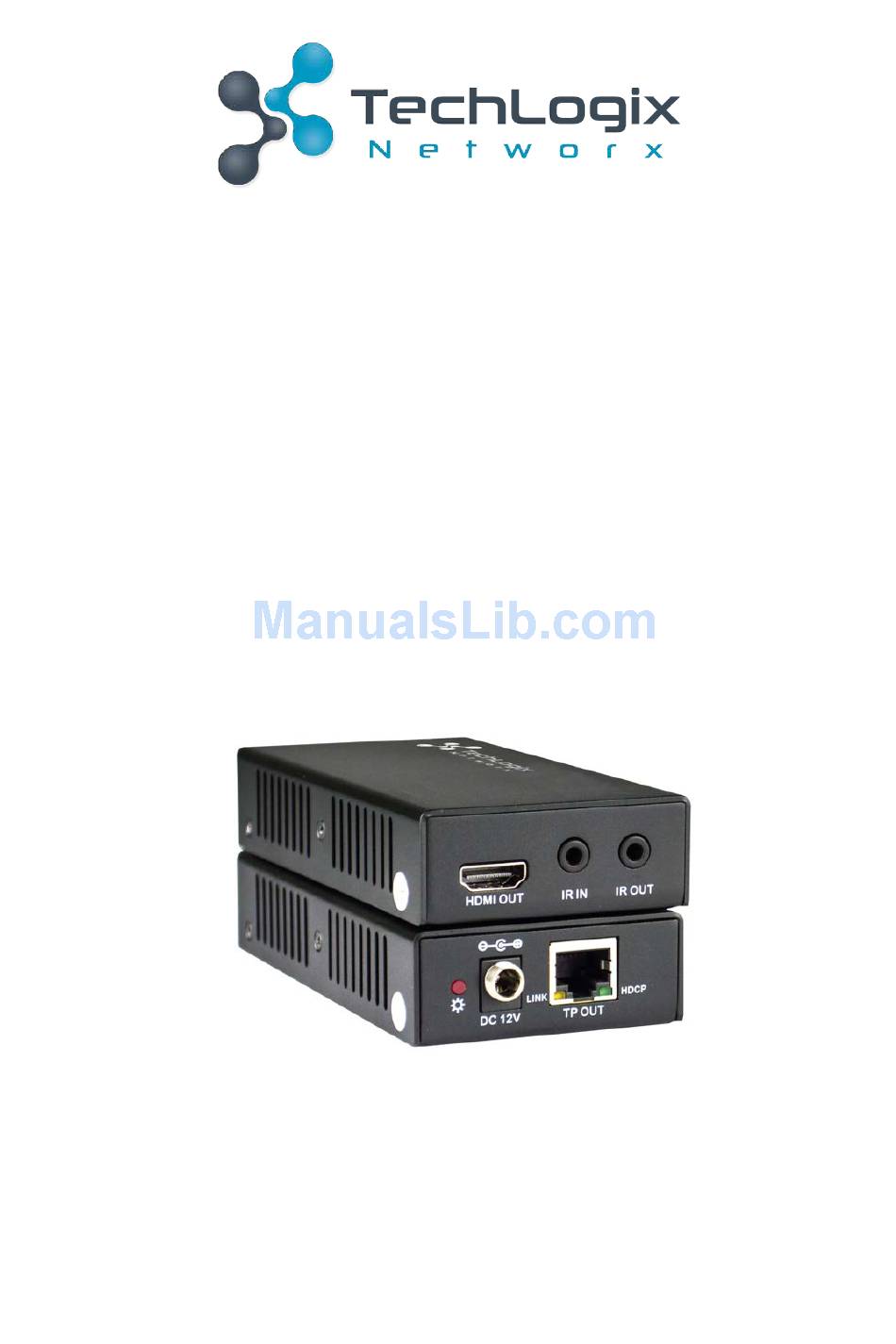

Page 1: User Manual
User Manual TL-TP70-HDIR-LT 70m HDBaseT Extender Set for HDMI & IR All Rights Reserved Version: TL-TP70-HDIR-LT_160923... -
Page 2: Fcc Statement
TL-TP70-HDIR-LT User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only; the actual product may vary. This manual is only for operation instruction only and not for any maintenance or repair. -
Page 3: Safety Precautions
TL-TP70-HDIR-LT User Manual SAFETY PRECAUTIONS To insure proper operation, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
TL-TP70-HDIR-LT User Manual Contents 1. Introduction ......................1 1.1 Introduction to HDBaseT Extender Set ............1 1.2 Features ......................1 1.3 Package List ....................1 2. Panel Description ....................2 2.1 Transmitter ....................2 2.2 4K HDMI Receiver ..................3 3. -
Page 5: Introduction
TL-TP70-HDIR-LT User Manual 1. Introduction 1.1 Introduction to HDBaseT Extender Set The extender set consists of a transmitter and receiver pair. HDMI signals are input into the transmitter and HDBaseT technology is used to transmit the signals to the receiver up to 70 m via a Cat5e/Cat6 cable. The receiver then outputs the HDMI signal. -
Page 6: Panel Description
TL-TP70-HDIR-LT User Manual 2. Panel Description Transmitter HDMI IN: Connect to HDMI source. IR IN: Connect to an IR receiver. Signals from this port are transmitted to the receiver. IR OUT: Connect to an IR emitter. Signals from this port are transmitted from the receiver. -
Page 7: Hdmi Receiver
TL-TP70-HDIR-LT User Manual 2.2 4K HDMI Receiver HDMI OUT: Connect to HDMI display. IR IN: Connect to an IR receiver. Signals from this port are transmitted to the transmitter. IR OUT: Connect to an IR emitter. Signals from this port are transmitted from the transmitter. -
Page 8: System Connection
TL-TP70-HDIR-LT User Manual 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment that has a proper temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be installed properly. -
Page 9: Twisted Pair Cable Connection
TL-TP70-HDIR-LT User Manual 3.4 Twisted Pair Cable Connection The Cat5e/Cat6 terminations for HDBaseT devices should be a straight thru connection conforming to the TIA/EIAT568B standard. The TIA/EIA T568A standard is NOT recommended. TIA/EIA T568B TIA/EIA T568A Cable color Cable color... -
Page 10: Specification
TL-TP70-HDIR-LT User Manual 4. Specification Transmitter Receiver Input Input Signals 1 HDMI, 1 IR 1 IR, 1 RJ45 Input Connectors HDMI female RJ45 3.5 mm mini jack 3.5mm mini jack Output Output Signals 1 HDMI, 1 IR 1 IR, 1 RJ45... -
Page 11: Supported Resolution
TL-TP70-HDIR-LT User Manual 4.1 Supported Resolutions Format Resolution HDMI 480I, 480P, 576I, 576P, 720P, 1080I, 1080P, 4Kx2K, 1080P 3D 640x480@60Hz, 640x480@72Hz, 640x480@75Hz, 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1280x720@60 Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1600x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz www.tlnetworx.com... -
Page 12: Panel Drawing
TL-TP70-HDIR-LT User Manual 5. Panel Drawing Transmitter Receiver www.tlnetworx.com... -
Page 13: Troubleshooting & Maintenance
Check the grounding and make sure all the components are properly grounded to a common ground. Improper grounding may cause damage to the receiver. If your problem persists after following the above troubleshooting steps, please contact your authorized reseller or TechLogix technical support. www.tlnetworx.com... -
Page 14: After-Sales Service
No certificate or invoice as the proof of warranty l Damage caused by force majeure l Non-authorized service 3) Technical Support: When contacting TechLogix support, please have the following information available: l Product part number l Installation and sale date l Detailed failure information www.tlnetworx.com...
