Sunex 9002B Operating Instructions, Warning Information, Parts Breakdown

Gravity feed hvlp spray gun with regulator / pressure gauge

Advertisement

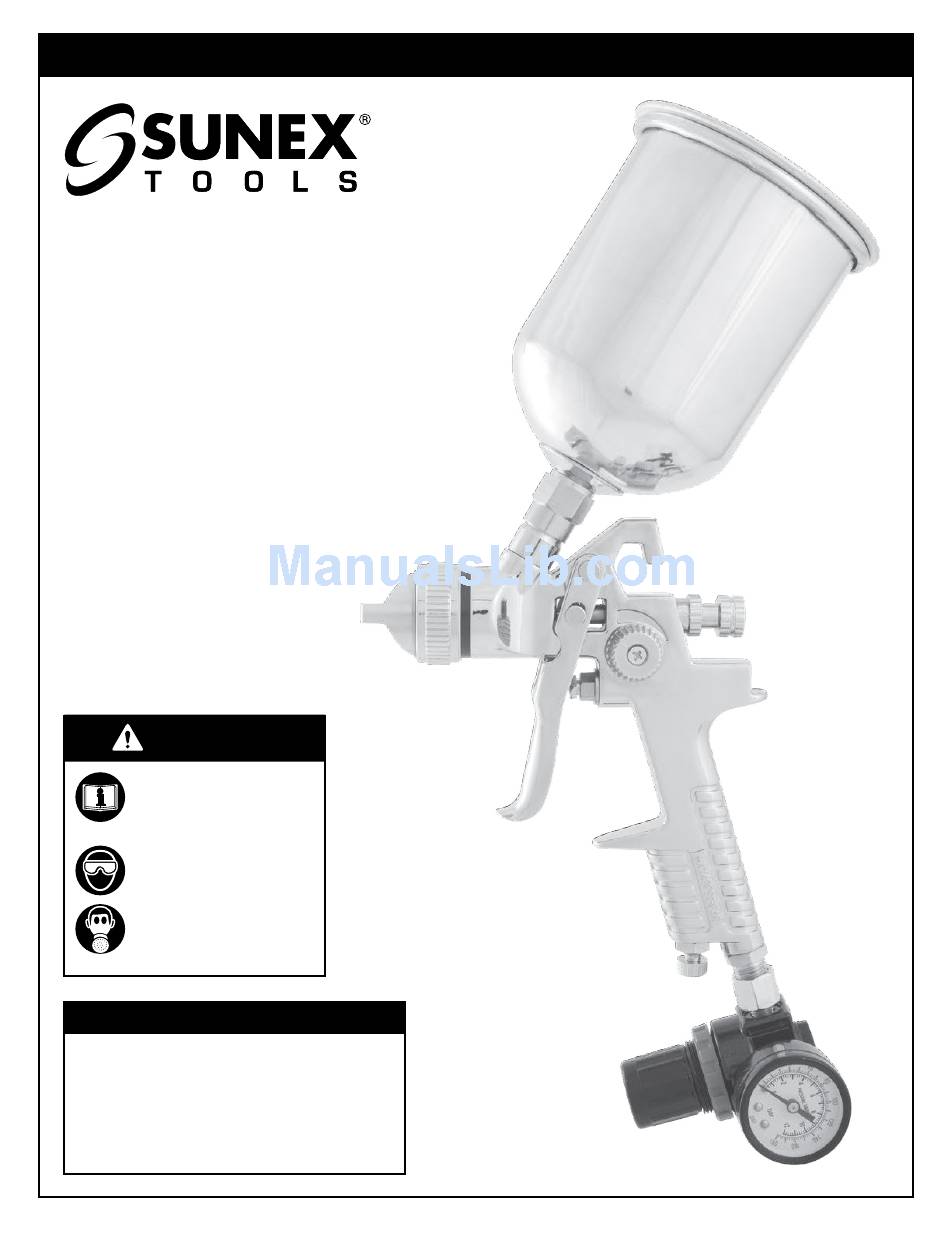

Operating Instructions • Warning Information • Parts Break down
9002B Rev. A
Gravity Feed HvLP
SPray Gun witH
reGuLator /
PreSSure GauGe
WARNING
AlwAys reAd ANd KeeP
iNstructioNs before
usiNg tHis eQuiPMeNt
sPrAy guNs creAte
flyiNg PArticles.
AlwAys weAr sAfety
goggles ANd breAtHiNg
APPArAtus (users ANd
bystANders). flyiNg
PArticles cAN cAuse
iNJury
SPECIFICATIONS
Fluid Nozzle .............................................. 1.4mm
Air Consumption .................................. 14.5 CFM
Fluid (Water) Delivery .............. 160-220 ML/MIN
Air Pressure .............................................. 43 PSI
Cup Size ...................................................600 ML
Air Inlet .................................................. 1/4" NPT
9002B Rev. A : Parts Breakdown & Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9002B and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunex 9002B

  • Page 1 SPECIFICATIONS Fluid Nozzle ..........1.4mm Air Consumption ........14.5 CFM Fluid (Water) Delivery ....160-220 ML/MIN Air Pressure ..........43 PSI Cup Size ...........600 ML Air Inlet ..........1/4" NPT 9002B Rev. A : Parts Breakdown & Operating Manual...
  • Page 2 Smoking must never be allowed in the spray area. Fire extinguishing equipment must be present in the paint spray area. SAFETY INSTRUCTIONS - DO NOT DISCARD - GIVE TO USER 9002B Rev. A : Parts Breakdown & Operating Manual 03/07/13...
  • Page 3: Air Supply

    Some examples of these chemicals are: sPrAy guN descriPtioN Lead from lead based paints The 9002B Rev. A is a light weight, anodized aluminum, general Crystalline silica bricks and cement and other purpose gravity feed spray gun designed for use in various types masonry products of spraying applications.
  • Page 4: Installation

    Reg u late the pat tern width and repeat ad just ment of spray as needed. 9002B Rev. A : Parts Breakdown & Operating Manual 03/07/13...
  • Page 5: Operation

    Repeat with clean solvent if nec es sary. Remove solvent, dis con nect gun, re move air cap and clean. Wipe gun and cup with rag dampened with sol vent. 9002B Rev. A : Parts Breakdown & Operating Manual 03/07/13...
  • Page 6: Troubleshooting

    B.) Atomization pressure set B.) Adjust atomization pressure. too high. thick, dimpled finish Gun held too close to surface. Move gun further from surface. resembling orange peel. 9002B Rev. A : Parts Breakdown & Operating Manual 03/07/13...
  • Page 7 RS9002BNK: Air Nozzle/Fluid Nozzle/Needle Kit (incl. #8-11, 35, 36) RS9002BF: Filter (set of 5) #40 RS9002BSW: Spray Width Assy. incl. #26, 28-30) RS9002BAF: Air Flow Assy. (incl. #17-22) 9002B Rev. A : Parts Breakdown & Operating Manual 03/07/13 Shop for other air tools & compressors on our website.
