Summary of Contents for Elite Wheels & Tyres CL-718W-C

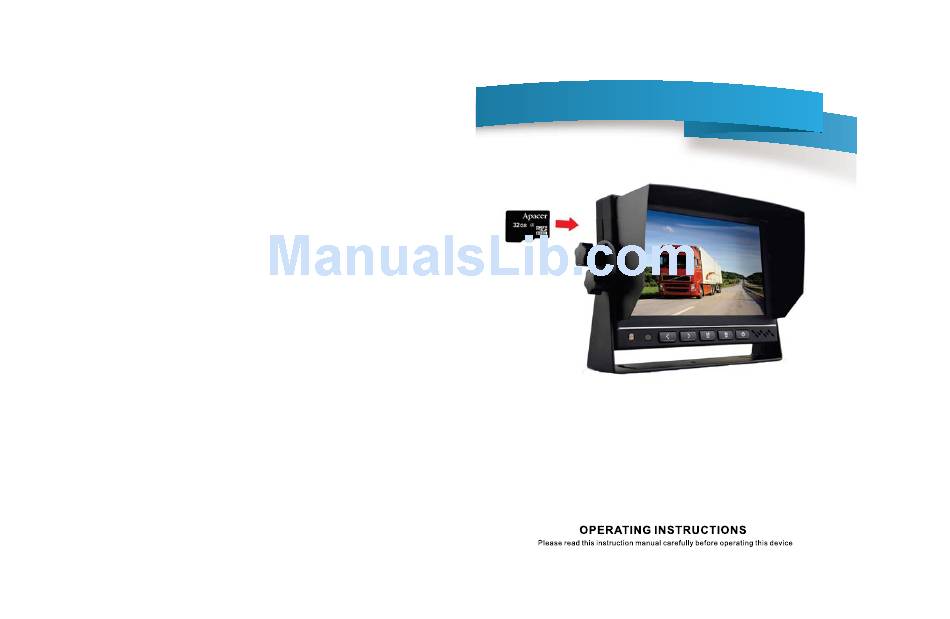

- Page 1 Wireless TFT LCD Monitor...
- Page 2 Description Screen Ratio: 16 : 9 Resolution: 800*RGB*480 TV: PAL / NTCS Voltage: 10--28V Rated Capacity: 5W Brightness: 450cd/m2 Contrast: 450:1 Operate temperature: -20~65℃ Display mode：Support 4 video input, support 4 split display/ 2 split display/ single display Triggering Mode: Maximum 3 video triggering, support backup trigger and left /right turn light trigger Monitor Size:(L)185*(W)125*(H)25 mm Select...
- Page 3 Replay video Matched pair for camera Press the menu button, it will show the menu as the pic 1 (pic 1) Press the right button , and choose the menu matches , it will show the menu as the pic 2 Video Playback Press Menu button and choose , you can enter into recording playback...
- Page 4 Installation Instructions Matched pair for camera Flush Mounting the Monitor 1. Locate a suitable location for mounting the monitor (In-Dash, In-Wall, Headrest, etc.). Then cut a 7-3/8” (W) x 5” (H) opening and insert and secure the flush-mount housing. 2. After securing the housing, insert the monitor into the housing. Do Not Apply Pressure Directly to the LCD Monitor’s Screen.
- Page 5 How to choose the mirror image and Installation Instructions original image for camera 2 and 3 Press the menu and enter into the menu The monitor can be mounted via a pedestal-mount, U-support bracket or a flush-mount. Pedestal Mounting the Monitor 1.
- Page 6 Automatic/Manual operation Wiring Diagram for brightness adjusting. Back to the previous menu and choose , you can see the menu as the pic 7 13-Pin Din Red Wire: 12 Volt Switched 2 Amp Black Wire: Ground (Pic 7) You can choose manual , or automatic .
