Summary of Contents for Signaline SKM-95

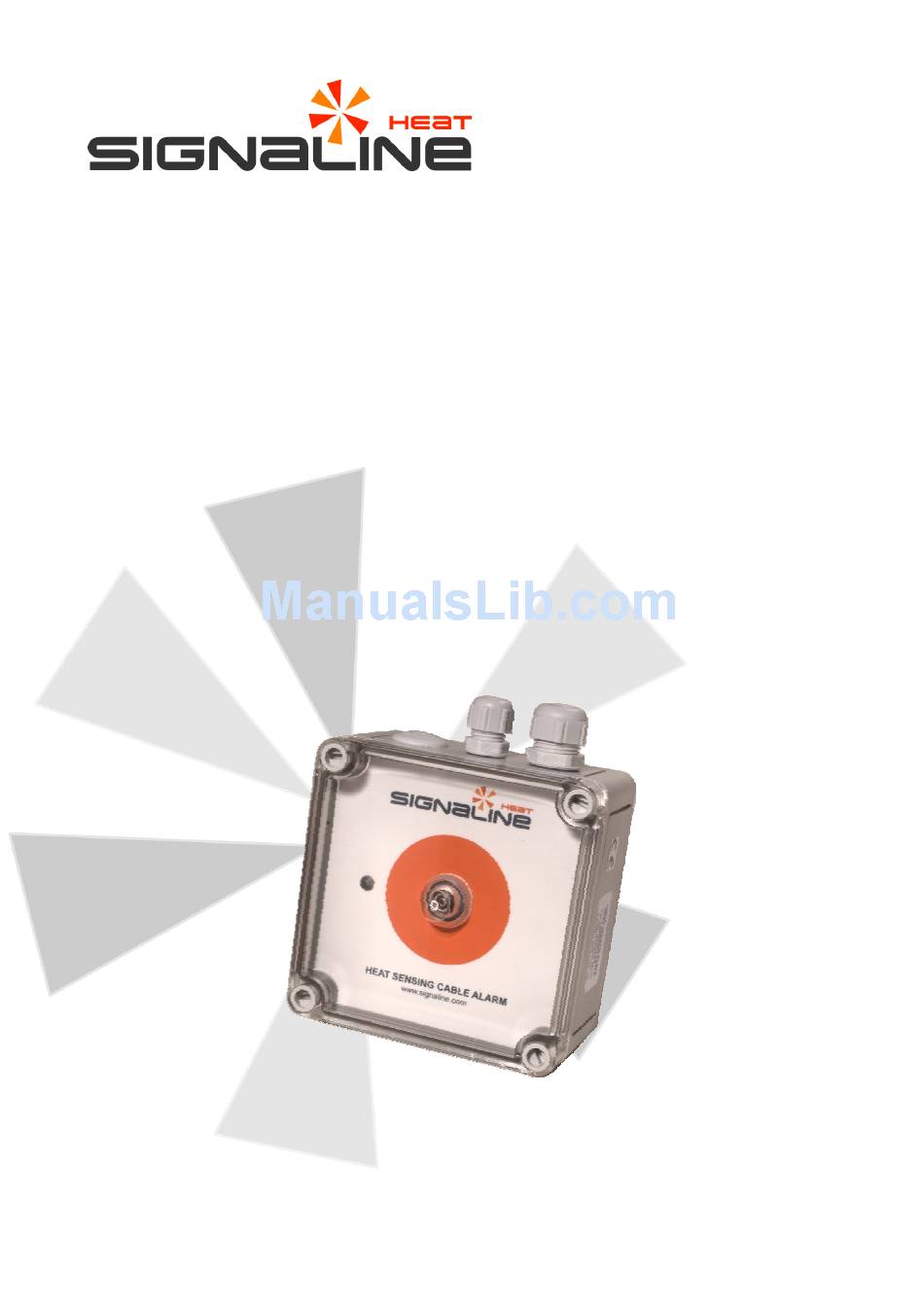

- Page 1 Signaline SKM-95 Instruction Manual LGM PRODUCTS LTD TEL +44 (0) 1252 725257 UNIT 15 RIVERSIDE INDUSTRIAL PARK FAX +44 (0) 1252 727627 FARNHAM E-mail sales@Lgmproducts.com SURREY GU9 7UG www.signaline.com UNITED KINGDOM Version 2.1...
-
Page 2: Table Of Contents
9.0 Mounting the Sensor Cable in a Car Park 10.0 Troubleshooting LGM PRODUCTS LTD TEL +44 (0) 1252 725257 UNIT 15 RIVERSIDE INDUSTRIAL PARK FAX +44 (0) 1252 727627 FARNHAM E-mail sales@Lgmproducts.com SURREY GU9 7UG www.signaline.com UNITED KINGDOM Version 2.1... -
Page 3: General/Product Features
• The sensor cable system is an early warning fire detection system when used with the Signaline SKM-95 controller. It can be used to detect fires and over heats on conveyor belts, cable trays or tunnels. For detection in open areas it can be mounted on the ceiling or also be mounted directly above a cable tray. - Page 4 1.0 General/Product Features Signaline Analogue Heat Sensing Cable System 1) Controller type SKM-95 2) End of line box for SKM-95 (included) 3) Sensor cable standard (Signaline HD) • with Rilsan coated (Signaline HD-R) • with Stainless Steel protective braiding (Signaline HD-S) •...
-
Page 5: Technical Data
Dimensions end of line box W/H/D 80 x 80 x 52 mm LGM PRODUCTS LTD TEL +44 (0) 1252 725257 UNIT 15 RIVERSIDE INDUSTRIAL PARK FAX +44 (0) 1252 727627 FARNHAM E-mail sales@Lgmproducts.com SURREY GU9 7UG www.signaline.com UNITED KINGDOM Version 2.1... - Page 6 2.0 Technical Data Heat Sensing Cable Signaline HD Red outer sheath • Plastic coaxial conductor • 3.25 mm sensor cable diameter • 1.6 Kg per 100 metres • Signaline HD-R Black nylon outer sheath (Rilsan) • plastic coaxial conductor •...
-
Page 7: Installation Notes
3.0 Installation Notes The Signaline SKM-95 Controller connected to the Signaline sensor cable should be mounted in the area requiring protection. The controller and cable are designed and certified in conformity with VdS and EN 54 pt5. Local fire regulations may vary, particularly outside Europe. - Page 8 3.0 Installation Notes When connecting two lengths of sensor cable use a Signaline • Universal Connector Box (Signaline UCB) available from your local Signaline distributor. The minimum bend radius for Signaline Analogue Heat Sensing • Cables are as follows: HD - 5mm •...
-
Page 9: Complete Monitoring In Accordance With En54 Pt5
3.6m. Figure 1 LGM PRODUCTS LTD TEL +44 (0) 1252 725257 UNIT 15 RIVERSIDE INDUSTRIAL PARK FAX +44 (0) 1252 727627 FARNHAM E-mail sales@Lgmproducts.com SURREY GU9 7UG www.signaline.com UNITED KINGDOM Version 2.1... -
Page 10: Maximum Cable Length
5m Signaline HD Cable, radius 3.6m An alarm will be detected when 5 metres of sensor cable is heated between 84°C and 100°C. If a large length of Signaline Analogue Heat Sensing Cable is heated then the alarm temperature will be proportionally lower. -
Page 11: Assembly Tools
The K clip is simple and easy to install, allowing lower installation time and cost. Simply drill a 6mm Ø hole, click the cable in place, and plug it in. K clips can be used with Signaline HD and Signaline HD-R cables. -
Page 12: Control Unit Indicators
Red LED When there is no LED illuminated the Signaline SKM-95 • Controller is operational If there is a yellow LED then the Signaline SKM-95 Controller • has a fault When the red LED is illuminated then the Signaline SKM-95 •... -
Page 13: End Of Line Unit
5.1 End of Line Unit Signaline SKM-95 End of Line Unit Figure 5 In the end of line unit ( ) you will find a 3K6 Ohm resistor. This is used for monitoring incase of a cable break or short circuit. -
Page 14: Address Codes And Wiring
125=1011111 30=0111100 62=0111110 94=0111101 126=0111111 31=1111100 63=1111110 95=1111101 32=0000010 64=0000001 96=0000011 LGM PRODUCTS LTD TEL +44 (0) 1252 725257 UNIT 15 RIVERSIDE INDUSTRIAL PARK FAX +44 (0) 1252 727627 FARNHAM E-mail sales@Lgmproducts.com SURREY GU9 7UG www.signaline.com UNITED KINGDOM Version 2.1... - Page 15 • 3K2 Ohm resistor. Reset the 3K2 Ohm resistor after test LGM PRODUCTS LTD TEL +44 (0) 1252 725257 UNIT 15 RIVERSIDE INDUSTRIAL PARK FAX +44 (0) 1252 727627 FARNHAM E-mail sales@Lgmproducts.com SURREY GU9 7UG www.signaline.com UNITED KINGDOM Version 2.1...
- Page 16 7.0 Testing the System Loop Device Recognition Most Apollo XP95 or Discovery compatible panels should recognize the SKM-95 controller as an Apollo XP95 heat detector. Some panels recognise the SDKM-95 controller as an Apollo XP95 High Temperature Heat detector. Simulated Test...
-
Page 17: Calculating The Installed Length Of Sensor Cable
The cable length is calculated as follows: Length in metres = resistance (Ohms) 0.2 ( LGM PRODUCTS LTD TEL +44 (0) 1252 725257 UNIT 15 RIVERSIDE INDUSTRIAL PARK FAX +44 (0) 1252 727627 FARNHAM E-mail sales@Lgmproducts.com SURREY GU9 7UG www.signaline.com UNITED KINGDOM Version 2.1... - Page 18 9.0 Installing Sensor Cable in a Car Park Figure 7 LGM PRODUCTS LTD TEL +44 (0) 1252 725257 UNIT 15 RIVERSIDE INDUSTRIAL PARK FAX +44 (0) 1252 727627 FARNHAM E-mail sales@Lgmproducts.com SURREY GU9 7UG www.signaline.com UNITED KINGDOM Version 2.1...
- Page 19 9.0 Installing Sensor Cable in a Car Park Figure 8 LGM PRODUCTS LTD TEL +44 (0) 1252 725257 UNIT 15 RIVERSIDE INDUSTRIAL PARK FAX +44 (0) 1252 727627 FARNHAM E-mail sales@Lgmproducts.com SURREY GU9 7UG www.signaline.com UNITED KINGDOM Version 2.1...
-
Page 20: Troubleshooting
Is the controller in an isolated part of the loop? Fault on the panel? LGM PRODUCTS LTD TEL +44 (0) 1252 725257 UNIT 15 RIVERSIDE INDUSTRIAL PARK FAX +44 (0) 1252 727627 FARNHAM E-mail sales@Lgmproducts.com SURREY GU9 7UG www.signaline.com UNITED KINGDOM Version 2.1...
