Summary of Contents for Currys C1DVD10

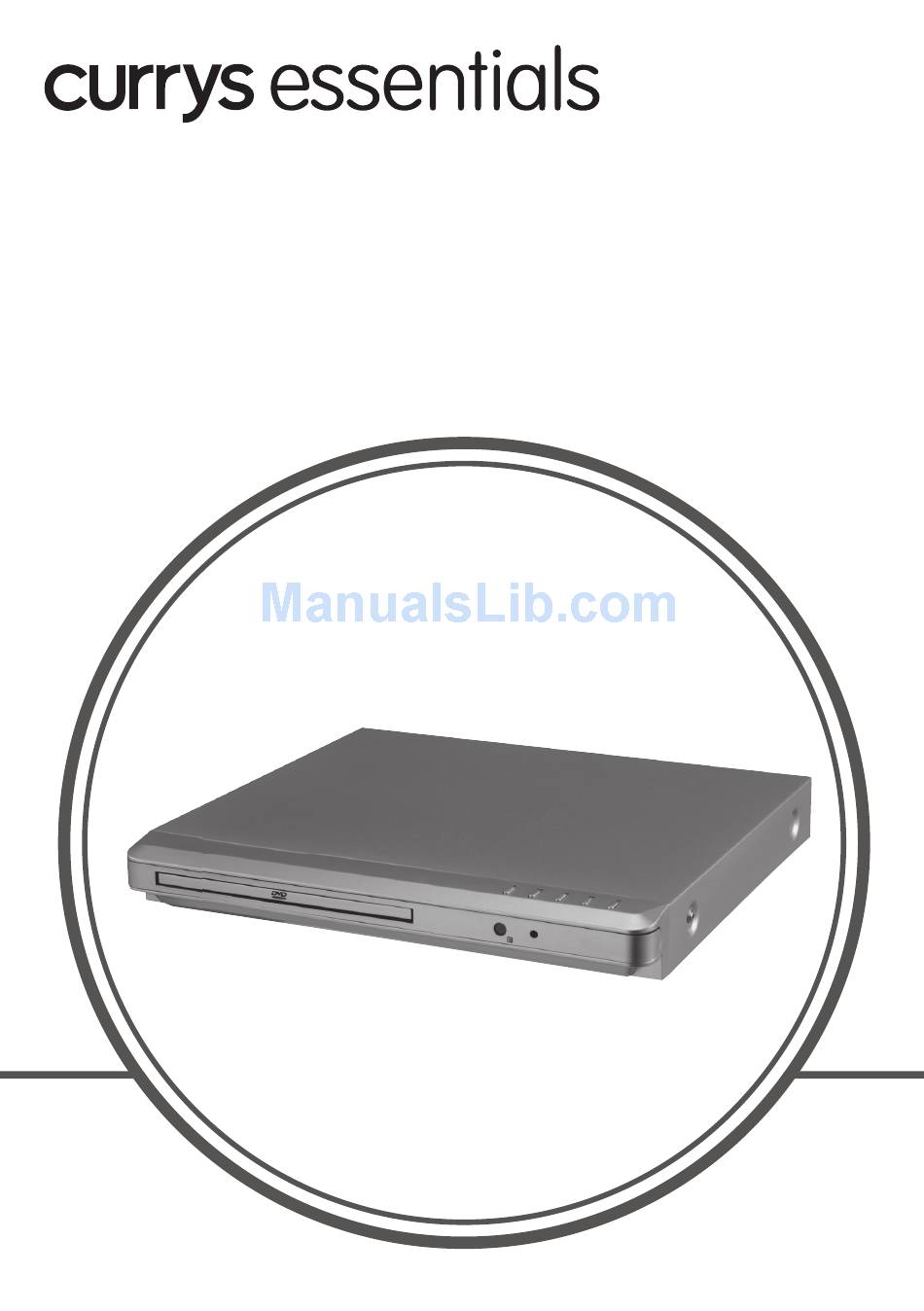

- Page 1 C OM P A C T D V D P L AY E R IN STR U CTI ON M AN UA L C 1DVD 1 0...
-
Page 4: Table Of Contents
Contents Unpacking ..........................6 Product Overview .........................7 Front View ...............................7 Rear View .................................7 Remote Control .............................8 Battery Installation for the Remote Control..................10 Remote Control Operation Range....................... 10 Connections ........................11 Method 1: Connecting to a TV with an AV Cable ................11 Method 2: Connecting to a TV with a SCART Cable .............. - Page 5 Video Output .............................. 19 Program ................................ 19 Subtitle Language ............................. 19 JPEG Disc Playback ........................... 19 GOTO ................................20 System Setup ........................21 OSD (On Screen Display) ........................21 Menu ................................21 Audio ................................21 Subtitle ................................21 TV Type ................................22 Screen Saver ..............................
-
Page 6: Unpacking
Congratulations on the purchase of your new Currys Essentials DVD player. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it off ers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Product Overview
Product Overview Front View Disc Tray OPEN/CLOSE Button To load a disc into the disc drive Opens and closes the disc tray Remote Control Sensor PLAY/PAUSE Button Receives infrared signals from the To start or resume playback of a disc remote control PREV/NEXT Button Power Indicator... -
Page 8: Remote Control
Remote Control STANDBY Button Turns the power on or restores the DVD player to standby mode OPEN/CLOSE Button Opens and closes the disc tray GOTO Button To skip directly to a specific time / title / chapter / track on a DVD STEP Button To play or move the playback forward frame by frame... - Page 9 19. SLOW Button Press repeatedly to enter slow playback, and cycle between different speeds 20. SETUP Button To access or exit the SETUP menu 21. L/R Button Press to change the audio output to L/L, R/R or L/R Buttons To move up, down, left and right in VOL + Setup Menu VOL –...
-
Page 10: Battery Installation For The Remote Control
Battery Installation for the Remote Control Press and lift the back cover up to Insert two AAA size batteries. Make open the battery compartment of the sure to match the (+) and (–) ends of remote control. the battery compartment. Close the battery compartment cover. -
Page 11: Connections
Connections When connecting any external AV device or TV, do not connect the mains cable to the mains socket until all other connections are complete. Method 1: Connecting to a TV with an AV Cable Television AV Cable (included) White Red Yellow 100–240V~ 50/60Hz... -
Page 12: Method 3: Connecting To A Tv With A S-Video Cable
Method 3: Connecting to a TV with a S-Video Cable AV Cable Television (included) S-Video Cable (not included) To S-Video input To S-Video output Yellow White 100–240V~ 50/60Hz Use a S-Video cable to connect the DVD player’s S-VIDEO output socket to a TV’s S-VIDEO input socket. -
Page 13: Method 5: Connecting To A Stereo System And Tv With An Av Cable And Scart/S-Video Cable
Method 5: Connecting to a Stereo System and TV with an AV Cable and SCART/S-Video Cable To audio inputs Stereo System of the amplifier AV Cable (included) Television To S-Video S-Video Cable input (not included) To SCART SCART Cable input (not included) To S-Video output... -
Page 14: Method 6: Connecting To An Audio Receiver With A Coaxial Cable
Method 6: Connecting to an Audio Receiver with a Coaxial Cable Decorder of Amplifier with Dolby Digital or MPEG Coaxial Cable (not included) To audio inputs of the amplifier 100–240V~ 50/60Hz Use a coaxial cable to connect the DVD player’s COAXIAL OUT socket to an audio receiver’s digital audio input (COAXIAL IN) socket. -
Page 15: Compatible Disc Types
Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG fi les) AUDIO + VIDEO + JPEG DVD+ReWritable DVD±R (DVD Recordable - Audio/Video AUDIO + VIDEO + JPEG format or JPEG fi les) DVD+R CD-R (CD Recordable - Audio/Video format or AUDIO + VIDEO + JPEG... -
Page 16: Start Up
Start Up Press the STANDBY button to turn on the TV and select the video input connected to the DVD player. Switch on the related system power if the DVD player has been connected to another device e.g. amplifier equipment etc. Basic Playback This instruction manual explains the basic instructions for operating this unit. -
Page 17: Previous And Next
Previous and Next PREV button to go back to the start of the previous During playing, press the chapter. Each press of this button will skip a chapter until the start of the disc. NEXT button during playing will skip the current chapter and Each press of the play the next one. -
Page 18: Advanced Playback
Advanced Playback The following functions are applicable only to DVD discs. If other disc formats are played, the screen display and operation will be different. Press the OSD button and the screen will display some information about the disc, such as: “Playing Time”, “Chapter Number”... -
Page 19: Pal / Ntsc
PAL / NTSC Press the N/P button to switch among PAL, NTSC and AUTO (multi). Press the L/R button to switch the audio output among L/L, R/R and L/R. Video Output Press the VIDEO button to select the video output mode among S-Video and RGB. Program Press the PROG button to display the program playback window, 20 tracks or chapters can be programmed. -
Page 20: Goto
GOTO During playback, press the GOTO button to search the title / chapter / track in the disc. Press the GOTO button again to display the search menu. Press the buttons repeatedly to select the select the item / time / title / chapter. Press the 0-9 buttons to select the search item / time / title / chapter, for example: •... -
Page 21: System Setup
System Setup When you press the SETUP button on the remote control, the setup menu will be displayed. Within the setup menu, you can use the buttons to move the cursor, and then press the ENTER button to make your selection. Press the button to return to the previous menu. -
Page 22: Tv Type
Screen Setup TV Type In order to display the playback in the correct size format, both the DVD player and the TV should select the same display size format. • 4:3 PS Select this if you have a standard TV and want both sides of the picture to be trimmed or formatted to fit your TV screen. -
Page 23: Tv System
TV System This DVD player supports different TV output, including Auto, NTSC, and PAL systems. In order for the disc to play, the colour system of the DVD player, disc and TV should match. • If your TV supports only NTSC or PAL and you have inadvertently selected the wrong TV type, the TV image will flicker and become black-and-white. -
Page 24: Digital Out
Audio Setup Digital Out Set the digital output. Select from: • Spdif/pcm • Spdif/raw • Off Downmix Set front speakers to Lo/Ro or Lt/Rt. • Lo/Ro Select this option if your DVD player is connected to a hifi . • Lt/Rt Select this option if your DVD player is connected to a Dolby decoder. -
Page 25: Style
Style This function allows users to set the operating interface style, and the current system can provides four styles. Angle Mark Users can select a particular camera angle when playing a DVD which offers multiple angles. Default Resets to all the manufacturer’s original settings for this DVD player. -
Page 26: Maintenance
Maintenance Handling Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Playback side Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. -
Page 27: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. PROBLEM CAUSE / SOLUTION No power. • Ensure the mains cable is connected. • Make sure that the unit is turned on. •... -
Page 28: Specifications
Specifications Model C1DVD10 Voltage 100-240V~ 50/60 Hz Power consumption Signal system NTSC/PAL/AUTO Dimension (W x H x D) 260 x 38 x 230 mm • Output level: 1+0.2Vp-p (75 ohm) Video output • Horizontal resolution: >500 lines • S/N ratio: >60dB •... -
Page 29: Safety Warnings
Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not onto a third party make sure to include this obstruct the ventilation vents. - Page 30 Batteries CAUTION • Batteries used in the remote control for this RISK OF ELECTRIC SHOCK unit are easily swallowed by young children DO NOT OPEN and this is dangerous. The lightning flash with arrowhead • Keep loose batteries away from young children and make sure that the battery symbol, within an equilateral triangle, is intended to alert the...
- Page 32 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Remote Control C1001 Battery C1002 AV Cable C1003 Instruction Manual C1004 Quick Start Guide C1005 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
