Summary of Contents for APAC Opto Electronics AO-1505A
- Page 1 APAC Opto Electronics Inc. AO-1505 / AO-1505A ZigBee to AIDO Module Operation Manual...
-
Page 2: Table Of Contents
AO-1505/AO-1505A ZigBee to AIDO Module Operation Manual Contents 1. Introduction ..........................2 2. Features ............................2 3. Dimensions and Pin Assignments ....................3 4. Function Selection and Initialization ..................... 3 4.1 Function Selection ........................3 4.2 Initialization ........................... 3 4.3 ID Clear and Rejoin ......................... 5 5. -
Page 3: Introduction

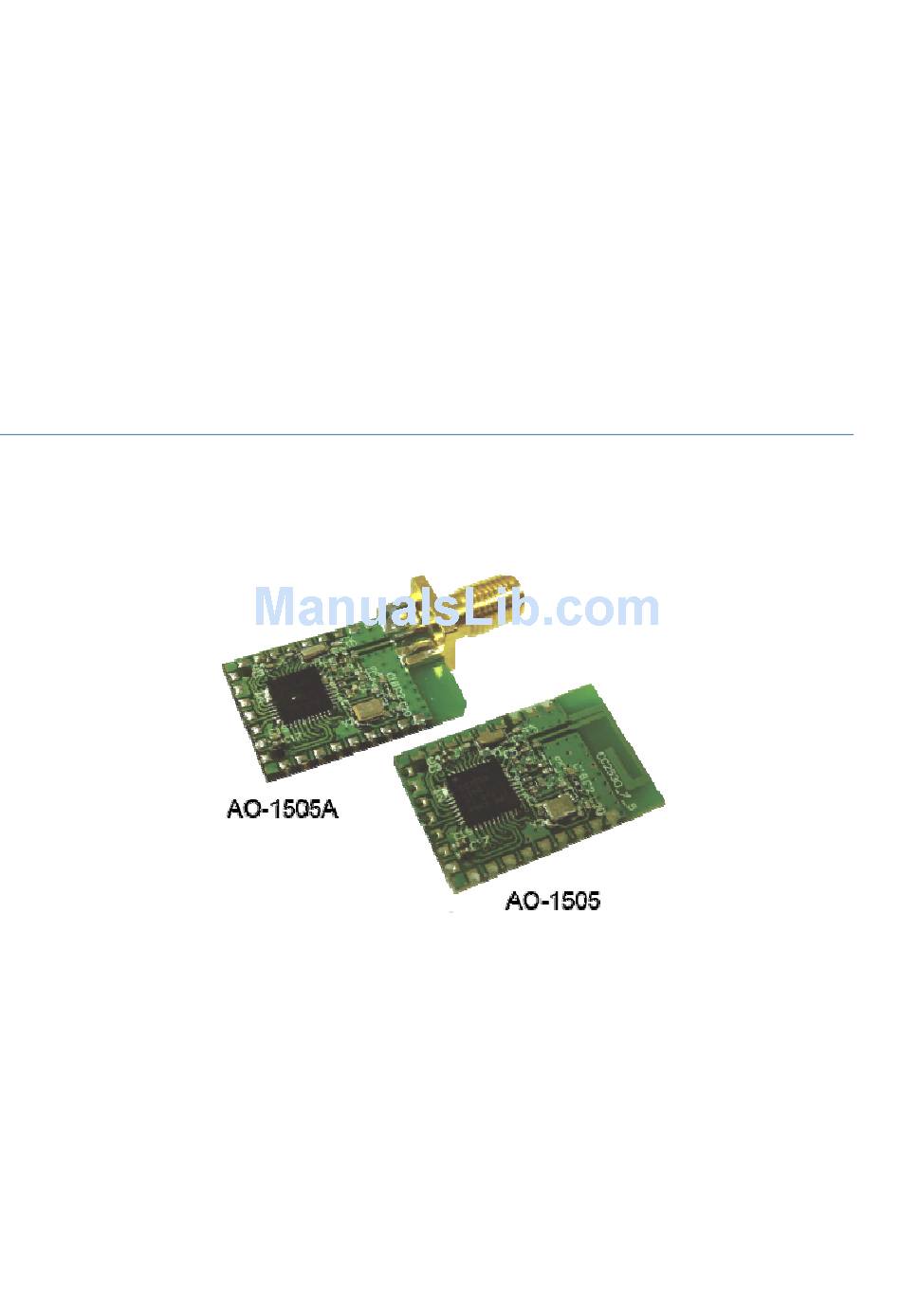

Both AO-1505/AO-1505A are ZigBee to AIDO modules that use the advanced TI CC2530 chip. The difference between AO-1505 and AO-1505A is that the former, which has built-in high performance PCB micro strip antenna, is suitable for applications with small dimensions. The AO-1505A, which requires external antenna, is appropriate for industrial applications in adverse environments. -
Page 4: Dimensions And Pin Assignments
P14 Dout#1 P20 is reserved and not connected. Note: 1. Connection of Pin 10~16 is required for AO-1505/AO-1505A ZigBee to DIDO module, leave the remaining pins open(internal pull high). 2. Pin assignments are defined by the users if reprogrammed. 3. If use AT Command setting, you have to connect via P03 and P02 pin of UART. - Page 5 Zigbee network. 2. Connect AO-1505/AO-1505A ZigBee to AIDO module to CPU or PC via UART interface. The CPU activates the UART to receive, or the PC opens the terminal software, and preset 9600bps, 8, N, 1.
-
Page 6: Id Clear And Rejoin
AO-1505/AO-1505A ZigBee to AIDO Module Operation Manual R=Router String Header: The symbol is “ : ”. 6. If the module works as a Router, the NODE ID can be written into the module automatically, i.e., no action is needed. 7. Inquire the status message repeatedly by sending serial data. -
Page 7: Ao-1505 Responses Messages To Query Digital Output Pin State
AO-1505/AO-1505A ZigBee to AIDO Module Operation Manual RSTU indicates channels of current command, R = Channel 4, S = Channel 3, T = Channel 2, and U = Channel 1. The value for each channel only is 0, 1 or -. -
Page 8: Remoted Sampling Mode Command
ID=A368. The data port is input; data source and content are channel 2. The data content is 0x0138 and input voltage is equal to 1.872V. 5.4 Remoted Sampling Mode Command To set sampling mode of all or assigned AO-1505/AO-1505A in the ZigBee network. Direction: Host Coordinator Router... -
Page 9: Installation And Operation
QDO1111 presents inquiry digital output pin status of all AO-1505/AO-1505A at the same PAN network. SDO1111 sets digital output pin status of all AO-1505/AO-1505A at the same PAN network. QAI1111 presents inquiry analog input pin status of all AO-1505/AO-1505A at the same PAN network. -
Page 10: Response Of A Router
The following format is response message from a router device. It consists of a string header, router ID, data direction, source channel, channel data, and serial number. The following figure shows the format of the AO-1505/AO-1505A response when querying digit output pin status. -
Page 11: Inquiry Of Network Configuration
AO-1505/AO-1505A ZigBee to AIDO Module Operation Manual The following figure shows the format of the AO-1505/AO-1505A response when querying analog input pin status. 6.4 Inquiry of Network Configuration A ZigBee network can be organized automatically by the coordinator, which is the hub of the network. -
Page 12: At Commands
AO-1505/AO-1505A ZigBee to AIDO Module Operation Manual As the coordinator sends the “NETAS” command, every router in the network will respond by sending NODE IDs of itself and its parent node. If the responsive commands are “:0000-EDA6, :EDA6-9286, :EDA6-383A, :9286-B05C”, then the network configuration can be interpreted as depicted below. -
Page 13: Enter And Quit Command Mode
Do not send any message within 1 second. Within 1 second sent string (ASCII= 0x2B 0x2B 0x2B) Do not send any message within 1 second. Enter command mode, then AO-1505/AO-1505A replies the string “COMMAND MODE<CR>”. Quit command mode, send ATBYE<CR>. - Page 14 AO-1505/AO-1505A ZigBee to AIDO Module Operation Manual RF output power Default=0x03 ( 1dBm ) Response: Output Power=0x03 <CR> Send: ATPOW 0x00<CR> Response: OK<CR> Restore Factory POWER=0dbm, Send: ATRES<CR> Settings RF Channel=26, Response: Baud rate=9600bps, Clear setting and system reset. Clear PAN and NODE ID...
-
Page 15: Adc Self-Correction Function
*4 Using the “ATTYE” instruction, it is necessary to set P13 to 0 before power on. 8. ADC Self-correction Function AO-1505/AO-1505A has built-in a set of 12-bit high precision analog / digital converter (ADC). This ADC input voltage range is between 0V and 3.3V. If the voltage beyond the rated input range, it will cause permanent damage to the module. - Page 16 AO-1505/AO-1505A ZigBee to AIDO Module Operation Manual AO-1505A, which has external antenna. Install the module in an erect posture to ensure good antenna radiation pattern. Don’t put any inductive element within 30mm distance of the module. Refrain from condensation of damp or dew.
- Page 17 AO-1505/AO-1505A ZigBee to AIDO Module Operation Manual Refer to the figures and illustrations shown below for basic electronic circuit application. Note: P11 = GND will enforce clear of ID setting. P12=3.3V, the working mode is Router; P12=GND, the working mode is Coordinator.
-
Page 18: Technical Specifications
AO-1505/AO-1505A ZigBee to AIDO Module Operation Manual 10. Technical Specifications Item Parameter Typical Unit Electrical characteristics (25 Voltage Tx current 1 35.4 39.6 Rx current 2 24.1 29.6 Power mode 0 Power mode 1 Power mode 2 Power mode 3...
