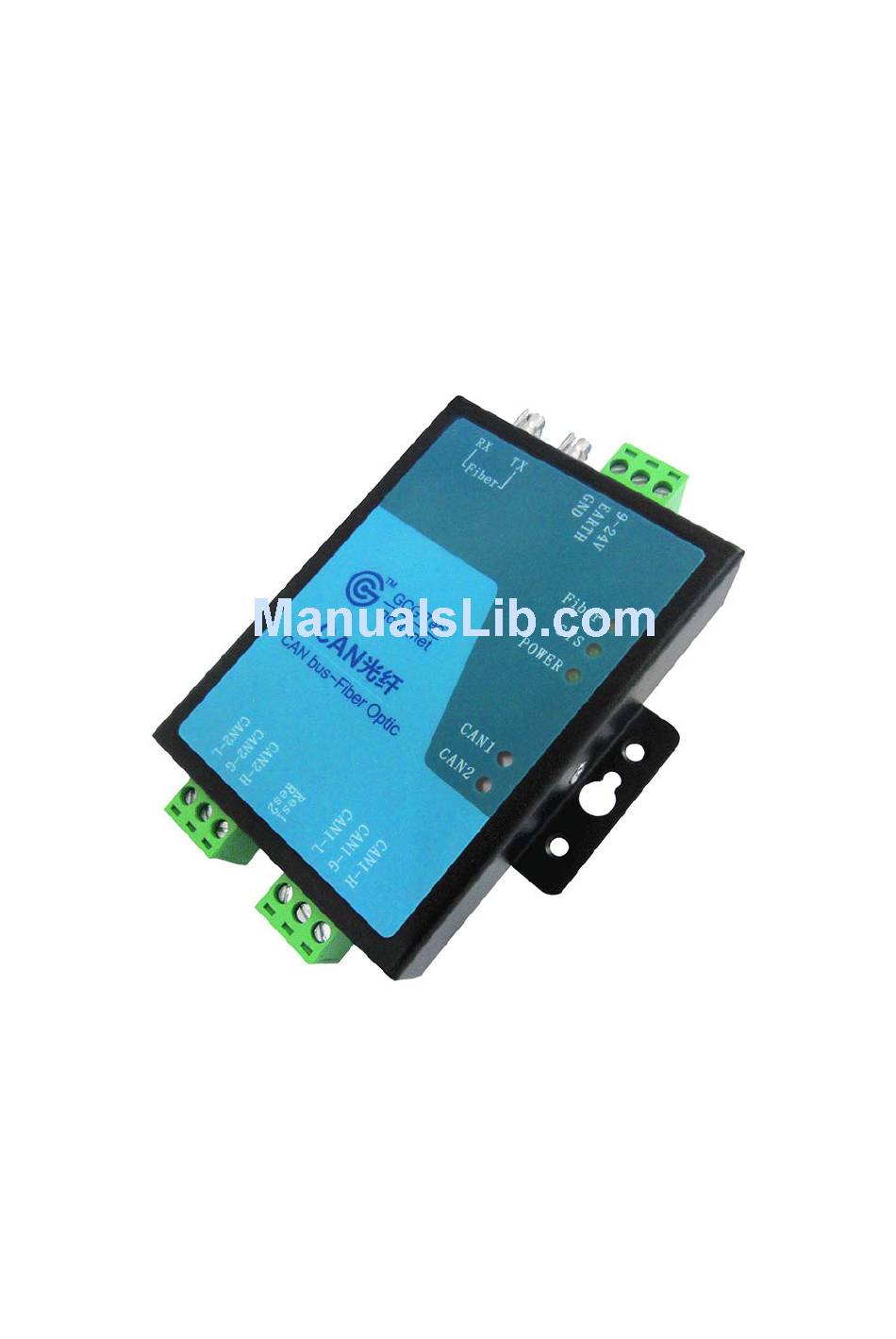

- Page 1 GCAN-208 Fiber-CAN converter User Manual...
-
Page 2: Table Of Contents
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Fiber-CAN converter-GCAN-208 Contents 1 Introduction ......................... 3 1.1 Overview ......................3 1.2 Properties at a glance ..................3 2 Interface specification ....................4 3 Connection and use ..................... 5 3.1 CAN-Bus configuration ................... 5 3.2 Connect to Fiber .................... -
Page 3: Introduction
Industrial-grade Fiber-CAN converter-GCAN-208 1 Introduction 1.1 Overview The GCAN-208 converter has integrated two standard CAN-Bus interface, one fiber interface(Single mode, multi mode, SC, ST). GCAN-208 converter can build a connection between Fiber Bus and CAN-Bus. With this converter in pairs, users can easily extend the distance of CAN-Bus and eliminate the interference effectively. -
Page 4: Interface Specification
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Fiber-CAN converter-GCAN-208 2 Interface specification GCAN-208 converter interface specification are shown in figure 2.1. After power up the converter, it will be work in the working state. Figure 2.1 Interface specification Power interface Description... -
Page 5: Connection And Use
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Fiber-CAN converter-GCAN-208 3 Connection and use 3.1 CAN-Bus configuration Before using the GCAN-208 converter, users have to configure the parameter of the CAN-Bus. Configure CAN-Bus baud rate 3.1.1 The baud rate of CAN-Bus range from 5K to 1000K, configured by DIP switch. -
Page 6: Connect To Fiber
DIP switch. 3.2 Connect to Fiber The two fiber interface of GCAN-208 converter is SC or ST. The fiber transmission mode is single mode or multi mode. NOTE: When connecting the fiber, the RX should be connected to TX, TX to 3.3 Connect to CAN-Bus... -
Page 7: System Led
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Fiber-CAN converter-GCAN-208 3.4 System LED The GCAN-208 converter has integrated one POWER indicator, one SYS indicator, one Fiber indicator and two CAN indicators.More functions are shown in table 3.3 and 3.4. Indicator light Color... -
Page 8: Technical Specifications
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Fiber-CAN converter-GCAN-208 4 Technical specifications Connection Fiber SC, ST optional OPEN3 terminal blocks Interface characteristics Fiber transmission mode Single mode, multi mode optional CAN interface ISO 11898 standard, CAN2.0A/B CAN baud rate 5Kbit/s~1Mbit/s, configured by DIP switch... -
Page 9: Sales And Service
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Fiber-CAN converter-GCAN-208 Sales and service Shenyang Guangcheng Technology Co., Ltd. Address: Industrial Design Center, No. 42 Chongshan Middle Road, Huanggu District, Shenyang City, Liaoning Province. QQ: 2881884588 E-mail: 2881884588@qq.com Tel: +86-24-31230060 Website: www.gcgd.net Sales and service Tel: +86-18309815706...
