Summary of Contents for AGP LY1726

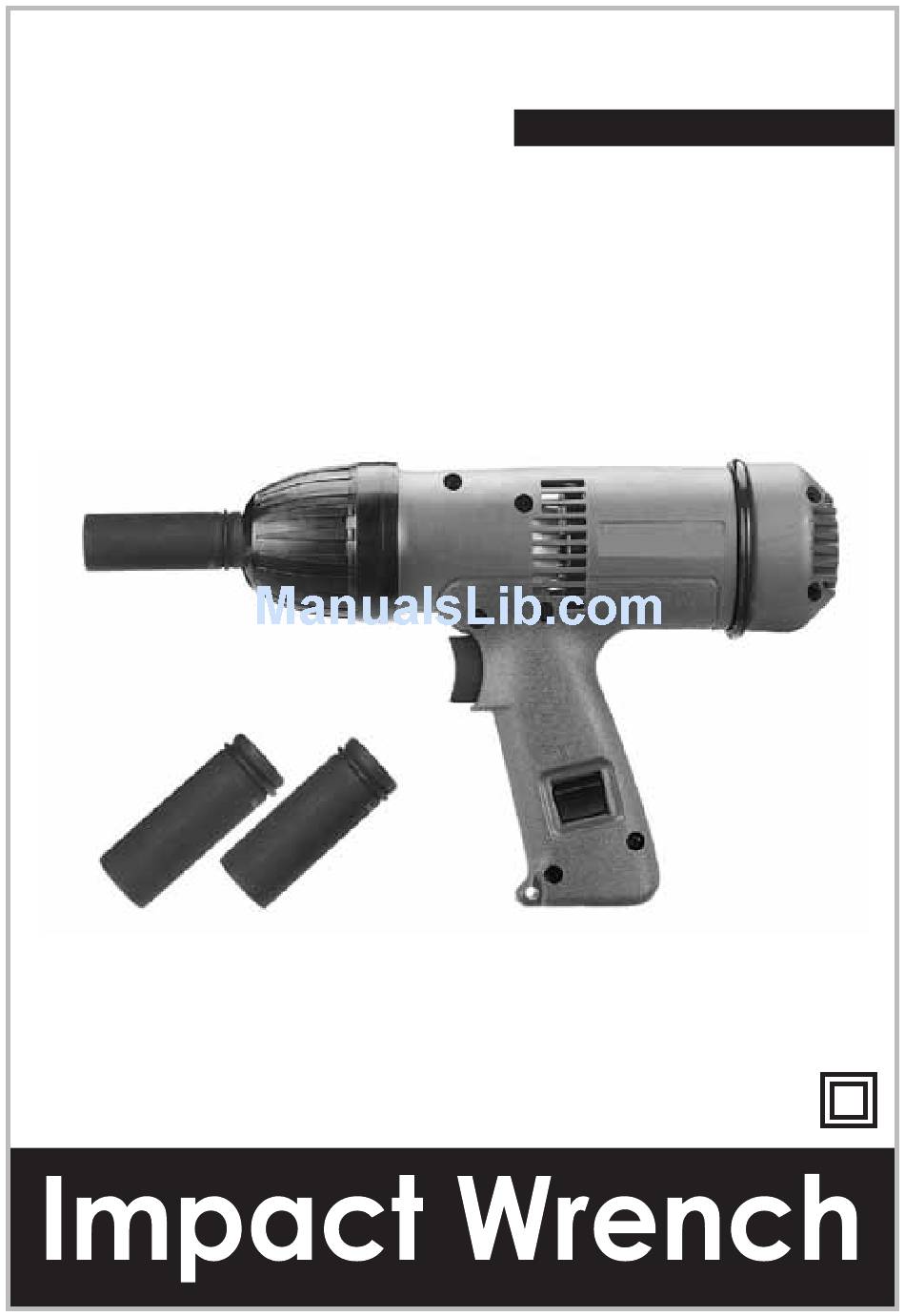

- Page 1 INSTRUCTION MANUAL For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Version:20130826...
-
Page 2: Specifications
SPECIFICATIONS Standard bolt M10-M16 (3/8"-5/8" ) Bolt size High tensile bolt M10-M12 (3/8"-7/16") Square drive 12.7mm (1/2") Impact per minute 0-2800 No load min 0-2100 Power input 500W Net weight 1.8Kg (3.96 Lbs) Manufacturer reserves the right to change specifications without notice Note : Specifications may differ from country to country Safety instructions marked. -
Page 3: Additional Safety Rules
ADDITIONAL SAFETY RULES cord from the receptacle. Keep the cord from heat,oil and sharp objects. M a i n t a i n t o o l s c a r e f u l l y . F o r b e s t Wear ear Protectors. - Page 4 ●CHANGING SOCKETS: ●REVERSING SWITCH For clockwise rotation switch to FWD CAUTION: Always make sure both the position. For counterclockwise rotation switch is off and the tool is unplugged switch to REV position. Before operation before changing sockets or accessories. ,always double check reversing switch position.
- Page 5 ■ Different types of materials have different to 1/4 of their original length. torque requirements ■ Oil on the threads will yield most accurate torque ■ Use of an extension socket will lessen torque ■ Lower voltage will lessen torque ■...
- Page 6 I f t h e r e p l a ce m e n t o f t h e p o we r s u p p l y cord is necessary, this has to be done by the manufacturer or their agent in order to avoid a safety hazard.
- Page 7 WIRING...
-
Page 8: Exploded View
EXPLODED VIEW... -
Page 9: Parts List
PARTS LIST Parts Name Q'TY CARBON BRUSH 5 × 8 × 10 BRUSH HOLDER 5 × 8 LEAD W/ TERMINAL 10mm HOUSING HALF-RIGHT TRIGGER SWITCH 110V TRIGGER SWITCH 220V RUBBER BOOT HOG RING 13 x 1.5 O-RING 7.5 x 2 OIL SEAL 18 ×...
