Summary of Contents for Sea-Dog Deluxe ASA Halogen Spot/Flood Light

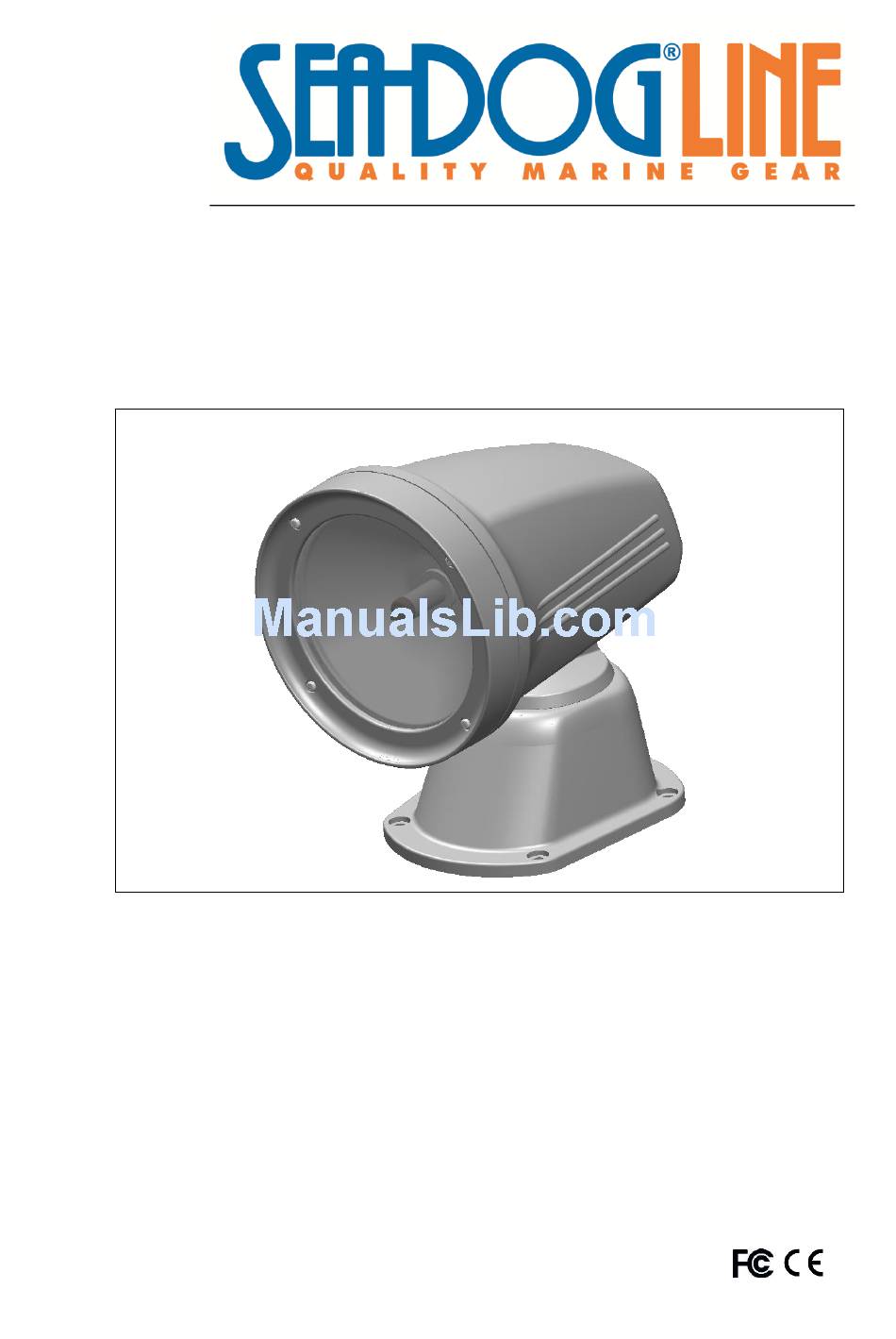

- Page 1 Installation & Operation Instructions Deluxe ASA Halogen Spot/Flood Light 405610-3 To avoid the risk of accidents or damage to this product, it is essential to read these instructions thoroughly SDG Edition before this product is installed and used. June 2017...
-
Page 2: Table Of Contents
Contents Product Features ...................... 2 Specifications ......................2 Installation ......................... 2 Spot Light Installation…………………………………………………………………. 2 Electrical Wiring ....................4 Mounted Remote Control Installation ..............5 Operation ........................6 Remote Control……………………………………………………………..………..…6 Caution ........................6 Maintenance ......................7 Replacing or Adding Remote Controls..............8 Troubleshooting ....................... -
Page 3: Product Features
Controls Available Separately The spotlight comes with a 12V powered wireless remote, and a battery powered wireless remote is available which is sold separately, part number 405681-1. Please see our web-site at www.sea-dog.com for more details. Installation Tools Needed for Installation ... - Page 4 User Supplied Items Four (4) ¼” (6mm) screws or four (4) ¼” bolts with nuts 10A fuse and fuse holder Two (2) #8 self-tapping screws Four (2) 18 – 20 gauge butt connectors Spot Light Installation 1.
-
Page 5: Electrical Wiring
！ REMEMBER: Do not mount directly onto a metal surface or the remote control will not work. REMEMBER: Provide at least 1-1/4” (32mm) clearance underneath the mounting surface to allow ！ adequate reception of the remote control signal. Remote control may not work if clearance is insufficient. -
Page 6: Mounted Remote Control Installation
Mounted Remote Control Installation 1. The mounted remote control should be installed on flat surface in a dry or protected location. 2. Drill the wiring access hole 1/2” or 12.7mm in diameter. 3. Remove the front bezel then route the power wires through wiring access hole. 4. -
Page 7: Operation
Remote Control Bracket Installation (wireless remote sold separately) 1. Take off mounting plate from the back of bracket. secure mounting plate on selected location with the two (2) self-tapping screws that come with the product. Fit bracket to mounting plate as shown. ！... -
Page 8: Caution
Caution ！ Continuous operation for more than two (2) hours should be avoided. Longer continuous operation time may cause the light bulb to burn out too quickly. ！ DO NOT try to operate the product beyond angular range as it will damage the product. ！... -
Page 9: Replacing Or Adding Remote Controls
How to replace or add remote controls … Locate serial number in one of the following locations: 1. In case of remote control missing, user can remove the four (4) screws and take off glass front cover to obtain serial number shown on the label placed inside housing, see picture below. Note the last digit of the serial number P2XXXXXXXX (X=0~9) then notify dealer. -
Page 10: Troubleshooting
Replace light bulb. For other problems, and when problem is not solved with the above tips … Contact Sea-Dog technical service at techserv@sea-dog.com. Include a description of the problem, user contact information, and proof of purchase if requesting warranty service. -
Page 11: Limited Warranty
Limited Warranty For five (5) years from the date of original purchase, Sea-Dog will, at its discretion, repair or replace for the original consumer, free of charge, any parts found defective in material or workmanship. All transportation charges under this warranty must be borne by the consumer. - Page 12 P.O. Box 479 Everett, WA 98206 (425) 259-0194 techserv@sea-dog.com All rights reserved / SDG May 2017...
