Summary of Contents for Swisscom DECT/Rousseau

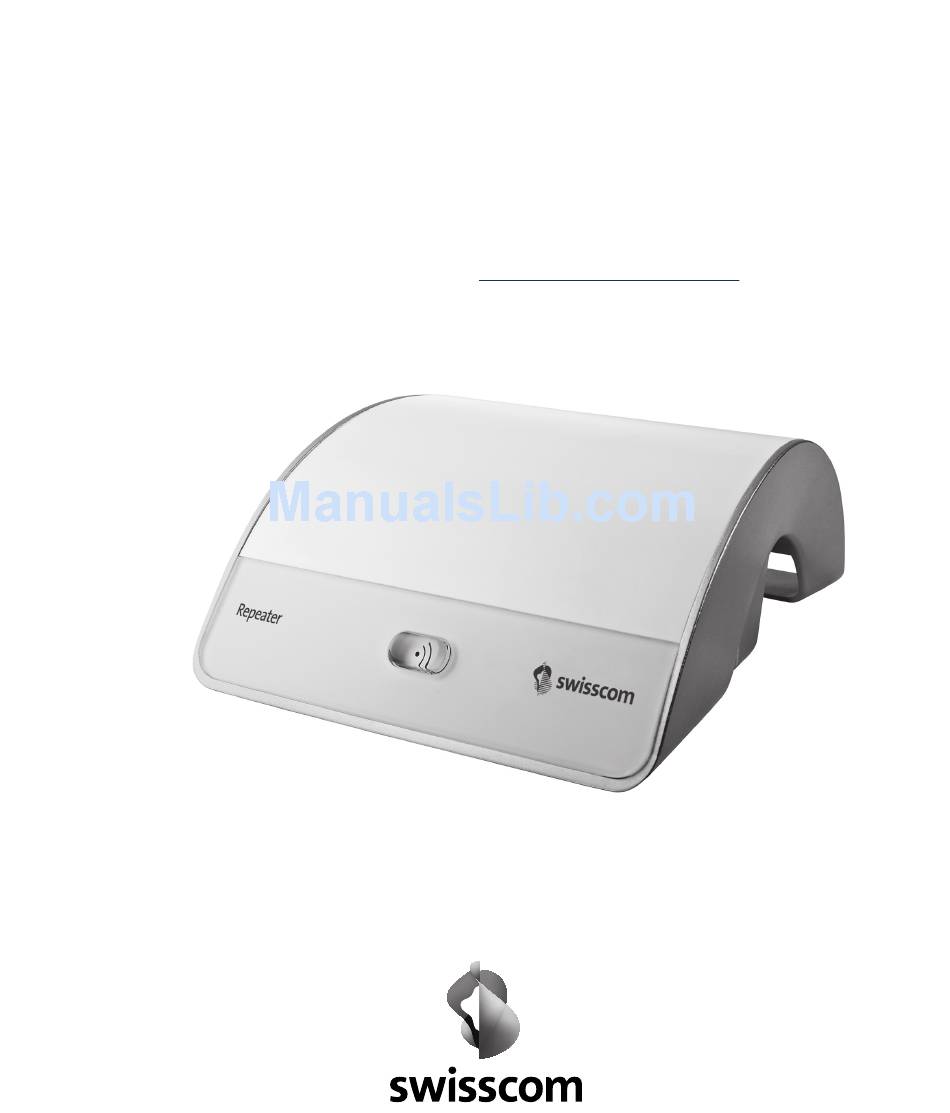

- Page 1 Swisscom DECT/Rousseau Repeater User Guide...
-
Page 2: Quick Start Guide
Quick start guide 1. Prepare the base station • Switch Ecomode plus mode off • Switch repeater mode on • Set base to register mode 2. Take repeater in operation • Position the repeater close to the base station • Connect the main adapter •... -
Page 3: Table Of Contents
Contents Quick start guide Repeater overview LED signals Safety notes …………………………………………………………………………………2 Introduction …………………………………………………………………………………2 Startup …………………………………………………………………………………………3 Contents of the package ………………………………………………………………………3 Easy registration ………………………………………………………………………………3 Registration to another base …………………………………………………………………4 Limitations ………………………………………………………………………………………4 Placement ………………………………………………………………………………………4 Multiple repeaters …………………………………………………………………………5 Registration of Multiple repeaters ……………………………………………………………5 Multiple repeaters : setting up a star configuration …………………………………………6 Multiple repeaters : setting up a cascade configuration ……………………………………7 Wall mounting ………………………………………………………………………………9... -
Page 4: Safety Notes
Do not touch open contacts! Introduction The Swisscom DECT/Rousseau Repeater offers a range of up to 300 meters outdoor and of up to 50 meters indoor and allows you to increase the coverage range and to improve reception quality in remote areas for Rousseau and DECT products in any environment, whether it be in your home or office. -
Page 5: Startup
Startup Contents of the package 1 Repeater 1 power supply 1 multi-lingual user manual Easy registration 1. Prepare the base station • Make sure one handset is registered to the base station • Switch Ecomode plus mode off (from the handset) •... -
Page 6: Registration To Another Base
• Conversation encryption is not supported when using the repeater. • Handset software updates are only possible on the base station. • The repeater can not be registered to the Swisscom Internet-Box. Placement To get the best operation conditions for the repeater, it is important to place it correctly: Choose a raised position with good base station reception. -
Page 7: Multiple Repeaters
Multiple repeaters Up to 2 repeaters can be registered to the base station, in order to extend its range. This allows to extend the base station range in multiple directions – including up and down (eg. to cover several floors in a building). If the repeaters are placed correctly (overlapping the coverage area of the base station, or from another repeater), you can go from one area (cell) to the other while speaking on the handset. - Page 8 Repeater Base Repeater To setup a proper star configuration: • First place the base at the location where you are conducting most of the calls. • Register all the repeaters and then switch them off. • Then, going to the direction where you want to extend the range for, walk with the handset until you reach the range limit.
-
Page 9: Multiple Repeaters : Setting Up A Cascade Configuration
Multiple repeaters : setting up a cascade configuration Repeaters can also be used to extend the range in a specific direction using a 2 repeaters cascade (one repeater in the range of the base, one second repeater in the range of the first repeater). -
Page 10: Wall Mounting
Wall mounting You can mount your repeater on the wall: 75 mm 1. Turn the repeater so that the back faces you: 2. Drill two holes (distance between the holes = 75 mm) at the preferred position on the wall. 3. -
Page 11: Important Information
The repeater complies with the basic requirements contained in the R&TTE Guidelines 99/5/EC and is suitable for connection and operation in the member states indicated on the packaging. The declaration of conformity may be viewed at: www.swisscom.ch CE symbol The repeater complies with the requirements of the EU Directive 99/5/EC on... -
Page 12: Warranty And Support
If, at the request of the Customer, defects and faults are remedied at his place of resi- dence (not possible for all devices), Swisscom shall charge the Customer for the travel to the work site, the use of vehicles and the duration of the work.
