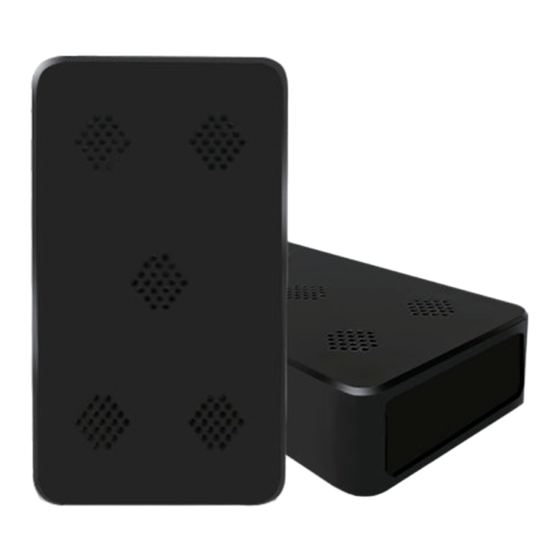

- Page 1 HD 1080 Pro Black Box Security Wi-Fi Camera User Manual Version: Oct, 2017...
-
Page 2: Table Of Contents
Content Quick Guide.............P2 Overview............P3 Packing List.............P3 Product structure ..........P4 Camera Part Setting........P5 Camera name and password setting....P9 APP Introduction..........P10 PC Setting(LAN)..........P12 PC Setting(WAN)..........P14 Specification...........P15 FAQ..............P15... - Page 3 PIR sensor Invisible night vision 3-5meters Two way speaking 5000mA battery...
-
Page 4: Quick Guide
Quick guide of Wi-Fi camera function 1. Download Free App Pro iCam from App Store or Google Play. 2. Plug in power —> Turn on device’s backside ON/OFF button, around 1 minute (Back side red/blue blink slowly); 3. Enter smartphone setting —> Search and connect device’s wifi named: CM……,wait till phone status bar appear Wi-Fi symbol;... -
Page 5: Overview
Overview The HD 1080 Pro Black Box Security Wi-Fi Camera, is fully upgraded with a PIR sensor +3-5 meters Invisible night vis- ion LED + two way talking functions+5000MA built-in rech- argeable Li-battery. First, it is a simple designed black box camera, but upgra- ded with 3-5meters invisible night vision+PIR sensor + Two way speaking functions+5000MA battery etc...;... -
Page 6: Product Structure
Product structure PIR sensor USB port Invisible night vision led Micro SD card slot Camera Reset ON/OFF (For Wi-Fi Camera) Speaker Wi-Fi/ Power indicator light Mircophone... - Page 7 Getting started of Wi-Fi camera part Step1: Download and install APP Scan below QR code or search and download free APP named “Pro iCam” in Apple APP store, Google play or Electronic market, and install it. [ Pro iCam ] APP QR code...
- Page 8 Step2: Connect power and turn on device Turn on backside switch,and wait for 1 minute (Back side red/blue blink slowly); Step 3:Connect Wi-Fi 1. Open smartphone setting, search and connect mobile Wi-Fi to the device's wireless signal named “CM……” , wait Wi-Fi connected, and phone status bar appear Wi-Fi symbol.
- Page 9 2.Eneter APP, press top right “ ” icon —> Select camera —> Press Ok —> Camera Online then; TIPS: 1.Please select【Change】to change device pass- word for security 【default: 8888】; 2.This step = P2P mode, can check video locally when without Wi-Fi.
- Page 10 3. Press the gear icon after the camera or long press the camera and select Device Settings, select Wi-Fi Config. 4. Select the router Wi-Fi and input passcode, camera will be connected to the router Wi-Fi. The smartphone will disconnect the signal from device and connect to the router Wi-Fi.
- Page 11 Set camera name and password Set name: Press the after the camera or long press the camera, select Modify device, select Name and revise name like Office, Room…... Set code: Long press the camera and select Device Settings, select Change password.
-
Page 12: App Introduction
APP introduction Camera name Camera setting key Camera UID Camera online user number Snapshot: Review snapshot pictures Record: Review recorded videos Alarm: Review alarmed pictures Live video page - Click camera to check Brightness Night vision switch Backside LED Switch Resolution Contrast ZOOM... - Page 13 Alarm config: Set motion detection by software, or by PIR sensor, or both Wi-Fi Config: Set camera to other Wi-Fi SD Card Record Config: Set SD card record mode / Resolution /File length … Set time Set motion alarm with email (Need turn on email alert first in alarm config) Change password:...
- Page 14 Set and watch by PC in LAN 1. Once camera connected well with Wi-Fi, install software “IPCamera”from included CD and open software to find the connected device’s IP address. 2. Double click the IP address, insert name“admin” (no password) and press ok.
- Page 15 3. After above steps, you can insert setting interface. For first use, please choose language, then click download and install plug-in.
- Page 16 4. Click to go to the final setting interface. 5. Click left options to set other needed functions. 6. Click left side System --> About, to check wifi camera’s firmware version. Set and watch by PC remotely (Not in LAN) Please check details in included CD for instructions and software.
-
Page 17: Specification
Specification Resolution 2.0 Mega CMOS Video pixel in phone&PC Max 1920*1080 Frames Max 25fps Compressed format H.264 View angle 90° Type of memory card TF card>=Class 4/10 and HC marked Maximum capacity of memory card 128GB PC operation system Windows 7, 8 / Mac OS X Play software VLCPlayer/SMPlayer Mobile phone operation system... - Page 18 3. Q: Why live video screen shows up black and a searching circle spins in center but nothing ever displays? A: 1). If camera’s connected Wi-Fi speed is slow, please wait 10-30 seconds for live video appear; 2). One click middle of screen, select top right 480p resolution to check.
- Page 19 8. Q: How to play and pick out micro SD card video? A: 1). Use a card reader to read and play; 2). Use APP to play back [ Page 10 - Record - 3). Long press recorded photos or videos, choose "Share"...
- Page 20 key around 5 seconds till back side indicators off to restore factory default. Camera restarts and get ready again in 2 minutes. 14. Q: App content similar but not exact same as in manual? A: App is always being optimized with better interface and functions.
