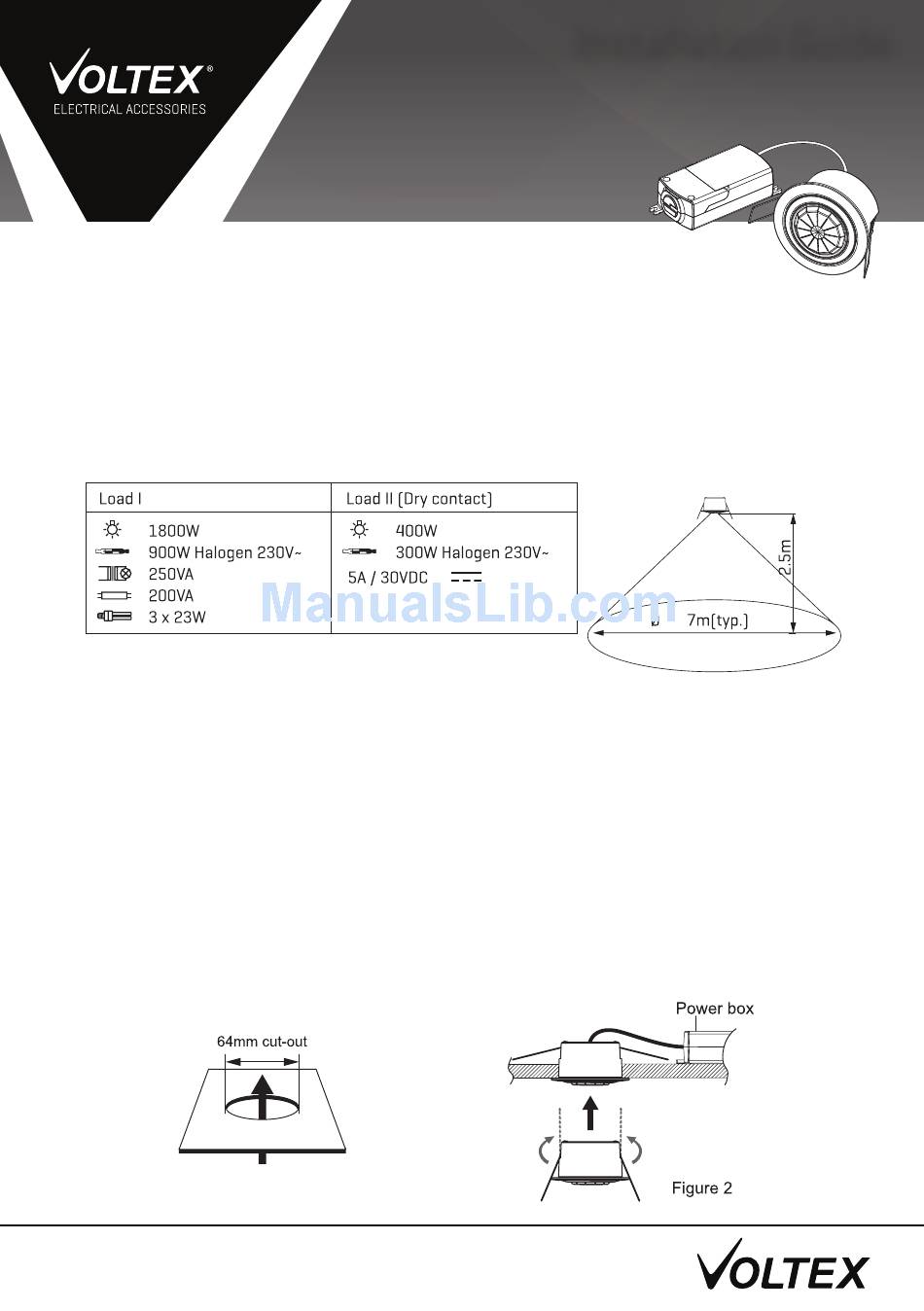

Installation Guide
Voltex Indoor 360°Motion Sensor - IP43 - 2 relay
(IP43 from below, as installed)
Specifications:
1. Power: 220-240V~ 50Hz.
2. Range of detection: 360°, 7m(typ.) diameter at 2.5m height, 20°C. (Figure 1)
3. TIME 1 adjustment: , 30 sec, 1 min, 5 min, 10 min and 30 min, maximum=TEST mode.
TIME 2 adjustment: 10 sec, 30 sec, 1 min, 2 min, 3 min, 5 min, 10 min and 15 min.
4. Lux control: Adjustable "Light level" sensing from 5 Lux to 1000 Lux, maximum=LUX
Memory.
5. Load:

Installation:

Warning: This equipment must be installed only by a qualified electrician. Installation must
follow local building codes as well as the instruction contained in this manual. Turn off power
at circuit breaker or fuse box, to make sure power is off before installation. If you have
any doubts about the installation procedure, please consult a professional technician.
Determine the best location for the sensor. Install the sensor at least 1 metre away
from any light fittings and HVAC ducts or vents. The sensor is to be mounted on ceiling.
(Figure 2)
1. Turn OFF power at the circuit breaker or fuse.
2. Determine the best location for the sensor.
3. Drill a 64mm diameter hole in the ceiling.
4. Connect as shown in wiring diagram. (Figure 4)
5. Insert the power module into the ceiling first and then fix the sensor with metal spring.
(Figure 2)
®
© Voltex Electrical 2016. All Rights Reserved.
