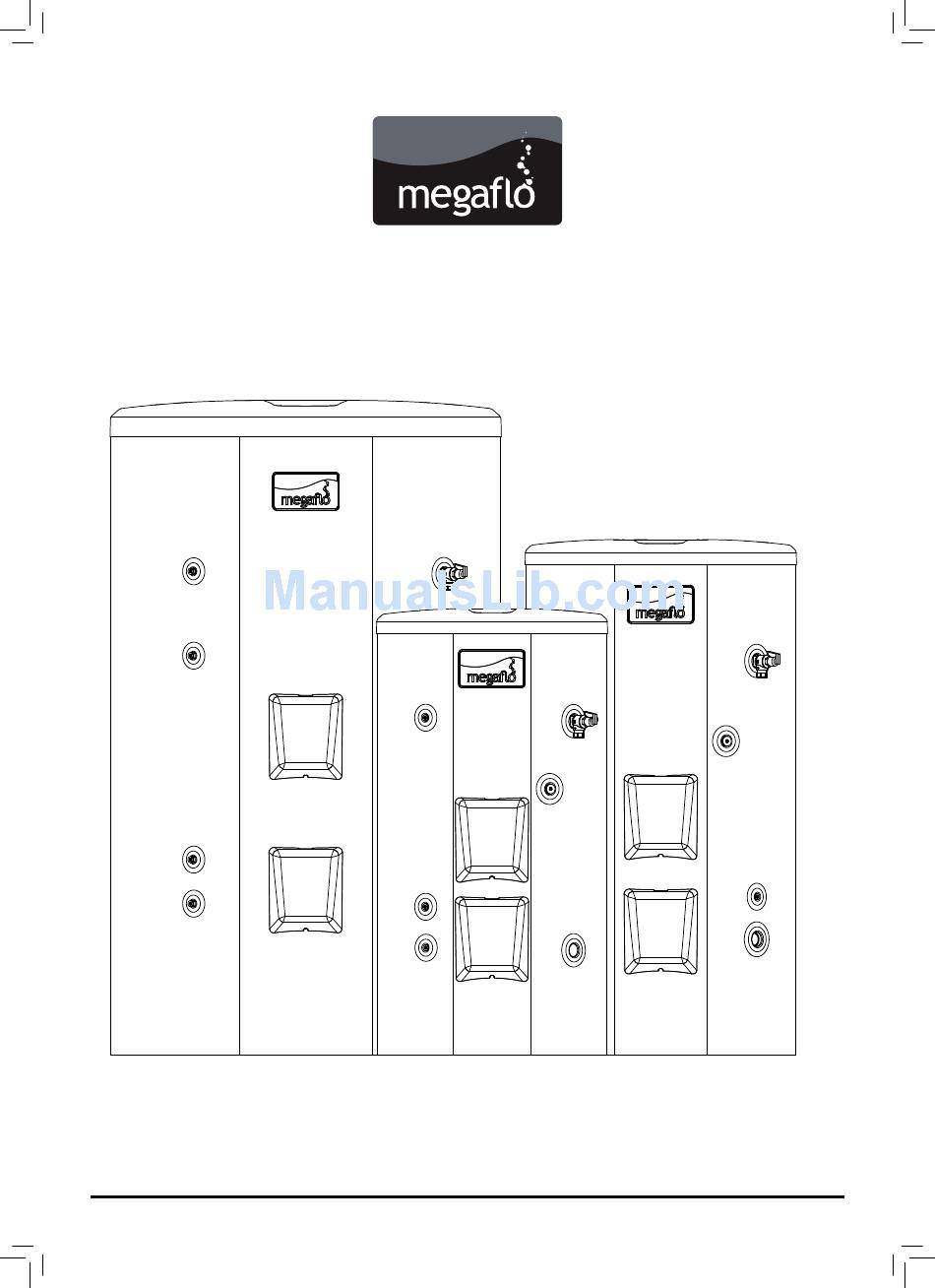

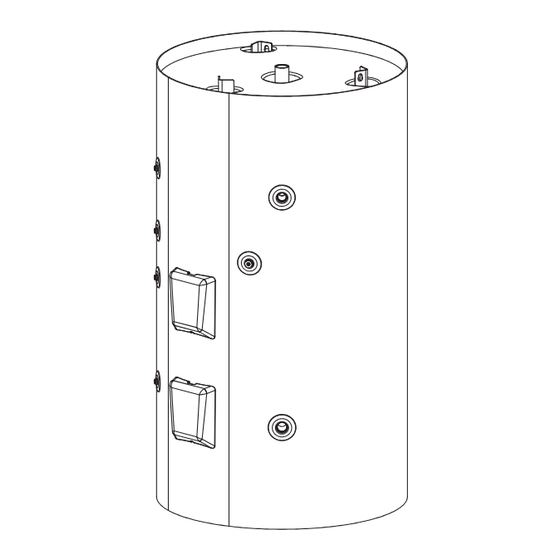

  • Page 1 Unvented Indirect Hot Water Cylinders (400L - 2500L) Important Please read & understand all these instructions before commencing installation. Please leave this manual with the customer for future reference Megaflo Commercial Product Guide...
  • Page 2: Table Of Contents

    Contents Product Specification Introduction General requirements THE BENCHMARK SCHEME Checklist Storage and handling Technical data ErP data information Immersion allocation table Thermostat control schematics Wiring Schematics Limitations Water supply Installation & Commissioning General Installation Cold Water Supply Secondary circulation and De-Stratification Discharge Pipe work Indirect Model Auxillary...
  • Page 3: Product Specification

    Building Regulation Part L. The Megaflo Commercial unvented water heater can be fed directly from the cold water mains supply to the property without the need for separate feed cisterns or vent pipes. It is supplied complete with all its necessary inlet and safety controls.
  • Page 4: Checklist

    Checklist Before commencing installation check that all the components for your Megaflo Commercial unit are contained in the package. The following components are supplied as standard with your Megaflo Commercial unit: • Table 1: Cold Water Inlet Control Kit (as below, depending on model)
  • Page 5: Storage And Handling

    To aid installation, the Megaflo Commercial is provided with lifting points located at the top of the unit. To access the lifting eyes please remove the red outlet gromett and the top cover. The weights of the units are noted on Table 5.
  • Page 6: Technical Data

    Technical data (Indirect models in conformance with BS EN 12897:2006) Maximum mains water supply pressure 2.5MPa (25 bar) Operating pressure/PRV (low pressure system) 0.60MPa (6. bar) Operating pressure/PRV (high pressure system) 1.00MPa (10 bar) Expansion vessel pressure (low pressure system) 1.0MPa (10 bar max) Expansion vessel pressure (high pressure system) 1.6MPa (16 bar max)
  • Page 7: Erp Data Information

    25.38 25.66 48.73 51.23 51.56 52.18 52.36 The thermostat temperature settings of the water heater, as 60°C placed on the market by the ErP data supplier Specific precautions that shall be Table 3: Heat loss Data Information taken when the water heater is Notes: See page 17 to 39 assembled, installed or...
  • Page 8 FIGURE 2: Indirect dimensions OUTLET 2” BSP T&P VALVE SENSOR POCKETS SECONDARY PRIMARY RETURN FLOW INLET PRIMARY RETURN Table 4: Indirect measurements Direct Connection 400l 500l Connection 800l 1000l Connection 1250l 1450l Connection 2000l 2500l 1535 1804 1906 2301 1936 2253 2014 2419 1264 1416 1487 1882...
  • Page 9 Table 8: Standing heat-loss NOMINAL STANDING HEAT LOSS PER DAY CAPACITY PER YEAR (kWh/24h) (LITRES) (kWh/24h) 1.72 2.14 2.74 1000 1000 3.33 1215 1250 3.60 1314 1450 3.90 1423 2000 4.30 1569 4.50 1642 2500 Table 9: Indirect coil kW ratings NOMINAL PRIMARY FLOW RATE l/min COIL...
  • Page 10 Table 12: Maximum kW ratings for Cylinders (Auxillary Immersions) Maximum kW ratings NOMINAL CAPACITY Upper (LITRES) boss 1000 1250 1450 2000 2500 Table 13: Water delivered to 40°C NOMINAL Water delivered to 40°C CAPACITY (Litres) (LITRES) 1000 1250 1206 1450 1399 2000 1930...
  • Page 11: Immersion Allocation Table

    Immersion Allocation Table 14 Element 94110301 94110302 94110303 94110304 94110305 94110306 94110307 94110308 94110309 Location                        1000  ...
  • Page 12: Thermostat Control Schematics

    Thermostat controls Thermostat/Cut-out All auxillary immersion heaters are fitted with a thermostat which is fitted in the centre of the heater plate and a cut-out which is fitted to the side of the thermostat. These MUST be wired in series with the operating coil circuit of the contactor (not supplied). See figures 4 below and figures 5 &...
  • Page 13: Wiring Schematics

    Wiring Schematic Single phase wiring schematic Earth Neutral Live Fuse (not supplied) Contactors (not supplied) Live Live marked ‘L’ Earth Earth Neutral terminal marked 'N' Typical head layout for a single phase heater Neutral Cut-Out Temperature 80°C Immersion Heater FIGURE 5: Single phase wiring schematic (Factorey set) Note: The 2 external contactors must be approved...
  • Page 14: Limitations

    Limitations • The Megaflo Commercial unvented water heater should not be used in any of the following instances: • Solid fuel boilers or any other boiler in which the energy input is not under effective thermostatic control unless additional and appropriate safety measures are installed.
  • Page 15: Installation & Commissioning

    The pressure reducing valve can be connected anywhere on the cold water mains supply prior to the Megaflo Commercial unit. There is no requirement to site it close to the unit, it can be located at a point where the mains supply enters the premises if this is more convenient but you must install a non-return valve just after the reducing valve for ease of maintenance.The pressure reducing valve...
  • Page 16: Secondary Circulation And De-Stratification

    3.5 bar Pressure reducing valve 8 bar Pressure relief valve direction direction Pressure relief discharge Mains water in To cylinder Pressure gauge connections (one each side) 28mm compression connections Figure 07: Cold water combination valve (for 400 & 500ltr) SECONDARY CIRCULATION TYPICAL DE-STRATIFICATION LOOP SYSTEM Hot water outlet...
  • Page 17 6. The tundish, drain valve and motorised valves must be installed away from any electrical components. 7. No valve should be fitted between the 8 bar or 13 bar pressure relief valve and the Megaflo Commercial unit. Unvented Hot Water Cylinder...
  • Page 18 The following extract is taken from the latest G3 Regulations Discharge pipes from safety devices Discharge pipe D1 3.50 Safety devices such as temperature relief valves or combined temperature and pressure and pressure relief valves (see paragraphs 3.13 or 3.18) should discharge either directly or by way of a manifold via a short length of metal pipe (D1) to a tundish. 3.51 The diameter of discharge pipe (D1) should be not less than the nominal outlet size of the temperature relief valve.
  • Page 19 Discharge Pipe work It is a requirement of Building Regulations that any discharge from an unvented system is conveyed to where it is visible, but will not cause danger to persons in or about the building. The tundish and discharge pipes should be fitted in accordance with the requirements and guidance notes of Building Regulations.
  • Page 20: Discharge Pipe Work

    Notes: 1) Discharge pipe-work D2 can now be a plastic pipe but only pipes that have been tested to a minimum 110°C must be used. 2) Discharge pipe D2 can now be plumbed in the soil stack but only soil stacks that can handle temperatures of 99°C or greater should be used.
  • Page 21: Indirect Model

    Primary circuit Boiler Selection The Megaflo Commercial Indirect models are suitable for use with most gas or oil fired boilers com- patible with unvented systems i.e. fitted with a temperature control thermostat and thermal cut-out. If in doubt consult the boiler manufacturer. Solid fuel boilers or any other boiler in which the energy input is not under effective thermostatic control, unless additional and appropriate safety measures are installed, SHOULD NOT be used.
  • Page 22 THAT MAY BE INADVERTENTLY CONTAINED WITHIN THIS DIAGRAM. THE VARIOUS EQUIPMENT MANUFACTURERS SHOULD BE CONSULTED TO CONFIRM THE CORRECT OPERATION OF THEIR PRODUCTS WITHIN THE SYSTEM. Figure 13: 2 port valve in conjunction with a 3 port mid-position valve system (“Y” Plan) MEGAFLO INDIRECT MEGAFLO ECO (DHW) 2-PORT THERMAL CONTROLs PROGRAMMER VALVE (SUPPLIED)
  • Page 23: Auxillary

    (20Nm or 14.75 ft/lb) as per the Commercial Immersion heater fitting instructions (36006161). Wire up the immersion heater as per Fig 5, page 13 or Fig 6, page 13 or Megaflo Commercial immersion heater fitting instructions. Refill the cylinder and check for leaks. Turn on the supply and set the thermostat temperature to the desired water temperature (60°C - 65°C is...
  • Page 24: Commissioning

    Fill the indirect (primary) circuit following the boiler manufacturer’s commissioning instructions. To ensure the primary heating coil in the Megaflo Commercial indirect is filled the 2-port motorised valve (supplied) should be manually opened by moving the lever on the motor housing to the MAN OPEN position.
  • Page 25: Maintenance & Servicing

    Open hot water tap nearest to the Megaflo Commercial to relieve the system pressure. Open drain valve. If water fails to drain from the Megaflo Commercial vent the unit by manually opening the Temperature / Pressure Relief Valve.
  • Page 26 HEATER(S) AND SHUT DOWN THE BOILER . DO NOT TURN OFF THE WATER SUPPLY. CONTACT A COMPETENT INSTALLER FOR UNVENTED WATER HEATERS TO CHECK THE SYSTEM. DO NOT TAMPER WITH ANY OF THE SAFETY VALVES FITTED TO THE Megaflo COMMERCIAL SYSTEM, IF A FAULT IS SUSPECTED CONTACT A COMPETENT INSTALLER.
  • Page 27: Fault Finding

    The Fault Finding chart will enable operational faults to be identified and their possible causes rectified. Any work carried out on the Megaflo Commercial unvented water heater and its associated controls MUST be carried out by a competent installer for unvented water heating systems. In case of doubt contact the Megaflo Commercial Service Department.
  • Page 28: Servicing

    Caution must be taken when drawing water from the unit. Spares Spare parts A full range of spare parts are available for the Megaflo Commercial range. Refer to the Technical Data label on the unit to identify the model installed and ensure the correct part is ordered. KEY DESCRIPTION...
  • Page 29: Accessories

    Spares KEY DESCRIPTION SPARES NUMBER CUT-OUT THERMOSTAT 95612652 ROD THERMOSTAT 95980025 2 PORT MOTORISED VALVE (DN 32) 7031564 2 PORT MOTORISED VALVE (DN 40) 7031565 PUMP 3 SPEED CIRCULATION UP 20-30N 95607366 PUMP 3 SPEED CIRCULATION UPS 15-50N 130 95607404 28mm PUMP ISOLATING VALVE 95605177 1/2”...
  • Page 30 Part Part 95:611:025 95:607:396 10-48 43-47 Part Part 95:607:_ _ _ 95:605:_ _ _ 11-14 Part Part 95:605:_ _ _ 95:605:182 17-22 Part Part 95:605:_ _ _ 95:607:452 Unvented Hot Water Cylinder...
  • Page 31 23-25 26-29 Part Part 95:605:_ _ _ 95:605:_ _ _ 30-31 Part Part 7033371 95:612:650 Part Part 95:612:652 95:980:053 35&36 37&38 Part Part 7031564 & 7031565 95:607:_ _ _ Unvented Hot Water Cylinder...
  • Page 32: Spares Drawings

    Part Part 95:605:177 95:607:690 Part Part 95:607:691 95:980:009 51-52 Part Part 95:605:110 7031586 & 7031587 55-56 53-54 Part Part 7031595 & 7031596 7031588 - 7035971 Unvented Hot Water Cylinder...
  • Page 33: Benchmark Check List

    Unvented Hot Water Cylinder...
  • Page 34: Service Record

    Unvented Hot Water Cylinder...
  • Page 35 NOTES: Unvented Hot Water Cylinder...
  • Page 36: Warranty

    30 years from the date of purchase. All other components, including valves, expansion vessels, immersion heaters, fittings and controls are covered by a two year warranty from the date of purchase of the Megaflo product that includes both parts and labour.
  • Page 37 • The Megaflo product has not been modified or tampered with in any way, other than by a Heatrae Sadia or Baxi Customer Support approved engineer.
  • Page 38 Please contact Baxi Customer Support on 0345 0701058 for details. *In domestic† properties, lifetime is the period during which the first owner of the Megaflo or new build home continues to own the property. Should the property be sold, the new owner and any subsequent owners will receive a 30 year warranty from the date the original owner purchased the Megaflo or new home with a Megaflo installed.
  • Page 39 Unvented Hot Water Cylinder...
  • Page 40 © 2011 7032408_issue_01 Unvented Hot Water Cylinder...
