Summary of Contents for MEDCHECK SFBG01

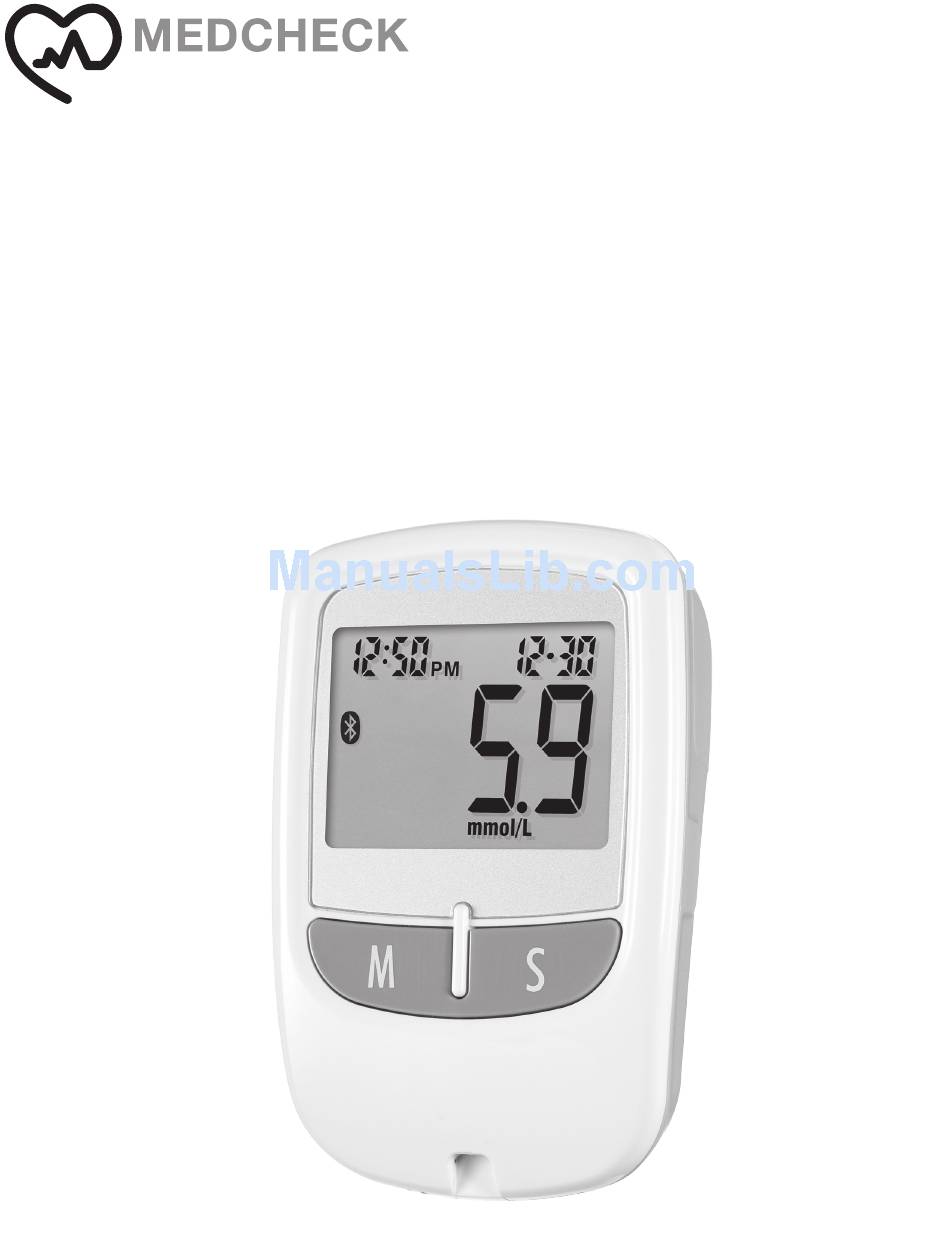

- Page 1 User Manual Bluetooth Self-Monitoring Blood Glucose System Model No. SFBG01...
- Page 3 User Manual before testing. This package contains 2 new AAA “LR03” (1.5V) Alkaline batteries. Insert them into SFBG01 by following steps in this manual to ensure normal function. If you have any concerns, or need any assistance about maintenance, please call SMARTFUTURE PTE LTD office or authorized distributor during business hours.
- Page 4 Only use accessories supplied or recommended by the manufacturer. Avoid severe impact on the meter. It may cause malfunction. Do not take SFBG01 Blood Glucose Meter apart, or modify anything. Such action may void your warranty. Do not place anything on top of SFBG01 Blood Glucose Meter.
- Page 5 Appendices Explanation of Symbols Item Explanation This product meets the requirements of Directive 98/79/EC in vitro diagnostic medical devices Lot Number Use-By date in vitro diagnostic medical device AAA “LR03” (1.5V) Alkaline Batteries Do not reuse Temperature Limitation Manufacturer Follow Instructions for Use Meter only Degrees of protection provided by enclosures Serial Number...
-
Page 6: Table Of Contents
Table of Contents About MEDCHECK SMBG System........…………………. 07 Intended Use Measuring Principle System Kit Component Description Key Features………………………………......………………… 14 Bluetooth Data Transmission Meal Comment Function Ketone Warning Get Ready for Testing……………………………......……….. 17 Battery Installation Presetting Date and Time Quality Control of the System……………………......……. 20 Using Glucose Control Solution Perform the Blood Glucose Test………………....………………. -
Page 7: About Medcheck Smbg System
About MEDCHECK SMBG System Thank you for choosing MEDCHECK SMBG System. Designed for ease of use, the device can help you and your healthcare professional monitor and adjust your treatment plan to gain better control of your diabetes. Important Information ! ... -
Page 8: Intended Use
Test results are “plasma equivalent”. The system consists of two main products: SFBG01 Blood Glucose Meter, and SFTS02 Blood Glucose Test Strips. These have been designed, tested, and proven to work together and perform accurate results. -
Page 9: System Kit
● 10 Lancets ● 2 AAA “LR03” (1.5V) Alkaline Batteries ● Wallet ● Complete instructions: ● User Manual for SFBG01 SMBG System ● Quick Reference Guide Note Please consult your provider/local distributor for extra Blood Glucose Test Strips . -
Page 10: Component Description
About MEDCHECK SMBG System Component Description SFBG01 Blood Glucose Meter LCD Screen Displays blood glucose results, messages, and glucose results stored in memory. M Button Press to enter different mode. Test Strip Slot S Button Insert test strip here. Press to adjust... - Page 11 About MEDCHECK SMBG System Component Description SFBG01 Blood Glucose Meter CODE Low Battery Symbol Appear while LCD displays & Hour & Minute Appears when battery code number of the test strips is low Temperature Symbol Apply Blood Symbol Appears when ambient...
-
Page 12: Component Description
The desiccate reagent in the vial may cause skin or eye irritation by contact. Note Only use SFTS01/ SFTS02 Blood Glucose Test Strips with SFBG01 Blood Glucose Meter only. Do not touch the strip when your hands are wet. -
Page 13: Component Description
About MEDCHECK SMBG System Component Description Lancing Device It is used with sterile lancet to obtain the blood for the testing. Release Button Cocking Handle Lancet Ejector Depth Settings & Indicator Lancets It is used with lancing device to obtain the blood for the testing. -
Page 14: Key Features
● Make sure SFBG01 and paired Bluetooth device are within acceptable distance (no more than 5 meters) with each other. If not, put them closer. About Bluetooth Transmission Function... -
Page 15: Meal Comment Function
Key Features Component Description Meal Comment Function enables our user to add pre-meal or post-meal symbols on each test result. AC symbol represents pre-meal results, while PC symbol represents post-meal results. It benefits user to better manage the glucose control plan and also your healthcare professional by providing data when diagnosing and prescribing. -
Page 16: Ketone Warning
Key Features Note For those who do not wish to change meal comment to test results, simply remove test strip from test strip port after measurement ends. Meter will automatically store your test result in its memory with previous set symbol. ... -
Page 17: Get Ready For Testing
Get Ready for Testing To avoid inaccurate results caused by electromagnetic interference between electrical and electronic equipments, do not use the device near a mobile phone or microwave oven. Battery Installation The meter uses 2 pieces of AAA “LR03” (1.5V) Alkaline Batteries. For new users, please insert 2 new batteries before use, and please replace old batteries with new ones when Low Battery Symbol shows up... - Page 18 Get Ready for Testing Presetting Date/ Time/ Unit Please pre-set your meter whenever you insert or replace the batteries. See following steps for details. Under Standby Mode, press and hold M button for 3 seconds to enter Setting Mode. Note: After battery replacement, meter automatically activates Setting...
- Page 19 Get Ready for Testing Setting Test Strip Code Number There are two ways to set the strip code: 1) press S button for 3 seconds in standby mode or 2) insert the strip at any time and press the M button. LCD displays upper right figure, adjust numeral digit per following steps: ●...
-
Page 20: Quality Control Of The System
Quality Control of the System Using Glucose Control Solution (Sold Separately) The purpose of SFCS01 Glucose Control Solution is to perform a quality control test to verify whether your meter and test strips are working together properly. Please contact Smartfuture Pte Ltd or local distributor to buy SFCS01 Glucose Control Solution. - Page 21 Quality Control of the System symbol flashes, press S button to activate When Quality Control Mode. With symbol on, your meter is ready to perform quality control test. Shake the vial of Glucose Control Solution well before use. Squeeze the vial but discard the first droplet. Squeeze the second droplet to your clean fingertip or on a clean object such as a transparency.
-
Page 22: Perform The Blood Glucose Test
Perform the Blood Glucose Test Perform the Blood Glucose Test CAUTION To avoid infection, do not share the lancing device and lancets with other people. The lancet is for single use only. Never reuse them. Be sure to save the protective cap of the lancet for later use. Remember to put it back on to the lancet before disposal. -
Page 23: Perform The Blood Glucose Test
Perform the Blood Glucose Test Replace and screw the cap snugly. Choose the depth of lancing. Select 1~2 for soft or thin skin, 3-4 for average skin, 5-6 for thick or calloused skin. Pull the cocking handle out until it clicks. Wash hands first, or use an alcohol swab to wipe your finger clean. -
Page 24: Perform The Blood Glucose Test
Perform the Blood Glucose Test Check whether the code number on the vial matches with the code number displayed. If not, see “Setting Test Strip Code Number” section for details. Hold the lancing device firmly against the side of your finger tip. Let go of the Release Button to take a sample. - Page 25 Perform the Blood Glucose Test Move the collection zone close to your finger tip. Do not drip your blood sample on the top of the test strip. NOTICE Make sure to apply enough blood on the collection zone of the Test Strip. An unfilled collection zone may lead to false or inaccurate result.
-
Page 26: Perform The Blood Glucose Test
Perform the Blood Glucose Test Meter beeps when blood is detected, and user can then move your finger away. Glucose test result displays in 5 seconds. With Meal Comment Function on, test result appears with flashing symbol, depending on the setting. -
Page 27: Lo And Hi Readings
Perform the Blood Glucose Test LO and HI Readings MEDCHECK SMBG System can display results from 1.1 to 33.3 mmol/L (20 to 600 mg/ dL). 1. If your test result is lower than 1.1 mmol/L (20 mg/dL), “LO” appears on LCD screen. -
Page 28: Memory Recall
Perform the Blood Glucose Test Memory Recall SFBG01 Blood Glucose Meter can store up to 120 test results with date and time automatically in its memory. When full, the meter will replace the oldest with the latest result automatically. User can also view their average results of last 7 days with ease. -
Page 29: Perform The Blood Glucose Test
Perform the Blood Glucose Test Press M button again, the meter start displaying each test result with memory sequence number, and then corresponding date and time. Keep pressing M button, user can scroll thorough all memory sets from the latest to the oldest. When done, press S button to return to Standby Mode. -
Page 30: Bluetooth Data Transmission
(no more than 5 meters). SFBG01 can only pair up with one Bluetooth device at a time. To transmit measuring results to other Bluetooth device, please redo steps 1~2. NOTE: Please do not turn on more than one Bluetooth transmission... -
Page 31: Maintain Your Meter
Maintain Your Meter Display Check When the meter is off, press any key to switch it on. The display should look exactly like the figure in the right. If not, contact Smartfuture Pte Ltd. Cleaning ● Wipe the outside of the meter with a soft cloth that has been slightly dampened with water. -
Page 32: System Specifications
Never reuse a test strip that had either blood or control solution applied to it. Use MEDCHECK SMBG System at room temperature between 10 °C ~ 40 °C (50 °F ~ 104 °F). Out of this range, the device just won’t work. -
Page 33: Product Specifications
System Specifications Product Specifications Model Name SFBG01 Blood Glucose Meter Range 1.1 ~ 33.3 mmol/L (20 ~ 600 mg/dL) Response Time 5 seconds Memory Sets 120 Memory Sets Operating Temperature 10 °C ~ 40 °C (50 °F ~ 104 °F) -
Page 34: Bluetooth Specifications
System Specifications Bluetooth Specifications RF Type Bluetooth 4.0 BLE RF Modulation GFSK Effective Radiated Power 0 dBm Data Throughput 0.2Mbps Expected Delay (Latency Range) The latency time is less than 0.3ms second from in Wireless (RF) Communication sender to receiver. Integrity Channel Quality-Driven Data Rate (CQDDR) technology increases the effective data rate and... -
Page 35: Display Messages And Troubleshooting
Display Messages and Troubleshooting Display What It Means Troubleshooting Messages "Er 1” appears when the ● Perform the test in a strip is wet. room around 10 °C ~ 40 °C, and R.H. ≦ 80 %. ● Repeat the test with a new Test Strip. -
Page 36: Troubleshooting
Display Messages and Troubleshooting Display What It Means Troubleshooting Messages When “HI t” or “LO t” ● Do not artificially heat or appears, ambient cool the meter. temperature falls out of ● Leave your meter in a acceptable range (10 °C ~ room around 10 °C ~ 40 °C / 50 °F ~ 104 °F). -
Page 37: Device Information
Device Information MEDCHECK SMBG System SFBG01 Blood Glucose Meter SFTS02 10pcs Blood Glucose Test Strips SFCS01 Glucose Control Solution (Sold Separately) SFTS01 25pcs Blood Glucose Test Strips (Sold Separately) HEALTH & LIFE CO., LTD. 9F, No. 186, Jian Yi Road, Zhonghe District, New Taipei City, Taiwan www.healthandlife.com.tw... - Page 38 Device Information Lancing Device Meets the requirement of MDD 93/42/EEC SteriLance Medical (Suzhou) Inc. No. 68, Litanghe Road, Xiangcheng, Suzhou, China 215131 Tel: +86-512-65799308 Lancets Meets the requirement of MDD 93/42/EEC SteriLance Medical (Suzhou) Inc. No. 68, Litanghe Road, Xiangcheng, Suzhou, China 215131 Tel: +86-512-65799308...
- Page 39 If during this two-year period, the meter does not work properly because of a defect in materials or workmanship, SMARTFUTURE PTE LTD will repair the meter or replace it with a new SFBG01 Blood Glucose Meter or equivalent product free of charge.
- Page 40 www.getmedcheck.com P/N：323103072 VER：001...
