STM VODAECO-18 Instruction Manual

LIFT EMERGENCY MANAGEMENT
DEVICE
VODAECO-18
INSTRUCTIONS MANUAL
CODE 2630088 – Rev. 1.3 – 08/09/2014
The manufacturer reserves the right to modify this
document without forewarning and in any moment,
without compromising the essential features of
operation and safety.

1 DESCRIPTION

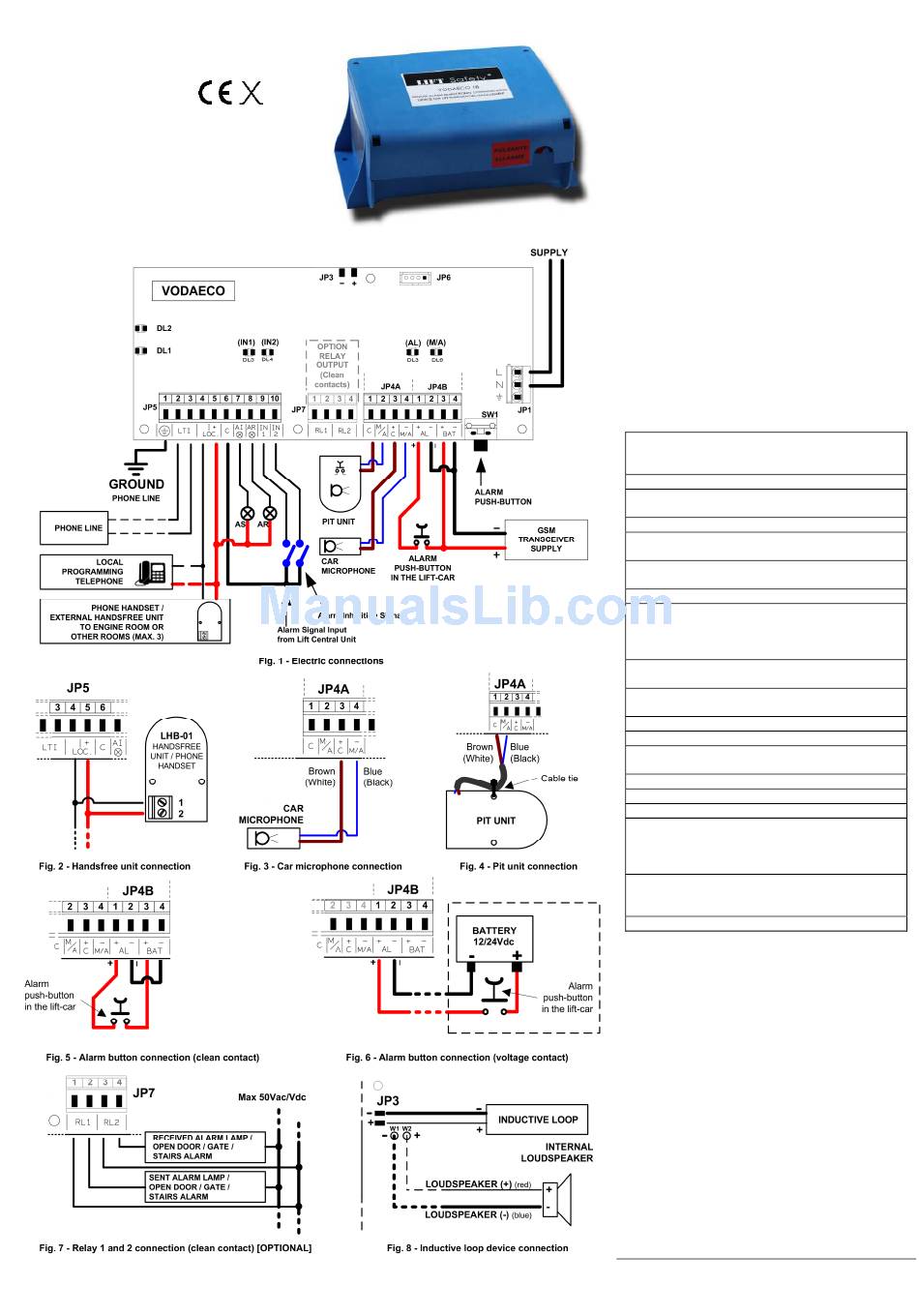

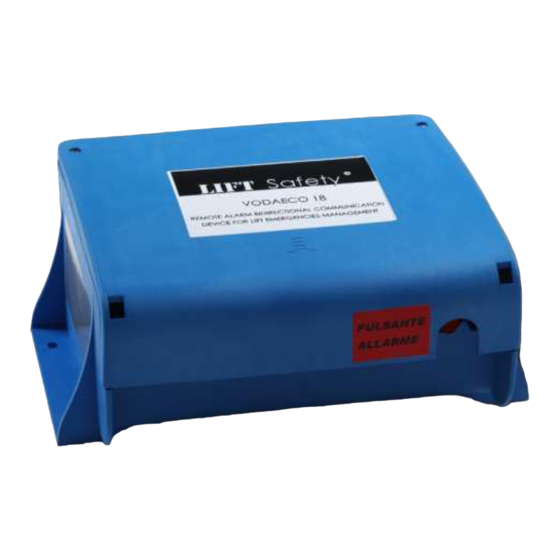

The VODAECO-18 (V18) is a telephone dialer for the
management of the lift alarms. It is designed to fully
accomplish with the EN 81-28. The device has to be
installed on the top of the lift car and is completed
by connections with the lift car and by the pit unit.
The V18 is provided with all the installer parameters
already configured according to the customer
wishes; no manual configuring operation is needed
during installation.
If further configuration changes are desired, two
different ways are available: remotely or with a
local phone receiver, connected to the device.
The V18 is equipped with an user interface with a
synthetized voice for the configuration of the
parameters, the registration of the vocal messages
and the management of the alarms.
It is possible to program up to 11 numbers, related
to these functions: digital alarm for assistance
request, vocal alarm for assistance request, digital
periodical survival call, vocal periodical survival
call, digital battery (lift central unit) alarm, vocal
battery (lift central unit) alarm.
It is also possible to have some pauses in order to
exit.

2 TECHNICAL FEATURES

Device supply: 230VAC(if equipped with back-
up battery); or 12V DC (if without back-up
battery)
Absorption: 6VA at 230VAC max
Back-up battery (if present): 6V DC Ni-MH
(>1400mAh)
Outlets for the lamps/led: 16V DC; 30mA max
2 optional programmable and independent
relays: max 50V AC/DC; 1A max
Autonomy with Back-up battery: 4,5
conversation and 10 hours in stand-by
Outlet for GSMT-02 module supply: 6V DC
Autonomy with back-up battery and with GSMT-
02 module: 1,5 hours in conversation (absorption:
370mA) and 3,5 hours in stand-by (absorption:
200mA).
Telephone selection: multi frequency with 20
digits
Phone line interface: Universal PSTN – with
country code setting (to be set)
Operation Led: the sent alarm led blinks every 3"
Integrated Loudspeaker: 8Ω; 3W; 87dB
Electric connections: extractable female terminal
blocks
Plastic box: Polyamide 66 with 20% fibreglass
Dimensions: 211 x 153 x 91 mm
Weight: 450gr
Temperature: Operation and
batteries: 0÷45ºC; -20÷35ºC.
storage without back-up batteries: -10÷40ºC; -
40÷70ºC
Relative Humidity: Operation and storage with
battery: 0 ÷60% non-condensing. Operation and
storage without battery: 0÷90% noncondensing
Protection: IP31

3 SAFETY RULES

• This device is not to be used by children and by
unable people without assistance
• This device is not to be touched while barefoot
and with some parts of the body wet or humid.
• No cleaning operation is to undertake before
having disconnected the device from the
electric net.
• It is forbidden to modify the safety and the
regulating systems without the authorization and
the instructions of the manufacturer.
• It is forbidden to unplug or wind the electrical
wires coming from the device even though this is
disconnected from the electrical net.
• It is forbidden to open the device before having
disconnected it from the electrical net.
• The packaging material is not to disperse and to
let within range of children, because it is
potentially dangerous.
1 The autonomy indicated are referred to the
internal original battery, in good conditions.
1 hours in
storage with
Operation and
