Summary of Contents for SYP SY-4KS

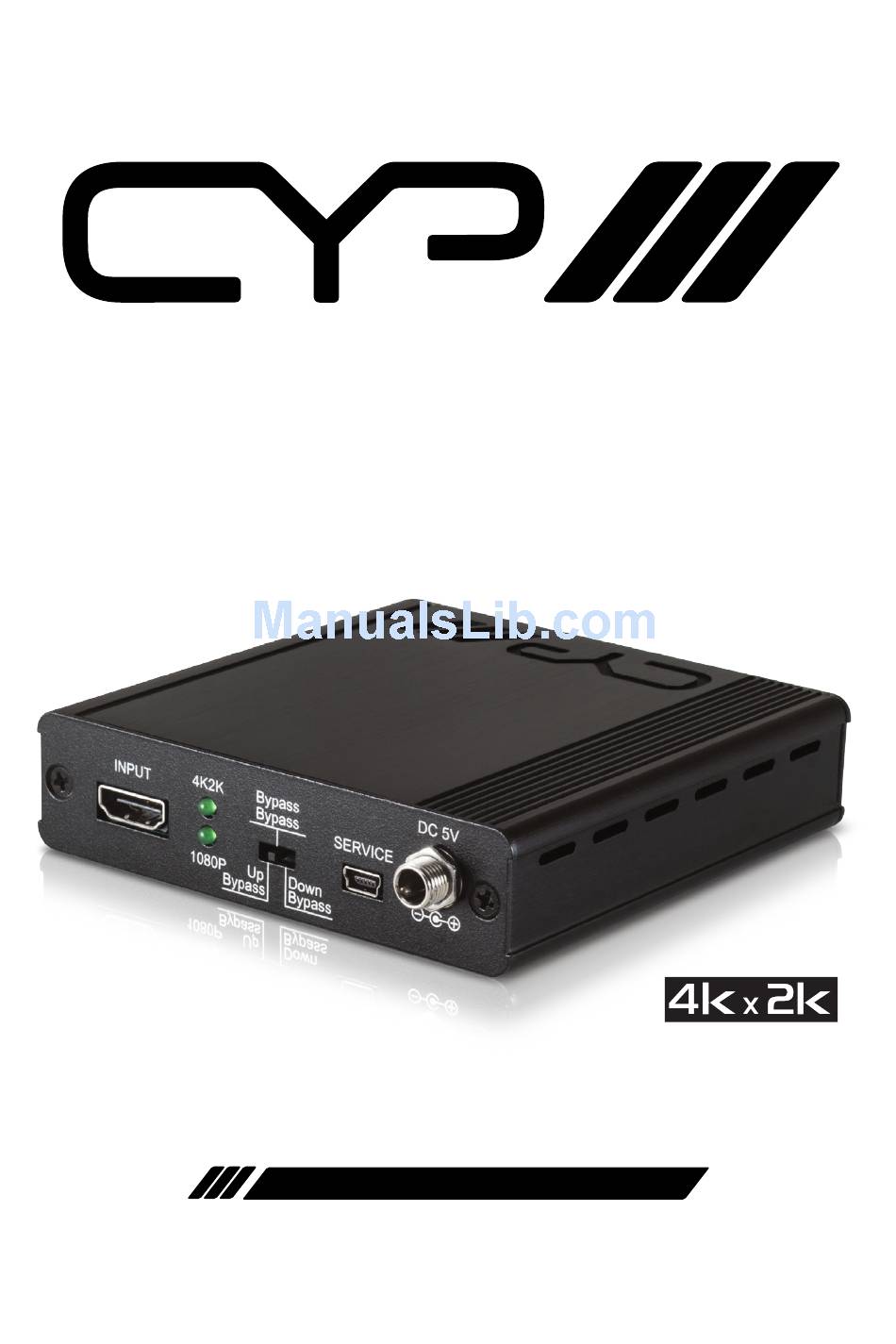

- Page 1 SY-4KS HDMI 4K Scaler (Optional Up & Down Scaling) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........6 6. Operation Controls and Functions ..7 6.1 Front Panel ........... 7 6.2 Rear Panel ............. 9 7. Connection Diagram ......10 8. Specifications ........11 9. -
Page 6: Introduction
1. INTRODUCTION The SY-4KS HDMI Scaler is designed to upscale 1080p@24 signals to 4K Ultra High Definition (UHD) resolutions, or downscale a UHD 4K signal to 1080p@24 for integration into any AV system. The ability to downscale 4K signals to 1080p is a crucial function when working with 4K sources in a complex AV system and distributing the HDMI sources to multiple displays which have varying resolution support. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 5V 4K2K INPUT Bypass SERVICE Down 1080P Bypass Bypass INPUT: Connect to HDMI source equipment such as Blu-ray/DVD player with or without 4K2K signal. 4K2K / 1080P LED: These LED will illuminate according to input source signal’s resolution when both LED are illuminating it indicates the input source’s signal is not 4K2K/1080P. - Page 8 Switch Bypass Scaled 1080P 1080P 1080P Bypass 1080P 1080P 4K2K 4K2K 4K2K Bypass 4K2K 4K2K Note: 1. 1080p supports 24/25/30 2. 4K2K supports 4096×2160p@24 3840×2160p@24/25/30 3. Switch Down Bypass the input port does not supports 4096x2160p24 4. This device does not support 3D timing under Up/Down Bypass. 5.
-
Page 9: Rear Panel
6.2 Rear Panel OUTPUT SCALED BYPASS SCALED: This slot is to connect with HDMI TV/display with or without 4K2K specification for output AV displaying according to Bypass switch setting. BYPASS: This slot is to connect with HDMI TV/display with or without 4K2K specification for output AV displaying according to input source signal setting. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM... -
Page 11: Specifications
8. SPECIFICATIONS Video Frequency 300 MHz/9 Gbps Input Port 1×HDMI Output Ports × HDMI 4K2K HDMI Cable Distance In 5m, Out 10m Power Supply 5 V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions (mm) 102 (W)×02(D)×25 (H) - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
