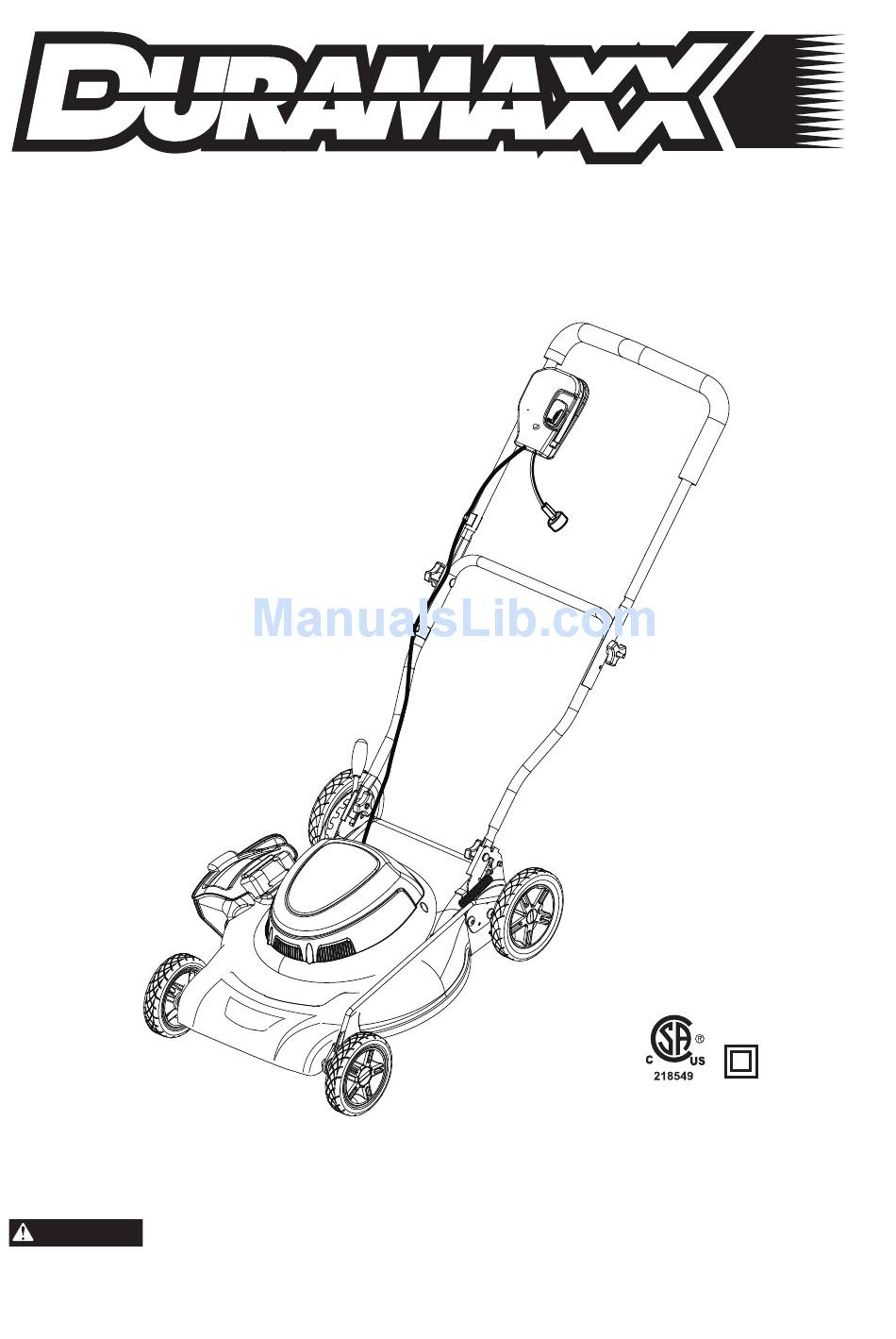

Page 1: Lawn Mower
18" (46 cm) Electric Lawn Mower Owner's Manual TOLL F REE HELPLINE: 1-866-456-8934 WARNING WARNING Read all safety rules and operating instructions carefully before using this product. -
Page 2: Table Of Contents
16-18 Maintenance 19-23 Troubleshooting Warranty Exploded View/Parts List 26-29 SPECIFICATIONS Model number: 84881 Motor: 120 V AC 60 Hz 12A No-load speed: 3600 RPM Cutting path: 18” (46 cm) ght adjustments: 1 3/4—3 3/4” (4.4 cm-9.5 cm) Functions: 2-in-1: Mulch, side discharge... -
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below and on the machine may result in electric shock, fire, and/or serious personal injury. READ ALL INSTRUCTIONS ■ This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe all safety instructions could result in serious injury or death. -
Page 4: General Safety Rules
GENERAL SAFETY RULES ■ To reduce the risk of electric shock, this product has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. The plug will fit into a polarized extension cord only one way. -
Page 5: Specific Safety Rules
SPECIFIC SAFETY RULES ■ Do not operate the mower without the entire grass catch-er, discharge guard, rear guard, or other safety protective devices in place and working. ■ Follow manufacturer’s instructions for proper operation and installation of accessories. Only use accessories approved by the manufacturer. ■... -
Page 6: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Voltage Ampe Current Hertz Frequency (cycles per second) Power... - Page 7 If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call DURAMAXX customer service for assistance. The operation of any power tool can result in foreign objects being thrown into your eyes, which can re-sult in severe eye damage.
-
Page 8: Electrical
ELECTRICAL DOUBLE INSULATION Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protecting insulation. Double insulated tools do not need to be grounded. - Page 9 ELECTRICAL **Ampere rating (on product data plate) 0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0 Cord Length Wire Size (A.W.G) 100' **Used on 12 gauge - 20 amp circuit. NOTE: AWG = American Wire Gauge WARNING: Keep the extension cord clear of the working area. Position the cord so that it will not get caught on lumber, tools, or other obstructions while you are working with a power tool.
-
Page 10: Know Your Lawn Mower
KNOW YOUR LAWN MOWER CORD POWER SWITCH RETAINER ASSEMBLY HEIGHT ADJUSTMENT LEVER OVERLOAD PROTECTOR UPPER HANDLE SIDE DISCHARGE DEFLECTOR LOWER HANDLE SIDE DISCHARGE COVER MOTOR HOUSING Fig. 2... -
Page 11: Know Your Lawn Mower
KNOW YOUR LAWN MOWER The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. (Fig. -
Page 12: Assembly
ASSEMBLY UNPACKING This product requires assembly. ■ Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. ■ Inspect the product carefully to make sure no breakage or damage occurred during shipping. - Page 13 ASSEMBLY ASSEMBLING THE HANDLE WARNING: Never operate the mower without the proper safety devices in place and working. Never operate the mower with damaged safety devices. Failure to heed this warning can result in serious personal injury. ■ Remove any packing material which may be between the upper and lower handles for shipping purposes.
- Page 14 ASSEMBLY INSTALLING SIDE DISCHARGE DEFLECTOR (Fig. 5) ■ Lift the side discharge door. ■ Align the grooves on the deflector with the pins on the underside of the door. ■ Lower the deflector until the hooks on the mower deck are secured in the openings in the deflector.
-
Page 15: Assembly
ASSEMBLY SETTING BLADE HEIGHT (Fig. 6) When shipped, the wheels on the mower are set to a low-cutting position. Before using the mower for the first time, adjust the cutting position to the height best suited for your lawn. The average lawn should be between 1-1/2 in. to 2 in. during cool months and between 2 in. -
Page 16: Operation
OPERATION WARNING: Do not allow familiarity with this type of product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. WARNING: Always wear safety goggles or safety glasses with side shields when operating this product. -
Page 17: Mowing Tips
OPERATION OVERLOAD PROTECTION SWITCH This mower is equipped with an overload protection switch in order to protect the supply circuit from short circuit overloads. Follow these steps if the switch pops out: 1. Release the switch bar, and allow the mower to stop and cool down for a minute. 2. -
Page 18: Operation
OPERATION SLOPE OPERATION WARNING: Slopes are a major factor related to slip and fall accidents that can result in severe injury. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, use the slope gauge included as part of this manual to measure slopes before operating this unit on a sloped or hilly area. -
Page 19: Maintenance
MAINTENANCE WARNING: When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING: Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask. - Page 20 MAINTENANCE REPLACING THE CUTTING BLADE (Fig. 8-9) NOTE: Only use identical replacement blades. ■ Stop the motor and disconnect the power supply. Allow the blade to come to a complete stop. ■ Turn the mower on its side. ■ Wedge a block of wood between the blade and mower deck to prevent the blade from turning.
- Page 21 MAINTENANCE SHARPENING THE BLADE (Fig. 10) For best mowing performance, the mower blade must be kept sharp. A dull blade does not cut grass evenly and over-loads the motor. Under normal circumstances, sharpening the blade twice during the mowing season is usually suf-ficient. However, if your lawn has sandy soil, more frequent sharpenings may be required.
- Page 22 MAINTENANCE BALANCING THE BLADE (Fig. 11) When sharpening, care should be taken to keep the blade balanced. An unbalanced blade will cause excessive vibra-tion when the mower is running. This vibration will eventually cause damage to the mower, especially the motor. To check the blade balance: ■...
- Page 23 MAINTENANCE STORING THE MOWER (Fig. 12) ■ Disconnect the mower from the power supply. ■ Turn mower on its side and clean grass clippings that have accumulated on the underside of the mower deck. ■ Wipe the mower clean with a dry cloth. ■...
-
Page 24: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Adjust the height of the handle and Handle not in position. Carriage bolts not seated properly. make sure the carriage bolts are seated properly. Handle knobs not tightened. Tighten handle knobs. Extension cord not connected to the Reconnect the cord and use the cord Mower not starting. -
Page 25: Warranty
LIMITED TWO-YEAR WARRANTY The manufacturer warranties to the original purchaser that each new product and service part is free from defects in material and workmanship and agrees to repair or replace under this warranty any defective product or part as follows from the original date of purchase. 2 —Year Limited Warranty THIS WARRANTY IS NOT TRANSFERABLE AND DOES NOT COVER: Products sold damaged or incomplete, sold “as is”, sold reconditioned or used as rental... -
Page 26: Exploded View/Parts List
EXPLODED VIEW/PARTS LIST 39-1 33-1 33-2 33-3 33-4 33-5 33-6 13 14 15 16... - Page 27 EXPLODED VIEW/PARTS LIST Switch assembly Blue Green White Yellow Black Motor wire connection...
- Page 28 EXPLODED VIEW/PARTS LIST Item No. Part No. Description Qty. 31101239 Motor cover assy. 3221050 Screw M5X14 3420235 Motor cover strip seal 34101239 Motor cover 3220404 Screw 3690135 Rectifier 3331035 Radiator rectifier 3610138-1 12A motor (20'') 3110638-3 Carbon brush 3220537 Self locking nut M6 3220137 Bolt M6X12 31301239...
-
Page 29: Exploded View/Parts List
EXPLODED VIEW/PARTS LIST Item No. Part No. Description Qty. 3411135 Cord guide 33301239 Lower handle 3330837-1 Height adjustment bracket right 3410835-4 Knob 3220436 Bolt 3110939 Upper handle assy. 39-1 3490137 Soft grip sponge 3111590 Switch assy. 40-1 3220105 Screw 40-2 3220437 Screw 40-3...
