Summary of Contents for EVSE 3840-001

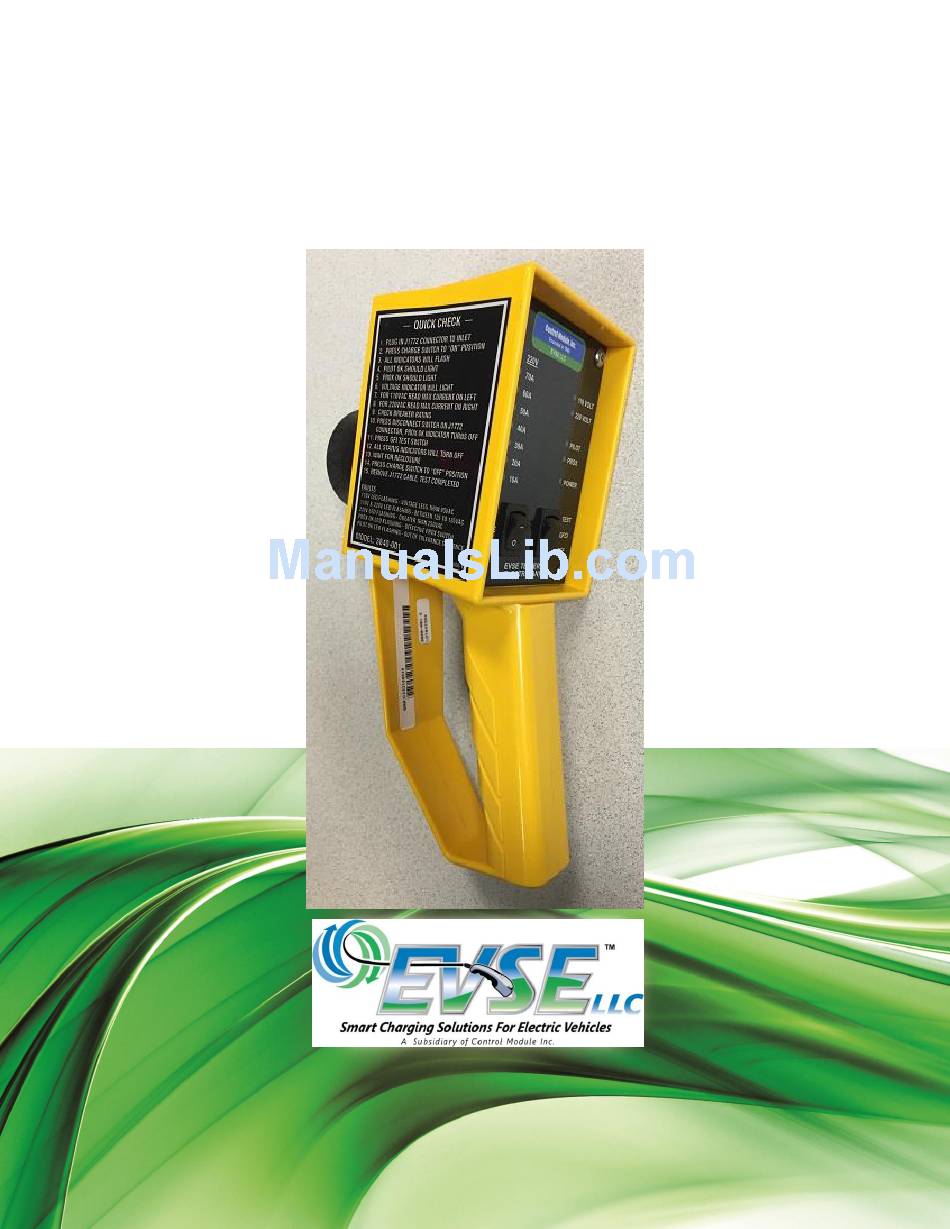

- Page 1 Electric Vehicle Supply Equipment By Control Module Inc, EVSE LLC State of the Art EVSE with Cable Management Electrician EVSE Tester Model 3840-001 User Guide Model 3840-001 Electrician EVSE Tester Patents Pending 3840-UG-001 February 2018...
-
Page 2: Table Of Contents
No Accuracy Guarantee ................................2 Copyright and Trademarks ................................2 Instructions Pertaining To Risk of Fire or Electrical Shock........................2 Instructions De Sécurité Importantes ..............................4 Introduction to the Model 3840 Electrician EVSE Tester .........................5 Specifications ....................................6 Product Description ..................................7 Operation ......................................8 Fault Conditions ..................................11 User Maintenance .................................. -
Page 3: Important Notes
Control Module Inc., EVSE LLC. Watt Point is a U. S. registered trademark and service mark of Control Module Inc., EVSE LLC. All other products or services mentioned have the trademarks, service marks, registered trademarks or registered service marks of their respective owners. - Page 4 Keep the connector on the Model 3840 clean and dry. Failure to do so may result in a false ground fault trip. To reduce the risk of fire, ensure EVSE connection only to a dedicated circuit with 40A maximum branch circuit over–current protection in accordance with the National Electrical Code,...
-
Page 5: Instructions De Sécurité Importantes
Garder le connecteur sur le 3840 modèle propre et sec. Omission de le faire peut entraîner un voyage faute de faux motif. Afin de réduire le risque d'incendie, assurer la connexion EVSE seulement pour un circuit dédié avec 40 a maximum des branches circuit over–current protection conformément aux dispositions du Code électrique National, ANSI/NFPA 70. -
Page 6: Introduction To The Model 3840 Electrician Evse Tester
Introduction to the Model 3840 Electrician EVSE Tester The Model 3840 Electrician EVSE Tester is a hand-held test unit that emulates an electric vehicle and is used to test the operation and safety features of an installed Electric Vehicle Supply Equipment (EVSE). The tester complies with all of the standards specified by the Society of Automotive Engineers (SAE), J1772 publications. -
Page 7: Specifications
1.5 lbs (0.69 kg) Dimensions 3.34 in (w) x 9.10 in (h) x 5.94 in (d) *Observe all required Lockout/Tagout procedures while making any electrical connections or servicing the charging station under test. 3840-001 User Manual February 22, 2018 Page 6... -
Page 8: Product Description
The range of currents that may be supplied to the electric vehicle from the EVSE under test, when powered from a 220VAC source The range of currents that may be supplied to the electric vehicle from the EVSE under test when powered from a 110V AC source Seven LED indicators to denote the maximum current that the EVSE under test is capable of supplying to the electric vehicle. - Page 9 Measures the proximity switch resistor with 0.1% accuracy Controls 110V AC and 220V AC indicator LEDs Controls pilot and proximity switch indicator LEDs Controls seven current range indicator LEDs Block Diagram Led Power Figure 3 3840-001 User Manual February 22, 2018 Page 8...
-
Page 10: Operation
Operation To test an EVSE, insert the J1772 connector of the EVSE under test into the J1772 inlet on the Model 3840 Tester (Figure 4). Your tester might have a cover over the . Press the latch on the right-hand side to... - Page 11 Next, press the GFCI test momentary toggle switch to create a 20ma leakage current to ground. This should cause the EVSE under test to drop AC power and indicate a ground fault condition. (If not, see Fault Conditions). All status LEDs on the Model 3840 will turn off.
-
Page 12: Fault Conditions
Should be 150 ohms and change to 480 ohms when lock latch is pressed Note: Some manufacturers supply EVSE without the -12 VDC bias, which will be out of spec, but will still work with some electric vehicles. Quick Check Connector Pin Out’s... -
Page 13: User Maintenance
Perform the following preventative maintenance at least monthly: The J1772 inlet should be checked for foreign matter, cleaned and dried with a mild detergent (safe for plastics), and then allowed to dry. Report mechanical damage. 3840-001 User Manual February 22, 2018 Page 12... -
Page 14: Moving, Transporting And Storage
Moving, Transporting and Storage Retain the original shipping materials. Should the Model 3840-001 Electrician EVSE Tester need to be returned to the factory or be otherwise shipped, use the original packing materials. Store the unit in a dry, low humidity area. -
Page 15: Customer Support
Support at 1-888-753-8222 between the hours of 8:30 am to 5:00 pm EST, Monday to Friday. Letter Service Department Attn: Jack Batalha, Director Product Support Control Module Inc. 89 Phoenix Avenue Enfield, CT 06082 1-860-741-6064 E-mail jbatalha@controlmod.com 3840-001 User Manual February 22, 2018 Page 14... -
Page 16: Warranty
Warranty For Standard Terms and Conditions, and Warranty information: http://controlmod.com/technical-support/order-terms/ 3840-001 User Manual February 22, 2018 Page 15... - Page 17 89 Phoenix Ave., Enfield, CT 06082 Local Phone: 860.745.2433 EVSE LLC Toll Free Phone: 800.722.6654 A Division of Control Module, Inc. evse.controlmod.com 89 Phoenix Ave., Enfield, CT 06082 Local Phone: 860.745.2433 3840-001 User Manual February 22, 2018 Page 16 Toll Free Phone: 800.722.6654...
