Summary of Contents for Elen CDN 100/3 T RG L20 230AC 1WIRE
- Page 1 Monitoring Swimming Pool Water Temperature Large size numeric LED Display with Floating Temperature Sensor and IR Remote Control User Manual ver. 1.00.R...
-
Page 2: Display Features

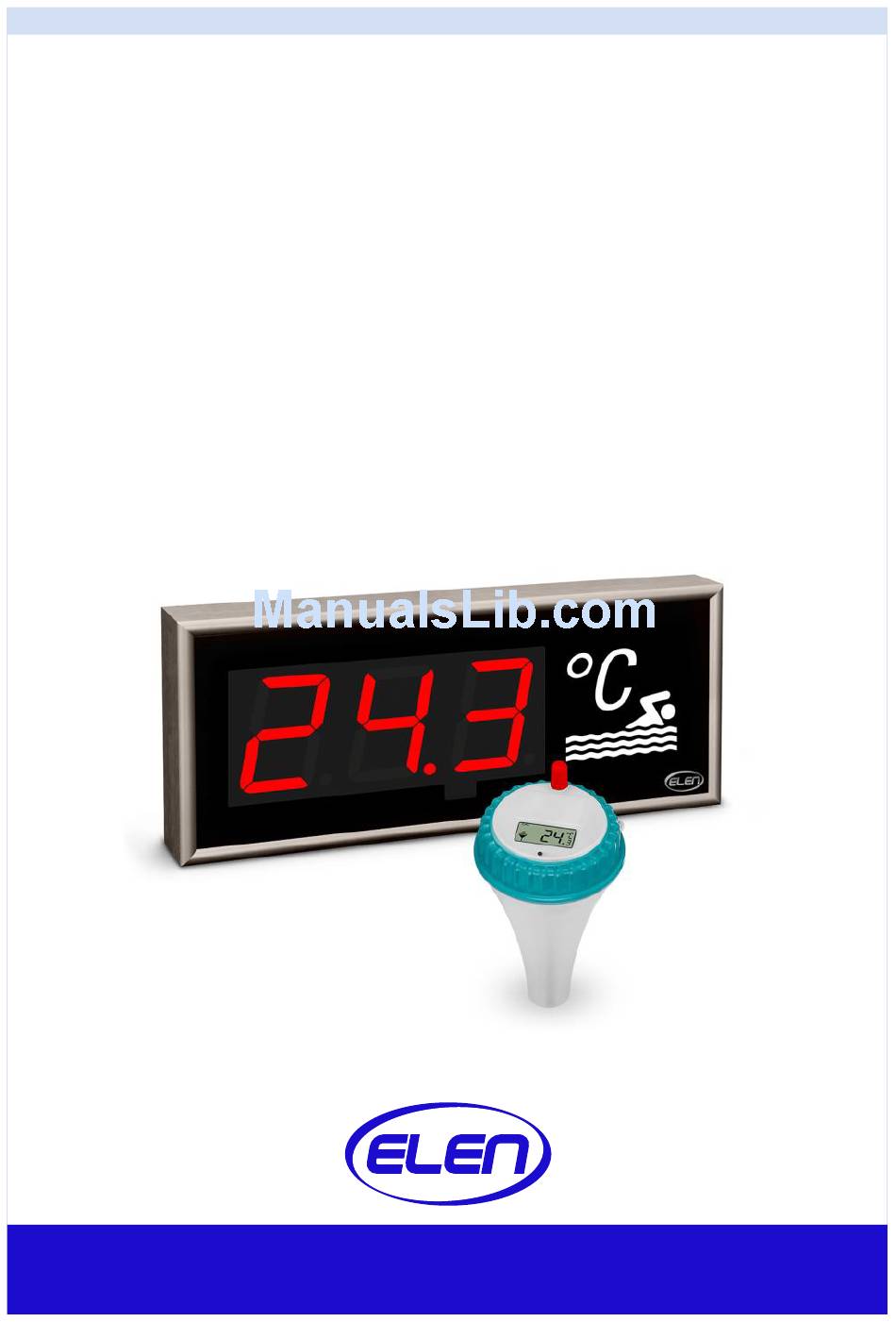

1. Brief Description The swimming pool water temperature monitoring system consists of a large size LED numerical display, RF floating water temperature sensor and IR remote con- trol. This system measures and displays the water temperature in large format. The measured temperature value is transferred into display from the floating sensor placed into swimming pool some distance from display via wireless radio transmis- sion. - Page 3 Once in the function menu, use the Upp arrow / Down arrow to select item to change and confirm your selection with OK button (located in the middle of arrows). Correction offset. Using the up/down arrow set the value of desired offset correction for the measured values.
- Page 4 MENU Brightness control (manual or automatic). Select desired option with button „up arrow“ / „down arrow“, confirm with OK. direct control of fixed brightness level. automatic control of brightness according to ambient light. Brightness Level. Set direct brightness level from 1 to 100 when manual (di) option is selected.
- Page 5 2. Insert two AA alkaline long life batteries and close the battery cover, as shown below. 3. Verify the rubber gasket is properly seated in the guide on transmitter cover. Twist on the transmitter cover (clockwise), as shown below. Channel Selection RF transmitter can be set to transmit measured values on 1 of 3 channels.
- Page 6 Warranty also does not cover damages caused by higher power, includ- ing natural disaster, abnormal weather conditions, lightning, or vandalism. 6. Service Address In case of any questions or malfunctioning of your device please contact: ELEN, s.r.o. Lubochnianska 16 080 06 Lubotice SLOVAK REPUBLIC Tel.:...
-
Page 7: Technical Specifications
7. Technical Specifications LED Display Designation name CDN 100/3 T RG L20 230AC RS485/RF/IR Number of lines Number of digits Digit height 100 mm Readability range up to 40 m 88.8 °C (one decimal place) Displaying format ... - Page 8 RF Floating Temperature Sensor Designation name TSU SENSOR WD1228A 68 3DC RF Transmitting frequency 433 MHz Transmitting power 10 mW Transmission range about 25 m, direct line of sight Power supply 2 pcs. AA batteries, 1,5 V each, alkaline, long life (included) ...
-
Page 9: External Connections Diagram
External Connections Diagram User Manual – Monitoring Swimming Pool Water Temperature...
