Advanced Control Technologies HomePro ZDP200 Operating Instructions Manual

Radio frequency wireless controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

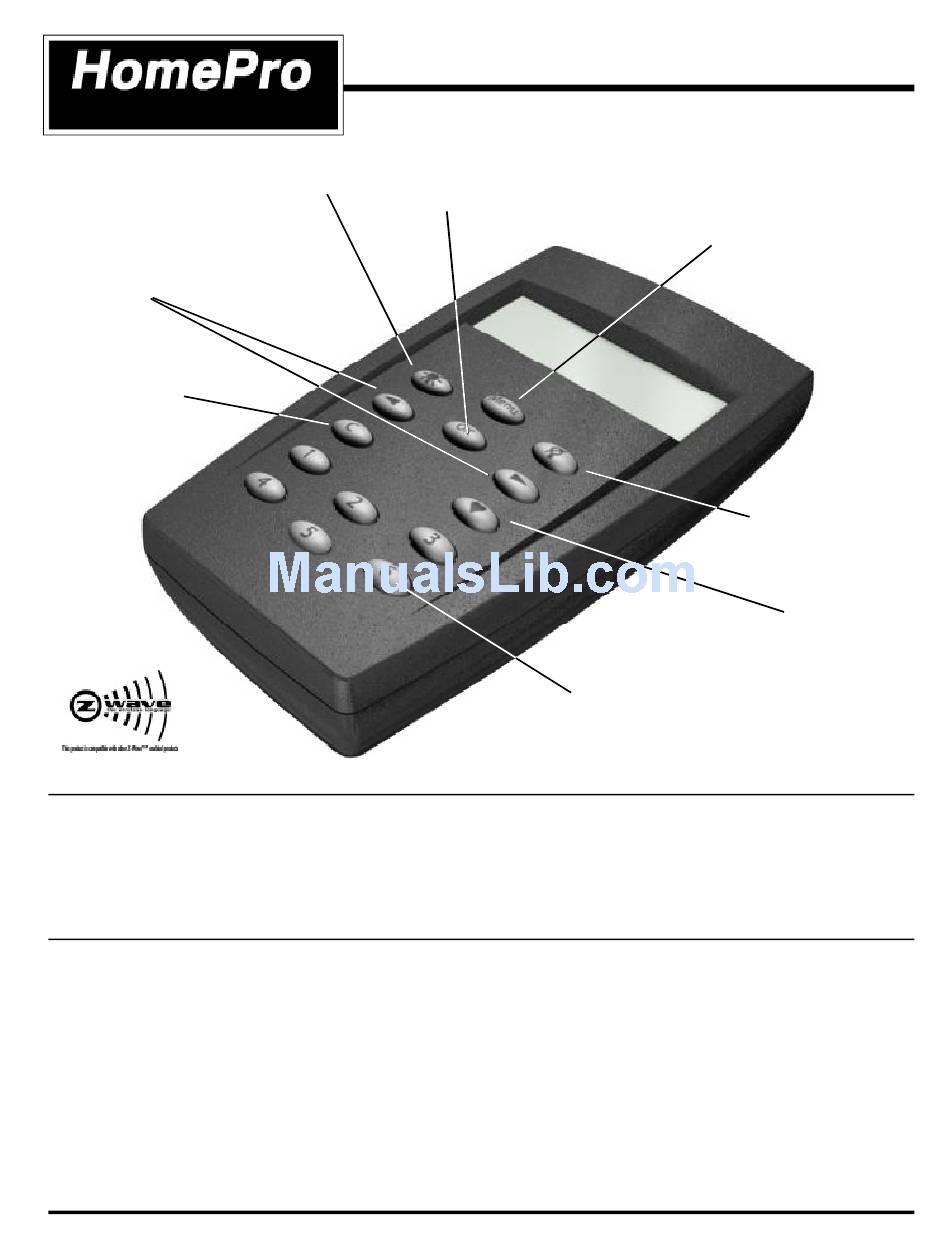

RF Home Automation
ALL ON Button
(Turns all included
modules ON)
Navigation Buttons
(Toggle left or right through
menus)
Cancel Button
(Cancels actions)
BEFORE YOU BEGIN...
READ ALL INSTRUCTIONS
Remove battery cover on rear of control. Install two (2) AA alkaline batteries (included).
There are no field repairable assemblies on this unit. It is covered by a one year limited warranty. If service is needed,
the unit must be returned where purchased.
BUTTON LAYOUT
MENU ......................................
OK ...........................................
LIGHT BULB (SOLID) ............... ALL MODULES ON.
LIGHT BULB (w/ SLASH) ......... ALL MODULES OFF.
LEFT ARROW .......................... MENU NAVIGATION BUTTON, LEFT.
RIGHT ARROW ........................ MENU NAVIGATION BUTTON, RIGHT.
C .............................................
HEART ....................................
"1" TO "6" ............................... SPEED BUTTONS. GRANTS QUICK ACCESS TO USER DEFINED
GROUPS
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
OK Button
(Accepts selection)
ACTIVATES THE MENU DISPLAY.
ACCEPTS CHOICES ON THE DISPLAY.
CLEAR. CANCELS ACTIONS.
SCENE BUTTON. TURNS SCENES ON/OFF (THESE ARE USER
GROUPS OF MODULES PREDETERMINED BY USER).
AND SCENES.
0630-03
Radio Frequency Wireless Controller
Numbered Speed Buttons
(Grants quick access to groups and scenes)
1
ZTH200
Menu Button
(Activates menu display)
ALL OFF Button
(Turns all included
modules OFF)
Scene Button
(Brings up scene menu)
ZTH200 Operating Instructions
051903
