Summary of Contents for UK Sound 1173

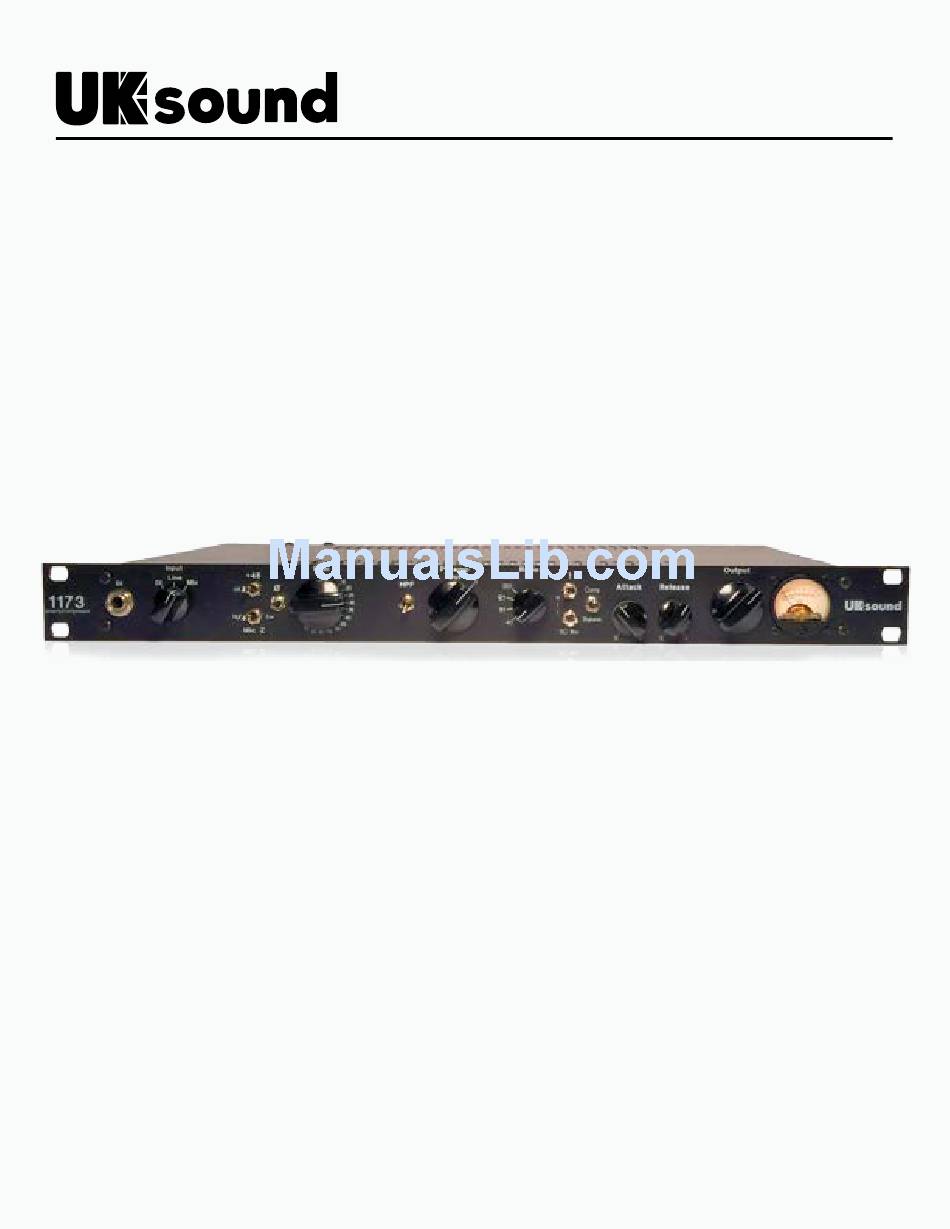

- Page 1 1173 PREAMPLIFIER/COMPRESSOR INSTRUCTION MANUAL...
- Page 2 12. Servicing - The user should not attempt to service or modify the unit unless qualified to do so and under the guidance of UK Sound service personnel.
- Page 3 Table of Contents Overview and Features ..........Quick Start Guide ............Specifications ...............
- Page 4 1173 PREAMPLIFIER/COMPRESSOR Overview and Features Thank you for purchasing the UK Sound 1173. We at UK Sound have worked hard to design a product that will support you in creating amazing music. The 1173 is has an all-discrete and Class A signal path with transformer balanced input and output.
-
Page 5: Quick Start Guide
Step 1: Set 1173 to “Default” A good starting point for the 1173 is what we will all “Default”. The first step is to set the unit to these settings, even before plugging it in to power. For some of these controls we will refer to their setting as if it were a clock, this is a common way to define positions of rotary controls. - Page 6 Choose the desired input (DI, Line, Mic) • Connect the output of the 1173 to the line level input of your audio interface, mixer, or recorder. • Play an instrument or sing into the microphone and increase the Gain control (by turning clockwise) until the desired level is shown on the meters in your recording software, mixer, or recorder.
- Page 7 1173 PREAMPLIFIER/COMPRESSOR Quick Start Guide (Continued) 3. If compression is desired: • Set Comp/Bypass switch to Compress (up) • Adjust Preamp Out control for desired amount of compression. Turn Preamp Out control up (clockwise) for more compression Turn Preamp Out control down (counter-clockwise) for less compression •...
- Page 8 1173 PREAMPLIFIER/COMPRESSOR Quick Start Guide (Continued) 5. Distorted or Clean? Clean: Your 1173 can go from clean to dirty quite easily. With the Preamp Out control at “0” or higher, you will have a cleaner output. Distorted: Turning the Preamp Output control down and the Gain control up will create distortion.
-
Page 9: Specifications
1173 PREAMPLIFIER/COMPRESSOR Specifications Frequency Response: 31.5Hz - 20kHz +/-2dB Microphone Input Impedance: 150Ω or 300Ω Output Impedance: 300Ω Gain: 15 to 70dB Weight: Dimensions: UKsound ©2017... -
Page 10: Year Warranty
1173 PREAMPLIFIER/COMPRESSOR 1 YEAR WARRANTY ALL UKsound units have a 1 year warranty on the circuit-electronics. The product warranty is only covered on part failure and not customer neglect. UKsound is not responsible for injuries incurred whilst using our products nor any damage to other items related or non related to the use of our product. - Page 11 NOTES...
- Page 12 www.uksound.com...
