Summary of Contents for APOS GPS-626
-

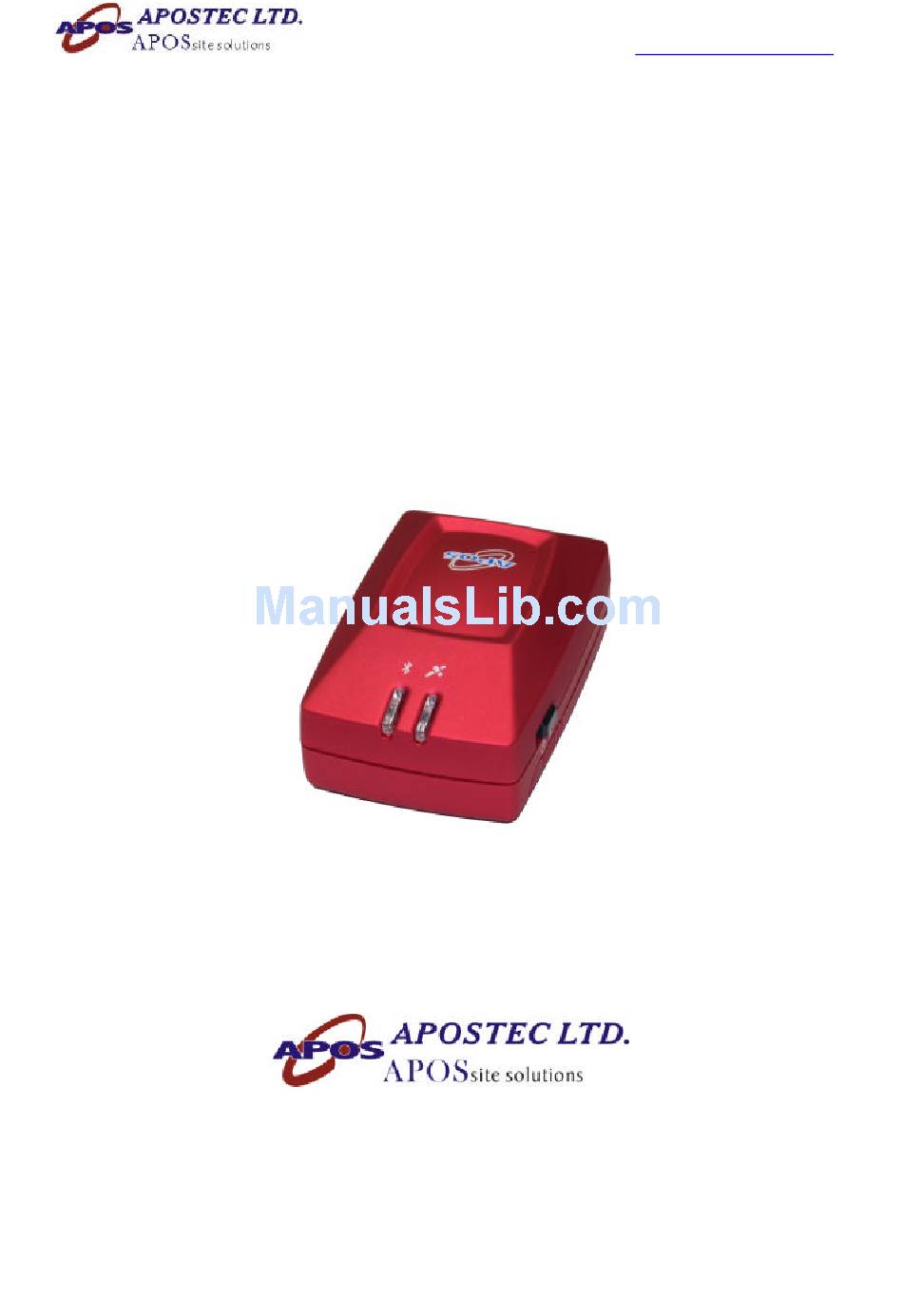

Page 1: Wireless Gps Receiver
. c o m Wireless GPS Receiver User’s Manual GPS-626 Version 1.0 29 July 2005 All Rights Reserved... -
Page 2: Table Of Contents
. c o m Contents INTRODUCTION ....................1 1.1..........................1 VERVIEW 1.2........................1 EATURES TECHNICAL SPECIFICATIONS ...............2 2.1..................2 LECTRICAL HARACTERISTICS 2.2....................3 THER HARACTERISTICS 2.3................... 3 IRMWARE HARACTERISTICS OPERATION ......................4 3.1....................4... -
Page 3: Introduction
1. Introduction 1.1 Overview The APOS Bluetooth GPS-626 receiver is a Global Positioning System Receiver with Bluetooth wireless technology. This wireless GPS receiver allows you to receive GPS data on mobile handheld wirelessly. By sending GPS position data over Bluetooth, you can position the receiver for the best possible reception all without wires. -
Page 4: Technical Specifications
. c o m u Support Power Saving mode u Compatible with Bluetooth devices with Serial Port Profile (SPP) u Small, sleek, and lightweight design easily fits in your hand u Two LEDs show Bluetooth and GPS status u Nokia 6230 battery –... -
Page 5: Other Characteristics
. c o m Backup Power Using main battery Operational 0.55W at 5VDC (full power), 0.3W(Trickle Power) Current Main Interface Connection Communication via Bluetooth Serial Port Profile(SPP) Protocol GGA,GSA,GSV,RMC,VTG,GLL Messages Output Format GGA(1sec), GSA(1sec), GSV(1sec), RMC(1sec), VTG(1sec) <Note>... -
Page 6: Operation
. c o m Code type NMEA-0183 Datum WGS-84 Protocol message & GGA(1sec), GSA(1sec), GSV(1sec), RMC(1Hz), Output frequency VTG(1Hz) 3. Operation Hardware Description 【1.】 Power supply connector 【2.】 Bluetooth power LED indicator. Power Off The LED light is off. -
Page 7: Battery/Power Recharge
The USB power cable that comes with this product can be used to connect to PC for recharge purposes, with the exception of APOS GPS 626 which includes a non- standard USB cable, that will interfere with the normal GPS functionality during recharge status. Use a car or travel... -
Page 8: Notices
Aircraft and Hospitals Use of devices with an antenna is prohibited on most aircraft and in many hospitals. The APOS Wireless GPS receiver is a receiving and transmitting device with two antennas’s and should not be used in these environments. -
Page 9: Battery
. c o m Battery This product uses a Lithium-Ion battery. Please charge fully before first use. Operation in low (below 0º C/32º F or high (over 40º C/110º F) temperatures will affect power supply efficiency and the ability to charge the battery. All Lithium-Ion batteries will experience power supply efficiency deterioration over time even if not used and have a limited life expectancy. -
Page 10: Prohibition Of Co-Location
. c o m CAUTION Any changes or modifications not expressly approved by the grantee of this device could void the user’ s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
