Page 1: User Manual
Synergy Air Power Tower SYN-APT User Manual Version: 1.2... -
Page 2: Table Of Contents
Section Identification ..............7 Regular Maintenance ..............7 Weekly Maintenance ..............8 Six Monthly Maintenance ............. 8 How to Use the Synergy Air Power Tower ......10 Total Body Climbing ..............10 Lower Body Climbing ..............11 Hang Pull Push Press ..............12 Chest Press Bent Pull .............. -
Page 3: Before You Start
Before You Start The following safety sign is affixed to the Synergy Air Power Tower. *Please read the following safety instructions, precautions and information before operating the Synergy Air Power Tower. Failure to adhere to the following will void warranty. -
Page 4: Danger
Regularly check operation and components parts of the machine. Securely tighten any loose fittings or connections. DANGER • Do not wet the surface of the Synergy Air Power Tower with any liquids. Cleaning involves only the use of a fine mist sprayer or a damp cloth. •... -
Page 5: Warning
Every user must become familiar with the mechanism and functions before using the Synergy Air Power Tower. Ensure entry to the Synergy Air Power Tower is via the rear, gripping the handles when embarking or disembarking the Synergy Air Power Tower. -
Page 6: Installation And Assembly
Installation and Assembly Technical Specifications The Synergy Air Power Tower does not require any electrical wall outlet. The Synergy Air Power Tower is a non-motorized product. The Synergy Air Power Tower uses patented Continuously Variable Transmission (CVT) and air turbine to provide resistance. -
Page 7: Environmental Specifications
Footplate Console Left footrest Right footrest Table 1: Synergy Air Power Tower, Section Identification Regular Maintenance Periodic cleaning and inspection, and lubrication will keep the Synergy Air Power Tower in optimal condition. The following is the recommended maintenance schedule. In environments with severe pollution, the frequency of inspections and maintenance should be increased. -
Page 8: Weekly Maintenance
Weekly Maintenance Clean the frame and plastic surfaces with a soft cloth or brush. Do not use abrasive cleaning materials or brushes. Protect all metal surfaces with Lanolin Spray. Spray onto a cloth and wipe surfaces. Note- Do not apply Lanoline to handles and/or Foot plates Clean the console with a soft cloth. - Page 9 Figure 1: Exploded view of Synergy Air Power Tower pg. 9...
-
Page 10: How To Use The Synergy Air Power Tower

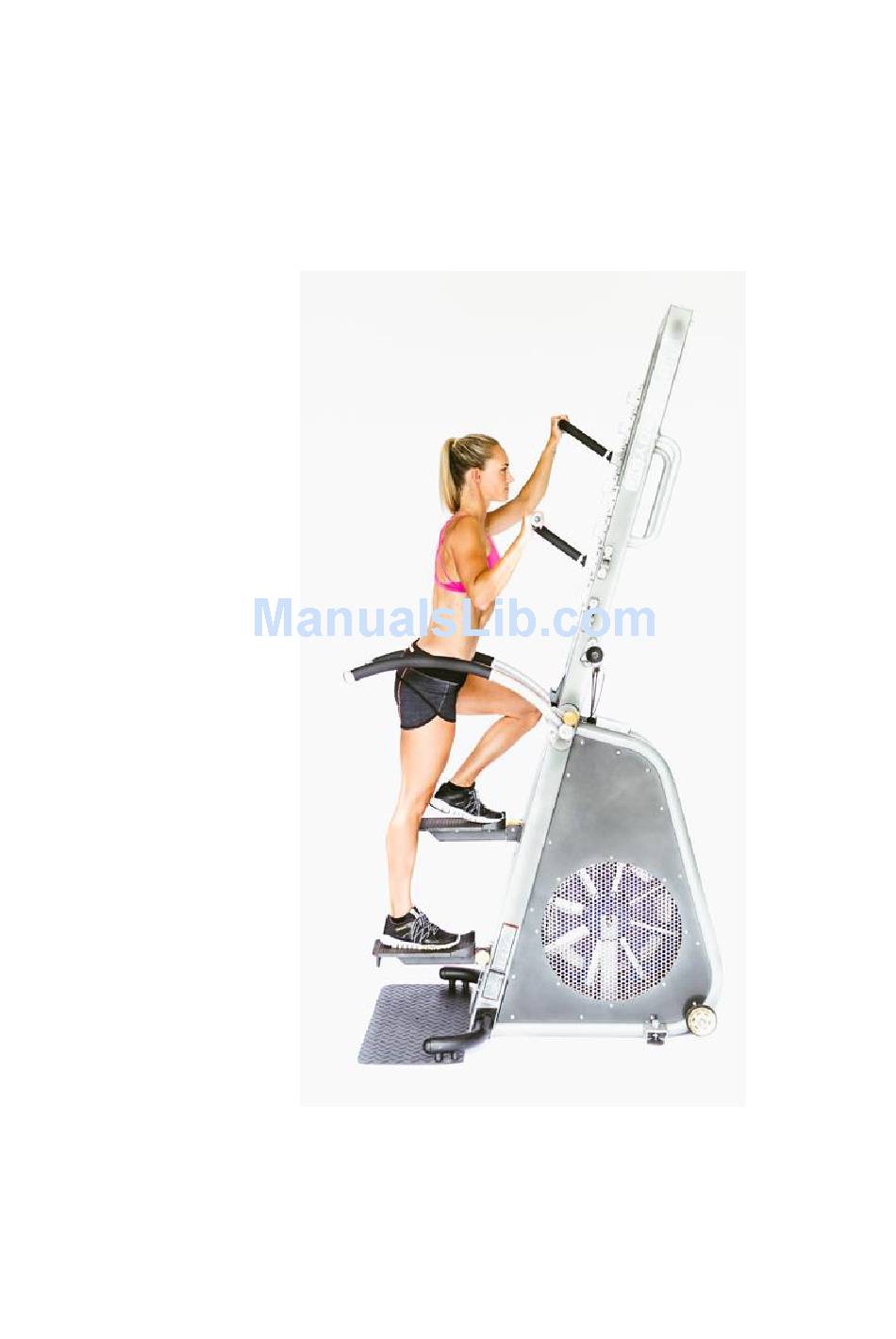

How to Use the Synergy Air Power Tower Total Body Climbing • Place one foot on the corresponding footrest (1) • As you place your weight on the footrest reach up and grab the fixed handrails (3) or adjustable handles (2) for balance •... -
Page 11: Lower Body Climbing
Lower Body Climbing • Place one foot on the corresponding footrest (1) • As you place your weight on the footrest reach up and grab the handrail (3) or the adjustable handrails (2) for balance • Once both feet are on the footrests, the adjustable handrails (2) can be removed and stored in the brackets on the side. -
Page 12: Hang Pull Push Press
Hang Pull Push Press • Remove footrests and place on storage pins (1) • Adjust the handle height (2) to suit. • Slowly move the handles to generate speed. Whilst doing so the Continuously Variable Transmission (CVT) (4) can be rotated to vary resistance as deemed necessary. PLEASE NOTE- the Continuously Variable Transmission (CVT) must only be adjusted whilst the machine is in motion. -
Page 13: Chest Press Bent Pull
Attempting to adjust the Continuously Variable Transmission (CVT) whilst the machine is stationary may damage the mechanism and void warranty. To view Video of Synergy Air Power Tower, see QR CODE shown in Section 5 pg. 13... -
Page 14: Deadlift Pushdown
Deadlift Pushdown • Remove footrests and place on storage pins (1) • Remove one adjustable handlebar and place in storage pin (4). Place the other adjustable handlebar in the opposite foot position (2) • Slowly move the handle to generate speed. Whilst doing so the Continuously Variable Transmission (CVT) (3) can be rotated to vary resistance as deemed necessary. - Page 15 pg. 15...
-
Page 16: Synergy Air Duty Of Care Acknowledgement
It is the buyer's responsibility to determine if they wish to fix the equipment to the floor. © 2017 SYNERGY PHYSICAL CONDITIONING SYSTEMS Pty. Ltd. NOTE: Synergy Physical Conditioning Systems reserve the right to change the specification without notice. pg. 16...
