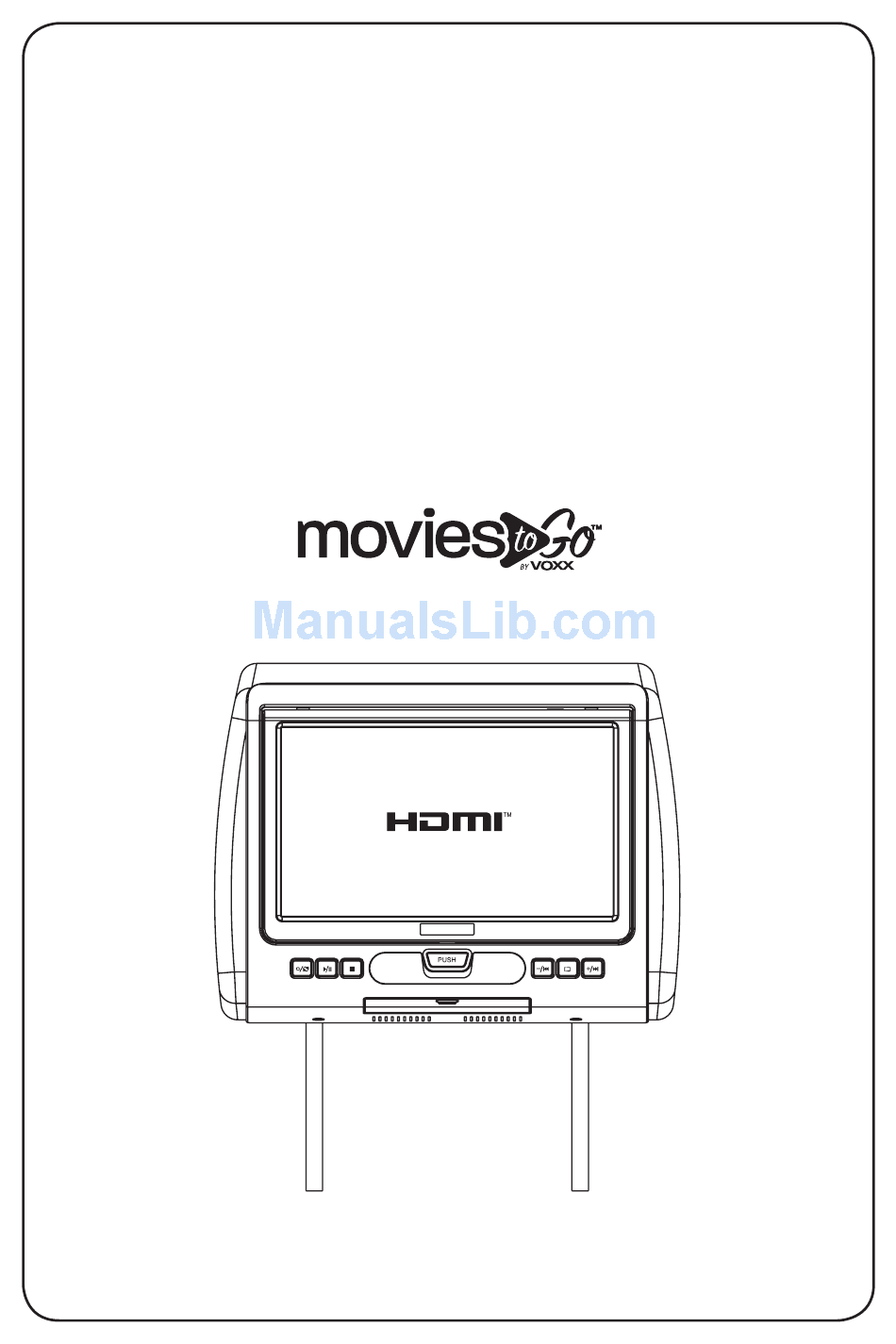

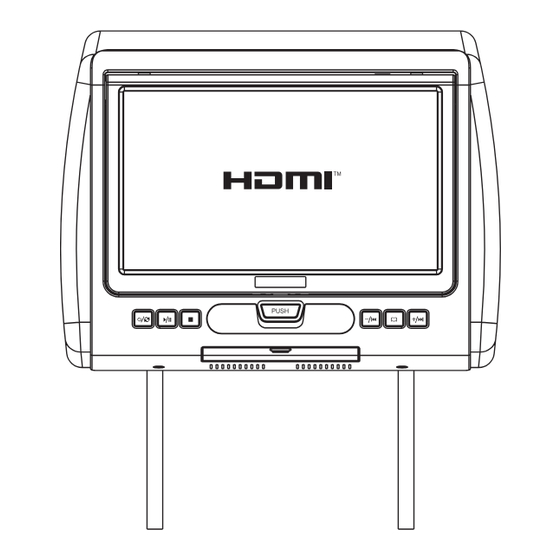

- Page 1 MTGHRD1 7” LCD Monitor With Built-In DVD Player and HDMI Port For Rear Seat Entertainment Installation And Operation Manual...
-
Page 2: Important Notices
(usually identified by yellow connectors and yellow wire jackets). Damage to air bag wiring can result in personal injury to vehicle occupants. If you have any questions regarding wire routing or installation in a vehicle, please contact VOXX Electronics Technical Support at 1-800-225-6074. -
Page 3: Table Of Contents
Table of Contents Features ......................4 Quick Start Guide ....................5 Materials Supplied ..................6 Headrest Cover Replacement ..............7 Installation - Vehicle Preparation .............. 8 Installation - Wiring Diagram ..............9 Controls and Indicators Diagram ............10 Remote Control Battery Replacement ..........11 Remote Control Operation ..............12-15 Souce Menu ....................16 Source Menu(Continued) .............. -
Page 4: Features
Features • 7” Digital Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display (LCD) Monitor • Built-in DVD Player • Last position memory for DVD Player • Five Audio / Video Source inputs • • • • • HDMI • USB 2.0 port •... -
Page 5: Quick Start Guide
Quick Start Guide Press the POWER ( ) button on the front panel or the POWER button on the remote control. PUSH Press the screen release ( ) button. The screen will pop open a short distance. Raise the screen up 90 degrees to access the DVD mechanism. Snap a DVD, CD or MP3 disc onto the hub (label facing outward). -
Page 6: Materials Supplied
Materials Supplied 1) MTGHRD1 System Monitor with DVD Player (MTGHRD1) (1 pc) NOTE: The MTGHRD1 monitor has been designed with interchangeable covers. The headrest as supplied is covered with shale colored vinyl. A black or pewter vinyl cover can replace the shale colored vinyl cover. -
Page 7: Headrest Cover Replacement
Headrest Cover Replacement NOTE: If desired, replace the headrest cover before installing the headrest in the vehicle. 1. Using a Phillips screwdriver, remove the two Phillips screws and lift the bottom edge of the monitor upward. Carefully pull the headrest wires up through the tubes so that the monitor can be moved away from the headrest. -
Page 8: Installation - Vehicle Preparation
Connect all the components together (electrically) and verify proper operation of all the system functions. If two (2) MTGHRD1’s are installed in a vehicle, set one unit to IRTA and the other unit to IRTB. See page 16 or page 18 for instructions. -
Page 9: Installation - Wiring Diagram
Installation - Wiring Diagram Headrest Monitor Headrest Cable Headrest Cable P/N 112-4308 P/N 112-4307 GREEN Video In Yellow Audio In Left White Video Out Yellow Audio Out Left White Audio In Right Red Audio Out Right Red +12V (ACC) Ground- RED Connector GREEN Connector AV IN / Power Cable, 8 Pin Din to 3 RCA (Red) -
Page 10: Controls And Indicators Diagram
Controls and Indicators Diagram Headrest Screen Power / Source Volume + / Next * Play / Pause System Menu Stop Volume - / Previous * Screen Release IR Headphone Transmitter Lens Pull Down * Note: Press and hold to display volume control AUX IN Connector Wired Headphone... -
Page 11: Remote Control Battery Replacement
Remote Control Battery Replacement NOTE: The remote control has a battery installed with a pull tab to prevent battery discharge. Remove the pull tab before attempting to use the remote. Protective Pull Tab Clear Plastic Battery Replacement 1. Depress the tab (1) and slide the battery holder (2) out in the direction of the arrow. 2. -
Page 12: Remote Control Operation
Remote Control Operation... - Page 13 Remote Control Operation Function control is available on the unit and the Remote Control. ** Function not available in this model. 1. POWER* Press this button to turn the unit ON and OFF.. 2. MONITOR SELECT M1 Button – Set the remote control code to allow control of the unit in M1 mode. M2 Button –...
- Page 14 Remote Control Operation 11. BACKWARD ( Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, 20 times and normal speed. 12. PLAY (u)* Press to activate the play mode while a disc is loaded into the disc compartment. 13.
-
Page 15: Remote Control Operation
Remote Control Operation 25. DISC MENU In DVD mode, press once to access the Root Menu and then press again to resume to previous screen. 26. ZOOM Press this button to enlarge or decrease the picture size when playing a DVD disc. Press ZOOM button DVD Player performs 1 Time... -
Page 16: Souce Menu
Souce Menu The System is capable of accessing six source inputs. To select or change a source, press the source button on the front panel or the Source button on the remote control. The source OSD will appear on the screen as shown in the figure below. Use the ＋ or － cursor buttons on the front panel or the p or q cursor buttons on the remote control to highlight a source. -
Page 17: Source Menu(Continued)
Source Menu(Continued) An external audio device may be connected to the system using the AUX pigtail P/N 112B3227 (not included) connected to the AUX input. The AUX input connection is performed when there is an external input source connected. HDMI These Source inputs allow the user to enjoy high-definition digital images and high-quality sound by connecting a HD device such as a Blu-ray player or smartphone with an HDMI output to the system. -
Page 18: System Menu Setting And Adjustments
System Menu Setting and Adjustments PICTURE CONTROL The PICTURE setup functions allows the user to select and set the picture control function. BRIGHTNESS CONTRAST PICTURE COLOR BRIGHTNESS, CONTRAST, COLOR adjustments range AUDIO TINT from 0 to 32. SYSTEM PLAYER TINT adjustments range from -16 to 16. MOVE ADJUST EXIT... -
Page 19: System Menu Setting And Adjustments(Continued)
LANGUAGE ENGLISH DEFAULT DVD PICTURE PICTURE MONITOR MODE AUDIO AUDIO RESET System Menu Setting and Adjustments(Continued) SYSTEM SYSTEM PLAYER PLAYER MOVE ADJUST EXIT MENU MONITOR MODE This allows the user to change the system to M1 or M2 mode. Once the setting is changed, the remote LANGUAGE ENGLISH DEFAULT DVD... -
Page 20: Player Mode
System Menu Setting and Adjustments(Continued) PLAYER MODE The Player setup function allow the user to select DVD functionality. TV SYSTEM The TV SYSTEM setup allows the user to choose television standard which corresponds to your TV. TV SYSTEM NTSC SCREEN SAVER PICTURE PICTURE ASPECT RATIO... -
Page 21: Last Memory
AUDIO LANGUAGE AUDIO LANGUAGE ENGLISH ENGLISH MOVE ADJUST EXIT MOVE ADJUST EXIT MENU MENU TV SYSTEM NTSC SCREEN SAVER PICTURE PICTURE ASPECT RATIO 4:3 PS AUDIO AUDIO PASSWORD SETUP System Menu Setting and Adjustments(Continued) TV SYSTEM NTSC SUBTITLE LANGUAGE ENGLISH SYSTEM SYSTEM RATING... -
Page 22: Audio Language
System Menu Setting and Adjustments(Continued) AUDIO LANGUAGE This setting allows you to select a preferred audio language. This function only applies to discs TV SYSTEM NTSC SCREEN SAVER encoded with different audio languages. PICTURE ASPECT RATIO 16:9 Options: ENGLISH, FRENCH, SPANISH and GERMAN. AUDIO PASSWORD SETUP SYSTEM... - Page 23 System Menu Setting and Adjustments(Continued) FMM MODULATION(ON/OFF) This setting allows you to turn the FMM modulator ON or OFF. FM MODULATION FMM CHANNEL FMM CHANNEL PICTURE PICTURE AUDIO AUDIO This setting allows you to select the frequency. SYSTEM SYSTEM The unit has a 100 channel built-in wireless FM PLAYER PLAYER Modulator.
-
Page 24: Playing Dvd And Audio Discs
Playing DVD and Audio Discs Playing DVDs When a disc is loaded. Press the DISPLAY button on the remote control to display the status banner. The status banner includes the disc title, chapter audio language , subtitle & angle. Title Selection: Some DVDs contain more than one title (e.g. sitcoms, collections, etc.) Press the numeric (0-9) buttons to initiate a change of chapter title selection. -
Page 25: Playing Dvd And Audio Discs(Continued)
Playing DVD and Audio Discs(Continued) Use the cursor keys and OK to navigate the on screen menus. p q t or u The USB port can play AUDIO, PHOTO, VIDEO . The following formats are supported: Audio • • • Photo •... -
Page 26: Dvd Basics
DVD Basics To get the optimum use out of the DVD Player, please read the following: DVD Region Code The DVD player is preset to a region code at the factory depending on where the DVD player is sold. A DVD from a different region cannot be played in this unit and the unit will display "WRONG REGION”. -
Page 27: Usb Devices (Media And Charging)
USB Devices (Media and Charging) USB Port The USB port provides two functions: Media port for USB thumb drives: Phone/Tablet charging: • The USB port will not charge a portable device when the unit is turned OFF. • The USB port will charge a portable device in the following modes: •... -
Page 28: Troubleshooting
Troubleshooting PROBLEM SOLUTION IR remote inoperative • Verify that the battery in the remote is fresh. • Verify that the remote sensor eye is not obstructed. Disc won't play • Insert a disc with the label side facing the viewer. •... -
Page 29: Specifications/Av Adapter Cable
Specificaitons Type TFT Active Matrix LCD Resolution 800 (RGB) (X3) x 480 Pixels 1,152,000 Operation Temperature 32 ~ 113º F (0 ~ 45º C) Storage Temperature -4 ~ 149º F (-20 ~ 65º C) Backlit life 20,000 Hours Video Display System NTSC / PAL / AUTO Headphone Audio Output 0.03 W max @ 32 ohms... -
Page 31: Warranty
D A M A G E S F O R B R E A C H O F T H I S O R A N Y O T H E R W A R R A N T Y . person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product. VOXX Electronics Corporation, 128-9339 180 Marcus Blvd., Hauppauge, New York 11788 l 1-800-645-4994... - Page 32 © 2017 Voxx Electronics Corp., Hauppauge, NY 11788 128-9426...
