Summary of Contents for Aqualisa ilux

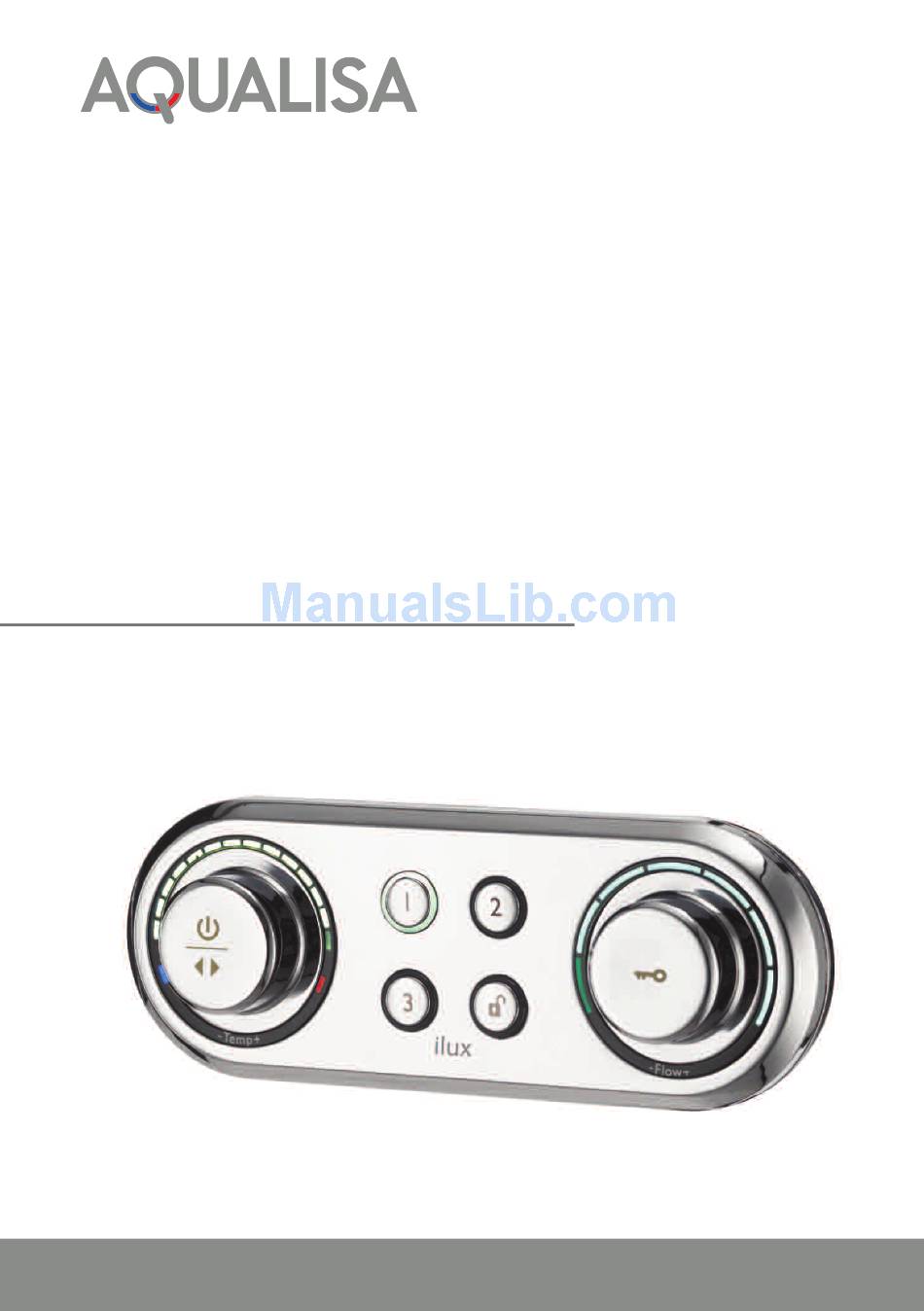

- Page 1 Digital Bath with diverter Installation guide ilux Digital Bath with diverter installation instructions Page 1...
- Page 2 Digital Bath with diverter ilux Digital Bath with diverter ilux Digital Bath with diverter installation instructions Page 2...
- Page 3 Components (HP/Combi) Literature not shown. Components (Gravity Pumped) ilux Digital Bath with diverter installation instructions Page 3...
- Page 4 Children should be supervised to ensure they do not play with the product. Installation of Digital pumped processor (for gravity stored systems) The ilux Digital pumped bath system is designed to operate up to a maximum static pressure of 100kPa ((1 bar)(10 metres head)(14.5psi)).
- Page 5 Pressures: The ilux Digital standard bath system is designed to operate up to a maximum static pressure of 700kPa ((7 bar)(100psi)). Where pressures are likely to exceed 700kPa ((7 bar)(100psi)), a pressure reducing valve must be fitted to the incoming mains supply.
- Page 6 (shown overleaf) before commencing installation. The ilux Digital Bath system is supplied with universal fixings intended to secure it to a suitable wall. To ensure safe operation and installation of this product, the processor and the Digital verter MUST be installed in one of the orientations shown.
- Page 7 EN1287, but are deemed to be a special case. Please note arrow on isolation valve to indicate direction of flow. Compression fittings should not be used on the inlet and outlet spigots and may affect the warranty if fitted. ilux Digital Bath with diverter installation instructions Page 7...
- Page 8 Pumped Digital processor outlet using the cranked elbow connection fitting. The distance between the Digital diverter valve and processor must be within the 2m range of the patch lead data cable connection provided. ilux Digital Bath with diverter installation instructions Page 8...
- Page 9 Digital diverter inlet. (The Digital diverter can be fitted directly onto the processor outlet if required on the HP/Combi system installation. A cranked elbow is supplied for the Gravity Pumped system for ease of installation. Refer to aerial view images in instruction 1). ilux Digital Bath with diverter installation instructions Page 9...
- Page 10 Place the bath control mounting plate onto the finished wall surface in the desired location and mark the fixing and data cable entry points. ilux Digital Bath with diverter installation instructions Page 10...
- Page 11 To remove the controller from the mounting plate, depress the fixing clip on the right hand rear edge of the controller and carefully remove the controller assembly away from the mounting plate and set aside. ilux Digital Bath with diverter installation instructions Page 10...
- Page 12 The processor secondary socket MUST be used to connect the processor to the diverter valve. This is located next to the processor main socket and is accessed by carefully snapping and removing the entry pillar. ilux Digital Bath with diverter installation instructions Page 11...
- Page 13 A secondary remote control is supplied. This connects wirelessly to the main controller. Bath divert controller with 10m data cable 2m patch lead data cable ilux Digital Bath with diverter installation instructions Page 12...
- Page 14 Standard processors fitted to balanced high pressure systems may be set to ‘NORMAL HP’ or for water economy ‘ECO’ modes. N.B. As ‘ECO’ mode can be achieved by the ilux Digital controller, we recommend the processor is set to ‘NORMAL HP’ mode.
- Page 15 Site conditions can affect temperature settings, installer to adjust as required. ALL COPPER PIPE WORK MUST BE CROSS-BONDED AND CONNECTED TO A RELIABLE EARTHING POINT. Please refer to the separate ilux range user guide for full product operating instructions. ilux Digital Bath with diverter installation instructions...
- Page 16 Part No:700539 Issue 01 Nov 12 Please note that calls may be recorded for training and quality purposes The company reserves the right to alter, change or modify the product specifications without prior warning ® Registered Trademark Aqualisa Products Limited...
Need help?
Do you have a question about the ilux and is the answer not in the manual?
Questions and answers
where do I find the MAX TEMPADJUSTMENT - the water isn't hot enough so need to turn it up

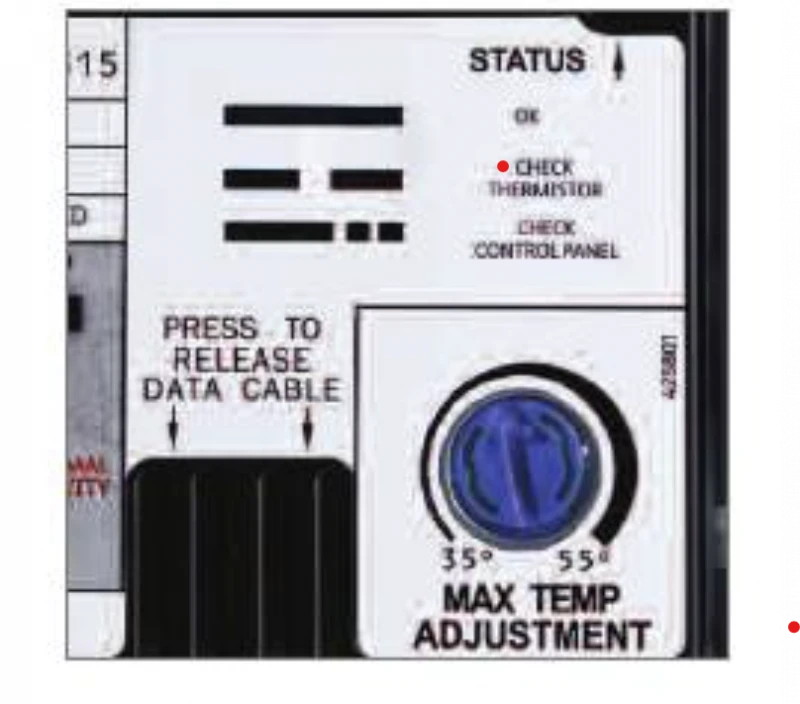

The MAX TEMP ADJUSTMENT on the Aqualisa ilux is located on the Digital processor. It can be adjusted using a flat-bladed screwdriver.
