Summary of Contents for Jzoom ZoomerX
-

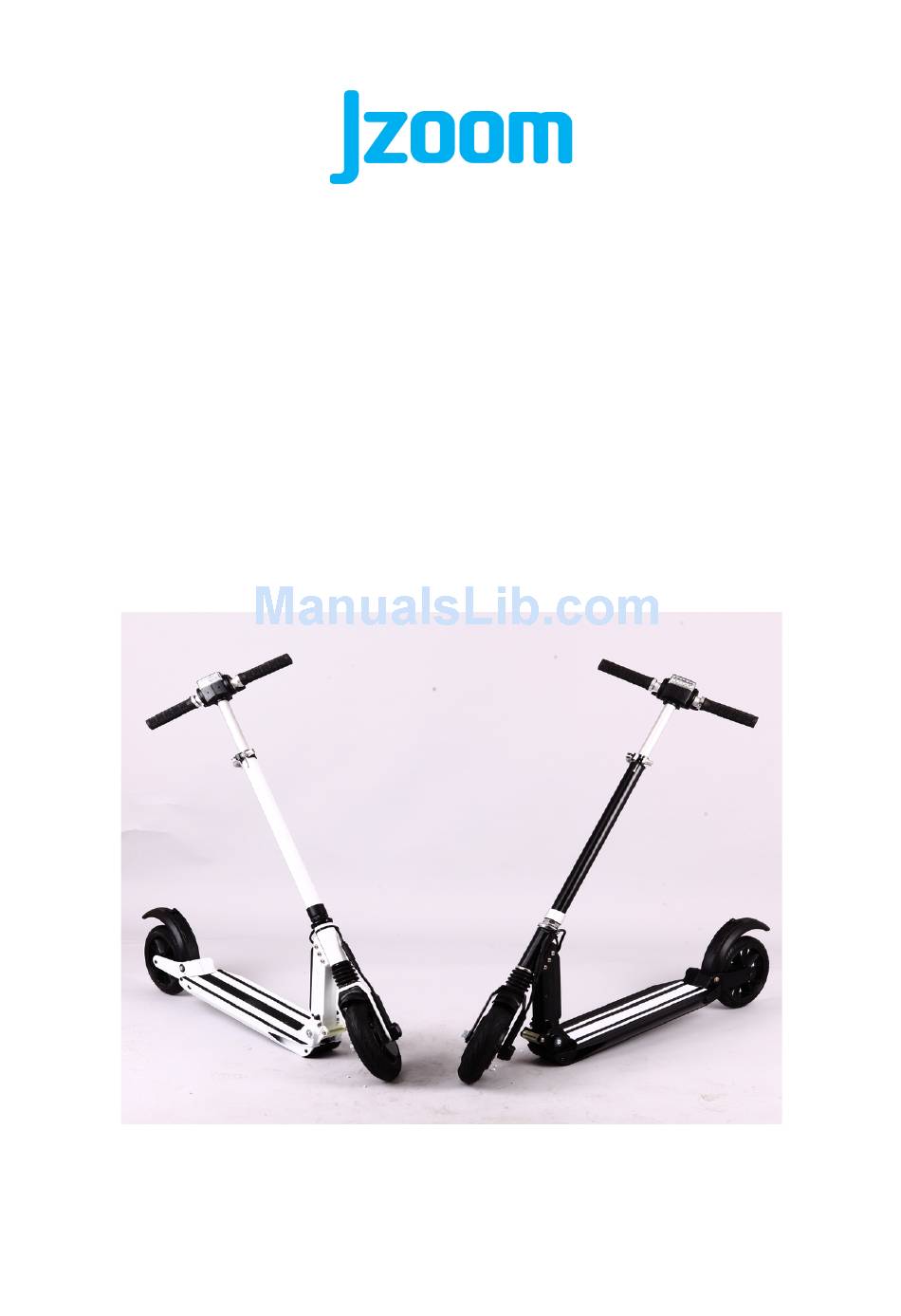

Page 1: User Manual
Portable Electric scooter USER MANUAL (Model: Zoomer/ZoomerX) Thank you for purchasing our products Please carefully read the user manual And warranty book before using 1 ... -
Page 2: Table Of Contents
CATALOGUE MAIN PARTS SAFETY PRODUCTS / FOLDING STAGE Folding stages Folding steps Unfolding steps OPERATION Introduction of Handlebar parts Operation Instruction Display Factory settings RIDING OPERATION Ready Start Brake BATTERY AND CHARGER Battery Changer Change Description MAINTENANCE Lubricating Battery Placement and daily care GENERAL TROUBLESHOOTING PRODUCT SPECIFICATION SHEET QUALITY ASSURANCE... -
Page 3: Main Parts
MAIN PARTS 1. Handlebar 6. Folding hook 2. UBI (Display, etc) 7. Battery charging jack 3. LED headlight 8. Folding lever 4. Hooter 9. Lock bolt 5. Lock lever 10. Rear brake 3 ... -
Page 4: Safety
SAFETY The product is for adults only, limited for one adult, please do not carry two adults at the same time. Is not suitable for minors. Please wear your safety helmet and other protective equipment when riding. Do not ride in traffic lane or unsafe roads and do not break local regulations Please exercise in wide areas, and ride after skilled manipulation, do not ride in traffic lane. -
Page 5: Products / Folding Stage
PRODUCTS Folding stages A – unfolded B - folding handlebars C - fully folded 5 ... -
Page 6: Folding Steps
Folding steps 1. Open the lock lever, in the direction of arrow, as shown in figure (a). 2. Press the red button, figure (b), at the same time press down handlebars as shown in figure (c) and push the lock lever to the lock position. 3. -
Page 7: Unfolding Steps
Unfolding steps 1. Press the rear brake in the direction of the arrow in the figure (a) until folding hook releases the bolt located on the rear brake. Then, lift the handlebar until it reaches the working position and the locking bolt comes into place like in figure (b). -
Page 8: Operation
OPERATION 1. Introduction of Handlebar parts 1. Thumb Accelerator 2. Thumb Electronic Magnetic Brake 3. Switch Button 4. Setting Button 5. On/Off Light Button 6. Horn Button 7. Led Headlight 8. Handlebar Fold Button 9. Display 2. Operating Instructions a. ON/OFF Press the switch for 1 sec, and the display lights indicate power on. - Page 9 Press the left thumb electronic magnetic brake. The greater angle you press, the greater braking force will be. d. Horn Turn on the power, press the horn button and it will hoot. e. LED Headlight In manual mode: Press the On/Off Light button when need and there will be a sign in display indicates the light is turn on.
-
Page 10: Display Factory Settings
3. Display Factory Setting Accesing the menu P0 and P1 is made by pressing at the same time the switch button and setting buton. Pressing the setting button helps you togle between P0 and P1. Both menus have other two menus : 0 and 1, as fallows: - displays the speed in km/h and temperature in Celsius degrees –... -
Page 11: Riding Operation
10 – Light sensor 11 – Speed 12 – Battery 13 – Temperature 14 – Displays the total and trip distance 15 - From left to right: total, trip RIDING OPERATION Ready Choose a suitable venue for riding. 2. Expand the scooter in accordance with the description. 3. -
Page 12: Battery And Charger
Battery When you get the Jzoom electric scooter the first time, please charge the battery fully before using The battery can be charged at any time, in order to ensure that the battery has... -
Page 13: Maintenance
MAINTENANCE Lubricating Please add a small amount of grease or lubricants to handle folded position every six months Please check scooter every three months weather the screws are loose, if yes screw Battery The lithium battery provide by company can be recharged at least 500 times, the normal use can reach more than 1,000 times. -
Page 14: General Troubleshooting
GENERAL TROUBLESHOOTING Checklist When the products have any problems, please refer to the following methods. 1. LED display black screen Reason: Exposure under the sun for too long. Solution: Place it in shadow and it will return to normal after a period. 2. -
Page 15: Product Specification Sheet
PRODUCT SPECIFICATION SHEET Note: Please follow the correct way to use our products, parts damages and other damages caused by abnormal use, the company shall not be responsible for. In warranty period, if the malfunction and damage caused by following causes are not within the scope of the quality assurance: 1.
