G-SCOPE
User's Guide
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART G-Scope G7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Genie Tech SMART G-Scope G7

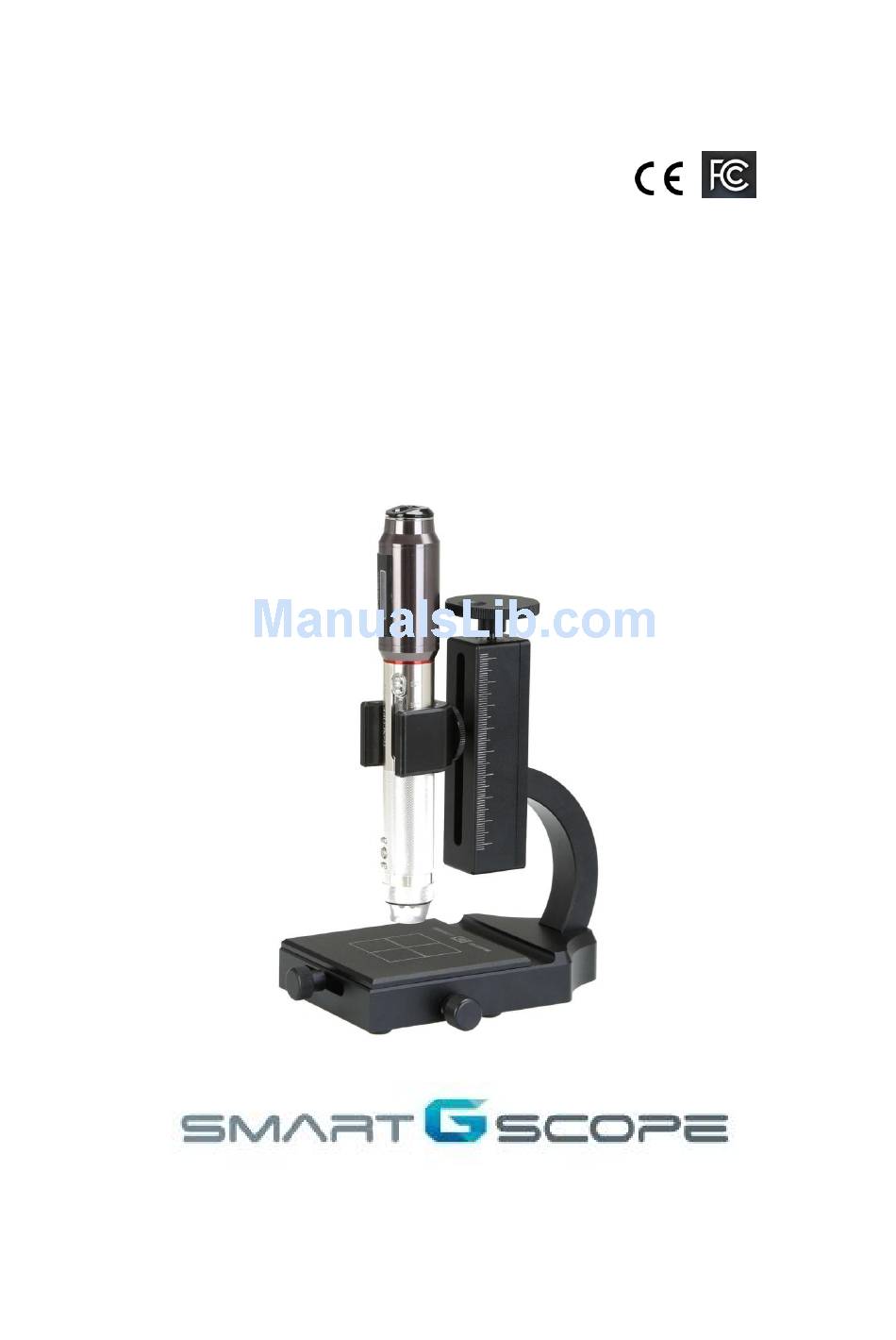

  • Page 1 G-SCOPE User’s Guide...

  • Page 2: Table Of Contents

    Contents 1. G-SCOPE Standard Package ------------------------------ 2. G-SCOPE Overview ---------------------------------------- 4 1) Introduction --------------------------------------- 4 2) Product Description ------------------------------- 4 3. How to use your SMART G-SCOPE ----------------------- 4 1) Mode Switch -------------------------------------- 4 2) Button ---------------------------------------------- 6 3) LCD Display ---------------------------------------- 6 4) End Caps ------------------------------------------ 7 ※...

  • Page 3: G-Scope Standard Package

    1. G-SCOPE Standard Package 1) SMART G-SCOPE Handset 2) IR Remote Controller 3) USB OTG Cable for Android 4) 3pi Corner End Cap 5) USB Cable for PC 6) G-SCOPE BOX *. Option Items : Stands & End Caps - 3 -...

  • Page 4: G-Scope Overview

    2. G-SCOPE Overview 1) Introduction This sheet include the Product description & the explanation for installation & usage of the software. 2) Product Description 4. Auto Focus - Trigger Auto Focus Button - Image capture function for long press 5. Manual Focus - Near/Far control of the focus 3.
  • Page 5 ① ~x40 Mode working distance : 3cm~Infinity (Working Distance) 3Cm~Inf Target Object ~x40 Mode ② ~x100 Mode working distance : 1cm~5cm (W.D.) 1Cm~5Cm Target Object ~x100 Mode ③ ~x180 Mode working distance : Contact~2cm (W.D.) 0Cm~2Cm Target Object ~x180 Mode ④...

  • Page 6: Button

    2) Button Near(-) Auto Focus Far(+) [Focus Button ] ① AF : Auto Focus Fast Auto Focus by pushing “AF” button shortly. If long press over 1 second, Image capture function will be activated. ② Manual Focus (Near & Far) Manual focus control by pushing Near (-) &...

  • Page 7: End Caps

    4) End Caps Several kinds of end caps are designed for their own special purpose each by each and it can be changeable by replacing between the cap very easily. ① End Cap List  Default End Cap (All mode usage Composed with high luminance 6 White LED.

  • Page 8: Warning & Precautions

    ② End Cap Replacement a. Description End cap Socket End Cap holder End Cap Plug b. End Cap Installation Endcap locking Endcap plug in ※ Warning and Precautions When you replace end cap, please locking it tightly with the body. ...

  • Page 9: Pc Software

    4. PC Software 1) Download and Installation To download G-Scope application, Please visit the web ( http://www.g-scope.net ① Execute Setup.exe ② Select the language and Click “OK” ③ Click “Next” button ④ Click “Next” button ⑤ Installation finished and click “F” ⑥...

  • Page 10: S/W Usage

    2) S/W Usage ① Software Description After connecting Smart G-SCOPE Gx with PC and execute the program. Max. 4EA Smart G-Scope can be connected at the same time. With these button you can control the size of Image panel window. ②...
  • Page 11 • ③ Camera Setting You can see the pop-up menu, when clicking the right button of the mouse on activated image window. a. Disconnect  Turn off the camera b. Whole screen  Maximize Image panel window. c. Image Format  Change camera output size. d.
  • Page 12  Calibration To get the right data of the measurement, you should do calibration as follows. Input the real value of the length.  Measurements Measurement of Length, Circle, Area and Angle of the target object. Select 3 areas with different focus value Interval time to show between the area Switch Focus ...

  • Page 13: Android Software

     Temperature Chart Display temperature data flow that is stored in smart G-Scope. a. It can be displayed, when Temp. end cap is attached with Smart G-Scope. b. Max. 1K unit data with date and time can be displayed. 5. Android Software 1) Download a.

  • Page 14: How To Use

    2) How to use Click for the execution Movie recording Auto Focus Image Capture Rotate, Mirror & Flip View the stored Camera setting images  Camera Setting a . Select the device Display the device connected. b. Image format Select Image resolution to be displayed. Support the image formats of Full_HD (1920X1080), HD(1280X720), D1(720X480), VGA(640X480).

  • Page 15: Specifications

    6. Specifications Model SMART G-Scope G1 ~ G7 Magnify 10 ~ 250X Sensor 3.5M Pixel CMOS Auto Focus Fast Auto Focus using Liquid Lens Working Distance Contact ~ Infinity by Mode Change OLED Display Magnify Mode & Temp. Lighting White LED with On/Off Control Movie Recording 30fps, AVI(1920x1080, 1280x720, 720x480, 640x480) Image Capture...
