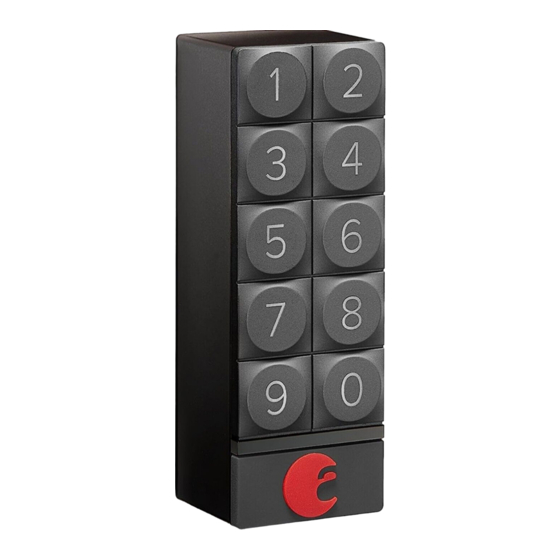

Summary of Contents for August Home August Smart Keypad

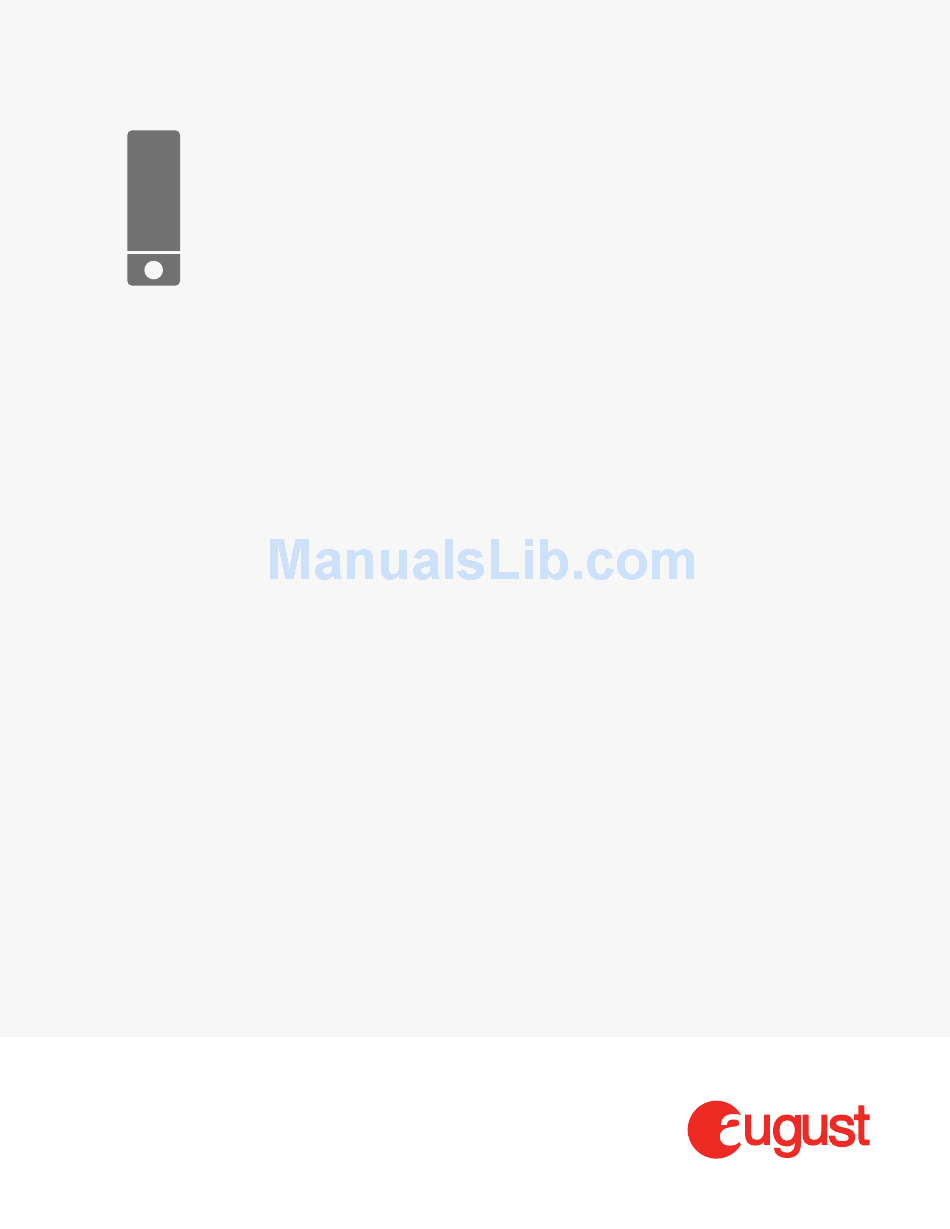

- Page 1 August Smart Keypad Installation Guide...
-
Page 2: Inside The Box
Inside the Box August Smart Keypad Mounting Plate Two (2) 3/4” Screws Two (2) Anchors What you need Drill w/ drill bit set Hammer Ballpoint Pen Phillips Screwdriver Level... - Page 3 1. Determine your drill bit size 2. Remove the keypad’s back panel Depress the tab on the back of the keypad to remove the back panel.
-
Page 4: Drill The Holes
3. Mark holes in wall for drilling Use your level to position the back panel on the wall. Take your ballpoint pen or one of the included screws and poke it firmly through the center of each of the two rubber feet. - Page 5 5. Add adhesive to the back of the keypad Peel off one side of the adhesive covering. Carefully place the adhesive on the rear side of the back panel. 6. Attach back panel to the wall Firmly affix the back panel to the wall using the adhesive. Then take the two screws and screw them into the wall through the holes you created in the back panel.
- Page 6 7. Attach keypad to the back panel Remove the battery tab from the inside of the keypad. Hook the top of the keypad onto the top of the back panel, rocking it down to the bottom until you hear a click. 8.
- Page 7 Help Call 844-AUGUST1 (284-8781) or visit: august.com/support for answers. 01.18-R1...
