Q ui c k Sta r t G u id e
10-Port L2 Gigabit Ethernet PoE Switch
FNS-PoE-10

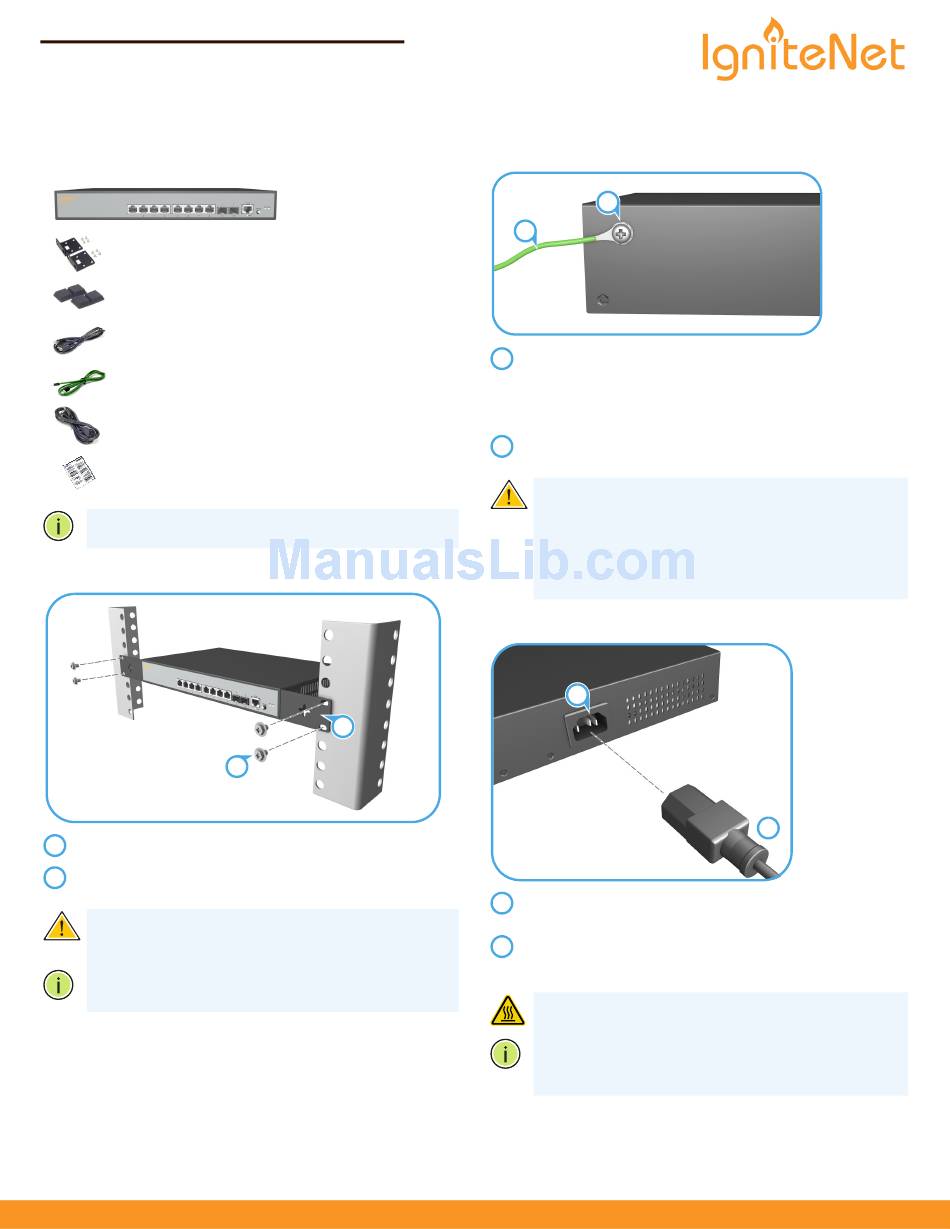

1. Unpack the Switch and Check Contents
Mounting Kit — 4 brackets and 10 screws
Four adhesive foot pads
Console Cable — RJ-45 to DB-9
Grounding wire
Power cord — Japan, US, Continental Europe, or UK
Documentation — Quick Start Guide (this document)
Note:
The FNS-PoE-10 switch is for indoor use only.
2. Mount the Switch
1 Attach the brackets to the front of the switch.
2 Use the screws and cage nuts supplied with the rack to
secure the switch in the rack.
Caution:
Installing the switch in a rack requires two
people. One person should position the switch in the rack,
while the other person secures it using the rack screws.
Note:
The switch can also be installed on a desktop or shelf
using the included adhesive rubber foot pads.
www.ignitenet.com
FNS-PoE-10
1
2
3. Ground the Switch
2
1
1 Ensure the rack on which the switch is to be mounted is
properly grounded and in compliance with ETSI ETS 300 253.
Verify that there is a good electrical connection to the
grounding point on the rack (no paint or isolating surface
treatment).
2
Attach the included grounding wire to the grounding point
on the switch rear panel, and then to rack ground.
Caution:
The earth connection must not be removed
unless all supply connections have been disconnected.
Caution:
The device must be installed in a restricted-access
location. It should have a separate protective earthing
terminal on the chassis that must be permanently
connected to earth to adequately ground the chassis and
protect the operator from electrical hazards.
4. Connect Power
1
1 Plug the AC power cord into the socket on the rear of the
switch.
2 Connect the other end of the power cord to an AC power
source. Verify that the external AC power requirements for
the switch are AC 100-240 V, 50-60 Hz, 2.1 A
Warning:
The bottom of the enclosure is a hot surface. Do
not touch!
Note:
For International use, you may need to change the
AC line cord. You must use a line cord set that has been
approved for the socket type in your country.
