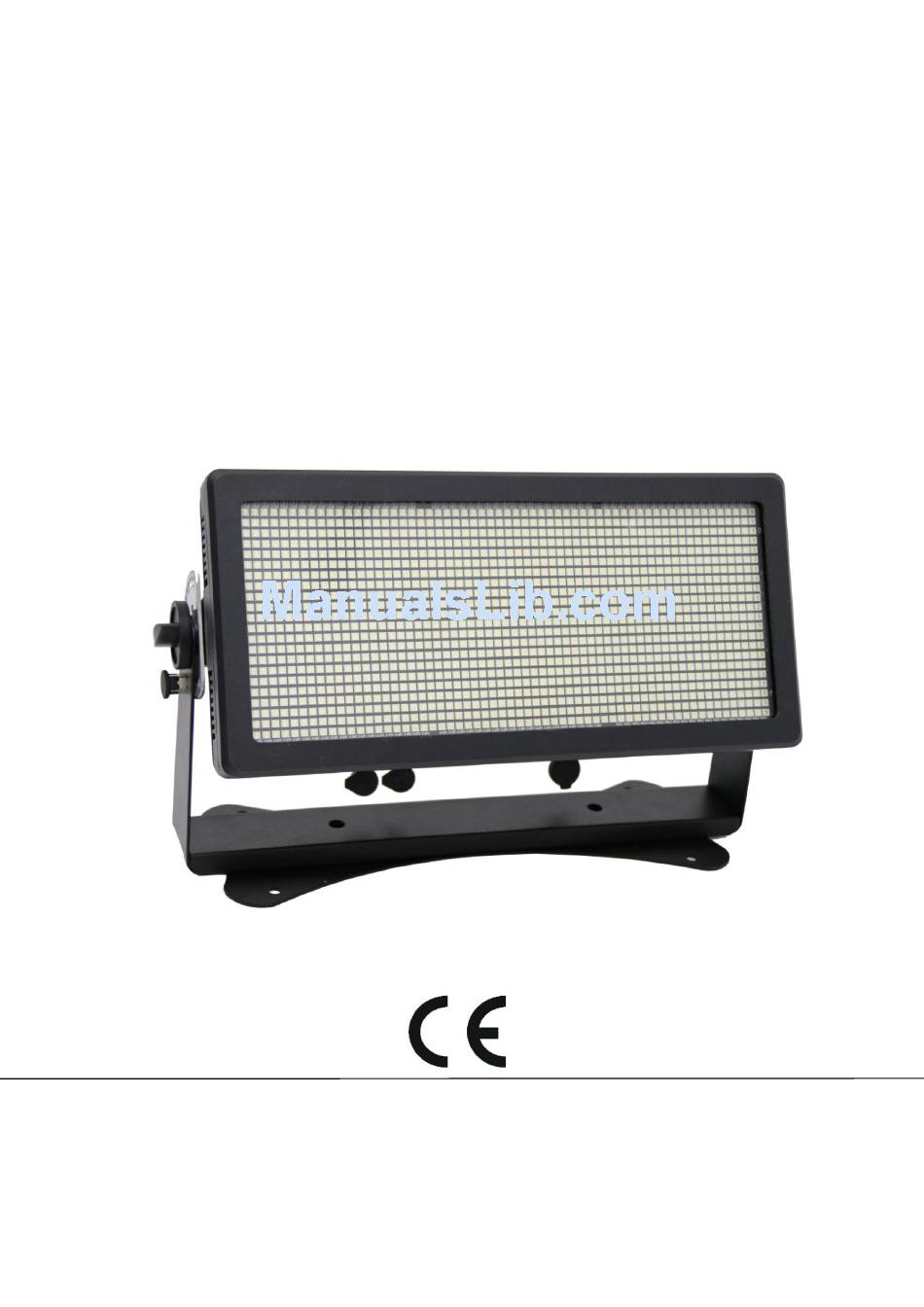

- Page 1 Cyclone 1320 -Strobe,Blinder,Flood and Wash Light User Manual Thanks for choosing our goods please read this manual carefully before your operating and keep this manual for future needs...
- Page 2 Thank you for purchasing Cyclone 1320, Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
- Page 3 is subject to change without notice. We reserves the right to modify and upgrade its range of products, with no obligation to integrate these changes into products already sold. Warning ● To prevent or reduce the risk of electrical shock or fire ,do not expose the unit to rain or moisture.
- Page 4 Specifications and Features: • DMX Channel: 4/6/10/18(RGBW);3/6/9/18(RGB) • 4 Dimmer Curve • IP rated: IP65 • LED Source: 1320pcs 5050 SMD RGBW(RGB) LED • Compact housing with mounting bracket and fixation screw • Dynamic macro effect • LCD display for addressing and special functions settings •...
-
Page 5: Menu Operation
Product View Menu Operation Menu Enter DOWN • Menu : Main menu, choose the function • Enter: Enter into the function and confirm • UP: Choose the UP data • DOWN: Choose the Down data... -
Page 6: Power Voltage
MCB(Miniature Circuit Breaker)must also be respected:16 A type C will fit most needs. Power cable and Power plug The Cyclone 1320 power input cable must meet the requires listed under Protection from electric shock,keep cable runs as short as possible. -
Page 7: Installation
Warning!Read safety information before installing,powering, Operating or servicing the Cyclone 1320. A DMX 512 date link is required in order to control the Cyclone 1320 via DMX. The Cyclone 1320 has 3-pin XLR connectors for DMX data input and output,the pin-out on all connectors is PIN 1=shield,PIN 2= Cold(-),and PIN 3=hot(+). -
Page 8: Dmx512 Control
attempt the installation yourself,but instead use a professional structural rigger,improper installation can result in bodily injury and or damage to property. The device has to be installed out of the reach of people. If the device shall be lowered from the ceiling or high joists,professional trussing systems have to be used,the device must never be fixed swinging freely in the room. -
Page 9: Operation
20mA. Lighting effects must not be connected to dimming-packs. Strobe effects: The Cyclone 1320 offers strobes effects from the beam with variable flash rate,flash duration and intensity.It also offers the following pre-programmed effects: -Ramp up/down intensity modulation effects... - Page 10 Enter" to save new setting. Controlling: After having addressed the Cyclone 1320,you may now start operating it via your lighting controlled,please be sure that you don't have any overlapping channels in order to control each fixture correctly and independently from any other fixture on the DMX-chain,if several fixtures are addressed similarly,they will work synchronically.
- Page 11 DMX protocol(RGBW) 4-Channel DMX mode Channel DMX Value Description Channel 1 0 ~ 255 Channel 2 0 ~ 255 Green Channel 3 0 ~ 255 Blue Channel 4 0 ~ 255 White 6 Channel DMX mode Channel DMX Value Description Channel 1 000~255 Dimmer...
- Page 12 18 channel DMX mode Channel DMX Value Description Channel 1 000~255 Dimmer Channel 2 000~255 Red area 1 Channel 3 000~255 Red area 2 Channel 4 000~255 Red area 3 Channel 5 000~255 Green area 1 Channel 6 000~255 Green area 2 Channel 7 000~255 Green area 3...
- Page 13 6 Channel： Channel DMX Value Description Channel 1 000~255 Dimmer Channel 2 000~255 Intensity of Flash Channel 3 000~255 Flash Channel 4 000~255 Random strobe Channel 5 000~255 Special effect Channel 6 000~255 Speed of effect 9 Channel： Channel DMX Value Description Channel 1 000~255...
-
Page 14: Troubleshooting
Channel 8 0 ~ 255 Green 3 Channel 9 0 ~ 255 Green 4 Channel 10 0 ~ 255 Blue 1 Channel 11 0 ~ 255 Blue 2 Channel 12 0 ~ 255 Blue 3 Channel 13 0 ~ 255 Blue 4 Channel 14 0 ~ 255... - Page 15 connectors or on PCB of the unit or the previous one. d. Try to use another DMX controller. e. Check if the DMX cables run near or run alongside to high voltage cables that may cause damage or interference to DMX interface circuit.
- Page 16 Warranty The Cyclone 1320 fixture is guaranteed against manufacturing defects for the duration of one (1) year from the date of purchase. This warranty does not cover the unit for evidence of physical shock or damage caused by abuse or any use not in accordance with the operating conditions set forth in the present user manual.
