Pronto Intelligent Access Point
This is the manual of outdoor CPE, which will approximate guide you how to set and apply the outdoor CPE, it provide
a convenient graphical interface for network construction and maintenance person, as well as a user through a simple
and accurate operation, and configuration management of the CPE.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pronto PIAP series
Summary of Contents for Pronto PIAP series
-
Page 1: User Manual

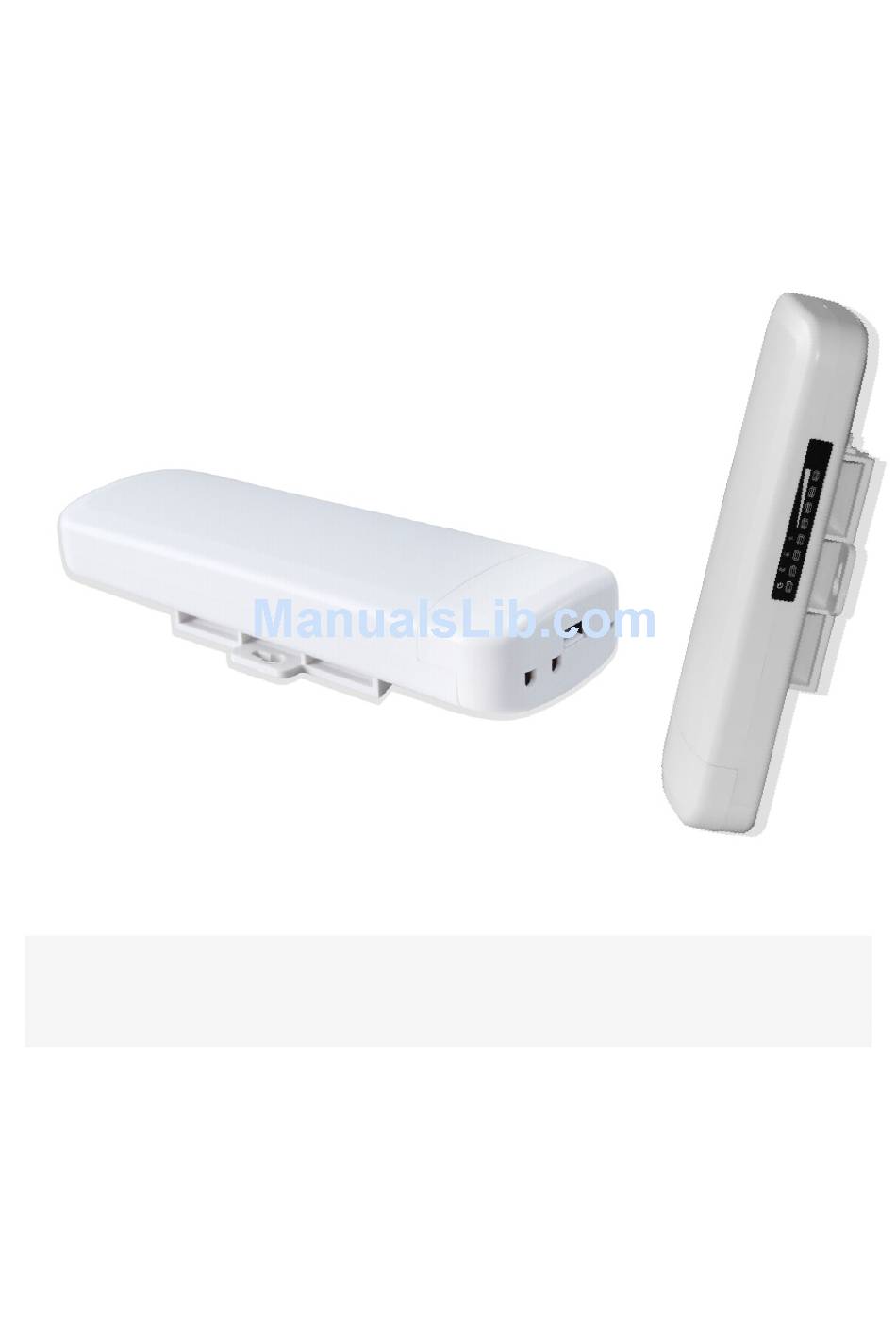

User Manual Pronto Intelligent Access Point This is the manual of outdoor CPE, which will approximate guide you how to set and apply the outdoor CPE, it provide a convenient graphical interface for network construction and maintenance person, as well as a user through a simple... -
Page 2: Connection And Power Supply
Connection and Power Supply 1 s t ： P o r t C o n n e c t i o n a n d p ow e r s u p p l y I n s t r u c t i o n o f d i f f e r e n t p o r t ： CPE Port Connection ... - Page 3 Connection diagram of CPE and PoE adapter Incorrect Connection or the use power adapter and PoE adapter not from our factory, the CPE will be damaged Pay Attention Steps： Login 1）Connect the CPE with computer as P2 picture 2 ） Configure the PC’s local connection IP address as 192.168.188.X (X is number from 2 to 254), subnet mask is 255.255.255.0, follow P4 and P5 to finish.
- Page 4 P4 Setting of computer’s IP address P 5 Setting of computer’s IP address 3) Input 192.168.188.253 into IE browser, then pop up the login page, the default login user name: Admin, Passwords: admin, pls do following P5...
- Page 5 P6 Login 4) After login, then P6 Device Status will be showed: P7: Device Status There are four operation mode showed on this page: Gateway mode, Repeater Mode, AP Mode and WISP Mode; 3rd ： Quickly Configure CPE ① Gateway Mode: Click “Gateway Mode”...
- Page 6 Channel, key as like. P8 Gateway Mode ② WiFi Repeater and Station operation configuration A. Login the Web management page, click “ Repeater Mode”, then “Scran AP” P9 Repeater Mode B. Select the AP’s SSID want to bridge, take SR800-5.8G for example.
- Page 7 P10 Select AP If your computer can’t pop up this window, pls check your IE explorer and see whether it is blocked Instruction already. And if this CPE can’t scan any SSID, pls check if there are 5G wireless signal. C.
- Page 8 P11 Repeater Mode D. In Repeater Mode, the SSID is disable in default setting, it work as Station; Then if need SSID broadcast in this operation mode, just manual to change under Advanced Settings, So, click sure in this part to finish the repeater operation mode setting.
- Page 9 P 13 Device Status F. Then if SSID should be broadcast under repeater mode, pls click “Advanced Settings” , then “5.8GHz Repeater” will pop up. If want to bridge another AP’s SSID, then can setup in this part and Aplly changes. P14 5.8G Repeater G.
- Page 10 P15 5.8GHz Virtual AP ③ AP Mode Plug and Play to transmit wireless signal for wireless end users form wired networking. In this part, user can mark the AP’s location and name for easy problem checking. Then can change SSID, Key, Channel as request. P16 AP Mode ④...
- Page 11 P17 WIPS Mode ⑤ Advanced Settings: 1. System Status Click “ Advance Settings”, will show system status, such as firmware version, build time, System uptime... P18 System Status Click 5.8GHz Wireless Status, will show CPE’s WLAN Status, Signal Strength, SSID...
- Page 12 P19 5.8GHz Wireless Status If want to check LAN status, pls check following picture P20 LAN Status 2. Operation Mode: Set operation mode manually, choose the right operation mode, then apply changes. The function of this part will be same as Quick Setup step.
- Page 13 P21 Operation Mode 3. 5.8GHz Repeater: In this part, use can scan AP’s SSID, disable or enable CPE’s SSID, modify Channel, Country code, Key.. P22 5.8GHz Repeater...
- Page 14 United States P23 5.8GHz Advanced Note: The frequency selection feature is disabled by firmware for devices marketed to the US. only channels 1-11 will be used in North America. Country code selection is disabled. 4. Network Setting LAN Interface Setup mainly showed as follow: P24 Network Setting 5.
- Page 15 (GMT+13)United States P25 Management 6. Upgrade Firmware Pls click Upgrade Firmware, then browse and choose the firmware should upgrade, then click upgrade to upgrade the firmware. P26 Firmware Upgrade After finish firmware upgrade, pls click Save/Reload Settings, then reset settings to default. After that, the firmware upgrade is finished.
- Page 16 Tr o u b l e S h o o t i n g : F 1 The Failure phenomenon and solution Failure phenomenon Solution Pls make sure the PoE module connection is right. POE Port SYS Indicator off connect with CPE, LAN port connect with computer Pls check the IP address of computer and CPE to see whether they are in same networking segment, The method is click “start”-“Run”...
- Page 17 Note: *. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
