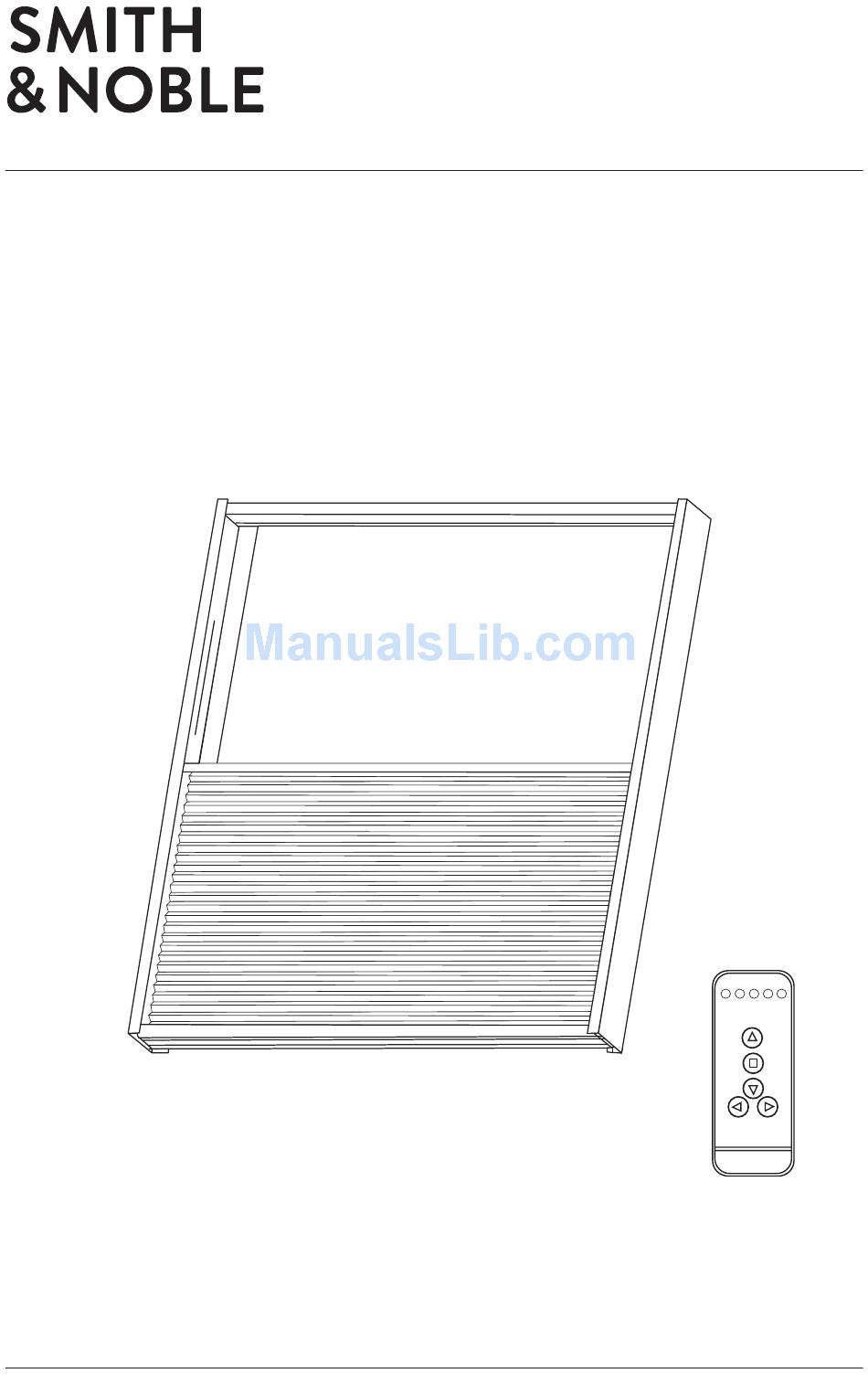

- Page 1 STEP BY STEP INSTALLATION INSTRUCTIONS Honeycomb Shades Skylight Motivia ™ Motorization...
-
Page 2: Table Of Contents
Everything Table of Contents You Need Step 1 - Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Motorization Honeycomb Skylight . -
Page 3: Step 1 - Getting Started
Step 1 — Parts & Tools Overview Motorized Honeycomb Skylight Getting Started First, make sure you have all the parts and tools required to install your shades. ALL THE HARDWARE YOU’LL NEED: Pencil, screw-driver, ¼” nut driver, level, and a drill with a ⁄... -
Page 4: Step 2 - Brackets & Battery Pack Placement
Step 3 — Installing the Brackets Step 2 — Brackets & Battery Pack Placement Determine Placement of 3" Shades are shipped with the required Brackets and Battery Pack number of brackets for proper installation . End brackets should be located approx- Make sure that the battery wire will be imately 3"... -
Page 5: Step 4 - Installing The Battery Pack
Step 4 — Installing Battery Pack Step 5 — Installing the Top Rail BATTERY PACK CLIPS Battery Pack - Attach the battery pack Start with the top rail/fabric assembly . clips in the desired location, with the The top rail is the rail with the motor in screws provided . -
Page 6: Step 6 - Installing The Bottom Rail
Step 6 — Installing the Bottom Rail Step 7 — Installing the Tracks Select the desired channel with the CHANNEL Place the track against the front of the "Channel" key . The channel indicator INDICATOR top and bottom rails . Attach the track CHANNEL light will illuminate the channel that is LIGHTS... -
Page 7: Step 8 - Operating The Shade
Step 8 — Operating the Shade Step 9 — Adjusting the Limits Set the Limits on Primary Remote 1 . Select the desired channel with the The lower and upper limits have Channel Indicator "Channel" key . The channel indicator been set at the factory . - Page 8 Step 9 — Adjusting the Limits Step 9 — Adjusting the Limits Setting the Lower Limits Setting the Upper Limits OPERATION RESULT OPERATION RESULT Hold "limit" key for 6 seconds The motor begins to jog Press "Up" key on the remote transmitter The motor will go up continuously Release the key after 2 jogs The motor is ready for limit setting...
-
Page 9: Step 10 - Leveling The Shade
Troubleshooting Step 10 — Leveling the Shade ADJUSTMENT Level the Moving Rail SCREWS PROBLEM SOLUTION Motorized Skylight Shades use a system The motor does not work and the Carefully pull down on the moving rail that allows easy leveling of the moving rail . enough to allow access . -
Page 10: Removing The Shade
Removing the Shade Optional To remove a shade, insert a flat blade Managing Wires screwdriver between the rail and Use the included cable ties to bundle the bottom back of the bracket (tab any excess wires . which extends out slightly from each bracket) . -
Page 11: Advanced Programming
Advanced Programming Advanced Programming Replace Original Remote or Remove/Link a Shade from One Add Additional Remote Remote/Channel to Another 1 . Remove the shade from the window A. Unlink the motor from the remote (if needed) . Press the "Setting" key on the Note: This step also erases the lower and upper limits. -
Page 12: Care & Cleaning
Care & Cleaning Safety Care & Cleaning Safety First . Style Second To None ™ Occasional light vacuuming with a soft bristle attachment or gentle feather dusting is all Great style should never come at the cost of safety . Every Smith & Noble window treatment that is required to keep your blinds looking fresh and neat. -
Page 13: Warranty
Warranty Service The enjoyment of your window coverings should be everlasting, which is why our products come with a limited lifetime warranty . The warranty applies to the original owner, requires a proof of purchase and covers defects in material or craftsmanship .
