Summary of Contents for Hathaway NG2351

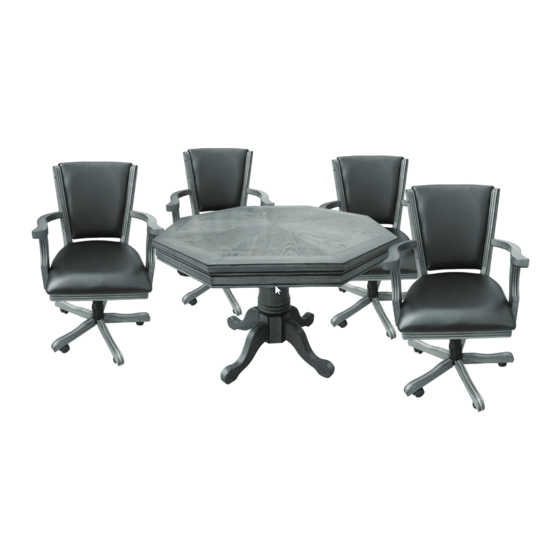

- Page 1 3-IN-1 POKER TABLE ASSEMBLY INSTRUCTIONS NG2351/NG2366...
- Page 2 THANK YOU! Thank you for purchasing this product. We work around the clock and around the globe to ensure that our products maintain the highest possible quality. However, in the rare instance that your product is defective or missing parts, contact your retailer, or call 800-759-0977, to submit parts requests or warranty claims.
- Page 3 PARTS IDENTIFIER (NOT TO SCALE) TABLE...
- Page 4 PARTS IDENTIFIER (NOT TO SCALE) CHAIRS Please see Parts List at end of manual for part number when ordering parts. For replacement parts please call 800-759-0977.
-
Page 5: Assembly Tips
ASSEMBLY TIPS 1. Find a clean, level surface to begin the assembly of your game table. The table will be par- tially assembled upside down and then turned over onto its legs. This is a heavy game and turning it over will require at least two strong adults. 2. - Page 6 ASSEMBLY INSTRUCTIONS TABLE 1. Attach PLATE #4 to PEDESTAL #3 with NUT #10 and FLAT WASHER #8. 2. Attach assembled PEDESTAL to the bottom of the TABLE BODY #1 with BOLT #7 and FLAT WASHER #8. 3. Attach LEGS #2 to PEDESTAL with NUT #10 and FLAT WASHER #8. Thread one LEG LEVELER #11 onto each LEG.
- Page 7 ASSEMBLY INSTRUCTIONS CHAIRS 1. Attach SEAT LIFT #18, BASE CAP #19 and LIFT COVER #20 to BASE #17. 2. Attach SEAT ADJUSTER #21 to the bottom of SEAT #16 with BOLT #22, LOCK WASHER #23 and FLAT WASHER #24. Note: The tilt tension dial should face towards the front of the chair. 3.
-
Page 8: Care And Use
CONGRATULATIONS! You have now assembled your Game Table. Please note the Care and Use instructions below to ensure years of trouble free use of your game table. CARE AND USE 1. This product is intended for INDOOR use only. 2. Do NOT sit or climb on the table. 3. -
Page 9: Year Limited Warranty
1-YEAR LIMITED WARRANTY This product is warranted to the original purchaser to be free from defects in material or workmanship for a period of one year from the date of the original retail purchase. This warranty does not cover defects or damage due to improper installation, alteration, accident or any other event beyond the control of the manufacturer. - Page 10 3-IN-1 DARK OAK POKER TABLE - NG2351T Parts List PARTS NGP2302 NGP2300 NGP2301 NGP2303 NGP2304 NGP2331 NGP2331 NGP2331 NGP2331 NGP2331 NGP2319 NGP2321 NGP2320 NGP5077 NGP5073 HARDWARE PACK - NGP2331 includes parts 6, 7, 8, 9 & 10 * Replacement bumpers available as NGP2322 for red, and NG2323 for white 5/13...
- Page 11 3-IN-1 DARK OAK CHAIRS - NG2351C Parts List PARTS NGP2324 NGP2344 NGP2329 NGP2324 NGP2324 NGP2327 NGP2345 NGP2345 NGP2345 HARDWARE PACK - NGP2345 includes parts 22, 23 & 24 * Parts 18, 19 and 20 sold as set 5/13...
- Page 12 3-IN-1 WALNUT POKER TABLE - NG2366T Parts List PARTS NGP2309 NGP2307 NGP2308 NGP2310 NGP2311 NGP2331 NGP2331 NGP2331 NGP2331 NGP2331 NGP2319 NGP2321 NGP2320 NGP5077 NGP5073 HARDWARE PACK - NGP2331 includes parts 6, 7, 8, 9 & 10 * Replacement bumpers available as NGP2322 for red, and NG2323 for white 5/13...
- Page 13 3-IN-1 WALNUT CHAIRS - NG2366C Parts List PARTS NGP2324 NGP2346 NGP2342 NGP2324 NGP2324 NGP2327 NGP2345 NGP2345 NGP2345 HARDWARE PACK - NGP2345 includes parts 22, 23 & 24 * Parts 18, 19 and 20 sold as set 5/13...
