A19 User Manual
Please read the instruction manual before using, in order to install SIM card
properly and use the product easily.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A19 and is the answer not in the manual?

Questions and answers

Summary of Contents for i365-Tech A19

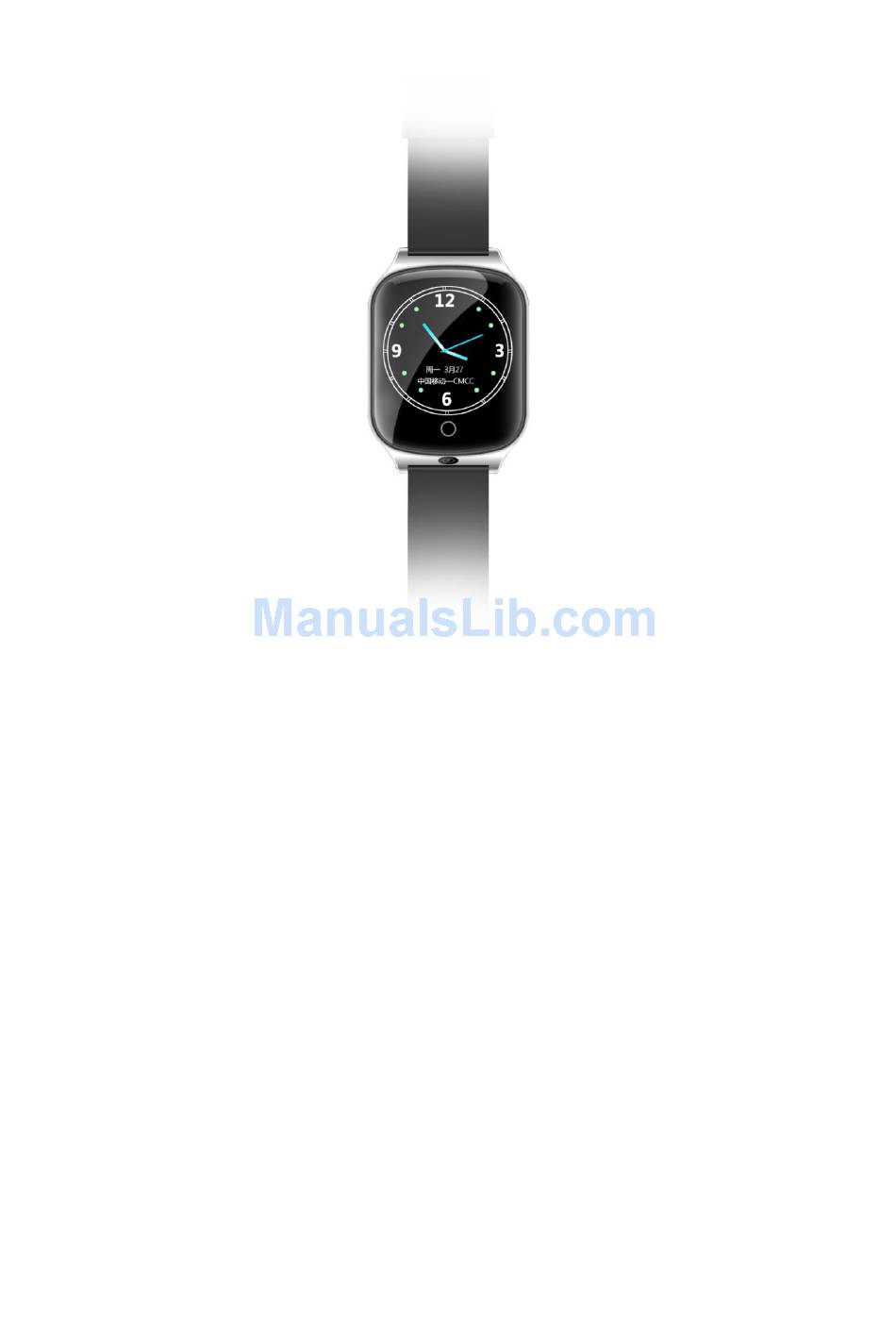

  • Page 1 A19 User Manual Please read the instruction manual before using, in order to install SIM card properly and use the product easily.

  • Page 2: How To Use

    1. How to use 1. before using: please check the ID number of this product in the label of external box; find out all accessories inside the box. 2. Before power on: please insert GSM network SIM card or WCDMA network SIM card, GSM mode can supports one of the network modes: GSM 850,900,1800,1900MHZ;...

  • Page 3: Equipment Parameters

    Chip up insert the mobile phone card Insert the SIM card into the card slot 3. Equipment parameters Positioning: GPS satellite positioning+ BeiDou positioning+ AGPS auxiliary positioning+ WIFI positioning+ LBS base station positioning...

  • Page 4: Product Function

    Positioning accuracy : GPS+BeiDou location 5-20m; WIFI location 20-100m; LBS Base station location: 100-1000m. Device size ：53X41X15mm Whole machine weight：40G Battery capacity：550mAh Standby time：1-2 days Platform monitoring ： Support android, apple mobile phone system, computer network clients, etc. Universal : support four frequency GSM network and WCDMA network, languages and time zone setting, built in global network parameters 4.

  • Page 5: Function Declaration

    9.Health steps counting 10.Making friends 11.Watch settings 12.Other settings and functions 5. Function declaration 5.1 Real time tracking There are three kinds of working mode. User can select setting in the phone APP software function to choose the working mode. 1.
  • Page 6 （2）Phonebook：Click APP setting—Phonebook—Setting name, phone numbers （Maximum 5 contact numbers can be set in the phonebook；After setting up phonebook, can choose one contact in phonebook to initiate a call through phone Icon button of watch home screen）. （3）SOS emergency call If you have set up the family number (Maximum two), long press power/ SOS button, watch will dial the family number, if the first number answers;...

  • Page 7: Voice Monitoring

    5.5 Voice monitoring APP settings —voice monitoring — fill in the monitor mobile phone number —click ok(wait for a while and then the equipment will call to your mobile phone number; you can listen to the voice around locator after pick up your mobile phone). 5.6 Do not disturb mode APP settings—do not disturb mode—set up do not disturb timing(Maximum four groups timing) within the time interval, unable to call the locating watch.
  • Page 8 5.9 Wechat intercom (voice message talking) Intercom between gps watch and app for voice conversations: 1- Send voice message from APP to GPS watch: APP voice — hold to talk — release to send 2- Send voice message from GPS watch to APP: click watch main interface, click the voice icon —...

  • Page 9: Watch Settings

    5.12 Watch settings (1) Wireless and network: WLAN: open WLAN--search for WiFi hotspots-- enter the password. Bluetooth: after turning on the Bluetooth, can transmit data such as photographs by using Bluetooth. (2) Equipment: display, storage, batteries, and applications. (3) Personal: security, languages and input methods, and backing up and resetting (4) System: Date and Time, about cell phones, and other relevance, shutdown, reboot.
  • Page 10 APP for Android system APP for IOS system For PC：http://en.i365gps.com/ 6.3 For Android, You can download the app from "Google play" by searching "AIBEILE" For IPhone, You can download the app from "app store" by searching "AIBEILE" Note: during the APP installation process, it will ask you whether to trust this program, or whether to allow access to mobile phone location, please choose trust or allow.
  • Page 11 Login Real time tracking...
  • Page 12 Health Step Counting Clock alarm settings Geo-fence Historical route query...
  • Page 13 Pictures preview more functions Setting interface 7. Setup APN for access of network SIM card in some countries needs to setup APN before access to GPRS network, please contact your SIM card operator or check the website of the SIM card for the APN information.

  • Page 14: Chapter 1 Troubles & Shooting

    Setup APN pw,123456,APN,A If your APN name=wap.tmobil.cl, APN:wap.tmobil.cl;user :wap;passwork:wap;us user name=wap, password=wap, name,user name, erdata:73002. MCC=730, MNC=02, password,MCCMN then you can send this SMS to your GPS Locator: pw,123456,apn,wap.tmobil.cl,wap ,wap,73002# Remarks: Use your mobile phone, send above SMS command to the GPS tracker SIM card. After you send the SMS command, please check if you get a set up success replied SMS from GPS locator.

  • Page 15: Chapter 2 Main Sms Command Summary Sheet

    Troubles Shootings Device is not enabled on app Please check if： 1. SIM card is not enabled 2. APN is not setup 3. Can make a call to the GPS tracker 4. Send SMS to the GPS tracker:pw,123456,ts# Device is offline on APP Please check if：...
  • Page 16 SMS from mobile feedback ( SMS phone to GPS returns from GPS locator ) locator to your mobile phone) Setup center number pw,123456,center,xxxx pw,123456,center,136 Central number： xxxxxxx# 40927062# 13640927062. setup success! Setup APN pw,123456,apn,apn pw,123456,apn,wap.t APN:wap.tmobil.cl;user name,user name,pass mobil.cl,wap,wap,730 :wap;passwork:wap;us word,MCCMNC# erdata:73002.
  • Page 17 ID:7893267577; imei:000078932675770 ip:121.37.43.203; port:8711; center:1252013640927 062; upload:300S; workmode:2; bat level:3; language:1; zone:8.00; GPS:NO(0); GPRS:OK(90); LED:ON; pw:123456; Reset the device pw,123456,reset# pw,123456,reset# The device will reset Restore factory pw,123456,factory# pw,123456,factory# The device will reset settings Setup ip and port pw,123456,ip,x.x.x.x,y pw,123456,ip,112.95. port setup 164.119,7755#...
  • Page 18 Setup language and pw,123456,lz,x,y# pw,123456,lz,0,8# lz,x,y# x=0&1 stands time zone for language ， 1 for Chinese，0 for English， y for time zone Personal information security •Please install and use this product correctly. In order to guarantee safety use the products, please ensure that your product is not bound by people without permission.
  • Page 19 • This product function realizes depends on the GPS network, GSM (GPRS) network system and WCDMA network system, GIS (geographic information) system and computer system, etc. This product needs to install the phone card, and open the Internet function. This product working must with good network flow, due to network failure or other force majeure causes any losses and service disruption, company does not undertake any responsibility.
