Thank you for your purchase of The HawksHead TRACK MASTER TPMS
System
With ease of installation and a compact data monitor with clear LCD display and
built in rechargeable lithium battery, The Track Master monitor has an automatic
backlight for both day and night use. The monitor can handle up to 5 wheels by
the addition of an extra sensor (purchased separately) beyond our 4 wheel base
system for monitoring a spare tire. Designed for pressures from 16 to 50psi and
temps up to 199 F
High and low pressure warnings along with high temperature warnings can be
set by the user. The monitor gives both visible and audible alerts for High
pressure, Low Pressure, Rapid pressure drop and high temperature. Pressure
and Temperature units can be displayed in PSI, Bar and Temperature in degrees
F & C..

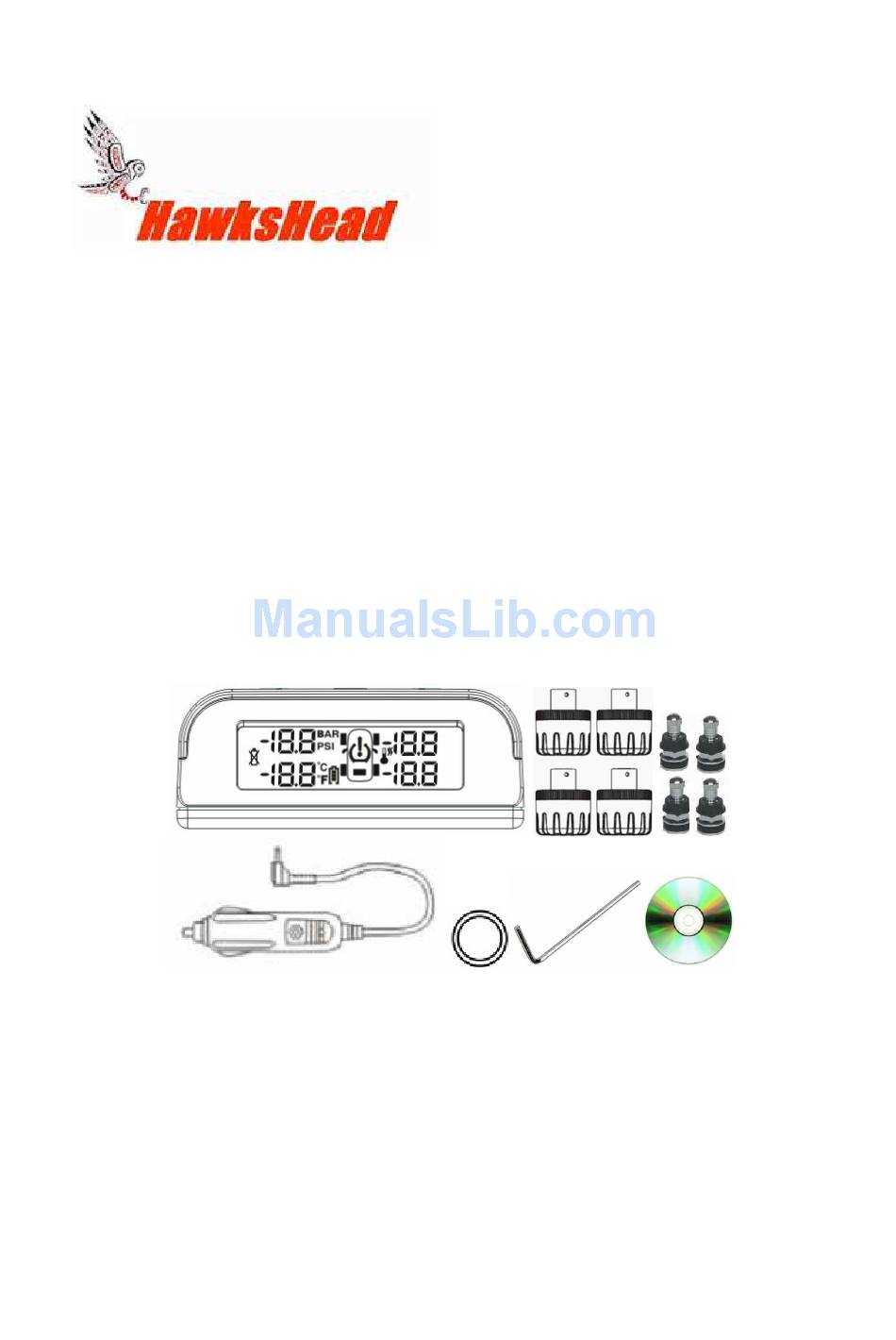

System Components
Sensors Feature
Replaceable CR1632
batteries, Simply fits to valve stem, Water and dirt
resistant, Unique codes.
Monitor Features
Super compact screen, Automatic sleep mode, rechargeable power pack, Auto
backlight

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRACK MASTER and is the answer not in the manual?

Questions and answers

Summary of Contents for HawksHead TRACK MASTER

  • Page 1 With ease of installation and a compact data monitor with clear LCD display and built in rechargeable lithium battery, The Track Master monitor has an automatic backlight for both day and night use. The monitor can handle up to 5 wheels by the addition of an extra sensor (purchased separately) beyond our 4 wheel base system for monitoring a spare tire.
  • Page 2 MONITOR BUTTONS & DISPLAY...

  • Page 3: Operation & Set Up

    OPERATION & SET UP Charge the monitor for 6 hours using the charger. Turning the monitor on or off can be achieved by holding down the LEFT BUTTON for 5 seconds. The monitor can be mounted in view of the driver by using the two sided tape supplied.

  • Page 4: Right Button

    After the High alarm has been set Press the SET BUTTON again to enter the Low Pressure setting mode. It will Beep and flash the Low Pressure alarm setting. This can be increased or decreased by pressing the LEFT or RIGHT BUTTON After the Low alarm has been set Press the SET BUTTON again to enter the Hi...
  • Page 5 area after installation to ensure there are no air leaks. Most wheels do not need to be rebalanced after sensor installation. Secure the sensors with their locking screw if desired. We have already set up the codes for the 4 sensors provided each sensor...
  • Page 6 Data Display 1 Updated data is sent to the display after the sensors detect the motion of the wheel. HIGH PRESSURE/LOW PRESSURE?HIGH TEMPERATURE ALERT If a reading is outside of the users set parameters an audible alarm will sound and the red LED will flash on the monitor. The alarm can be silenced by pressing any button on the monitor.
  • Page 7 High Temperature alert Front Left Wheel Monitor Low Battery When the Monitor detects a low Monitor battery level the low battery icon will come on, however the low battery icon will remain until the monitor is recharged Sensor Low Battery When the Monitor detects a low Sensor battery level the low sensor battery icon will come on and the location of the sensor will flash.
  • Page 8 Data Display 2 The monitor will continually display the pressure settings for all tires and will switch screens if an extra 5th sensor is installed. By Pressing the SET button the Monitor will show the temperatures of each tire as below for 5 seconds then switch back to pressure. The high temp alarm will show if a tire reaches 70 degrees C...

  • Page 9: Limited Warranty

    If air bubbles are visualized in any of these areas, the tire may deflate and the Track Master, system will not operate correctly. The wheel sensors are weatherproof and can be run in the rain.
  • Page 10 PLEASE NOTE: SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG IMPLIED WARRANTIES MAY LAST OR DO NOT ALLOW EXCLUSIONS OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THOSE EXCLUSIONS OR LIMITATIONS MAY NOT BE APPLICABLE TO YOU. © HawksHead Systems Inc NOTES...
