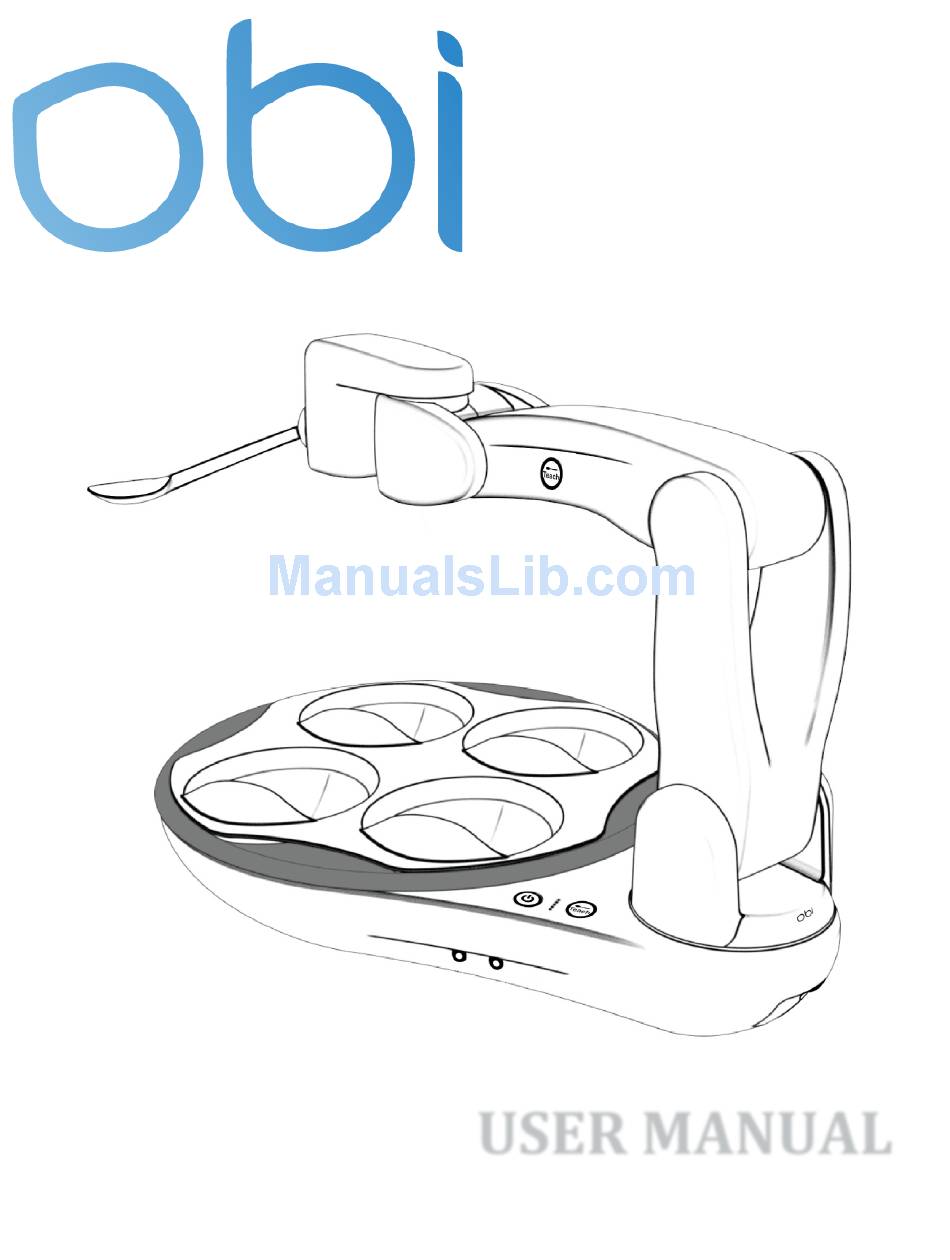

USER MANUAL
Global Identifier (GTIN): 0869174000106
Manual Revision: 2.2
Date(MM-DD-YY): 01-04-18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Obi and is the answer not in the manual?

Questions and answers

Summary of Contents for DESIN Obi

  • Page 1 ® USER MANUAL Global Identifier (GTIN): 0869174000106 Manual Revision: 2.2 Date(MM-DD-YY): 01-04-18...

  • Page 2: Copyright Notice

    DISCLAIMER The content of this manual is for informational use only, is subject to change without notice, and should not be construed as a commitment by DESīN LLC. Changes are made periodically to the information herein; these changes will be incorporated into new revisions of this publication. DESīN LLC may make improvements and/or changes in the products and/or software programs described in this publication at any time. COPYRIGHT NOTICE ©. DESīN LLC. All rights reserved. This manual is only to be copied or used according to terms of sale. Except as permitted by agreement, no part of this publication may be reproduced, stored in any retrieval system, or transmitted, in any form or by any means, electronic, mechanical, recording, or otherwise, without prior written consent of DESīN LLC. This product uses software/firmware to which the company holds the rights. Address comments to: info@meetobi.com TRADEMARKS ® DESīN LLC. Obi is a registered trademark of 2 o f 4 0...
  • Page 3 NOTES The page is intentionally blank. TABLE OF CONTENTS DISCLAIMER ................................2 3 o f 4 0...

  • Page 4: Table Of Contents

    POWERING OFF ................................ 2 4 CHARGING .................................. 2 5 CLEANING .................................. 2 5 STORING .................................. 2 6 TRANSPORTING & SHIPPING ............................ 2 7 END OF LIFE ................................28 CONTACT INFORMATION ............................30 APPENDIX I: TROUBLE SHOOTING & SERVICING ......................31 APPENDIX II: TECHNICAL SPECIFICATIONS ......................... 32 APPENDIX III: FCC COMPLIANCE STATEMENT ......................32 APPENDIX IV: DECLARATION OF CONFORMITY ......................34 APPENDIX V: LIMITED WARRANTY ..........................35 APPENDIX VI: TERMS AND CONDITIONS ........................35 INTRODUCTION Hello, and welcome to Obi’s User Manual! We are excited for you or your loved one to experience all that Obi has to offer! 4 o f 4 0...
  • Page 5 This document contains information regarding intended use and how to ensure a safe and successful interaction with Obi. This manual contains the essential safety warnings, instructions for interaction with the product, including its disposal, and contact information if needed. Please read this information carefully: more knowledge obtained will increase safety and enjoyment of your Obi dining experience. Always remember to keep this user manual in a convenient location for reference at any time. This document is also available in electronic version at www.meetObi.com. If you would prefer a visual tutorial, the Setup Video is available at www.meetObi.com. Obi is registered and listed with the Food and Drug Administration (FDA). This manual complies with UL1431 and 21CFR801. 5 o f 4 0...

  • Page 6: Important Safeguards

    IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING DANGER: To reduce the risk of electrocution, burns and injury: • Do not use while bathing. • Do not place or store Obi where it can fall or be pulled into a tub or sink. • Do not place Obi in or drop into water, other liquid or snow. Obi is water resistant only (IP21) • Do not reach for Obi if it has fallen into water. Unplug immediately. • Check the Charging Cable for damage before each use. WARNING: To reduce the risk of burns, electrocution, fire, or injury to persons: Relating to the Charging Cable (AC Adapter): • Never operate Obi: if it has damaged cords or plugs; if it is not working properly; if it has been damaged or dropped into water. Return the product to a service center for examination and repair. Please see the “Contact Information” section. • Keep the cords away from heated surfaces. • Do not use the Charging Cable in steamy, damp, or dusty areas. • Do not modify the Charging Cable in any way. • Do not cover the Charging Cable with clothing, blankets or other materials. • Do not touch the Charging Cable with wet hands. • Do not plug this device into a voltage system that is different from the voltage system specified on Obi or the Obi Charging Cable. • Do not place the Charging Cable in the mouth. • Do not use or leave the Charging Cable in direct sunlight.
  • Page 7 Power Partners, PEAMD-72SF-13-1-BT1 • If the Obi Charge Cable does not fit the wall outlet in your region, please contact the distributor for a different power supply or a recommended power adapter. Only use a power adapter recommended by the distributor or DESīN LLC. • Unplug the Charging Cable during lightning storms or when unused for long periods of time. GENERAL: • Close supervision is mandatory when using Obi by, or near children or adults with a disability. Young children, because of the size of their fingers, are at greater risk for pinching by the Arm. • Use Obi only for its intended use as described in this manual. Use only attachments recommended by the manufacturer. • Never use while sleeping or drowsy. • Prior to first time use, please charge the device for approximately half an hour. • Never drop or insert any object into any opening. • Do not use outdoors. • Do not use where aerosol (spray) products are being used or where oxygen is being administered. • Unplug Obi before filling with foods or liquids. • Remove and fill the Plate’s bowls with food and beverages only, unless otherwise specified by manufacturer. • Do not place any component of Obi in an oven. • Only service Obi with an authorized service representative. • Do not attempt to disassemble Obi. • Do not remove any labeling from Obi.

  • Page 8: Cleaning 2

    • CHOKING HAZARD – small parts. Not for children under 3 years. Use with adult supervision only. MICROWAVE HEATING: • Do NOT microwave any other portion of Obi other than the Plate. • When heating food, do NOT use a power setting greater than 600Watts. • If any food in contact with the Plate reaches a temperature of 150°C (300°F) or greater, damage to the Plate is possible (blistering, discoloration, etc). • Microwave at your own risk of damage to the Plate. CAUTION: • Obi is not intended to diagnose, treat or monitor any medical condition. • Obi is not a measuring device or a sterile device. • Do not use Obi as a method of administering medication. • Do not push, pull or force the Arm to move while Obi is powered on. • Do not operate or store Obi in extreme environments. Obi is for operation and storage at normal room temperature and humidity. • Do not place Obi on a wet surface. • Do not place, store or operate Obi on an inclined surface. • Do not carry Obi by the Arm. • Do not place anything on the Arm. This may damage the Arm. • Do not crack or damage the housing of Obi. If the housing of Obi is cracked or damaged, do not operate the device and contact the manufacturer immediately. • Do not place any part of Obi, other than the Plate, Placemat, and Spoons, in the dishwasher. • Do not use solvents on Obi (example: turpentine, mineral spirits, gasoline, petroleum distillates, etc.). See Operating Instructions for proper cleaning.
  • Page 9 • Only use Obi with a caregiver’s supervision. • Do not place containers of liquid or any other item within 12 inches of the device to prevent any collisions with the Arm while it is operating. • Wash the Obi Spoon, Plate, and Placemat before their first use and after each subsequent use. • In order to maximize Obi’s lifespan, avoid using continuously for periods longer than one hour. • Charge Obi before first use. • The product label with the serial number is located on the bottom (sitting surface) of Obi. See “Technical Specifications” for more information. • Do NOT use Obi at room temperatures less than 13°C or greater than 30°C (55-85°F). • Do not intentionally deform or misshape the Spoons. • Obi is a precisely calibrated device and custom packaging solutions for shipping may not adequately protect Obi from functional damage. 9 o f 4 0...
  • Page 10 ELECTROMAGNETIC ENERGY (EM): • Be aware that adding accessories or components, close to Obi’s base, may make it more susceptible to electromagnetic interference (EMI) (There is no easy way to evaluate their effect on the overall immunity of the power wheelchair and/or your Obi). • Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming close to them. • Report all incidents of unintended shut down to DESīN LLC or a local distributor, and note whether there is a source of EM nearby. SAVE THESE INSTRUCTIONS 1 0 o f 4 0...

  • Page 11: Symbols

    REGARDING THE LITHIUM ION BATTERY For Customers in the U.S.A. and Europe: THIS PRODUCT CONTAINS A 48Wh LITHIUM ION BATTERY. DISPOSE OF LITHIUM ION BATTERIES PROPERLY. Do not attempt to disassemble Obi and remove or replace the battery pack. Contact a local recycler, waste treatment facility, the distributor or DESīN LLC for further information on proper disposal. Please see the “Contact Information” section. WARNING: • The battery pack used in this device may present a fire or chemical burn hazard if mishandled. • Do not dispose of batteries in a fire or trash incinerator. • Use of a different battery may present a risk of fire or explosion. • Do not disassemble, puncture, modify, drop, throw, or provide unnecessary stress to batteries. • The battery pack used in this device can be recycled and a local waste treatment center may accept it. • Dispose of batteries according to local laws and regulations in your region. • Some regions prohibit the disposal of lithium ion batteries in household and business trash. • If you are not able to identify the applicable rules or waste treatment centers in your area, please contact a distributor or DESīN LLC. • Special shipping requirements for lithium ion batteries may apply. CAUTION: • Charge the battery at least once a year for infrequent use. • Ensure the battery has at least a 40% nominal charge (2 solid LEDs) prior to storing for prolonged periods. This will help prevent a dead battery and increase battery life. SYMBOLS The following is a list of symbols that appear on the product, its packaging or labeling: 1 1 o f 4 0...
  • Page 12 CAUTION: Risk of Electric Shock. Use as Instructed. Underwriter’s Labs evaluated this product. It complies with the standards for safety specified in UL1431: Personal Healthcare & Hygiene Appliances. The letters "CE" are the abbreviation of French phrase "Conformité Européene", It signifies that the device complies with meaning, "European Conformity". applicable directives of the European Union, including the medical device directive as a class I, non-sterile, non-measuring device. For users in the European Union: This symbol indicates that the product is not to be disposed of with your household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar electrical and electronic equipment (EEE). Improper handling of this type of waste could have a negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your distributor, local city office, waste authority, approved WEEE scheme, or your household waste disposal service. This device complies with the European Restriction of Hazardous Substances Directive (2011/65/EU). This part is safe for food contact (Plate, Placemat, & Spoons) and complies with the European Food Contact Directive (EC/1935/2004) Microwave safe: In the presence of microwave radiation, the Plate alone will not heat to an unsafe handling temperature, warp, melt, or damage the microwave oven. This part complies with NEN EN15284 2007. Dishwasher safe: Within a dishwasher top rack environment, the part alone will not heat to an unsafe handling temperature, warp, melt, or damage the dishwasher. 1 2 o f 4 0...

  • Page 13: Package Contents

    This part is safe to store in the refrigerator and freezer (Plate). Please recycle this part at the end of its life (Plate, Placemat, & Spoons). This part is BPA free (Plate, Placemat, & Spoons). Please do not get the package wet. Please store the package with this side up. Please handle this package with care, fragile contents are enclosed. This symbol indicates the medical device manufacturer. PACKAGE CONTENTS This package includes the following contents: • Obi • Plate • Placemat • Spoon – Large (LG) • Spoon – Small (SM) • 2X Accessibility Switches • Charging Cable / Power Supply • User Manual 1 3 o f 4 0...
  • Page 14 • Quick Start Guide • Welcome Sheet PLEASE SAVE OBI’S ORIGINAL PACKAGING MATERIALS IN CASE SHIPPING IS NECESSARY! Obi is a precisely calibrated device and custom packaging solutions may not adequately protect Obi from functional damage. 1 4 o f 4 0...

  • Page 15: Intended Users

    INTENDED USERS Obi accommodates a spectrum of people who have difficulty feeding themselves. Please ensure potential users possess the ability to safely, and successfully, operate Obi as well as the ability to chew and swallow without assistance. The following describes the intended users: Users may have the follow medical conditions: • Amyotrophic Lateral Sclerosis (ALS) • Amputees • Arthrogryposis Multiplex Congenital (AMC) • Cerebral Palsy • Essential Tremor • Muscular Dystrophy • Multiple Sclerosis • Parkinson’s Disease • Spinal cord injury • Other conditions impairing upper extremity motor control Intended User Population: • Male or Female • 5 years and older • Cognitive capability to operate a simple machine • Ability to make decisions about food selection and consumption • Ability to chew and swallow 1 5 o f 4 0...

  • Page 16: Intended Use

    INTENDED USE Specification of Intended Use: 1. For those living with disability or disease affecting their upper extremities, Obi is intended to increase the diner’s independence and confidence by providing choice among four compartments of food and when food is delivered to a region in front of their mouth. Obi is designed for intermittent use of up to one hour per meal. 2. For people with upper extremity impairment, this device automates the motion of a human arm during eating. Through use of a robotic arm, the device becomes an extension of the user, conducting his or her intent of what and when to eat. 3. Use of this device involves both an end user (user) and a caregiver. a. The caregiver positions the device for optimal use, determines the appropriate Accessibility Switches, powers on the device, teaches the appropriate food delivery location, cleans and stores the device. b. The user operates the Accessibility Switches to command food delivery and choose among the bowls. Note1: Obi does not diagnose, treat or monitor a medical condition. This Class I device is to help individuals compensate for an injury or disability only. Intended Conditions of Use: 1. Environments: a. Assisted Living Centers b. Homes c. Hospices d. Hospitals e. Nursing homes f. Rehabilitation centers g. Restaurants 2. Locations: a.
  • Page 17 5. Hygienic Requirements: a. Clean the Plate, Placemat and Spoons with dish soap and water or in a dishwasher (using a detergent) before the first use, and after each subsequent use. 6. Frequency of Use: a. Obi is for intermittent use; to be operated continuously for an hour interval or less. b. Between each meal, at least a one hour power off break is good practice. Significant power off breaks help maximize the life of Obi. 7. Contraindications: Any diner with one or more following attributes should NOT eat with Obi: a. Dysphagia, unless Obi is indicated by an experienced physician or therapist and considered safe. b. Serious problems with chewing. In this case, Obi can be used if the food is prepared to an appropriate consistency. c. Unable to operate any Accessibility Switch such as a Sip and Puff or Buddy Button. d. Users can not maintain a sufficiently upright position. e. Insufficient head control to receive and swallow food offered by Obi. f. Correct use of the device cannot be understood. g. Open mouth sores (e.g. cuts, ulcers, bleeding, recent oral surgery) h. Injured skin on an area of the body used to activate accessibility switches or that makes contact with Obi. 1 7 o f 4 0...

  • Page 18: Product Description

    PRODUCT DESCRIPTION Obi is a machine intended for individuals who cannot feed themselves. Obi’s functionality mimics a human arm during eating. At least one off-the-shelf Accessibility Switch is required to eat with Obi. There are various types and styles of Accessibility Switches for purchase through DESīN LLC and other vendors. Obi easily accommodates these, allowing the user to: • Select what food to eat (Choose Switch). • Select when to eat (Deliver Switch). The following image illustrates Obi’s main parts and features: 1 8 o f 4 0...

  • Page 19: Operating Instructions

    OPERATING INSTRUCTIONS Prior to first time use, please charge the device for approximately half an hour. Please refer to the Quick Start Guide for general operating instructions and added visuals. If needed, download an electronic copy of the Quick Start Guide at www.meetObi.com FOOD PREPARATION If prepared to an appropriate size, nearly any food works with Obi. Optimally, ¼” by ¼” (6mm X 6mm) or about the size of a pea works best. However, up to ¾” by ¾” (9mm X 9mm) or about the size of a raspberry should also work. For an optimal experience, always fill the Bowls up to the Max Fill Line. Note1: Filling beyond the Max Fill Line makes capturing and delivering food more difficult for Obi and may cause spillage upon capture and delivery. Note2: The Plate (with or without food) may be safely stored in the refrigerator or freezer. MICROWAVE HEATING: The Plate is the only Obi component deemed “microwave safe”. When the Plate alone is in presence of microwave radiation, it will not heat to an unsafe handling temperature, warp, melt or damage the microwave oven. When heating food in the Plate, use a low power setting (≤600Watts). Microwave in short intervals (~ 1 minute), stirring frequently between each interval to avoid hot spots. Plate damage is possible when food in contact with the Plate reaches temperatures above 150°C (300°F). To maximize Plate life, warm or cook food in other glass or ceramic cookware made specifically for use in a microwave oven. 1 9 o f 4 0...

  • Page 20: Set Up

    SET UP Place Obi on a stationary, flat and dry surface. Ensure there are no dinner glasses or other objects within twelve inches of any part of Obi’s Base. Next, ensure Obi is seated at a location and orientation accommodating the user’s mouth (See teach space image, page 22). This may take trial and error before achieving a desirable configuration. Once positioned properly, gently move the Arm to the right of the bowl compartments as shown below. Then, insert chosen Accessibility Switches into the Deliver Port and/or Choose Port of Obi. 2 0 o f 4 0...

  • Page 21: Powering

    Obi also operates with a single Accessibility Switch installed. Simply insert the switch into either the Deliver or Choose Port. Regardless of the port, Obi will operate like a Delivery Switch. Next, insert the Placemat then Plate, ensuring the keyed slots align. When the Placemat and Plate align incorrectly, they are NOT stationary and do NOT function properly. Note1: Obi’s Switch Ports are 3.5mm barrel jack (headphone jack) connectors. Nearly any Accessibility Switch with this connector can work with Obi. To ensure compatibility, purchase through our website, www.meetObi.com. Note2: Velcro tape may be helpful to secure adaptive switches in place i.e. headrest, floor, tabletop, armrests etc. Note3: Wheelchair specific table and tray attachments may be available to use with Obi. Please contact your wheelchair manufacturer to see if such an accessory is available. POWERING ON Ensure the Arm is positioned similarly to the previous image in the “Setup” section, and gently touch the Power Button. The button will illuminate a continuous white and Obi will wake to greet you. Obi’s Arm will then position itself above the first bowl. Note1: If the Teach Button flashes after pressing the Power Button, the Arm must be moved. Please ensure the Arm is located in a similar area and orientation to the previous image in the “Set Up” section. Note2: If the Power Button double flashes for a few moments, and the Arm does not move, the device is likely too cold or too warm. Please allow the device to sit at room temperature for up to a half hour before powering on again. 2 1 o f 4 0...

  • Page 22: Teach Mode

    TEACH MODE Teach Mode quickly tailors a food delivery location for each user. To enter Teach Mode, gently touch the Teach Button on the Base. When the button activates, it illuminates a continuous white. Grasp the Arm, with a finger touching the Teach Icon. Ideally, the thumb should cover the Teach Icon and the fingers should wrap around the Arm, as shown below. While continuing to make contact with the Teach Icon, lift the Arm as shown in the images below. When the Teach Icon is covered, the Arm will be free for the Caregiver to move. The last two sections of the Arm will remain engaged and will keep the Spoon level when moving within the teach space. If resistance to movement is present, the thumb is probably not completely covering the Teach Icon. DO NOT FORCE the Arm to move as this may cause motor damage. After achieving a desired location, release the Arm. Obi will immediately hold position. If another change in position is necessary, simply grasp the Arm, with your thumb or finger covering the Teach Icon, and move as previously instructed. Repeat as many times as needed. Once satisfied with the food delivery location, press the illuminated Teach Button on Obi’s Base to store the position to Obi’s memory. Obi will remember the taught position until re- taught (irrespective of how many times powered on and off). If the Teach Button is flashing, the current position is invalid (see notes below) and cannot be stored. Note1: Not all physical positions are valid for teaching a point of delivery. An approximate recommended teach space (for the tip of the Spoon) is illustrated grey in the aerial view below. If the Arm has been moved outside the illustrated teach space, the Teach Button on the Base will begin to flash and Obi will shake / rotate his head side to side. These signal: “please relocate the Arm”. 2 2 o f 4 0...

  • Page 23: Delivery Command

    Note2: If left unsupported in an extended invalid position, the Arm will fall and the Teach Button will continue to flash. When this occurs, promptly re-teach the Arm as previously instructed. If left unsupported for several seconds, Obi will power off. If this happens, simply move the Arm to the right of the Plate as shown in the “Set Up” section and power on Obi again. Note3: A continuously illuminated Teach Button with the head shaking / rotating side to side means, “the Arm is being handled incorrectly”. A user is pulling or pushing the Arm without touching the Teach Icon. Note4: During Teach Mode, the Arm should move easily. First, please ensure a finger is in contact with the Teach Icon. Do NOT force the Arm to move. If there are any issues, please see the “Contact Information” section of this user manual. DELIVERY COMMAND To capture and transport food to the taught location, activate the Deliver Switch: Note1: After activating an Accessibility Switch, Obi will carry out the complete choose or deliver sequence. While the Arm is in motion, interruptions (besides collision) cannot occur. That is, the Accessibility Switches and Teach Button will only operate when the Arm is stationary. However, the user may activate the Power Button at any time to Power Off the device. 2 3 o f 4 0...

  • Page 24: Choose Command

    CHOOSE COMMAND To select a bowl, activate the Choose Switch: RETURN COMMAND After eating from the Spoon, either the Deliver Switch or the Choose Switch can be activated. Press the Deliver Switch to return the Arm to the same Bowl. Press the Choose Switch to return the Arm to a different Bowl. FOOD REMOVAL & REPLACEMENT COMMAND If the diner initiates a Return Command immediately before or after the Spoon arrives at the food delivery location, the Arm will dispense the food back in the proper Bowl. REPOSITION SEQUENCE After several scoops from the same bowl, Obi will automatically use the Spoon to reposition food back to the center of the bowl. ONE SWITCH MODE Obi can operate off of one Accessibility Switch. The installed Accessibility Switch will act like a Deliver Switch. That is, Obi will automate the choosing of bowls (moving one bowl position counterclockwise) every few delivery cycles. SLEEPING After two minutes of inactivity, the Arm will move to the Storage Position to save battery power. In this position, the Arm remains stationary and the power button will stay illuminated. During this time, if the device senses any command, Obi will immediately wake up and continue normal operation. If the half hour elapses without any command, Obi will automatically power off. COLLISION DETECTION If an object interferes with the moving Arm, Obi will stop and slightly back away. During this situation, the Power Button will flash. After the collision occurs, please first remove the obstructing object. When ready, press either switch and Obi will continue the intended path. Note1: If the Spoon collides with an object, it is likely to disconnect from the Arm and fall. This occurs to prevent injury. POWERING OFF To turn off Obi, gently touch the Power Button continuously for one second. Obi will proceed to the Storage Position and turn off. Note1: If the power off command initiates while the Arm is in motion, the Power Button will repeatedly double flash. This signals “command received” and Obi will proceed to the Storage Position and turn off once present movement is finished. 2 4 o f 4 0...

  • Page 25: Charging

    CHARGING Prior to first time use, please charge the device for approximately half an hour. When only one Battery Indicator Light is illuminated and flashing, Obi needs to charge. The single light will begin flashing quickly when Obi only has a few minutes of power left. If Obi does run out of power during operation, the Arm will automatically move to the Storage Position and Obi will power off. To Charge in the US: Connect the Charging Cable to a 120V, 60hz socket and to the Obi Charge Port, located under the device Arm. See the “Product Description” section for a visual. To Charge in the European Union: Connect the Charging Cable to a 230V, 50hz socket and to the Obi Charge Port, located under the device Arm. See the “Product Description” section for a visual. When the illuminated Battery Indicator Light flashes slow, the battery is successfully charging. As the battery charges from empty to full, the five Battery Indicator Lights will proportionately illuminate a continuous white. For example, if three of the five Battery Indicator Lights are illuminated a continuous white, the battery is sixty percent charged. Once all five Battery Indicator Lights are illuminated, and no flashing occurs, Obi has a full charge. Disconnect the Charging Cable from Obi and the wall socket. Note1: Only use the Charging Cable provided with Obi. Note2: If the Obi Charge Cable does not fit the wall outlet in your region, please contact the distributor for a different power supply or a recommended power adapter. Only use an AC power adapter recommended by the distributor or DESīN LLC. Note3: Obi does not need a full charge before disconnecting the Charging Cable; partial charging is acceptable. CLEANING Remove the Plate, Placemat and Spoons for cleaning, as needed. These three components are dishwasher safe, top rack only. They may also be hand washed with dish soap and warm water. To clean the Base and Arm, use a damp cloth or household disinfecting wipe. Other household cleaners or disinfectants may work as well. Please contact your local supplier, distributor or the manufacturer for more information (see the “Contact Information” section). Do not spray the Arm directly with any liquid. Note1: The Base and the Arm of Obi are NOT dishwasher safe. 2 5 o f 4 0...

  • Page 26: Storing

    Note2: To maximize part life, wash the Plate, Placemat, and Spoon with dish soap by hand. Note3: If any fissure, crack or crevice traps food and removal is not achievable, please contact a service representative. Please see the “Contact Information” section. STORING Obi should be stored in a clean, dry location at room temperature. Note1: The Obi package makes a great storage container. 2 6 o f 4 0...

  • Page 27: Transporting & Shipping

    TRANSPORTING & SHIPPING For easy carrying or travel, place the Arm in the Transport Position as shown below (with or without the Spoon, Plate and Placemat). Because of Obi’s curved contours, carrying is convenient in a multitude of positions other than the one pictured above. The Obi package includes a durable handle, making a convenient travel case. When shipping Obi by ground, sea, or air: • Obi should ship in its original packaging box, unless the box has sustained a great deal of damage. • Obi is a precisely calibrated device and custom packaging solutions may not adequately protect Obi from functional damage. • Please notify the shipper that Obi is a fragile, delicate instrument that necessitates handling with care. • Obi encloses a 48Whr lithium ion battery. Special shipping requirements for lithium ion batteries may apply. 2 7 o f 4 0...

  • Page 28: End Of Life

    END OF LIFE Private households - Information on Disposal for Users of WEEE This symbol on the product and / or accompanying documents means that used electrical and electronic equipment (WEEE) should not mix with general household waste. For proper treatment, recovery and recycling, please take this product to designated collection points where it will be accepted free of charge. Alternatively, in some countries, you may be able to return your products to your local retailer upon purchase of an equivalent new product. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with you national legislation. For professional users in the European Union: If you wish to discard electrical and electronic equipment (EEE), please contact your dealer or supplier for further information. Please see the “Contact Information” section. For disposal in countries outside of the European Union: This symbol is only valid in the European Union (EU). If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Please see the “Contact Information” section. EU Waste Electrical and Electronic Equipment (WEEE) Directive: In August of 2005, the European Union (EU) implemented the EU WEEE Directive 2002/96/EC and later the WEEE Recast Directive 2012/19/EU requiring Producers of electronic and electrical equipment (EEE) to manage and finance the collection, reuse, recycling and to appropriately treat WEEE that the Producer places on the EU market after August 13, 2005. The goal of this directive is to minimize the volume of electrical and electronic waste disposal and to encourage re-use and recycling at the end of life. DESīN LLC has met its national obligations to the EU WEEE Directive by registering in those countries to which DESīN LLC is an importer. DESīN LLC has also elected to join WEEE Compliance Schemes in some countries to help manage customer returns at end-of-life. If you have purchased DESīN LLC -branded electrical or electronic products in the EU and are intending to discard these products at the end of their useful life, please do not dispose of them with your other 2 8 o f 4 0...
  • Page 29 household or municipal waste. DESīN LLC has labeled its branded electronic products with the WEEE Symbol to alert our customers that products bearing this label should not be disposed of in a landfill or with municipal or household waste in the EU. Instead, please be aware that DESīN LLC is making a return and collection system available to you, free of transportation and recycling costs, for discarding these products. 2 9 o f 4 0...

  • Page 30: Contact Information

    CONTACT INFORMATION For Users in the United States: Designed and manufactured by: DESīN LLC (pronounced “Design”) 714 E. Monument Ave Dayton, OH 45402 Tel: 1-844-HelpObi (435-7624) E-mail: service@meetobi.com Internet: www.meetobi.com For Users in Europe: European Distribution by: Focal Meditech BV Droogdokkeneiland 19 5026SP Tilburg Netherlands Tel.: +31 (0)13-533 31 03 Fax: +31 (0)13-533 50 04 E-mail: info@focalmeditech.nl Internet: www.focalmeditech.nl This list does not include the contact information for all distributors and suppliers of Obi. 3 0 o f 4 0...

  • Page 31: Appendix I: Trouble Shooting & Servicing

    APPENDIX I: TROUBLE SHOOTING & SERVICING Some potential problems and their solutions are as follows: • Obi occasionally makes slight adjustments to the Arm position. This is normal. Sometimes it is necessary for the device to adjust parameters for optimal performance. Please wait until it stops moving before attempting to send a command. • The power button double flashes when attempting to power on the device, and the arm does not wake up or move. o This means the device is either too cold or too hot. Let it sit at room temperature for a half hour, then try powering on the device again. • During a meal, the Arm moved to the Storage Position and powered off. o The device may have run too low on battery. Check the Battery Indicator Lights. In this case, plug in the Charging Cable and the device will operate as intended. o Obi may have overheated. Please let Obi rest for thirty minutes, then try powering on again. o If the device still does not operate as intended, please contact an Obi authorized service representative (see “Contact Information” section) • The Power Button, Teach Button, Delivery or Choose Switch are unresponsive. o Ensure the accessibility switches have a firm connection. o If the connections are not the problem, reset the device by touching the power button continuously for eight seconds or until all lights shut off. Then press the power on button again. o If the problem persists, please contact an Obi authorized service representative (see “Contact Information” section) • All the LED lights are flashing (see Quick Start Guide). o Power off Obi for ten minutes. Try powering on the device again. o If all the lights continue to flash, please touch the power button continuously for eight seconds or until all the lights shut off. Then press the power on button again. o If all the lights continue to flash, please contact an Obi authorized service representative (see “Contact Information” section)

  • Page 32: Appendix Ii: Technical Specifications

    APPENDIX II: TECHNICAL SPECIFICATIONS 3.5mm male, mono barrel jack (0.138”) Accessibility Switch Connector Most accessibility switches with this type and size of connector will work with Obi. Adhesive - Arm Epoxy (Medical Grade; ISO-10993) Adhesive - Base Silicon adhesive (NSF & FDA compliance) Base Mounting Surface Material Thermoplastic elastomer (Latex & nat. rubber free) Battery Life per Charge 2-5 hours Battery Type Lithium ion (48Wh / 3.2Ah) Degree of Ingress Protection IP21 (IEC60529) Dimensions (Transport Position) 30.5cm X 43.2cm X 15.2cm (12” X 17” X 6”) Dishwasher Safe Components Plate, Placemat, Large Spoon and Small Spoon. Enclosure Material PC/ABS, 94V-0 flame class rating Food Bowl Volume Capacity 4 fl. Oz. / Bowl (up to max fill line) Food Safe Components Plate, Placemat, Large Spoon and Small Spoon. Food Safe Materials Polypropylene (FDA compliant ingredients) GTIN 0869174000106 Lowest Food Delivery Height 5.0cm (2.0”) (below the mounting surface) Maximum Food Delivery Height 38.1cm (15.3”) (above the mounting surface) Maximum Motor Speed 15RPM Medical Device Classification Class I, non-sterile & non-measuring. Microwave Safe Components Plate and Placemat.
  • Page 33 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Modifications made by the user not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3 3 o f 4 0...

  • Page 34: Appendix Iv: Declaration Of Conformity

    APPENDIX IV: DECLARATION OF CONFORMITY 3 4 o f 4 0...

  • Page 35: Appendix V: Limited Warranty

    Placemats, and switches are non-returnable once used. Only manufacturing defects of materials or workmanship are covered when Obi is used properly and maintained in accordance to all included instructions. This warranty is void if Obi is improperly handled, dropped, put in a microwave, or exposed to excessive liquid(s), etc. In addition, any attempt(s) to open or dismantle Obi, including the Arm or Base assembly, will void this warranty. The warranty is limited to the initial purchaser of the Obi. The term of warranty identified above also operates to limit any implied warranties of merchantability or fitness under State law. Some States do not allow limitations on how long an implied warranty lasts, so the above...
  • Page 36 Goods as provided herein. THE WARRANTIES SET FORTH BELOW ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ALL OF WHICH ARE EXPRESSLY DISCLAIMED. NO AFFIRMATION OF DESiN, BY WORDS OR ACTION, OTHER THAN AS SET FORTH IN THIS SECTION, NOR ANY ADDITIONAL WARRANTIES, EXPRESS OR IMPLIED, MADE BY DESīN TO CONSUMER PURCHASERS OF THE GOODS SHALL CONSTITUTE A WARRANTY HEREUNDER. DESīN’s warranty does not apply to any Goods that have been subjected to misuse, mishandling, misapplication,...
  • Page 37 WITHOUT LIMITATION, LOSS OF USE, INCOME OR PROFIT, OR LOSSES SUSTAINED AS THE RESULT OF INJURY (INCLUDING DEATH) TO ANY PERSON OR LOSS OR DAMAGE TO PROPERTY (INCLUDING, WITHOUT LIMITATION, PROPERTY HANDLED OR PROCESSED BY THE USE OF THE GOODS). 10. Safety Information: DESīN has supplied or made available to Customer certain information relating to safety conditions and procedures concerning the Goods, and Customer acknowledges receipt thereof and further acknowledges that it has reviewed and understands same. Customer agrees to abide by all safety procedures and warnings provided by DESīN, and further agrees to use the Goods only in conformity with the instructions provided and the intended use(s) of the Goods. 11. Trademarks: The purchase of Goods from DESīN does not entitle Customer to use, register, or otherwise identify Customer or its business with the name, trademark, service mark or other identity of DESīN or the name Obi or its likeness without express written permission from DESīN. All such marks and goodwill associated with such marks remain the sole and exclusive property of DESīN. 12. Taxes: Unless otherwise specifically provided on the face of any Purchase Order, the price for the Goods purchased does not include sales, use, excise or similar taxes, whether tariffs, duties, special assessments. The amount of any such taxes, tariffs, duties and special assessments applicable to the Goods shall be paid by Customer in the same manner and with the same effect as if originally included in the purchase price. 13. Additional Charges: If substitute or additional Goods, or repair parts, are purchased by Customer from DESīN, the provisions of these Standard Terms of Sale shall be applicable to such purchase, the same as if such substitute or additional Goods or repair parts had been originally purchased hereunder.
  • Page 38 17. Severability: If any provision of these Standard Terms of Sale is deemed invalid or unenforceable by any court of competent jurisdiction or under any statute, regulation, ordinance, executive agreement or other rule of law, such provision shall be deleted or modified, at the election of Customer and DESiN, but only to the extent necessary to comply with such ruling, statute, regulation, ordinance, agreement or rule, and the remaining provisions of these Standard Terms of Sale and the Purchase Order shall remain in full force and effect. 18. Non-Waiver: No change, modification or waiver of any provision of these Standard Terms of Sale shall be valid or binding unless it is accepted in writing, by DESīN. A waiver by either party of any breach or failure to enforce any term or condition of these Standard Terms of Sale shall not in any way affect, limit or waive such party’s right at any time to enforce strict compliance with that or any other term or condition of these Standard Terms of Sale. 19. Binding / Non-Assignment: This contract shall be binding upon and shall inure to the benefit of the successors, and permitted assigns of Customer and DESīN, provided, however, that Customer may not assign any portion of its rights or delegate any portion of its obligations hereunder or under any Purchase Order without in each instance obtaining DESīN’s prior written consent. Any attempted assignment by Customer or assignment by Customer of this contract without DESīN’s prior written consent is void.
  • Page 39 The arbitrators shall have power and authority to award any remedy or judgment that could be awarded by a court of law in the state of Michigan consistent with these Standard Terms of Sale. The award rendered by arbitration shall be final and binding on the parties, and judgment on the award may be entered in any court of competent jurisdiction in the United States. 3 9 o f 4 0...
  • Page 40 ® Designed and manufactured by: 714 East Monument Ave Dayton, OH 45402 1-844-HelpObi service@meetObi.com www.meetObi.com 4 0 o f 4 0...
