Summary of Contents for Homtime C12 Pro

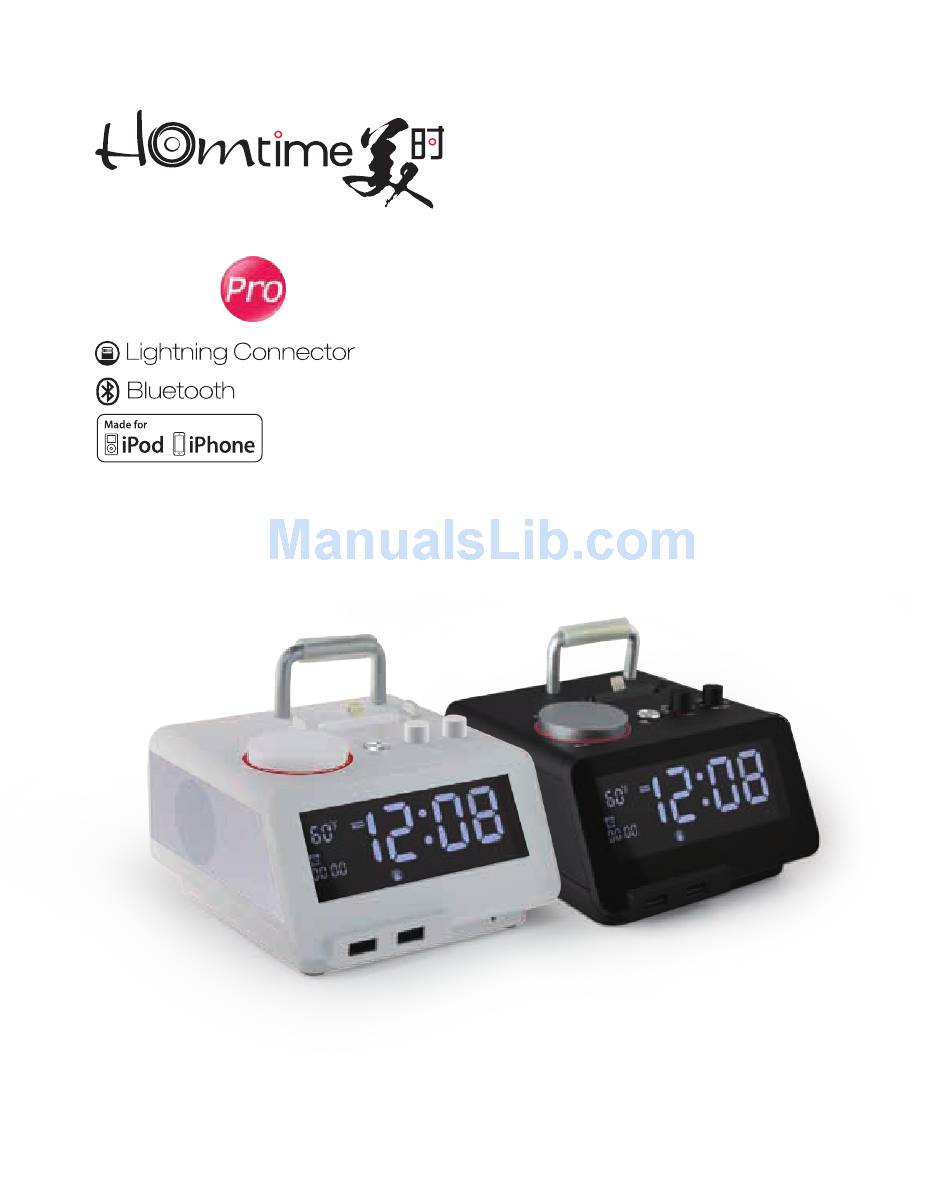

- Page 1 Docking Station Speaker with A l a r m C l o c k a n d F M R a d i o IMPORTANT: For optimal use of this product, please read this manual carefully and keep it handy for future reference.
-
Page 2: Table Of Contents
Table of contents 1. Product Features ………………………………………………1 2. What’ s included …………………………………………………1 3. Specification ……………………………………………………2 4. Diagram of controls ……………………………………………3 5. LCD Screen ……………………… ……………………………5 6. Setting and operation ………………………………………6 7. Playing music …………………………………………………10 8. Hands-free Mode ……………………………………………15 9. FM radio ………………………………………………………16 10. -
Page 3: Product Features
1. Product Features Lightning connector for iPhone/iPod ● Plays music straight from your SD card ● Built-in FM radio ● Plays music wirelessly via Bluetooth ● Hands-free calling via Bluetooth ● Dual USB ports allow simultaneous charging of two devices ●... -
Page 4: Specification
3. Technology Specification Bluetooth Version: V 4.0 classic ● Bluetooth Range: 10 M ● Output Power: RMS 3W+3W ● Speaker: 4Ω 3W 1.5in ● Frequency Response: 70Hz-20KHz ● FM Frequency Range: 87.5-108MHz ● Standby power consumption: ＜0.8W ● Maxium power consumption: 15W ●... -
Page 5: Diagram Of Controls
4. Diagram of the C12pro Controls ① Large Rotary Knob ② Supporting Bracket ③ Alarm Set Button ④ Mode Selector and On/Off Knob ⑤ Small Knob In music mode, press to play/pause. To skip forwards, turn ● clockwise. Turn anticlockwise to skip backwards. To fast- forward, turn and hold clockwise. - Page 6 Time Set Switch Alarm Source Selector Switch Alarm Volume Control ② ⑧ ① ③ ④ ⑤ ⑥ ⑦ Antenna ⑨ ⑩ －4－...
-
Page 7: Lcd Screen
5. LCD Display Snooze function indicator Alarm clock setting indicator Alarm clock time set (24- hour mode only) indicator Celsius/Fahrenheit indicator Temperature reading AM indicator in 12-hour mode PM indicator in 12-hour mode Digital clock-Hour Digital clock-Minute USB port 1 charging indicator Setting up clock time USB port 1 charging indicator iPhone mode indicator... -
Page 8: Setting And Operation
6. Setting and Operation 6.1Backup Battary Install the botton battery in the package into the compart- ment on the bottom of C12pro, as shown in the figure 3020 6.2 Power Plug-in －6－... - Page 9 Once plugged into a wall socket, the C12pro is on standby ● mode. Press ④ to turn the unit on Press and hold ④ to turn the C12 pro off. Once in this mode, ● the LCD will continue to show the time and temperature 6.4 Time Setting...
- Page 10 6.5 Alarm Setting Press ③ to turn the alarm on. The alarm clock icon will light ● up and the digital clock face will start flashing. Rotate ① to set the desired alarm time. This mode will automatically be exited after 10 seconds of inactivity. When the alarm is set, the alarm is automatically programmed to repeat daily.
