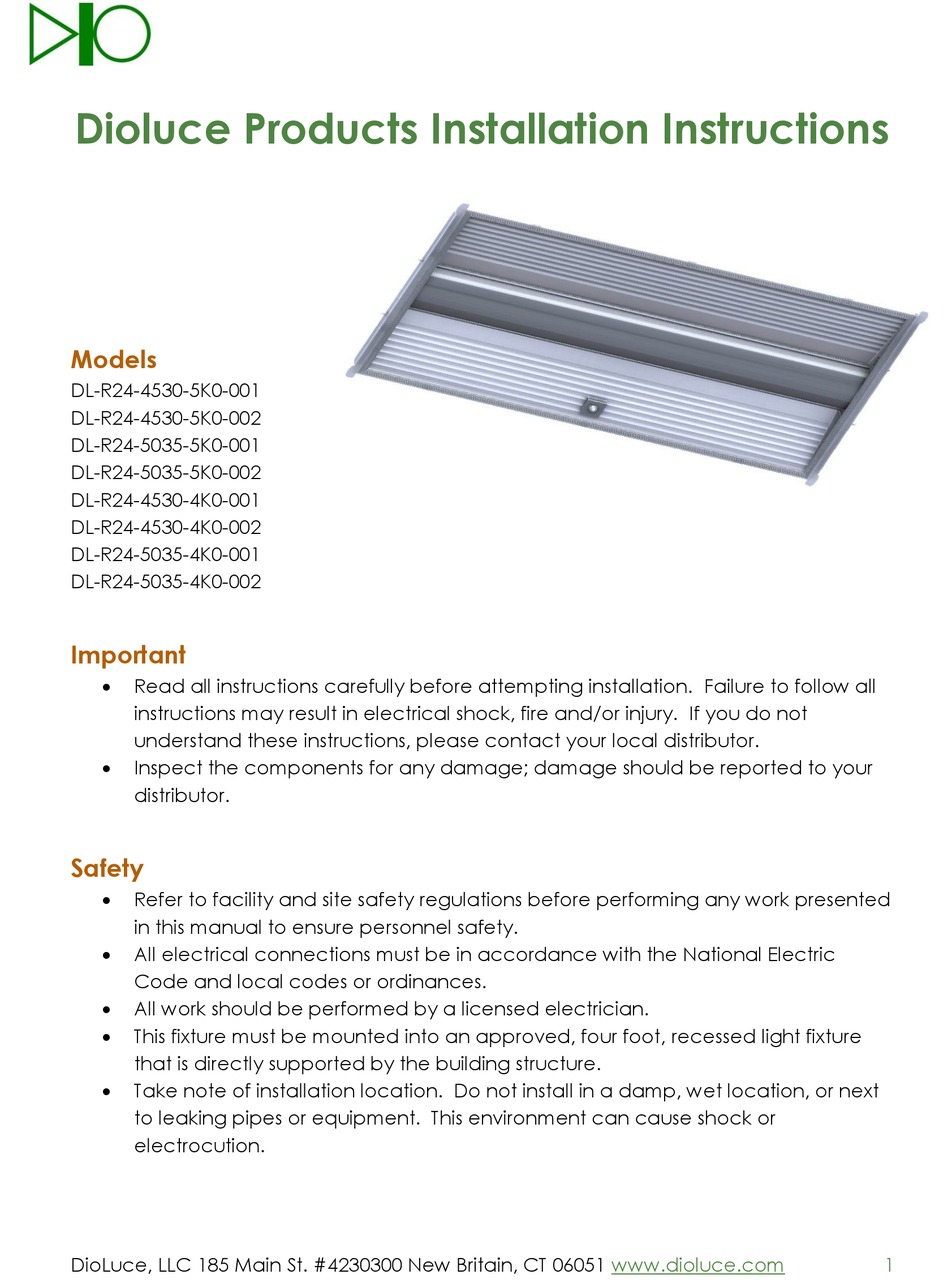

Dioluce Products Installation Instructions
Models
DL-R24-4530-5K0-001
DL-R24-4530-5K0-002
DL-R24-5035-5K0-001
DL-R24-5035-5K0-002
DL-R24-4530-4K0-001
DL-R24-4530-4K0-002
DL-R24-5035-4K0-001
DL-R24-5035-4K0-002
Important
Read all instructions carefully before attempting installation. Failure to follow all
instructions may result in electrical shock, fire and/or injury. If you do not
understand these instructions, please contact your local distributor.
Inspect the components for any damage; damage should be reported to your
distributor.
Safety
Refer to facility and site safety regulations before performing any work presented
in this manual to ensure personnel safety.
All electrical connections must be in accordance with the National Electric
Code and local codes or ordinances.
All work should be performed by a licensed electrician.
This fixture must be mounted into an approved, four foot, recessed light fixture
that is directly supported by the building structure.
Take note of installation location. Do not install in a damp, wet location, or next
to leaking pipes or equipment. This environment can cause shock or
electrocution.
DioLuce, LLC 185 Main St. #4230300 New Britain, CT 06051
www.dioluce.com
1
Advertisement
Summary of Contents for Dioluce DL-R24-4530-5K0-001
- Page 1 Take note of installation location. Do not install in a damp, wet location, or next to leaking pipes or equipment. This environment can cause shock or electrocution. DioLuce, LLC 185 Main St. #4230300 New Britain, CT 06051 www.dioluce.com...
- Page 2 Warnings 1. Do not connect DioLuce LED components to any other manufacturers power supply or LED components. Risk of electrical shock or fire. 2. Verify incoming voltage matches the voltage rating on the power supply, 120 VAC or 277 VAC.
-
Page 3: Electrical Connection Wiring Diagram
Motion Detector 40/20 Motion Detector 35/20 Motion Detector 30/20 High Day Light Day Light Sensor activated, switches to lower power Motion Detector Motion Sensor activated, switches to higher power DioLuce, LLC 185 Main St. #4230300 New Britain, CT 06051 www.dioluce.com... -
Page 4: Installation Instructions
2. Remove all the components of the fluorescent light fixture, including diffuser / cover, lamp, lamp pedestals, wiring, reflector and fluorescent light ballast. All that should remain is the bare 4 foot housing with the incoming power wiring. DioLuce, LLC 185 Main St. #4230300 New Britain, CT 06051 www.dioluce.com... - Page 5 5. Configure the LED power DIP switches for the desired power settings. The DIP switches are located on the DC side of the power supply. Refer to Dip Switch Configuration chart on page 2. DioLuce, LLC 185 Main St. #4230300 New Britain, CT 06051 www.dioluce.com...
- Page 6 6. Mount the DioLuce power supply up into the housing within reach of the incoming power wires using the provided self-drilling and tapping screws. (see warning note 4) 7. Connect the incoming power to the power supply according to the electrical connection wiring diagram.
- Page 7 Important! The CDS Sensor must be connected in order for the circuitry to function properly in conjunction with the Dip Switch Configuration, even though daylight and motion sensor functionality are not required. DioLuce, LLC 185 Main St. #4230300 New Britain, CT 06051 www.dioluce.com...
- Page 8 12. Secure excess wiring and swing the light fixture up into locking position. 13. The assembly is complete. DioLuce, LLC 185 Main St. #4230300 New Britain, CT 06051 www.dioluce.com...
- Page 9 Slide the spatula under the mounting clip and push on it while slightly pulling the fixture down until the clip releases. Repeat on other side and swing the light fixture down. DioLuce, LLC 185 Main St. #4230300 New Britain, CT 06051 www.dioluce.com...
