8" TFT LCD TV with Card Reader

Cat. No.16-3350

User's Guide

Table of Contents

Need help?

Do you have a question about the 16-3350 and is the answer not in the manual?

Questions and answers

Summary of Contents for Axion 16-3350

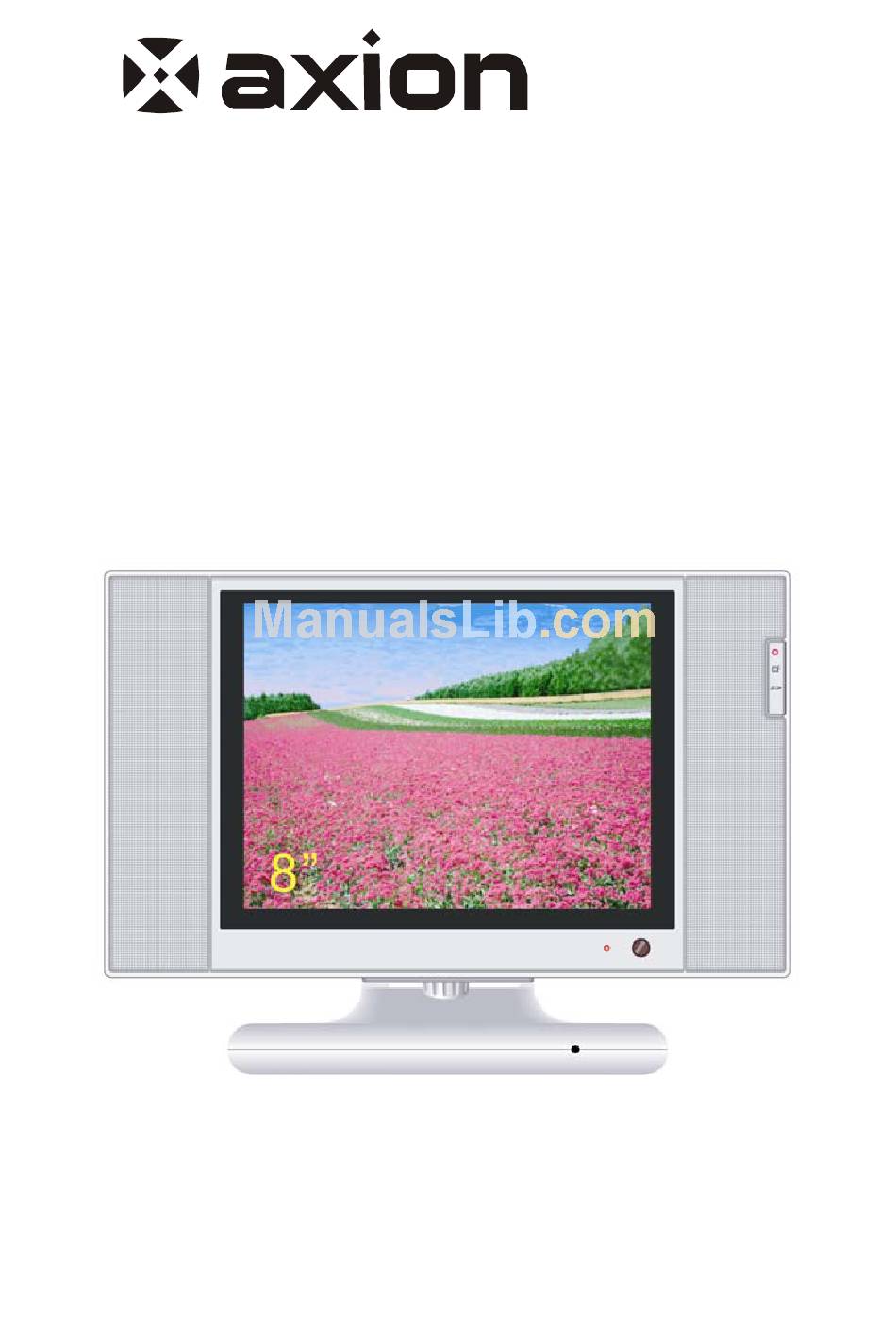

Page 1 8" TFT LCD TV with Card Reader Cat. No.16-3350 User’s Guide...
Page 2: Table Of Contents
TABLE OF CONTENTS A. Introduction --------------------------------------------------- B. Cautions and Warnings ------------------------------------ C. Package Contents ------------------------------------------ D. Indoor Installation ------------------------------------------- E. Rechargeable Battery -------------------------------------- 10 F. Controls/Indicators/Connectors -------------------------- 13 G. Remote Controls --------------------------------------------- 15 H. Card Reader -------------------------------------------------- 19 I. System Operation ------------------------------------------- 22 J.
Page 3: Introduction
A. Introduction Thank you for selecting this multi-media system, featuring an 8” LCD TV with Card Reader. It utilizes the latest state of the art electronics and is designed for use in homes, offices, hotels, and vehicles. The unit is compact so that you can take it with you almost anywhere, and is designed for easy installation.
Page 4 8. Heat — Situate the product away from any source, such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat. 9. Water — DO NOT use this product near water. For example, avoid placing it near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, etc.
Page 5 14. Power Sources — Operate this product only from the type of power source indicated on the rear panel. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. 15.
Page 6 e. If the product has been dropped or damaged in any way. f. When the product exhibits a distinct change in performance, as this indicates a need for service. 19. Replacement parts — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part.
Page 7 23. Safety Caution The Lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “ DANGEROUS VOLTAGE” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons. The Exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance...
Page 8: Package Contents
c. Connect TV into separate outlet from equipment. d. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment 25.
Page 9: Indoor Installation
D. Indoor Installation Swing up the rear metal stand and place the unit on a table or other level surface. Plug one end of the AC/DC adapter into the 12V DC IN on the right side of the main unit. Then, plug the other end into a standard AC wall outlet..
Page 10: Rechargeable Battery
E. Rechargeable Battery Rechargeable Battery Installation and Use The unit utilizes a set of long-life Ni-MH batteries for a portable power supply. Ni-MH batteries feature high storage capacity and a low level of degradation. This means that the Ni-MH batteries do not have “Memory Effect”...
Page 11 Switch for rechargeable battery 1. Switch to “On” to charge and operate the product at the same time. 2. Switch to “Off” can operate the unit but cannot be charged. NOTE: Always switch the unit off when it is not being charged.
Page 12 Using and Maintaining your Rechargeable Batteries 1. Use only the AC adapter included with the unit to recharge the battery. 2. Recharge efficiency will degrade when environmental temperatures drop below 50°F (10°C) or exceed 95°F (35°C). 3. Remove the battery from the unit and store it properly if you are not planning to use the unit for a month or more.
Page 13: Controls/Indicators/Connectors
F. Controls/Indicators/Connectors Top Panel 1. POWER On/Off 2. TV Auto PROGram 3. TV CHANNEL 4. TV CHANNEL 5. VOLUME – Down 6. VOLUME + Up 7. PICture Select 8. TV/AV/CARD Reader Switch 10. ENTER 11. MENU 12. Digital image Up 13.
Page 14: Front/Side Panel
Front/Side Panel 9. Power Indicator 16. Headphone jack 3.5 17. VIDEO IN/OUT jack Video Input/output jack 18. Left AUDIO In/Out Audio-L input/output jack 19. Right AUDIO In/Out Audio-R input/output jack 20. A/V IN/OUT Switch A/V output-input select switch 21. 12V DC IN Jack 22.
Page 15: Remote Controls
G. Remote Controls Battery Installation Remove the battery cover on the back of the remote control by gently pressing down on the knurled arrow and sliding the cover down. Install the two included AAA batteries into the back of the remote control. Replace the battery cover by gently sliding the cover back up until it snaps into place.
Page 16 1. CARD/TV/AUX Switch ― Video signals from video equipment connected to the audio/video input can be displayed on the monitor by pressing this button. Each time the button is pressed, the audio/video source will change. 2. POWER On/Off ― Turns the power of the unit on and off. 3.
Page 17 10. TV Channel ERASE WRITE ― Use this button to manually add or remove channels from the channel memory list. 11. CHannel + Up/– Down ― Pressing these buttons increase or decrease channel numbers within the channel memory list. 12. RETURN ― Press this button to return to the last channel.
Page 18 AVI : A type of AVI (Audio Video Interleave) file format that handles images and sound as a single file. Images in the file are recorded in JPEG format. Files have to be motion JPG with 15fps. 22. SLIDE ― All JPEG images in the card will automatically be displayed one by one on TV.
Page 19: Card Reader
H. Card Reader CAUTION：outdo not remove the card while the indictor light is on. The card is being read. Detail A. Thumbnail Mode: 1. Shows 9 (3x3) thumbnails on the TV at once. 2. Use Up/Down/Left/Right keys to select one JPEG image.
Page 20: Supported Cards
Supported cards CF (Compact Flash) IBM Micro Drive SD (Secure Digital) MMC (Multi Media Card) Function 1. Display JPEG Images on TV from Cards 2. Display Motion JPEG AVI on TV from Cards 3. Zoom a. Press ZOOM + in Single View Mode to enlarge a certain part of the image.
Page 21 Setup 1. Playback Functions a. Info function: Press INFO (to turn ON or OFF) to display folder info and file names. Information shown is: file name, image number, resolution, date and memory card type. b. Display function: Press DISPLAY to change between folder view and image view.
Page 22: System Operation
I. System Operation 1. Press POWER to switch the unit on or off. The switch indicator will light red and the unit will go to the mode last used and stored in memory. 2. Press CARD/TV/AUX to select your desired mode. When switching the mode, the media player can memorize the present playing point.
Page 23 2. Insert the CF or SD card into the card slot, as illustrated below. 3. 9 (3 x 3) thumbnails appear on the monitor. Use the keys to switch picture as illustrated below) 4. Press ENTER to zoom out. 5. Press MODE to change picture mode. 6.
Page 24: Watching Tv
J. Watching TV 1. Connect the coax cable line to the supplied Right angle adapter. Insert the supplied Right angle adapter into the coax input located on the bottom left side of the unit. 2. With power supplied to the system and the TV mode selected, press TV/CATV on the remote control to select the regular 69-channel Broadcast TV and the 125-Channel Cable TV (Standard Cable, HRC Cable,...
Page 25: Playing A Video Game
K. Playing a Video Game Plug the AV output from your game system into the AV IN jack on the front of the unit. You can use the attached AV cable to convert the 3.5mm AV jack on the unit to stereo phono jacks, and match the color-coded jacks to the appropriate plugs.
Page 26: Specifications
N. Specifications Display Specs: Resolution Viewing Angle Contrast Ratio Brightness Backlight Life Color System Screen type Screen size Remote Control Antenna Channels Audio output Power Input AC Power Source Operating Humidity Operating Temperature 41°F to 104°F (5° to 40°C) Storage temperature Dimensions (W x H x D) (Excluding stand) Weight...
